650 Watt LED Stadium Light | 97500 Lumens | 5000K | 100-277V

Product Overview

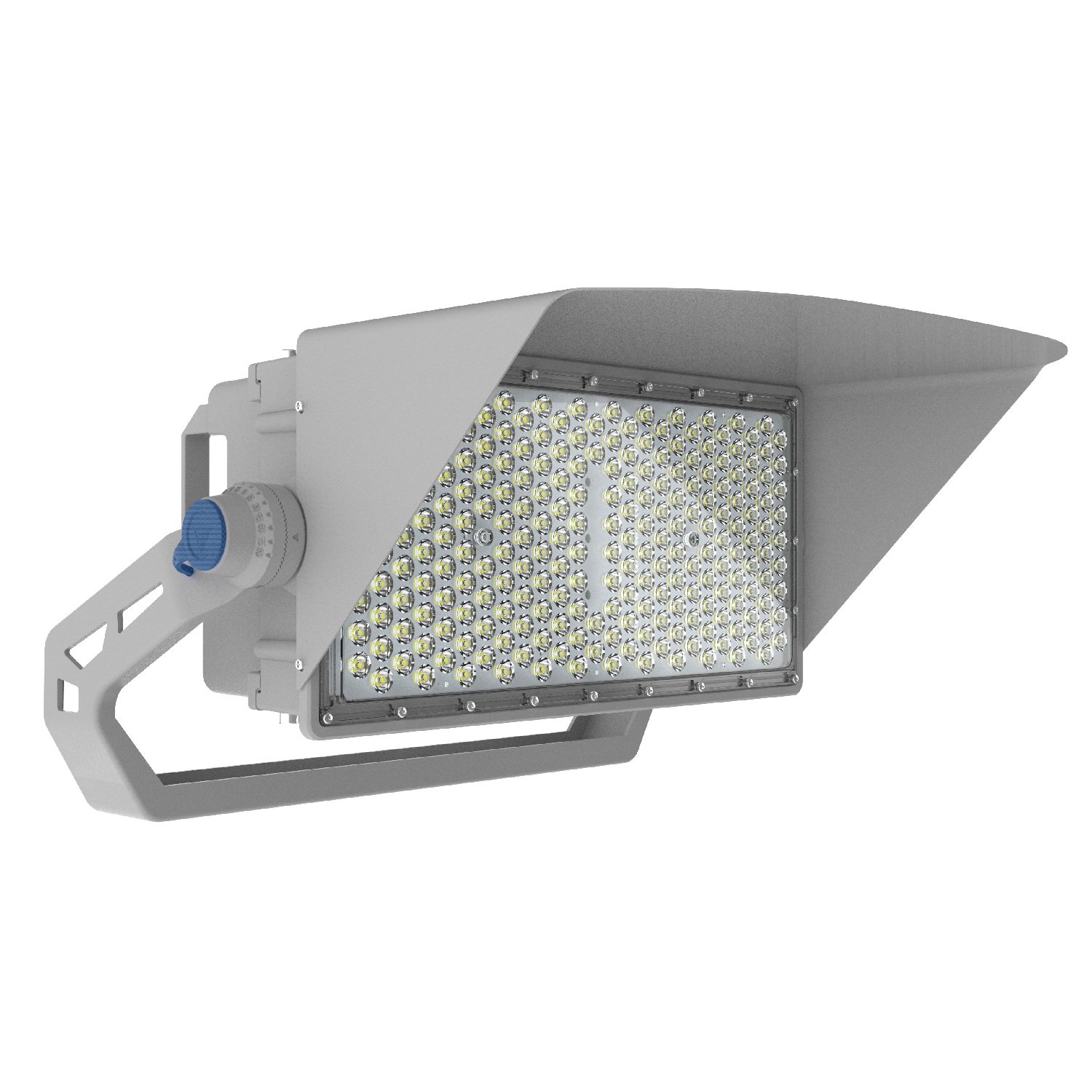

The 650 Watt LED Stadium Light is a high-output flood fixture designed for large-scale outdoor sports and area lighting. It delivers 97,500 lumens at 5000K, providing a direct replacement for 1500W metal halide systems. This model is engineered for demanding environments where uniform, high-intensity illumination is required across wide spaces such as stadiums, sports fields, and large event venues.

The fixture is built for elevated mounting heights and is suitable for installations where robust weather and impact resistance are necessary. Typical deployments include outdoor sports complexes, baseball fields, and large parking or event areas requiring consistent, high-output lighting.

Core Performance and Output

This fixture outputs 97,500 lumens at 650 watts, achieving an efficacy of 150 lumens per watt. The standard 30° beam angle provides focused, long-throw illumination suitable for field and area coverage. Optional optics (15°, 40°, 60°) allow for tailored distribution based on site requirements. The fixture operates on 100-277V input, with a 277-480V option available for higher voltage systems.

Performance is optimized for mounting heights of 40 feet and above. At lower heights, output may be excessive and increase glare. Wider beam options can reduce uniformity at extreme mounting heights or when spacing exceeds recommended patterns. The fixture is suitable for both new installations and retrofits where high-output, energy-efficient lighting is required.

Adjustability and Control Options

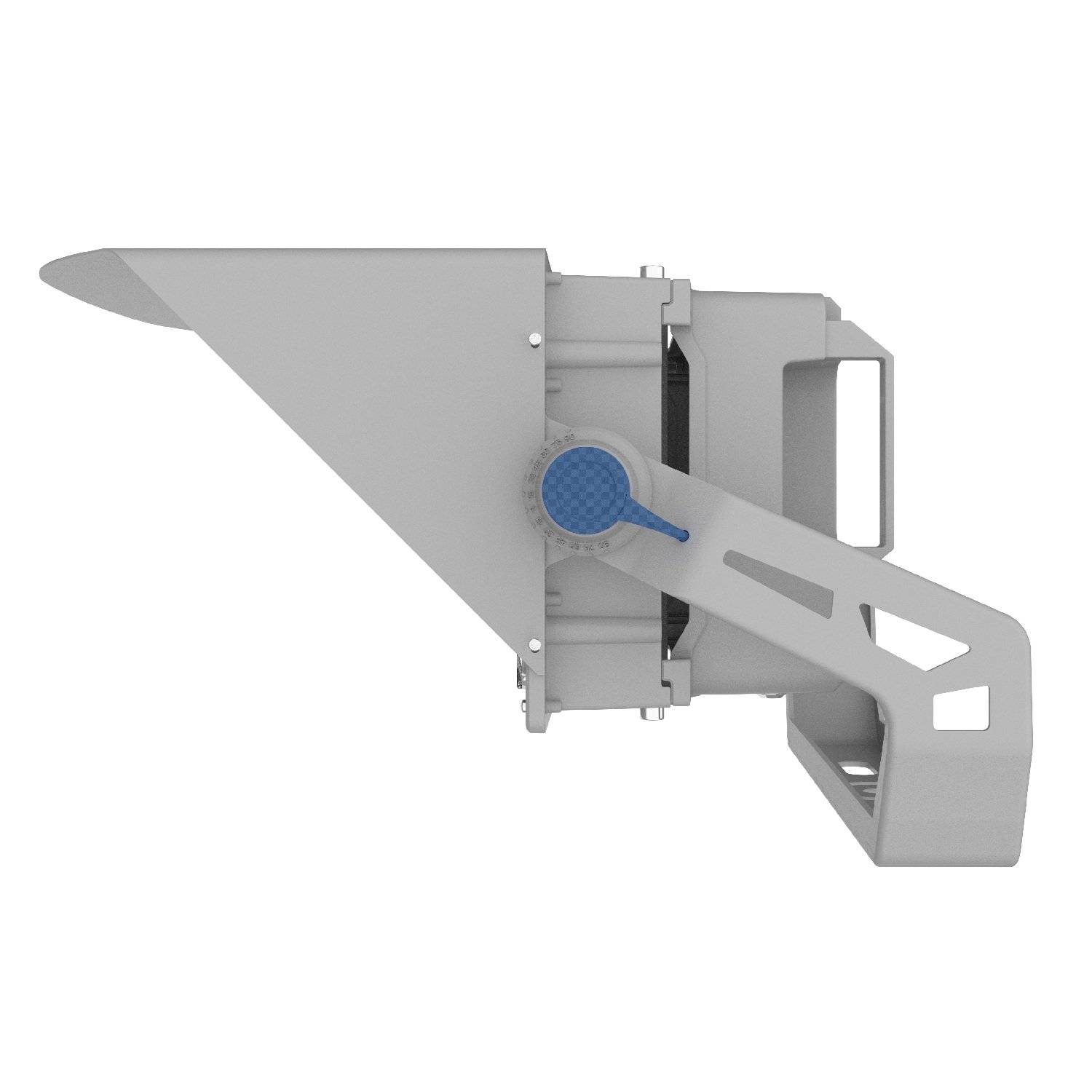

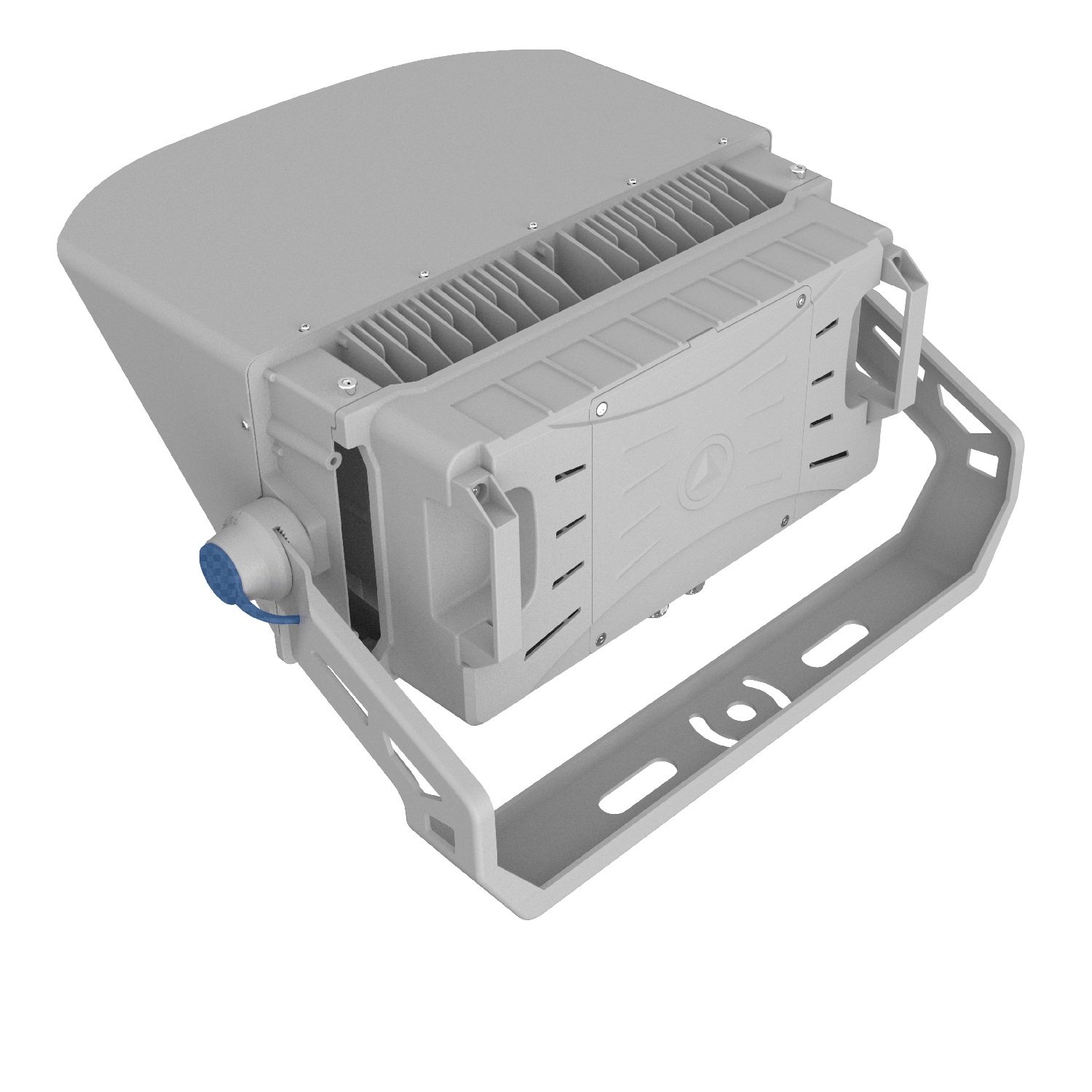

The fixture includes a yoke mount for precise aiming and alignment. An optional slip fitter is available for pole-top or tenon mounting. 0-10V dimming is standard, supporting integration with lighting controls or manual dimming systems. The fixture can be adjusted on-site to achieve optimal coverage and minimize spill light.

Accessory options include a visor for additional glare control and light cutoff. Beam angle selection should be matched to the specific field or area geometry to ensure uniformity and compliance with site requirements.

Longevity and Reliability

The fixture is rated for 50,000 hours (L70), supporting long-term operation in demanding outdoor environments. Die-cast aluminum construction and a polycarbonate lens provide impact resistance (IK09) and durability against physical contact or debris.

IP66 ingress protection ensures resistance to dust and high-pressure water, supporting reliable performance in exposed locations. Integrated 10kV surge protection guards against electrical transients common in outdoor installations.

Build Quality and Physical Characteristics

The housing is constructed from die-cast aluminum with a gray finish. The fixture measures 24 inches wide, 12.65 inches high, and 21.63 inches deep, with a total weight of 41 lbs. The polycarbonate lens is designed for high impact resistance and optical clarity.

The fixture is designed for operation in ambient temperatures from -40°F to 122°F. All hardware and mounting components are engineered for outdoor use and long-term structural integrity. EPA rating is 1.7, supporting secure mounting in high wind environments when properly installed.

Where This Product Fits Best

This fixture is intended for large outdoor environments requiring high-output, focused illumination. It is suitable for both new construction and retrofit projects where legacy metal halide systems are being replaced.

• outdoor sports facility lighting
• area lighting
• baseball field lighting
• event venue lighting
• parking lot lighting
• building facade lighting
• airport apron lighting
• security lighting

Environmental characteristics include full weather exposure, high wind potential, and locations where impact resistance and ingress protection are required. The fixture is suitable for installations where consistent, high-lumen output is needed across large, open areas.

Installation and Long-Term Use

The fixture is designed for yoke mounting to poles, crossarms, or structural supports. An optional slip fitter allows for tenon or pole-top mounting. All mounting hardware is rated for the fixture?s weight and EPA. Proper installation requires secure attachment to structures rated for the combined weight and wind load.

Routine maintenance is minimal due to the sealed, IP66-rated housing and long-life LED array. Periodic inspection of mounting hardware and electrical connections is recommended, especially in high-wind or corrosive environments. The fixture is compatible with standard 0-10V dimming controls for energy management and scheduling.

How This Fixture Is Commonly Used

Common mounting heights range from 40 to 80 feet, depending on the application and required coverage. Fixtures are typically spaced to achieve uniform illumination across fields, courts, or large areas, with layout patterns determined by beam angle and site geometry.

High-output models like this can reduce the total fixture count but may increase glare if not aimed or shielded properly. Beam selection and aiming are critical for minimizing spill light and achieving target light levels on playing surfaces or event areas.

Safety, Certifications, and Warranty

This fixture is UL listed and meets IP66 and IK09 ratings. It includes integrated 10kV surge protection. The product is covered by a 5-year warranty. All components are rated for outdoor use and comply with relevant safety and performance standards.

Frequently Asked Questions

Q: What is the recommended mounting height for this 650W stadium light?

A: Typical mounting heights range from 40 to 80 feet, depending on the area size and required light levels.

Q: Can this fixture be used to replace 1500W metal halide flood lights?

A: Yes, this fixture is designed as a direct replacement for 1500W metal halide systems in outdoor sports and area lighting applications.

Q: What beam angles are available for this model?

A: Standard beam angle is 30°. Optional optics include 15°, 40°, and 60° for different coverage requirements.

Q: Is this fixture suitable for use in high wind areas?

A: The fixture has an EPA rating of 1.7 and is designed for secure mounting in high wind environments when installed with appropriate hardware.

Q: How should fixtures be spaced for uniform field lighting?

A: Spacing depends on mounting height, beam angle, and target light levels. Layout should be determined based on site photometric analysis to ensure uniformity and compliance with lighting standards.

Application Questions and Clarification

Q: Is this fixture appropriate for use on baseball fields and outdoor sports complexes?

A: Yes, this model is commonly used for baseball field lighting and outdoor sports facility lighting due to its high output and focused beam options.

Q: Can this fixture be installed for parking lot or event venue lighting?

A: The fixture is suitable for large parking lots and event venues where high-output, wide-area illumination is required.

Q: Is this product suitable for building facade or security lighting on large commercial properties?

A: Yes, the fixture is used for building facade lighting and security lighting on large-scale commercial and industrial sites.

Q: Are there any environmental limitations for this fixture?

A: The fixture is rated for -40°F to 122°F and is IP66 and IK09 rated. It is not intended for indoor or corrosive marine environments.
