63 / 90 / 108 Watt Adjustable LED Flood Light | 9700 to 17200 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell

Product Overview

This adjustable LED flood light is designed for exterior area illumination, architectural site lighting, and building facade applications. The fixture offers selectable wattage settings of 63, 90, or 108 watts, delivering output from 9700 to 17,200 lumens. Color temperature can be set to 3000K, 4000K, or 5000K at installation. Typical mounting heights range from 15 to 30 feet, making it suitable for mid-scale site and security lighting, as well as targeted sports and event venue use.

The fixture includes a built-in photocell for dusk-to-dawn operation and supports both yoke and slip fitter mounting. It is UL listed and IP65 rated for outdoor environments, with a die-cast aluminum housing and tempered glass optics for durability in exposed locations.

Core Performance and Output

This flood light provides three selectable output levels: 9700 lumens at 63W, 14,000 lumens at 90W, and 17,200 lumens at 108W. Delivered efficacy is 155 lumens per watt. The 120° beam angle supports wide area coverage and uniform distribution for general site, security, and facade lighting. Power factor is 0.9, and total harmonic distortion is 15%.

At lower mounting heights, the highest output setting may result in excessive brightness or glare. For applications requiring precise aiming or tighter beam control, this fixture?s wide distribution may not be optimal. Output is consistent across the full 100-277V input range.

Adjustability and Control Options

Both wattage and color temperature are field adjustable using onboard switches. This allows tuning of light levels and color to match site requirements or to standardize across multiple locations. The fixture includes a built-in photocell for automatic dusk-to-dawn operation. No dimming capability is provided.

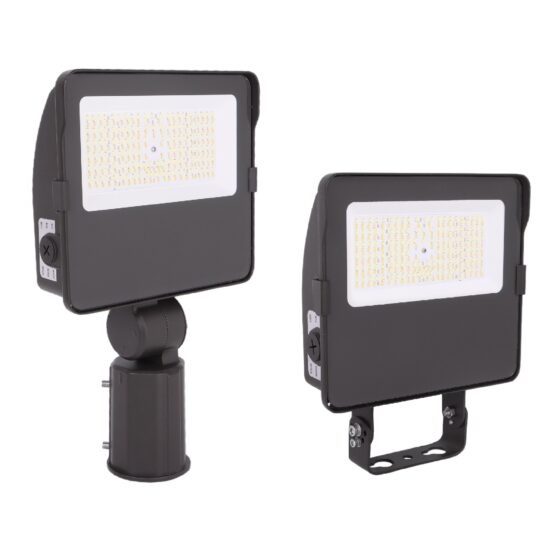

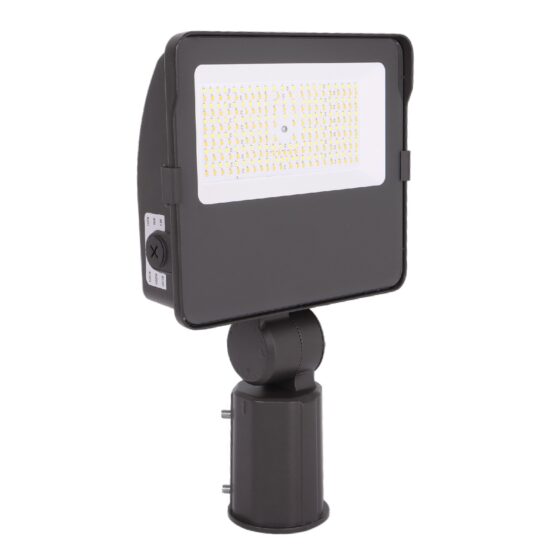

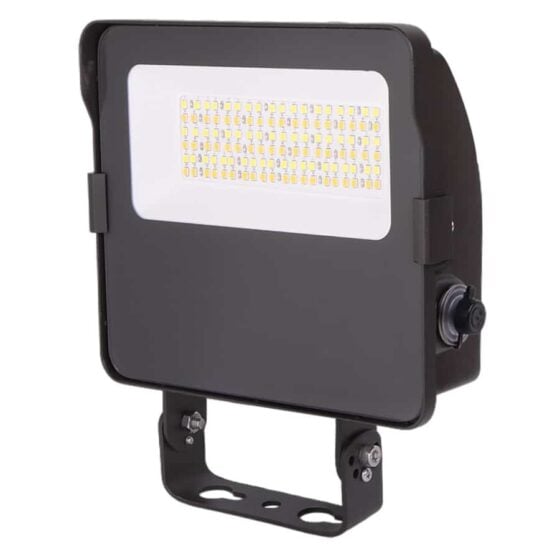

Mounting options include yoke and slip fitter, supporting installation on poles, walls, or structural brackets. The adjustable head allows for precise aiming during commissioning.

Longevity and Reliability

The fixture is rated for 50,000 hours (L70) at typical operating conditions. The die-cast aluminum housing and tempered glass lens provide resistance to impact, weather, and UV exposure. Operating temperature range is -40°F to 113°F, supporting year-round use in most climates.

Ingress protection is IP65, preventing dust and water intrusion during rain or washdown. The fixture is UL listed and carries a 5-year warranty.

Build Quality and Physical Characteristics

Housing is constructed from die-cast aluminum with a bronze finish. The fixture measures 9.2 inches wide by 11.8 inches high by 2.9 inches deep and weighs 8 pounds. The tempered glass lens protects the LED array and maintains optical clarity over time.

EPA rating is 1.0, suitable for mounting on standard poles or brackets without excessive wind loading. All hardware is designed for outdoor exposure and corrosion resistance.

Where This Product Fits Best

This LED flood light is intended for exterior area lighting, architectural site illumination, and security lighting at commercial, municipal, and institutional properties. It is also suitable for sports courts, event venues, and bridge lighting where moderate to high output is required.

• area lighting
• building facade lighting
• security lighting
• outdoor sports facility lighting
• bridge lighting
• event venue lighting
• parking lot lighting
• loading area lighting

Environments include building exteriors, parking lots, sports courts, bridges, and open event spaces. The fixture?s IP65 rating and wide operating temperature range support reliable use in outdoor and exposed locations.

Installation and Long-Term Use

The fixture supports yoke or slip fitter mounting for attachment to poles, walls, or structural brackets. All wiring is accessible from the rear housing. The adjustable head allows for precise aiming during installation. Typical mounting heights range from 15 to 30 feet, depending on output setting and site requirements.

Routine maintenance is limited to periodic cleaning of the lens and inspection of mounting hardware. The built-in photocell reduces manual intervention for daily operation. No field-serviceable components are present beyond basic cleaning and aiming adjustments.

How This Fixture Is Commonly Used

This flood light is typically installed on poles or building facades to provide wide area coverage for parking lots, site perimeters, and sports courts. Spacing between fixtures varies based on wattage setting, mounting height, and required light levels. For uniform coverage, fixtures are often spaced 2 to 3 mounting heights apart.

Higher output settings can reduce the total number of fixtures needed but may increase glare if not aimed carefully. The adjustable color temperature allows matching to existing site lighting or meeting specific visual requirements.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated. It is eligible for utility rebates where applicable. The housing and lens are designed for outdoor use and impact resistance. All electrical components are rated for 100-277V operation at 50/60 Hz.

A 5-year warranty covers manufacturing defects and LED performance. The fixture is suitable for use in wet locations and meets all relevant safety standards for exterior lighting.

Frequently Asked Questions

Q: What is the recommended mounting height for this flood light?

A: Typical mounting heights range from 15 to 30 feet, depending on the selected wattage and site requirements.

Q: Can the color temperature and wattage be adjusted after installation?

A: Yes, both color temperature and wattage are field adjustable using onboard switches inside the fixture.

Q: Is this fixture suitable for continuous operation in wet or exposed environments?

A: Yes, the fixture is IP65 rated and designed for outdoor use in rain, snow, and dust conditions.

Q: Does the built-in photocell support dusk-to-dawn operation?

A: Yes, the integrated photocell enables automatic dusk-to-dawn control without additional wiring.

Q: How should fixtures be spaced for uniform area lighting?

A: Spacing is typically 2 to 3 times the mounting height, but actual layout depends on output setting and site requirements.

Application Questions and Clarification

Q: Is this flood light appropriate for bridge lighting and architectural site illumination?

A: Yes, the fixture is commonly used for bridge lighting and architectural site illumination due to its output range and adjustability.

Q: Can this fixture be used for outdoor sports facility or event venue lighting?

A: Yes, it is suitable for outdoor sports courts and event venues where moderate to high output is needed.

Q: Is this fixture recommended for high mast or large stadium lighting?

A: No, the output and beam distribution are not designed for high mast or large stadium applications.

Q: What mounting options are available for this flood light?

A: The fixture supports both yoke and slip fitter mounting for installation on poles, walls, or brackets.
