600 Watt LED Flood Light | 84000 Lumens | 5000K | 100V-277V or 277V-480V | Marine Grade Finish

Product Overview

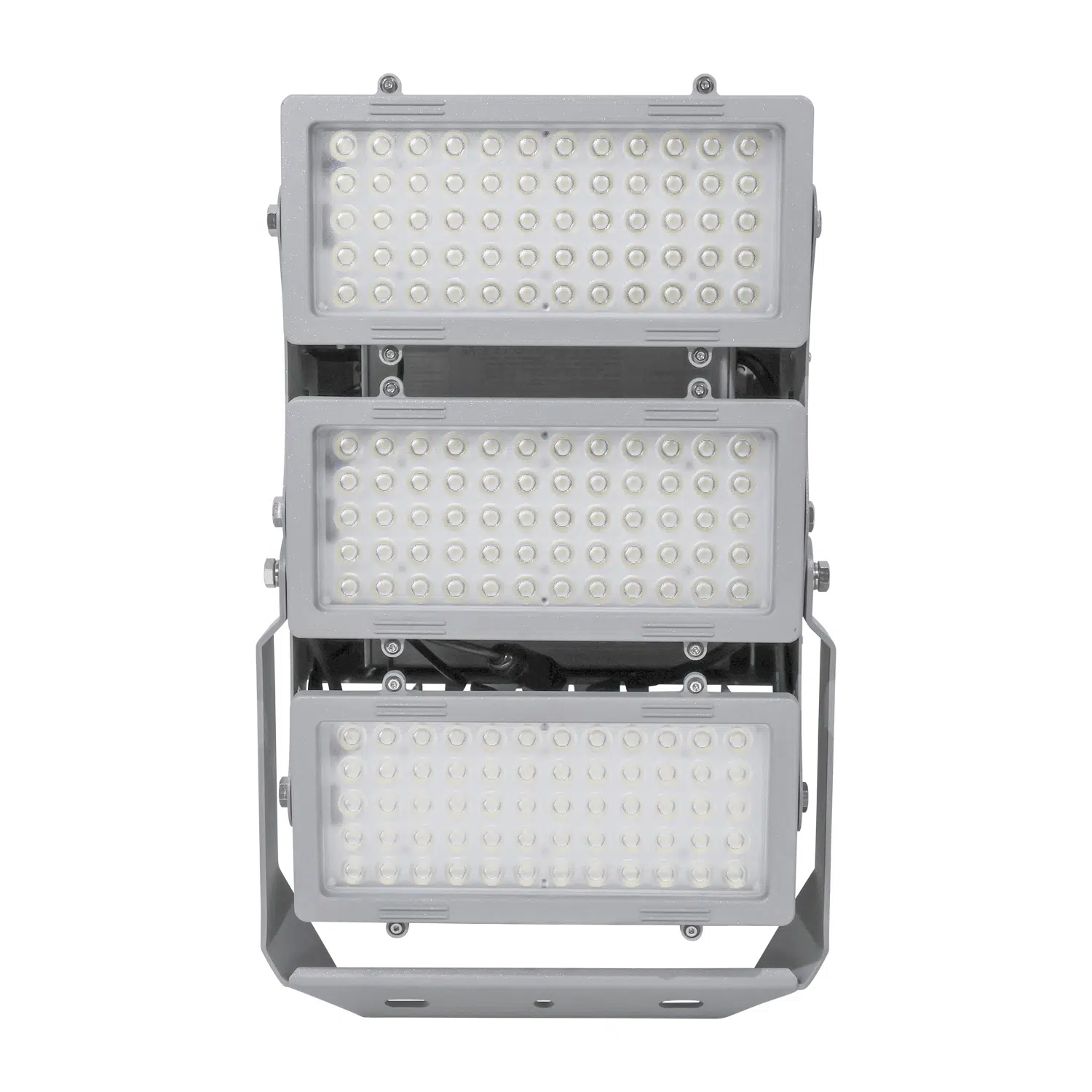

This 600 watt LED flood light produces 84,000 lumens for high-output exterior lighting installations. It is configured with a standard 60 degree beam angle and optional 10, 15, 30, and 45 degree optics for projects requiring a more concentrated distribution.

The fixture is used for large-area and outdoor sports facility lighting where pole-mounted flood lights must deliver substantial output. It replaces a 1500 watt metal halide fixture.

Core Performance and Output

The fixture delivers 140 lumens per watt at 600 watts. Available color temperatures are 4000K and 5000K, with 70+ CRI. Input voltage options are 100V-277V and 277V-480V at 50/60Hz.

The standard 60 degree distribution supports broader area coverage, while narrower optional optics concentrate output for longer throws. High output can create excessive light levels at low mounting heights, and final layout must account for mounting height, aiming, and selected optics.

Adjustability and Control Options

This flood light supports 1-10V dimming. Dimming control compatibility depends on the control equipment used in the installation.

The trunnion mount allows fixture aiming during installation. An optional slip fitter mount is available for pole-mounted installations.

Longevity and Reliability

Rated life is 176,000 hours at L70. The fixture includes 6kV line-to-line and 10kV line-to-earth surge protection.

The operating temperature range is -22F to 113F. Long-term performance depends on correct mounting, electrical connection, aiming, and maintenance of the surrounding structure.

Build Quality and Physical Characteristics

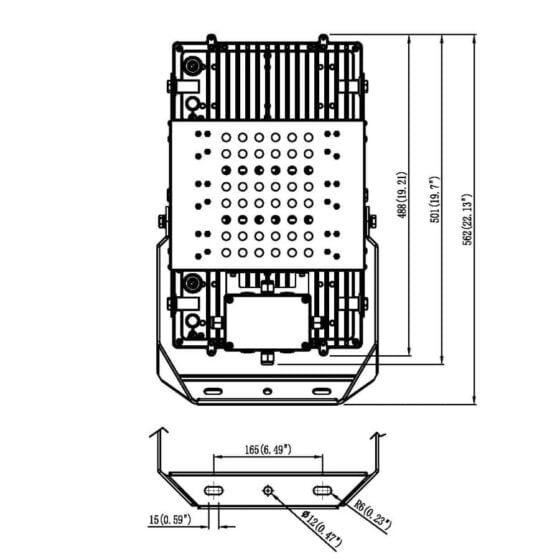

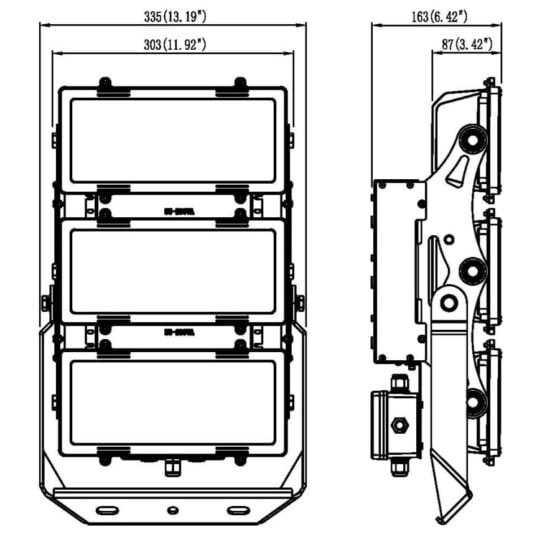

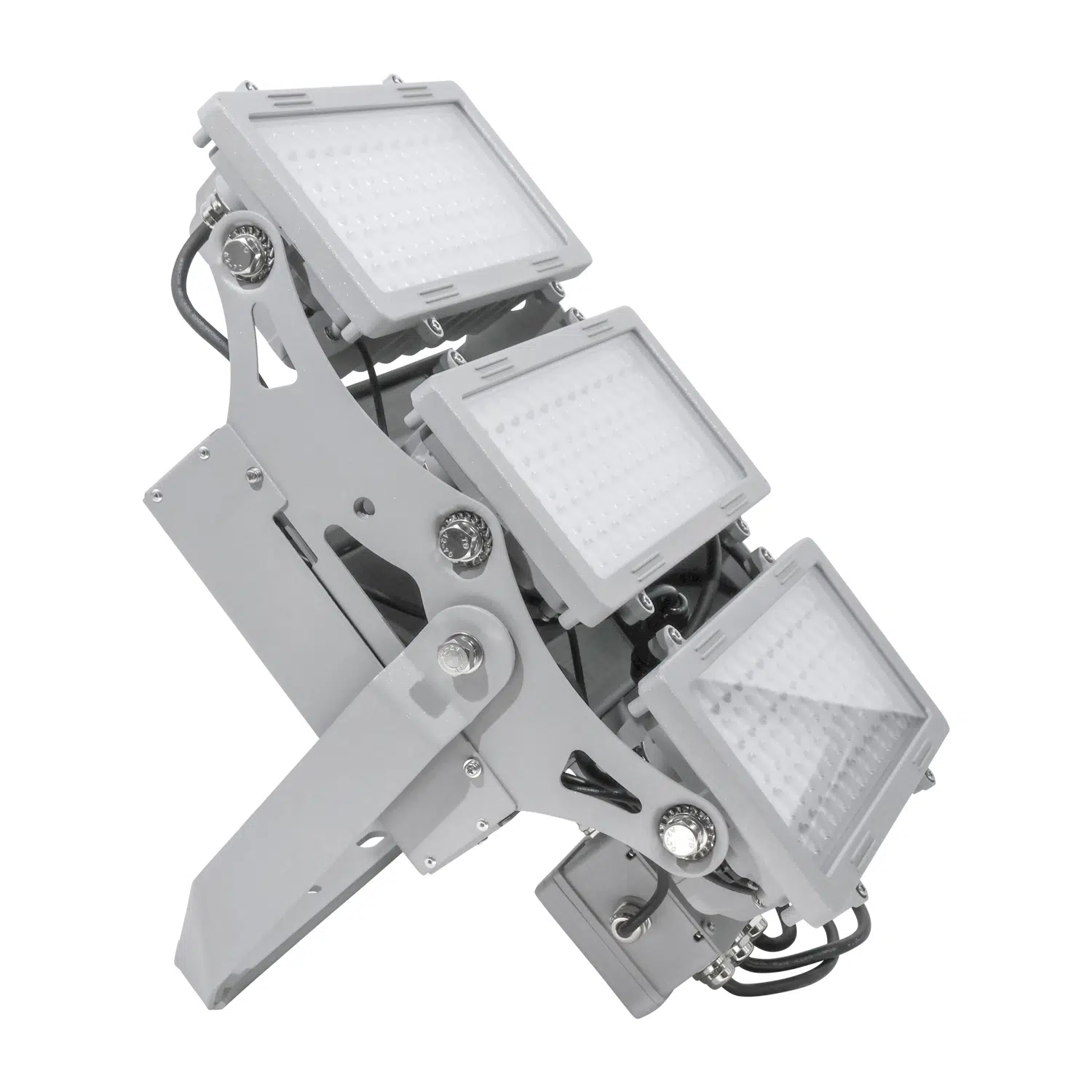

The housing is powder coated aluminum with polycarbonate optics and a tempered glass lens. The fixture is gray and measures 13.19 inches wide by 22.13 inches high by 6.42 inches deep.

Fixture weight is 38 pounds, and the included cord is 5 feet long. The standard C4 marine grade finish meets ISO 12944 C4 Marine Grade Specification, with C5-H available as an option.

Where This Product Fits Best

This fixture fits exterior installations requiring high output, controlled aiming, and durable weather exposure protection. Its marine grade finish supports locations where corrosion resistance is a project consideration.

• outdoor sports facility lighting
• baseball field lighting
• parking lot lighting
• loading area lighting
• airport apron lighting
• port and shipyard lighting

IP66 and IK08 ratings support outdoor exposure and impact resistance. The 2.3 EPA rating must be considered with the selected pole, mounting height, and local wind loading requirements.

Installation and Long-Term Use

Installations use the trunnion mount where adjustable aiming is required or the optional slip fitter for compatible pole-top mounting. The fixture, mount, pole or structure, and wiring method must support the 38 pound fixture weight and 2.3 EPA rating.

Mounting heights affect beam spread, aiming angle, glare control, and uniformity. Confirm voltage selection before installation because the fixture is available in separate 100V-277V and 277V-480V configurations.

How This Fixture Is Commonly Used

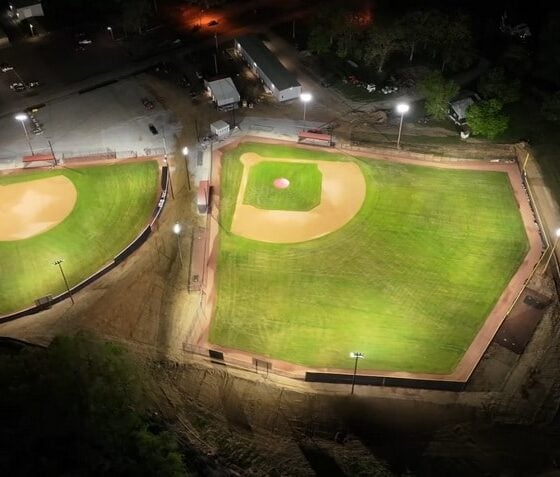

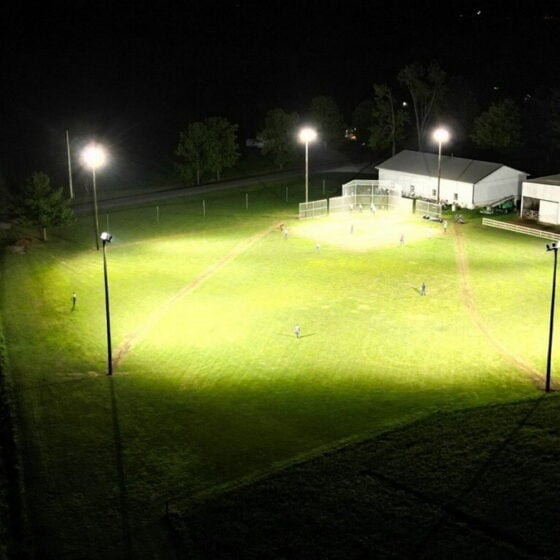

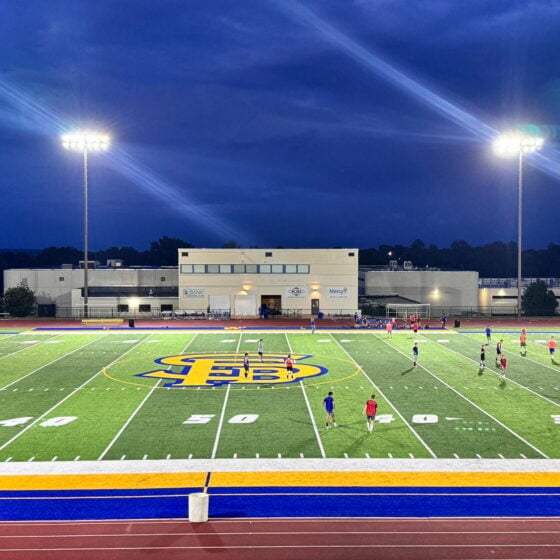

For outdoor sports facility lighting and baseball field lighting, fixtures are aimed from elevated mounting positions to direct output across the intended playing area. Narrow optics are used where a concentrated throw is required, while the standard 60 degree optic provides a wider distribution.

For parking lot lighting, loading area lighting, airport apron lighting, and port and shipyard lighting, layouts are based on mounting heights, target light levels, aiming direction, and available structure locations. Higher output can reduce fixture count, but it can also require more careful aiming to manage glare and uniformity.

Safety, Certifications, and Warranty

This fixture is ETL listed and DLC Premium listed. It is IP66 rated and IK08 rated.

The warranty is 5 years. The standard finish meets ISO 12944 C4 Marine Grade Specification.

Frequently Asked Questions

Q: What is the lumen output of this 600 watt LED flood light?

A: The fixture produces 84,000 lumens at 140 lumens per watt.

Q: What beam angles are available?

A: The standard beam angle is 60 degrees. Optional beam angles are 10, 15, 30, and 45 degrees.

Q: Can this flood light be dimmed?

A: Yes. The fixture supports 1-10V dimming.

Q: What mounting options are available?

A: The standard mounting method is a trunnion mount. A slip fitter mount is available as an option.

Q: What should be considered when planning fixture layout?

A: Mounting height, selected beam angle, aiming direction, target light levels, pole or structure capacity, and project layout requirements affect fixture placement. Specific spacing values are not established by the supplied product data.

Application Questions and Clarification

Q: Is this fixture appropriate for baseball field lighting?

A: Baseball field lighting is a listed application. The 84,000 lumen output and available narrow beam angles support projects requiring controlled long-throw distribution.

Q: Can this fixture be used for port and shipyard lighting?

A: Port and shipyard lighting is a listed application. The fixture has a standard C4 marine grade finish, with C5-H available as an option.

Q: What electrical configurations are available for the installation?

A: The fixture is available in 100V-277V and 277V-480V configurations at 50/60Hz.
