600 Watt LED Flood Light | 84000 Lumens | 5000K | 100V-277V or 277V-480V

Product Overview

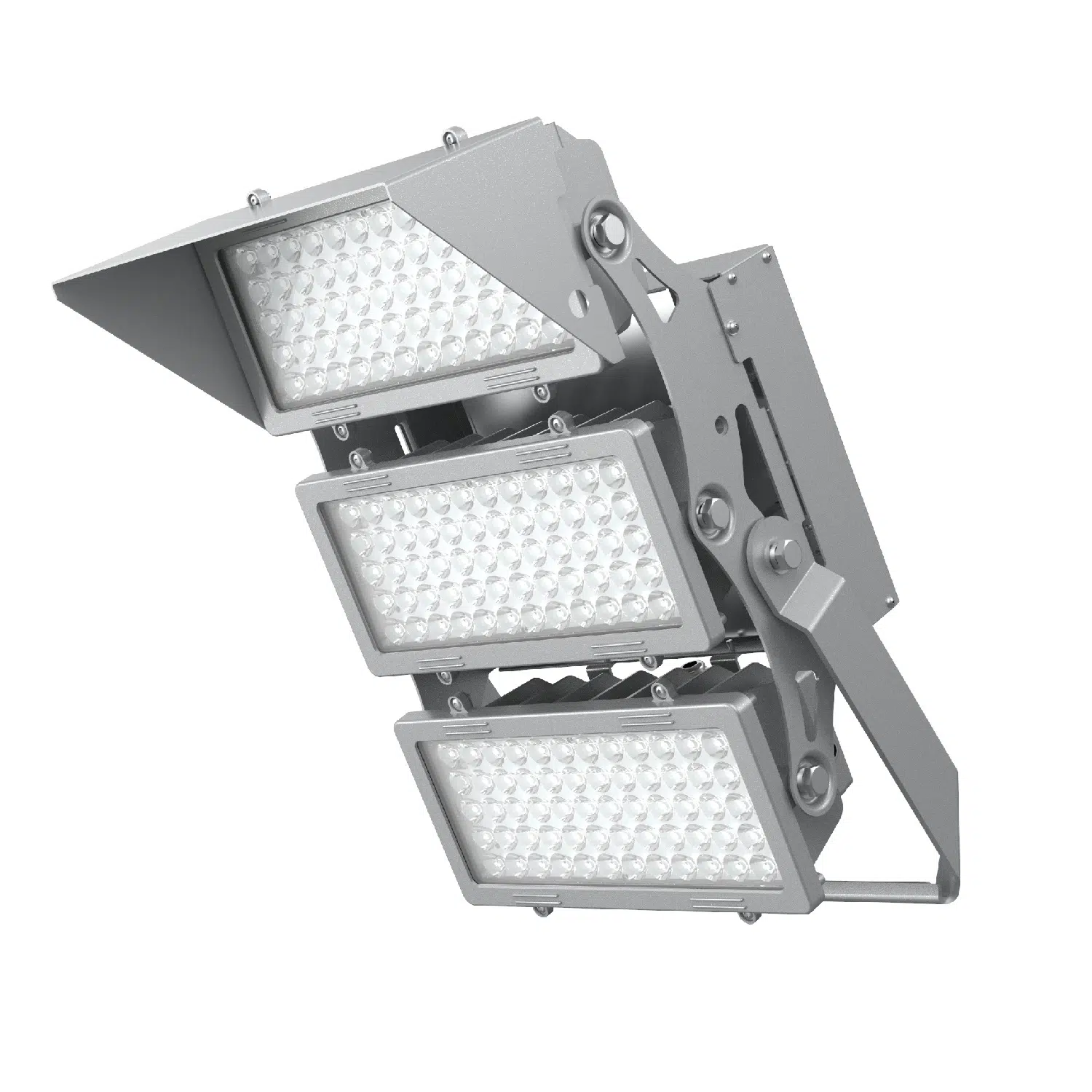

This 600 Watt LED Flood Light is engineered for high-output exterior lighting in demanding environments. It delivers 84,000 lumens at 5000K, supporting both 100V-277V and 277V-480V operation. The fixture is designed for large-scale area and sports facility lighting, with a trunnion mount as standard and an optional slip fitter for pole mounting.

Commonly used as a 1500W metal halide replacement, this flood light is suitable for mounting heights from 30 to 60 feet, depending on the application and beam angle. The IP66 and IK08 ratings support use in exposed outdoor locations, including stadiums, sports fields, and industrial sites.

Core Performance and Output

This fixture provides 84,000 lumens at 140 lumens per watt, supporting high-illumination requirements for large outdoor areas. Multiple beam angle options (60°, 10°, 15°, 30°, 45°) allow for tailored light distribution, from wide area coverage to focused projection for sports fields or building facades. The 1-10V dimming capability supports integration with lighting controls for energy management or event-based adjustments.

Electrical performance is stable across a wide voltage range, with surge protection rated at 6kV line-line and 10kV line-earth. Excessive output may require careful aiming or shielding at lower mounting heights to control glare. At mounting heights above 60 feet, uniformity may be reduced depending on beam selection and spacing.

Adjustability and Control Options

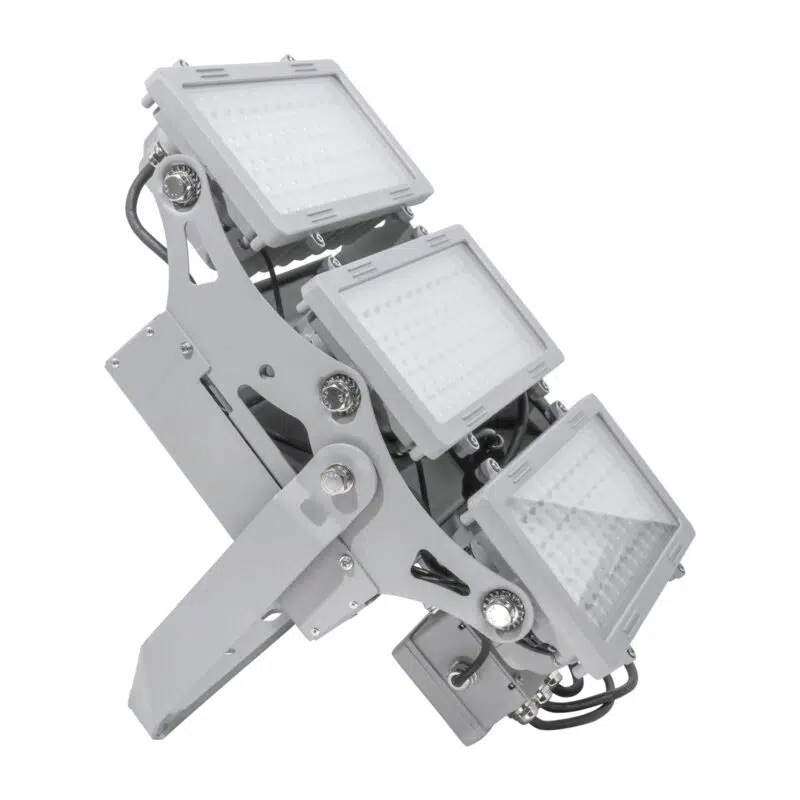

The standard trunnion mount provides flexible aiming for precise light placement. An optional slip fitter is available for pole-top installations, supporting both new and retrofit projects. The fixture supports 1-10V dimming for integration with external controls, occupancy sensors, or scheduling systems.

Beam angle selection allows adaptation to site-specific requirements, from wide area lighting to narrow beam sports field applications. Adjustability is mechanical, with no onboard wireless controls.

Longevity and Reliability

The fixture is rated for 176,000 hours (L70), supporting long-term deployment in high-use environments. The powder-coated aluminum housing and marine grade finish option (ISO 12944 C4) provide resistance to corrosion and harsh weather.

IP66 ingress protection and IK08 impact resistance support reliable operation in exposed locations, including areas subject to wind-driven rain or incidental impacts. Surge protection is integrated to reduce risk from electrical disturbances.

Build Quality and Physical Characteristics

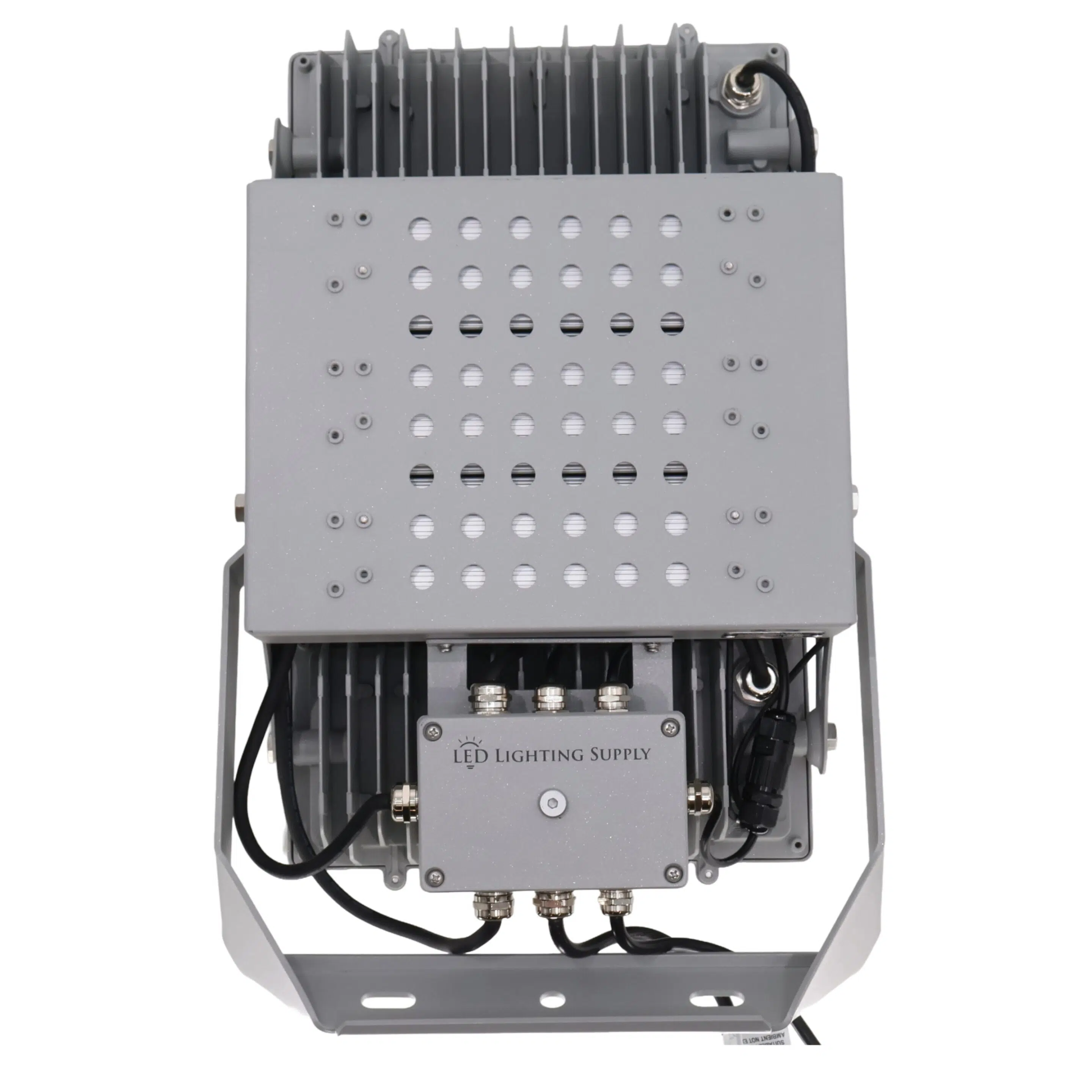

The housing is constructed from powder-coated aluminum with a tempered glass lens and polycarbonate optics. The fixture measures 13.19 inches wide by 22.13 inches high by 6.42 inches deep and weighs 38 pounds. The 5-foot cord supports flexible wiring during installation.

EPA rating is 2.3, suitable for mounting on poles or structures rated for the corresponding wind load. The marine grade finish option is available for coastal or corrosive environments.

Where This Product Fits Best

This 600W LED Flood Light is designed for large outdoor areas and sports facilities requiring high-output, durable lighting. It is suitable for both new construction and retrofit projects where 1500W metal halide fixtures are being replaced. The fixture is commonly deployed in environments exposed to weather, impact, and high usage cycles.

• outdoor sports facility lighting
• area lighting
• baseball field lighting
• event venue lighting
• building facade lighting
• airport apron lighting
• parking lot lighting
• security lighting

Environmental characteristics include IP66 water and dust protection, IK08 impact resistance, and optional marine grade finish for coastal or corrosive locations. The fixture operates reliably from -22°F to 113°F.

Installation and Long-Term Use

Standard installation uses the trunnion mount for attachment to flat surfaces or structural members. The optional slip fitter supports pole mounting for area and sports field applications. The fixture?s weight and EPA require secure mounting to structures rated for wind load and vibration.

Long-term maintenance is minimized by the sealed housing and robust finish. The 5-foot cord allows for flexible connection to junction boxes or conduit. Periodic inspection of mounting hardware and aiming is recommended, especially in high-wind or high-vibration environments.

How This Fixture Is Commonly Used

This flood light is typically mounted at heights between 30 and 60 feet, depending on the application and required coverage. For sports fields and large event venues, fixtures are spaced to provide uniform illumination and minimize shadows, often using a combination of beam angles for optimal coverage.

In area and parking lot lighting, wider beam angles are selected for broader coverage with fewer fixtures. Higher output can reduce fixture count but may require careful aiming to control glare and light trespass.

Safety, Certifications, and Warranty

This fixture is ETL listed and DLC Premium qualified. It carries an IP66 rating for water and dust ingress and an IK08 impact rating. Surge protection is built in. The marine grade finish option meets ISO 12944 C4 specification. The product is covered by a 5-year warranty.

Frequently Asked Questions

Q: What is the recommended mounting height for this 600W flood light?

A: Typical mounting heights range from 30 to 60 feet, depending on the application and beam angle selected.

Q: Can this fixture be used in coastal or marine environments?

A: Yes, the optional marine grade finish meets ISO 12944 C4 for use in coastal or corrosive environments.

Q: What mounting options are available?

A: The fixture comes standard with a trunnion mount and is also available with an optional slip fitter for pole mounting.

Q: How many fixtures are needed for a baseball field?

A: Fixture count depends on field size, mounting height, and required light levels. Typical layouts use multiple fixtures per pole with beam angles selected for uniform coverage.

Q: Is this fixture compatible with lighting controls?

A: Yes, it supports 1-10V dimming for integration with external controls, sensors, or scheduling systems.

Application Questions and Clarification

Q: Is this flood light suitable for use on airport aprons?

A: Yes, the output and durability support use in airport apron lighting applications.

Q: Can this fixture be used for building facade lighting at high mounting heights?

A: Yes, with appropriate beam angle selection, it is suitable for building facade lighting at elevated mounting positions.

Q: Is this product appropriate for event venue lighting where high uniformity is required?

A: Yes, the fixture?s output and beam options support event venue lighting with high uniformity when properly spaced and aimed.

Q: Does the fixture require special maintenance in outdoor sports facility applications?

A: Routine inspection of mounting hardware and aiming is recommended, especially in high-wind or high-vibration environments.
