600 Watt LED Sports Flood Light | 90000 Lumens | 5700K | 100-277V or 277-480V | Optional Remote Driver
The 600 Watt LED Sports Flood Light is an excellent choice for stadium and sports field lighting, offering 90,000 lumens and a high efficacy of 150 lumens per watt, effectively replacing 1500 Watt metal halide fixtures. Its robust construction, featuring a powder-coated aluminum housing and IP66 rating, ensures durability in harsh environments. The fixture’s versatility is enhanced by multiple beam angles and color temperatures, making it suitable for diverse applications. With ETL and DLC Premium certifications, a 200,000-hour lifespan, and advanced surge protection, this fixture promises reliability and energy efficiency in demanding outdoor settings.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 600 |
| Lumens | 90000 |
| Lumens Per Watt | 150 |
| Replaces | 1500 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 3000K or 4000K or 5700K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 60° |
| Beam Angles (Opt) | 10° or 30° or 45° or Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 200,000 (L70) hours |
| Mounting | Yoke |
| Mounting (Opt) | Slip Fitter |
| EPA Rating | 1.35 |
| Fixture Color | Black |
| Frequency (Hz) | 50/60 |
| Power Factor | .97 |
Durable Construction
| Housing | Powder Coated Aluminum |
| Corrosion Resistance | C4 Marine Grade Standard |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 10KV line-line, 20KV line-earth |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 18.8 W X 11.2 H X 7.3 D |
| Weight (lbs) | Fixture body 17.2 lbs Driver Box 10.4 |
| Cord Length | 4 Feet |
Features/Accessories
- Marine Grade
- Aiming Laser
- Visor
Standard Marine Grade Finish: Meets ISO 12944 C4 Marine Grade Specification
Product SKU Variations
- SKU: MLLG-LED-HPSL-600-57-60
- SKU: MLLG-LED-HPSL-600-57-60-HV
Product Overview
This 600 watt LED sports flood light produces 90,000 lumens for outdoor sports facility lighting, area lighting, and other large exterior layouts. It is available in 3000K, 4000K, and 5700K color temperatures with 80+ CRI.
The fixture uses a powder-coated aluminum housing, polycarbonate lens, and yoke mount. It replaces 1500 watt metal halide flood fixtures where equivalent output and fixture aiming are required.
Core Performance and Output
This flood light delivers 150 lumens per watt from a 600 watt input. It operates on 100-277V or 277-480V systems at 50/60 Hz and has a 0.97 power factor.
The standard 60 degree beam angle supports broad area coverage. Optional 10 degree, 30 degree, 45 degree, and Type 3 optics allow the beam pattern to match the layout and aiming requirement.
The 90,000-lumen output can be excessive at lower mounting heights without proper aiming and optical selection. Narrower optics concentrate output over longer distances, while wider distributions cover larger areas with less concentrated light.
Adjustability and Control Options
0-10V dimming is included for compatible lighting controls. Dimming can be applied where the project requires reduced output during selected operating periods.
The yoke mount allows fixture aiming during installation. An optional slip fitter mount is available for pole-mounted installations.
Longevity and Reliability
The fixture is rated for 200,000 hours L70 life. Surge protection is rated at 10KV line-line and 20KV line-earth.
Its operating temperature range is -22F to 122F. The five-year warranty applies to the fixture.
Build Quality and Physical Characteristics
The housing is powder-coated aluminum with a black finish. The standard C4 marine grade finish meets ISO 12944 C4 Marine Grade Specification.

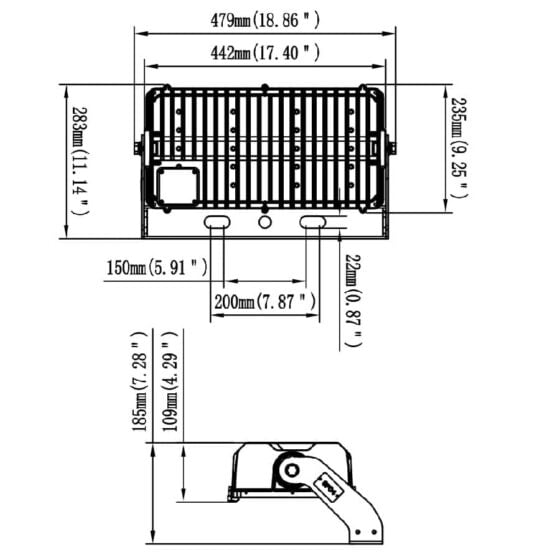

The polycarbonate lens is paired with an IP66 rating and IK08 impact rating. Fixture dimensions are 18.8 inches wide by 11.2 inches high by 7.3 inches deep.

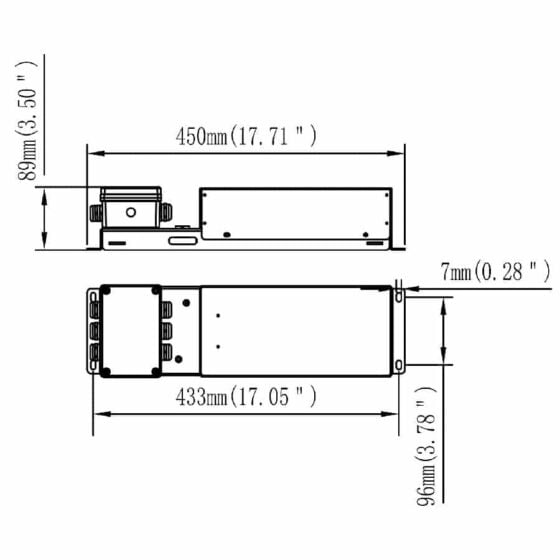

The fixture body weighs 17.2 pounds, and the driver box weighs 10.4 pounds. A four-foot cord is included, and the fixture has an EPA rating of 1.35.
Where This Product Fits Best
This fixture fits large outdoor lighting layouts that require high output, controlled beam direction, and durable exterior construction. Its available optics support applications with different throw distances and coverage patterns.
- outdoor sports facility lighting
- area lighting
- baseball field lighting
- basketball court lighting
- tennis court lighting
- parking lot lighting
The IP66 enclosure, IK08 rating, C4 marine grade finish, and -22F to 122F operating range support exterior installations exposed to weather and physical impact.
Installation and Long-Term Use
The standard yoke mount requires a stable mounting surface that allows fixture aiming. The optional slip fitter mount is intended for compatible pole-mounted installations.
Mounting height, aiming direction, wind exposure, and the EPA rating must be reviewed with the supporting structure. The separate driver box adds 10.4 pounds to the installed assembly.
An aiming laser and visor are available accessories. Final aiming should account for the selected optic and the required light distribution.
How This Fixture Is Commonly Used
In outdoor sports facility lighting and baseball field lighting layouts, fixtures are aimed from elevated mounting positions to direct output toward the active area. The selected optic determines whether the fixture provides concentrated throw or broader coverage.
For area lighting and parking lot lighting, fixtures are arranged around the site perimeter or on poles to control coverage across the planned area. Mounting height and fixture aiming remain project-specific variables.
Higher output can reduce fixture count, but it requires careful optical selection and aiming to control glare and maintain uniformity. Layout spacing depends on mounting height, selected optic, target light levels, and site geometry.
Safety, Certifications, and Warranty
This fixture is ETL certified and DLC Premium certified. It has an IP66 rating and IK08 rating.
The fixture includes 10KV line-line and 20KV line-earth surge protection. The warranty is five years.
Frequently Asked Questions
Q: What is the light output of this 600 watt sports flood light?
A: The fixture produces 90,000 lumens at 150 lumens per watt.
Q: What voltage options are available?
A: The fixture is available in 100-277V or 277-480V configurations.
Q: Can this flood light be dimmed?
A: Yes. It includes 0-10V dimming.
Q: What beam angles are available?
A: The standard beam angle is 60 degrees. Optional optics include 10 degree, 30 degree, 45 degree, and Type 3 distributions.
Q: What affects fixture layout and spacing?
A: Mounting height, selected optic, target light levels, aiming direction, and site geometry affect layout and spacing. The supplied product data does not establish a fixed spacing value.
Application Questions and Clarification
Q: Is this fixture appropriate for outdoor sports facility lighting?
A: The 90,000-lumen output, available optics, yoke mount, and aiming laser accessory support outdoor sports facility lighting layouts that require directed high-output illumination.
Q: What should be reviewed for baseball field lighting layouts?
A: Mounting height, optic selection, aiming direction, target light levels, and supporting structure requirements should be reviewed. The fixture has an EPA rating of 1.35.
Q: Can this fixture be configured for parking lot lighting?
A: The optional Type 3 optic and optional slip fitter mount can be considered for parking lot lighting layouts. Final placement depends on the project layout and mounting conditions.
Q: What environmental ratings apply to area lighting installations?
A: The fixture has an IP66 rating, IK08 rating, C4 marine grade finish, and an operating temperature range of -22F to 122F.
