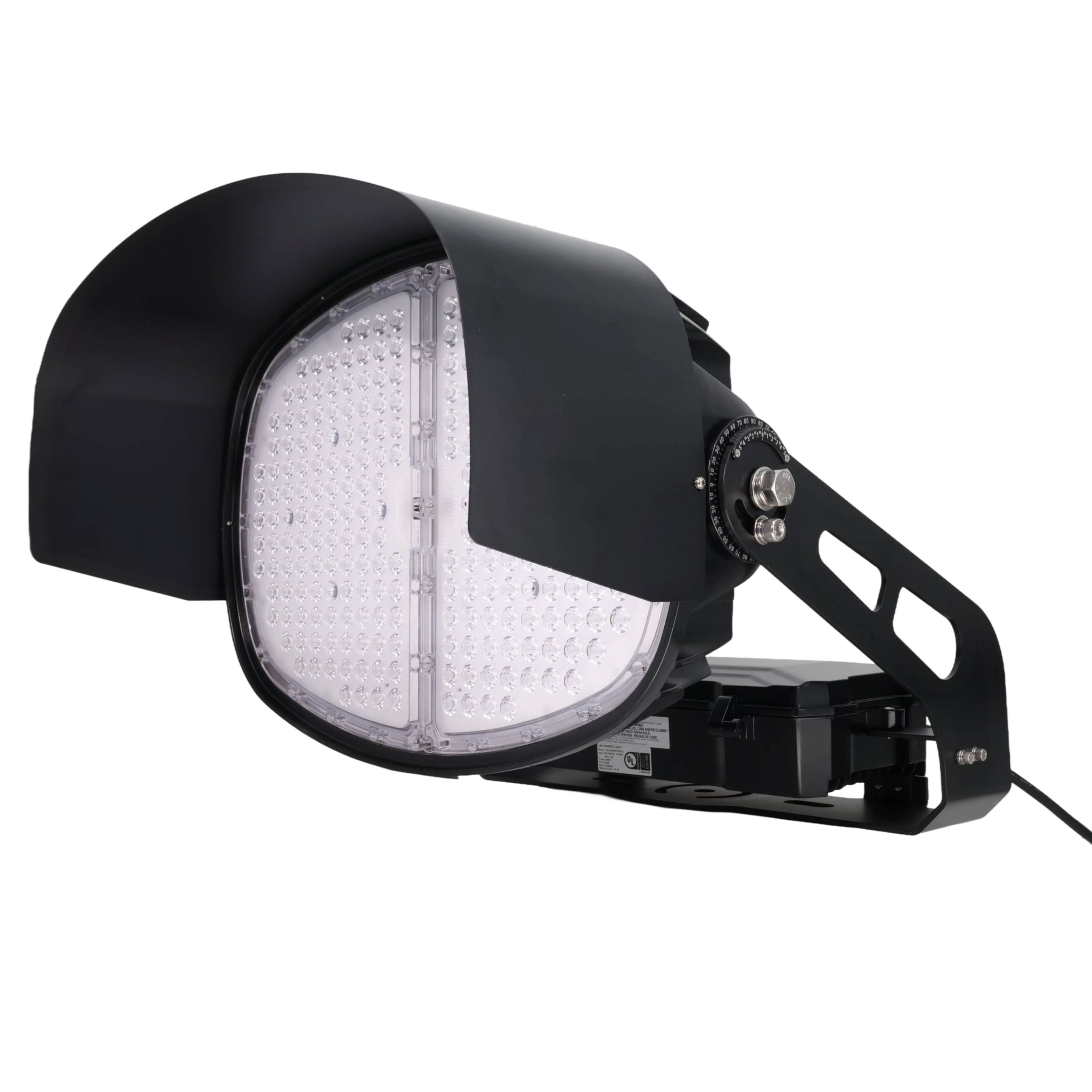

600 Watt LED Oval Sports Light | 93000 Lumens | 5700K | 100V-277V or 277V-480V

Product Overview

We offer the 600 Watt LED Oval Sports Light for high-output outdoor flood and sports lighting. This fixture is designed for large-scale applications requiring precise, high-lumen performance, such as stadiums and baseball fields. The yoke-mounted design and 30° optic provide focused, long-throw illumination suitable for mounting heights typical of sports field lighting and large outdoor venues.

This model is a direct replacement for legacy 1500W metal halide flood lights, delivering 93,000 lumens at 5700K. It is built for demanding exterior environments, with a powder-coated aluminum housing, IP66 ingress protection, and IK08 impact resistance.

Core Performance and Output

This 600W LED sports flood light produces 93,000 lumens at 155 lumens per watt. The 30° beam angle delivers a concentrated, controlled light pattern for long-throw applications and minimizes spill. Polycarbonate optics maintain clarity and resist yellowing over time. The fixture supports 0-10V dimming for output adjustment and is available in 100-277V or 277-480V configurations.

At lower mounting heights, the output may be excessive and increase glare. For optimal uniformity and coverage, mounting heights above 40 feet are typical. Wider beam options (20° or 60°) are available separately for alternate distribution needs.

Adjustability and Control Options

The yoke mount allows for precise aiming and secure installation on poles, crossarms, or structural supports. The fixture supports 0-10V dimming for integration with lighting controls or manual output adjustment. This enables tailored light levels for events, energy management, or compliance with local ordinances.

Optics can be changed to 20° or 60° beam angles if required for specific site layouts or to address spill light concerns. The fixture includes 20kV surge protection for electrical reliability in outdoor environments.

Longevity and Reliability

This fixture is rated for 170,000 hours (L70), supporting long-term operation in demanding outdoor conditions. The powder-coated aluminum housing resists corrosion and physical damage. Polycarbonate optics maintain performance over time and withstand impact.

Operating temperature range is -40°F to 122°F. The fixture is designed for continuous use in all climates, including high-humidity and dust-prone environments. Routine maintenance is limited to periodic cleaning and inspection of mounting hardware.

Build Quality and Physical Characteristics

The housing is constructed from powder-coated aluminum for durability and corrosion resistance. The fixture measures 24.4 in wide by 18.9 in high by 25.6 in deep and weighs 60 lbs. IK08 impact rating and IP66 ingress protection ensure resistance to weather and physical impact.

Polycarbonate optics provide high light transmission and resist yellowing. The fixture is finished in black and includes a 3-foot cord for wiring. Yoke mount hardware is included for secure attachment to structural supports.

Where This Product Fits Best

This 600W LED flood light is designed for large outdoor sports and area lighting applications where high output and precise beam control are required. It is suitable for new installations or as a direct replacement for 1500W metal halide flood lights in similar environments.

• outdoor sports facility lighting
• baseball field lighting
• area lighting
• event venue lighting
• building facade lighting
• parking lot lighting
• airport apron lighting
• security lighting

Environmental characteristics include full weather resistance, impact protection, and operation in a wide temperature range. The fixture is suitable for exposed outdoor locations and high-mounting applications.

Installation and Long-Term Use

The yoke mount supports installation on poles, crossarms, or structural frames. The fixture?s weight and EPA rating (2.5) should be considered when selecting mounting hardware and pole size. A 3-foot cord is provided for wiring; field connections should be made in weatherproof junction boxes.

Routine inspection of mounting hardware and cleaning of optics is recommended for long-term performance. The fixture?s surge protection and robust housing reduce maintenance frequency compared to legacy HID systems. Dimming and aiming adjustments can be made post-installation as needed.

How This Fixture Is Commonly Used

This fixture is typically installed at mounting heights of 40 to 80 feet, depending on the application and site layout. For baseball fields and sports venues, fixtures are spaced to provide uniform coverage and minimize shadows, often mounted on poles or crossarms at field perimeters.

In area and security lighting, spacing and aiming are determined by required light levels and site geometry. Higher output allows for wider spacing but may require careful aiming to control glare and spill light. Beam angle selection impacts both coverage and fixture count.

Safety, Certifications, and Warranty

This fixture is UL listed and rebate eligible. It carries an IP66 ingress protection rating and IK08 impact rating. Surge protection is rated at 20kV. The product is covered by a 5-year warranty.

All certifications and ratings are documented for code compliance and site acceptance. The fixture is suitable for use in outdoor, wet, and exposed environments.

Frequently Asked Questions

Q: What is the recommended mounting height for this 600W LED sports flood light?

A: Typical mounting heights range from 40 to 80 feet, depending on the application and required coverage.

Q: Can the beam angle be changed after installation?

A: Yes, 20° and 60° optics are available separately and can be field-installed to adjust the beam pattern.

Q: What is the EPA rating and how does it affect pole selection?

A: The fixture has an EPA rating of 2.5. Pole and mounting hardware must be selected to support this EPA and the fixture?s 60 lb weight under local wind load conditions.

Q: Is this fixture compatible with 480V electrical systems?

A: Yes, a 277-480V version is available for high-voltage installations.

Q: How many fixtures are needed for a standard baseball field?

A: Fixture count depends on field size, mounting height, and required light levels. Typical layouts use 6 to 12 fixtures per field, but a photometric plan is recommended for precise results.

Application Questions and Clarification

Q: Is this fixture suitable for use in parking lot lighting applications?

A: Yes, this fixture is commonly used for parking lot lighting where high output and long-throw coverage are required.

Q: Can this fixture be used for building facade lighting on large commercial structures?

A: Yes, the 30° beam and high lumen output are suitable for illuminating large building facades from a distance.

Q: Is this product appropriate for airport apron or port lighting?

A: Yes, the fixture?s output and weather resistance make it suitable for airport apron and port area lighting.

Q: Does this fixture support integration with lighting control systems?

A: Yes, 0-10V dimming is supported for integration with compatible lighting controls.
