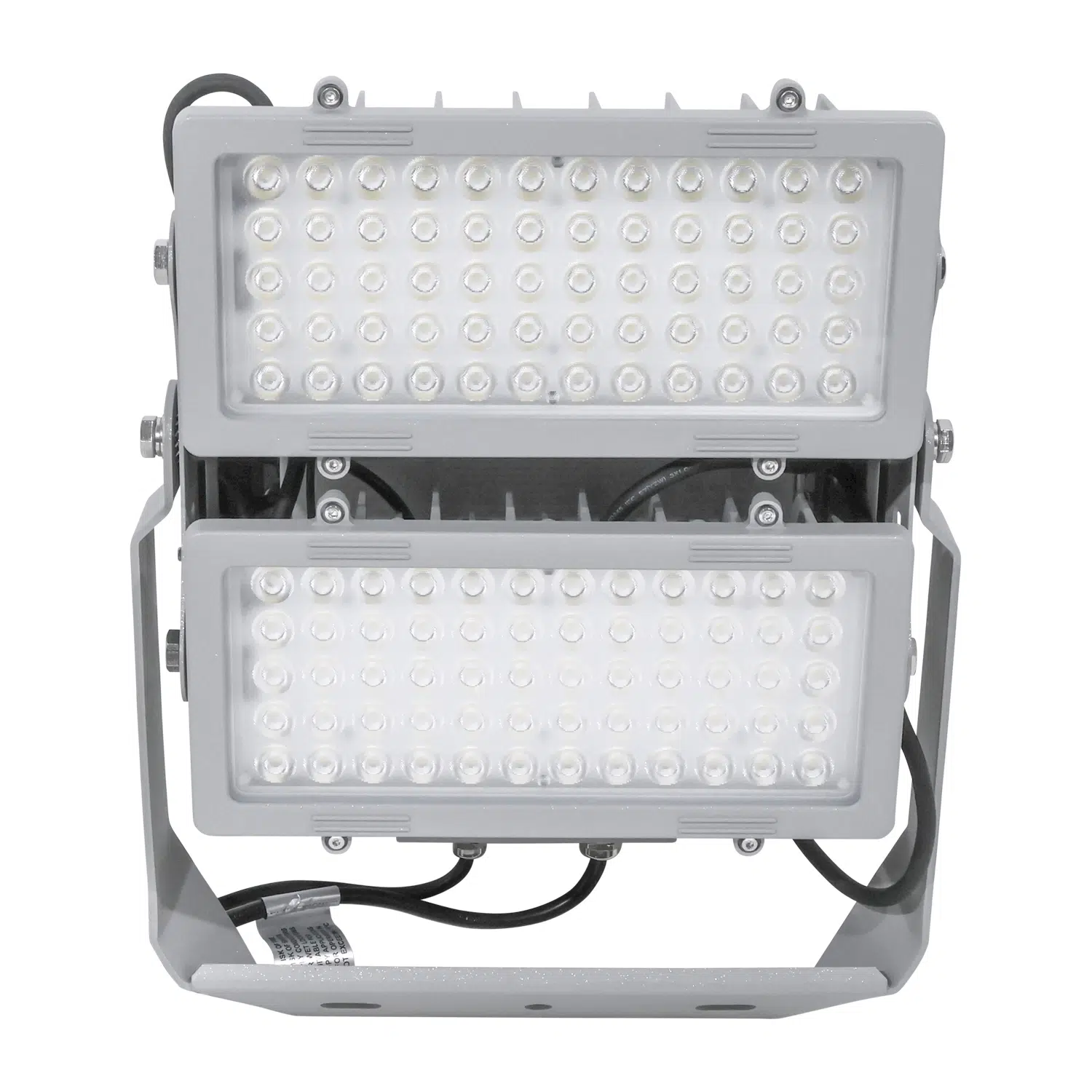

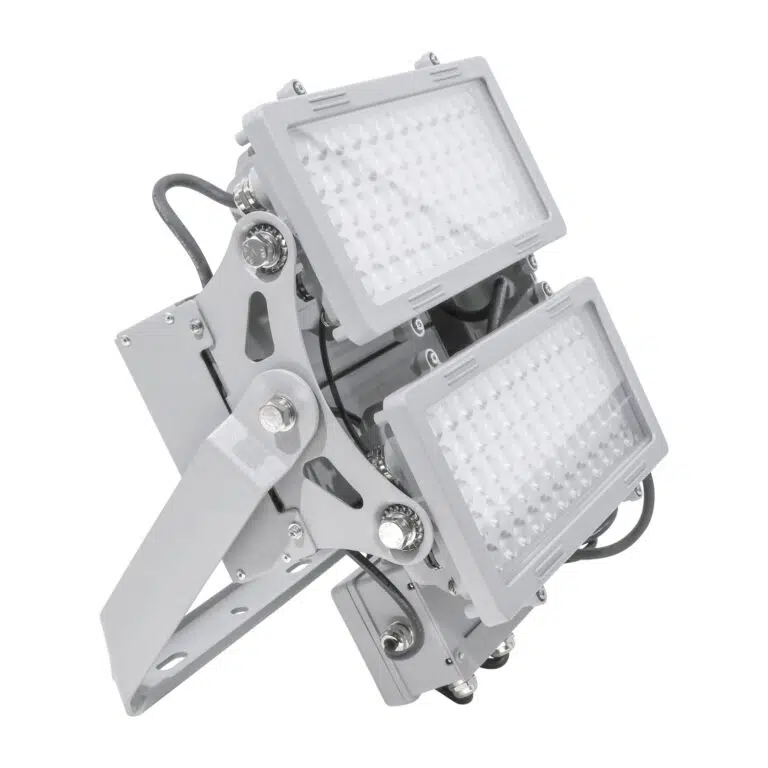

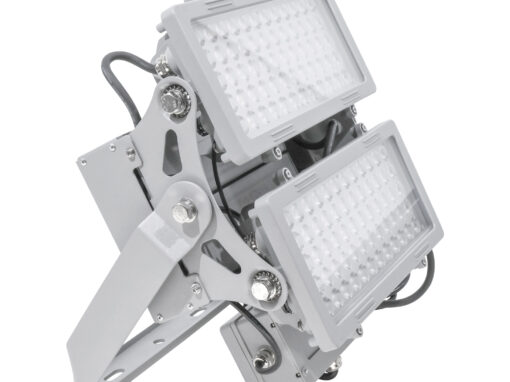

400 Watt LED Area Flood Light | 56000 Lumens | 5000K | 100V-277V or 277V-480V | Marine Grade Finish
This 400W flood light delivers 56,000 lumens at 140 lm/W, making it a practical replacement for 1000W metal halide sports lighting. Multiple beam angles help match field layouts, while trunnion or optional slip fitter mounting supports common pole installations. IP66, IK08, surge protection, and C4 marine-grade corrosion resistance suit exposed stadium and sports field environments.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 400 |
| Lumens | 56000 |
| Lumens Per Watt | 140 |
| Replaces | 1000 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 4000K or 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 60° |
| Beam Angles (Opt) | 10° or 15° or 30° or 45° |
| Optics | Polycarbonate Optics and Tempered Glass Lens |
| Lifespan | 176,000 (L70) hours |
| Mounting | Trunnion |
| Mounting (Opt) | Slip Fitter |
| EPA Rating | 1.89 |
| Fixture Color | Gray |
| Frequency (Hz) | 50/60 |
Durable Construction
| Housing | Powder Coated Aluminum |
| Corrosion Resistance | C4 Marine Grade Standard or C5-H Optional |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 6kV line-line, 10kV line-earth |
| Operating Temperature | -22°F to 113°F |
| Certifications | ETL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 13.25 W X 17.4 H X 6.3 D |
| Weight (lbs) | 24 |
| Cord Length | 5 Feet |
Features/Accessories
- Marine Grade
Standard Marine Grade Finish: Meets ISO 12944 C4 Marine Grade Specification. Upgrade to C5-H available upon request.
Product SKU Variations
- SKU: MLLG-AG-LED-IMF-400-5-60-TR
- SKU: MLLG-AG-LED-IMF-400-5-60-TR-HV
Download IES Files
Additional Resources
Product Overview
This 400 watt LED area flood light produces 56,000 lumens for large outdoor lighting layouts. It is configured for area lighting, security lighting, outdoor sports facility lighting, and other high-output flood lighting work.
The fixture replaces 1000 watt metal halide systems and is available in 4000K or 5000K. Its trunnion mount supports directional aiming, while the optional slip fitter supports pole-mounted installation.
Core Performance and Output
This flood light delivers 140 lumens per watt at 400 watts. It operates on 100V-277V or 277V-480V power at 50/60 Hz and supports 1-10V dimming.
A 60 degree beam angle is standard. Optional 10 degree, 15 degree, 30 degree, and 45 degree optics allow the fixture to be configured for longer throws or broader coverage patterns.
The 56,000-lumen output can be excessive at low mounting heights or in compact layouts. Narrow optics require careful aiming and layout planning to maintain uniform coverage.
Adjustability and Control Options
1-10V dimming is available for output control. Dimming wiring must be included in the installation plan when control capability is required.

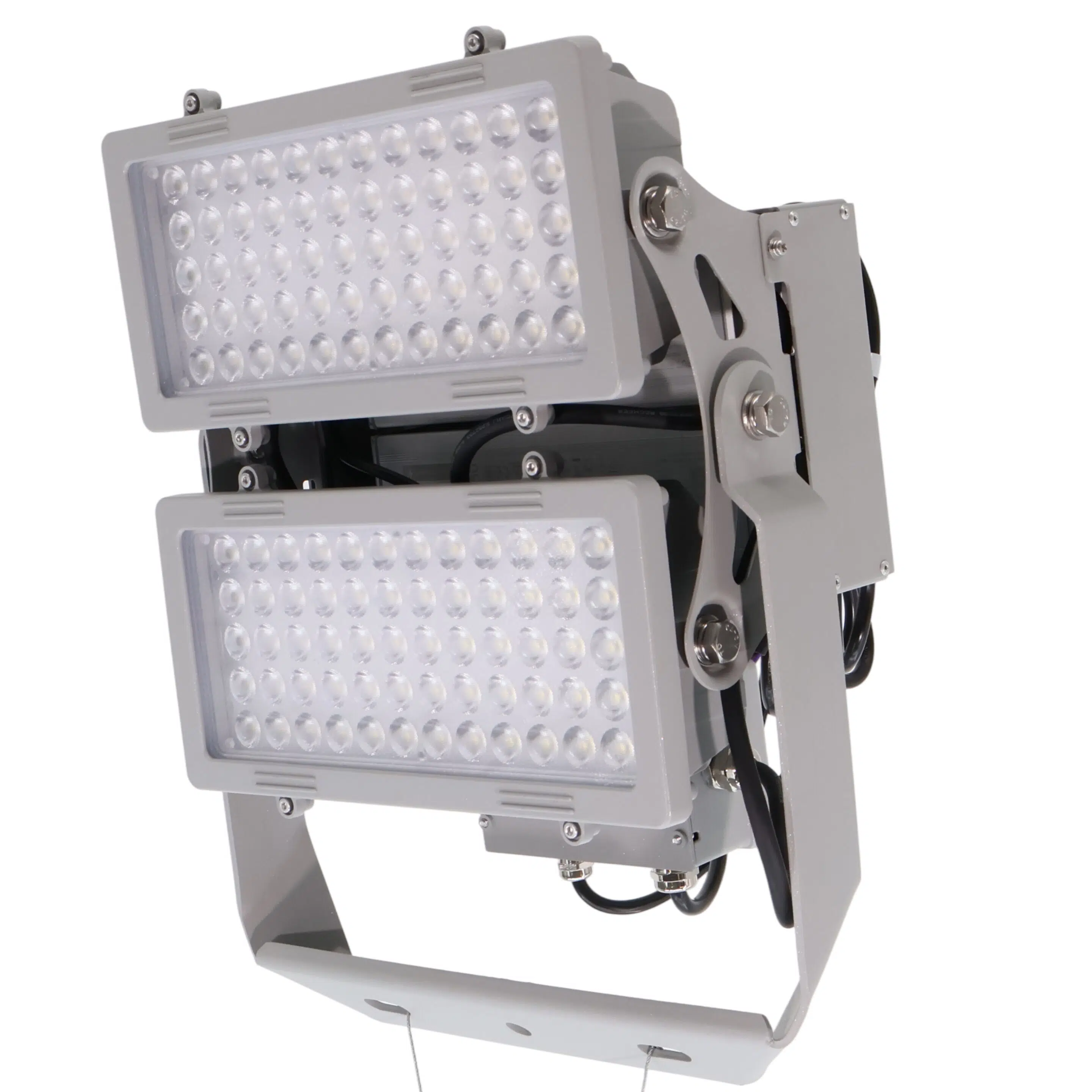

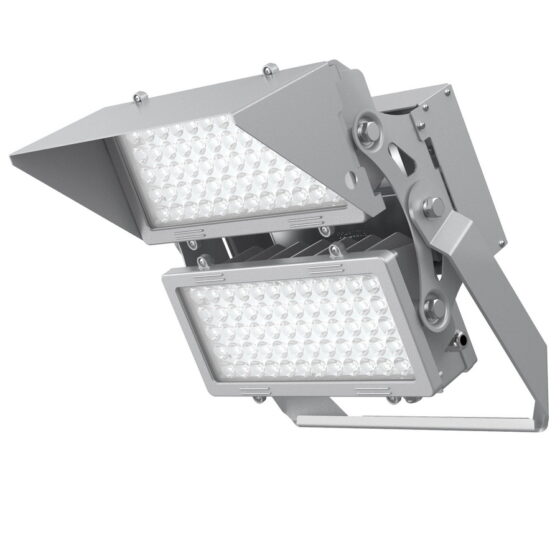

The trunnion mount allows fixture aiming after mounting. An optional slip fitter mount is available for installations using a compatible pole tenon.
Longevity and Reliability
The LED system is rated for 176,000 L70 hours. This rating supports long-term operation where fixture access may require lift equipment or coordinated maintenance work.
Integrated surge protection is rated at 6kV line-line and 10kV line-earth. The fixture operates in ambient temperatures from -22F to 113F.
Build Quality and Physical Characteristics

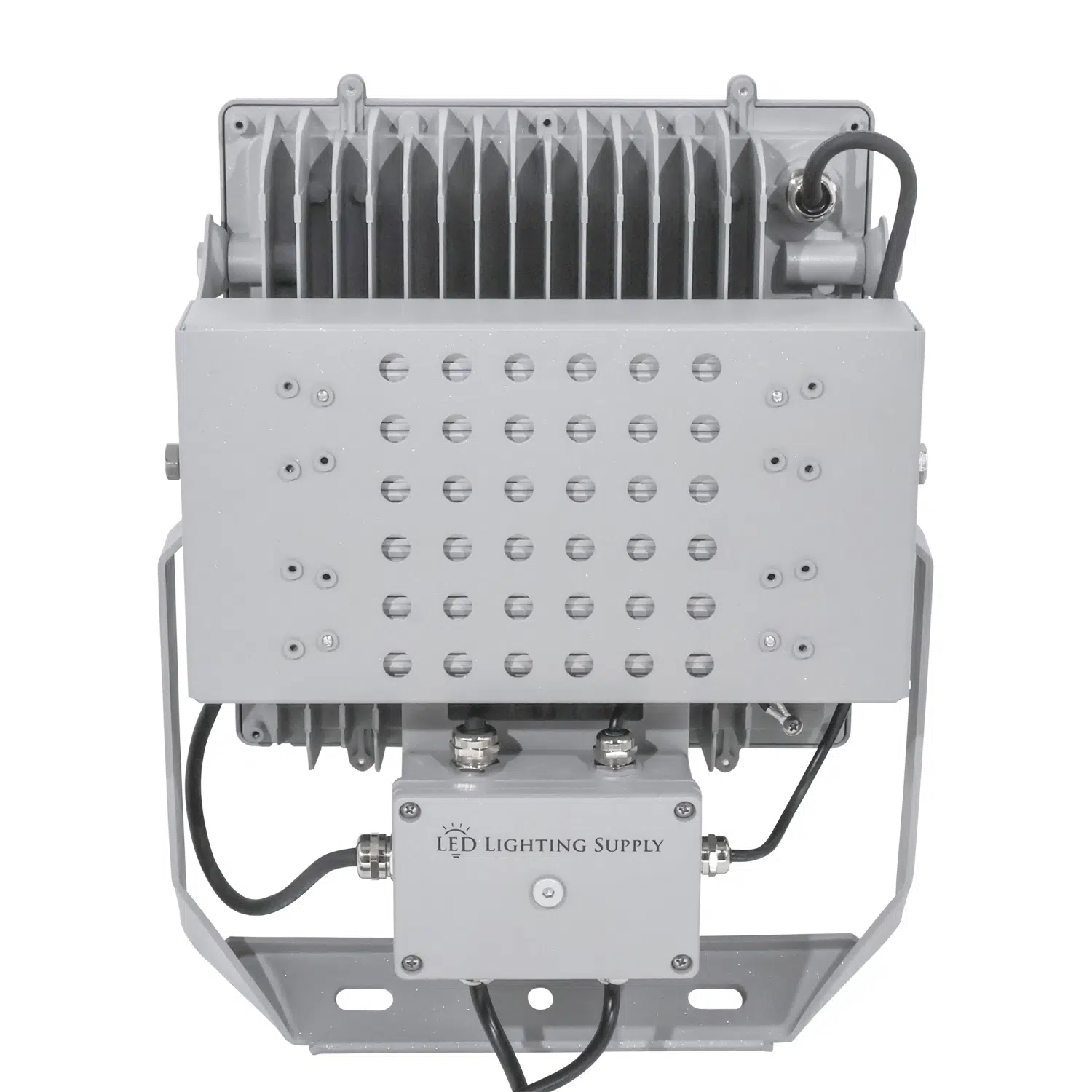

The housing is powder-coated aluminum with a gray finish. Standard corrosion protection meets ISO 12944 C4 marine grade requirements, with a C5-H option available.
The fixture has an IP66 rating and an IK08 rating. Polycarbonate optics and a tempered glass lens protect the optical system.

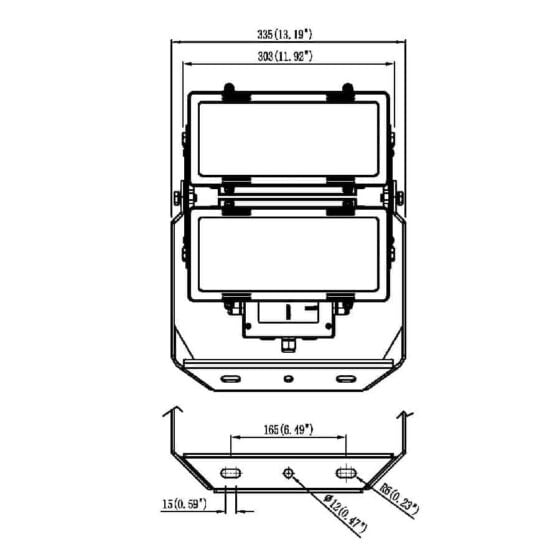

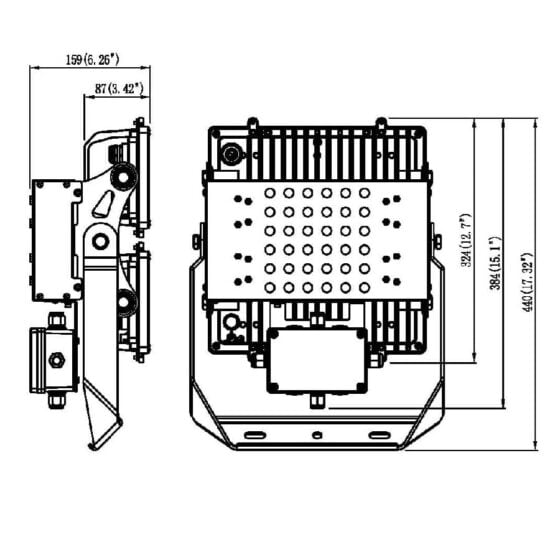

Fixture dimensions are 13.25 inches wide by 17.4 inches high by 6.3 inches deep. Unit weight is 24 pounds, and the fixture includes a 5-foot cord.
Where This Product Fits Best
This fixture fits large exterior areas and outdoor locations requiring concentrated or broad directional light. Its high output, selectable optics, IP66 construction, and marine-grade finish support exposed installations.
- outdoor sports facility lighting
- baseball field lighting
- area lighting
- security lighting
- parking lot lighting
- event venue lighting
The C4 marine-grade housing finish, IP66 rating, and IK08 impact rating support locations exposed to weather and physical contact. C5-H corrosion resistance is available where the project requires a higher corrosion classification.
Installation and Long-Term Use
Installers must select the voltage configuration before installation: 100V-277V or 277V-480V. The fixture must be mounted on a structure that supports its 24-pound weight and 1.89 EPA rating.

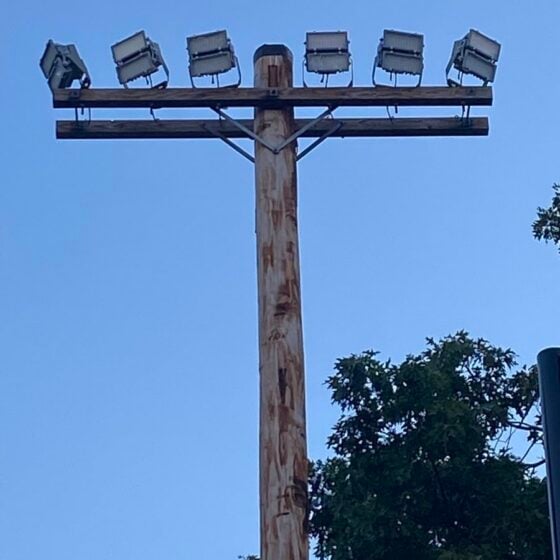

The trunnion mount is used where aiming adjustment is needed. The optional slip fitter is used for compatible pole-mounted layouts.
Long-term service planning should account for the 5-foot cord, dimming connections when used, and access required to inspect mounting hardware and optical surfaces.
How This Fixture Is Commonly Used

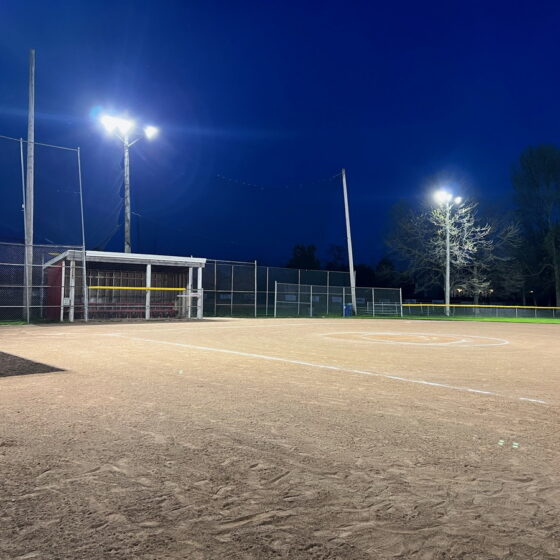

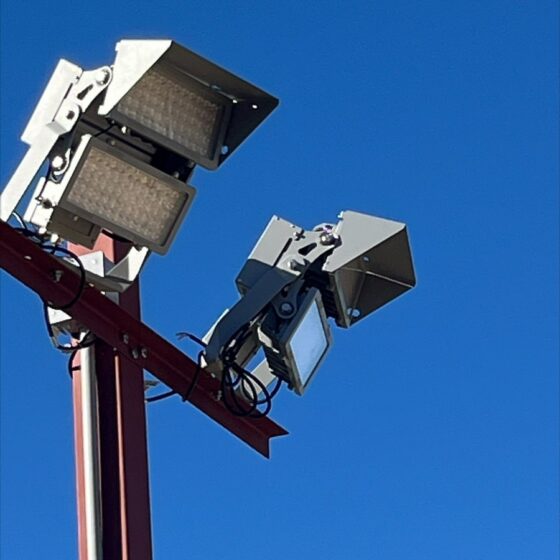

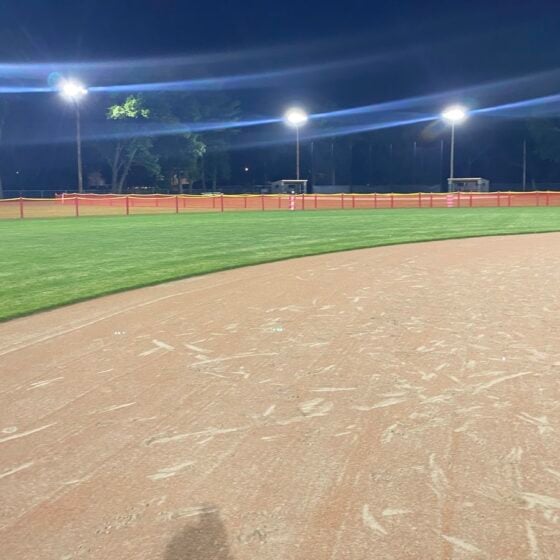

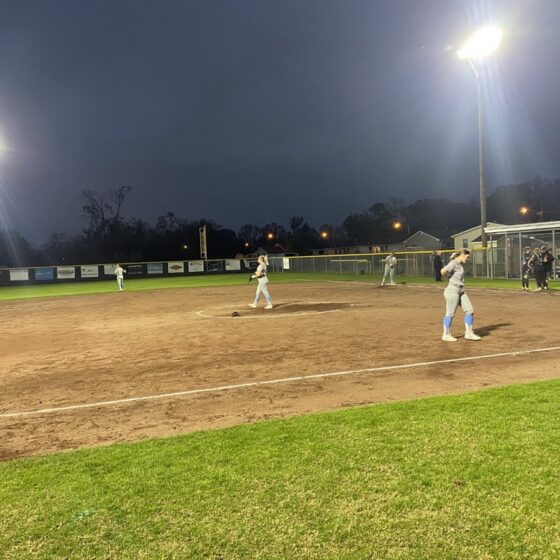

In outdoor sports facility lighting and baseball field lighting, fixtures are aimed from the selected mounting height toward the intended playing area. Narrower optics are used when the layout requires more concentrated light distribution.

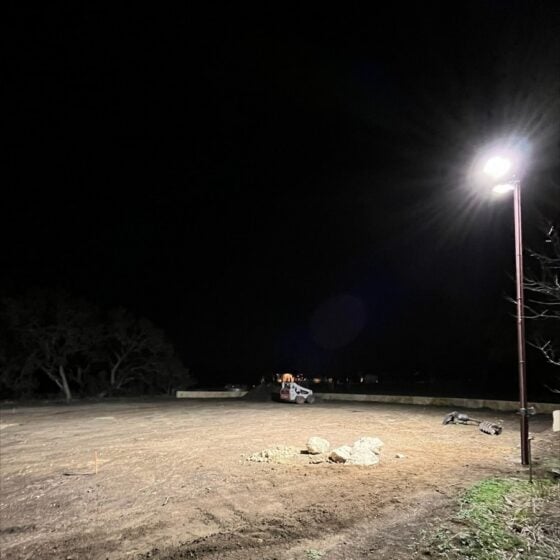

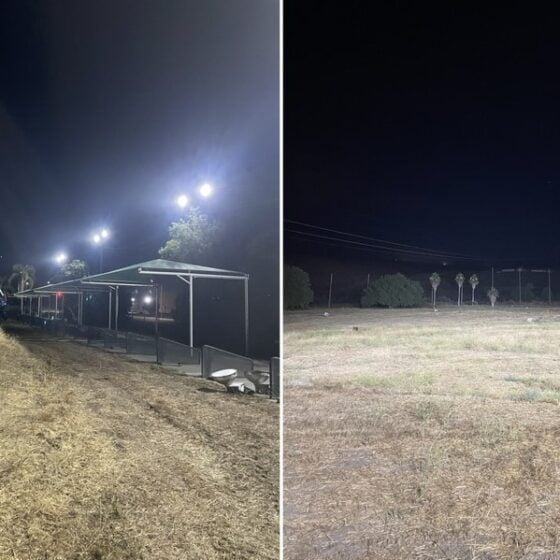

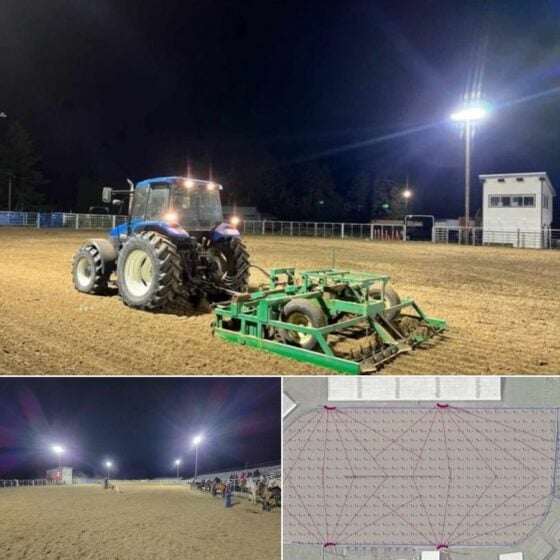

For area lighting, security lighting, parking lot lighting, and event venue lighting, fixtures are arranged around the perimeter or on poles to direct light across the planned coverage area. Mounting height, aiming direction, and beam angle are evaluated together during layout development.
Higher output can reduce fixture count in some layouts, but it can also increase glare if aiming and beam selection are not controlled.
Safety, Certifications, and Warranty
This fixture is ETL listed and DLC Premium listed.
The fixture carries a 5-year warranty. It includes IP66 protection, IK08 impact resistance, and 6kV line-line and 10kV line-earth surge protection.
Frequently Asked Questions
Q: What is the light output of this flood light?
A: The fixture produces 56,000 lumens at 400 watts, with an efficacy of 140 lumens per watt.
Q: What voltage options are available?
A: The fixture is available in 100V-277V or 277V-480V configurations.
Q: What mounting options are available?
A: Trunnion mounting is standard. A slip fitter mount is available as an option.
Q: What should be considered when planning fixture layout?
A: Mounting height, beam angle, aiming direction, target light levels, and layout requirements affect fixture placement. The fixture is available with 10 degree, 15 degree, 30 degree, 45 degree, and 60 degree beam distributions.
Application Questions and Clarification
Q: Is this fixture appropriate for baseball field lighting?
A: Baseball field lighting is a listed application. Final fixture placement depends on mounting height, beam angle, aiming direction, and project light level requirements.
Q: Can this fixture be used for parking lot lighting?
A: Parking lot lighting is a listed application. The available trunnion and slip fitter mounting options support different installation approaches.
Q: What environmental features apply to exposed outdoor installations?
A: The fixture has an IP66 rating, IK08 rating, C4 marine-grade corrosion resistance, and an operating temperature range of -22F to 113F. A C5-H corrosion resistance option is available.
