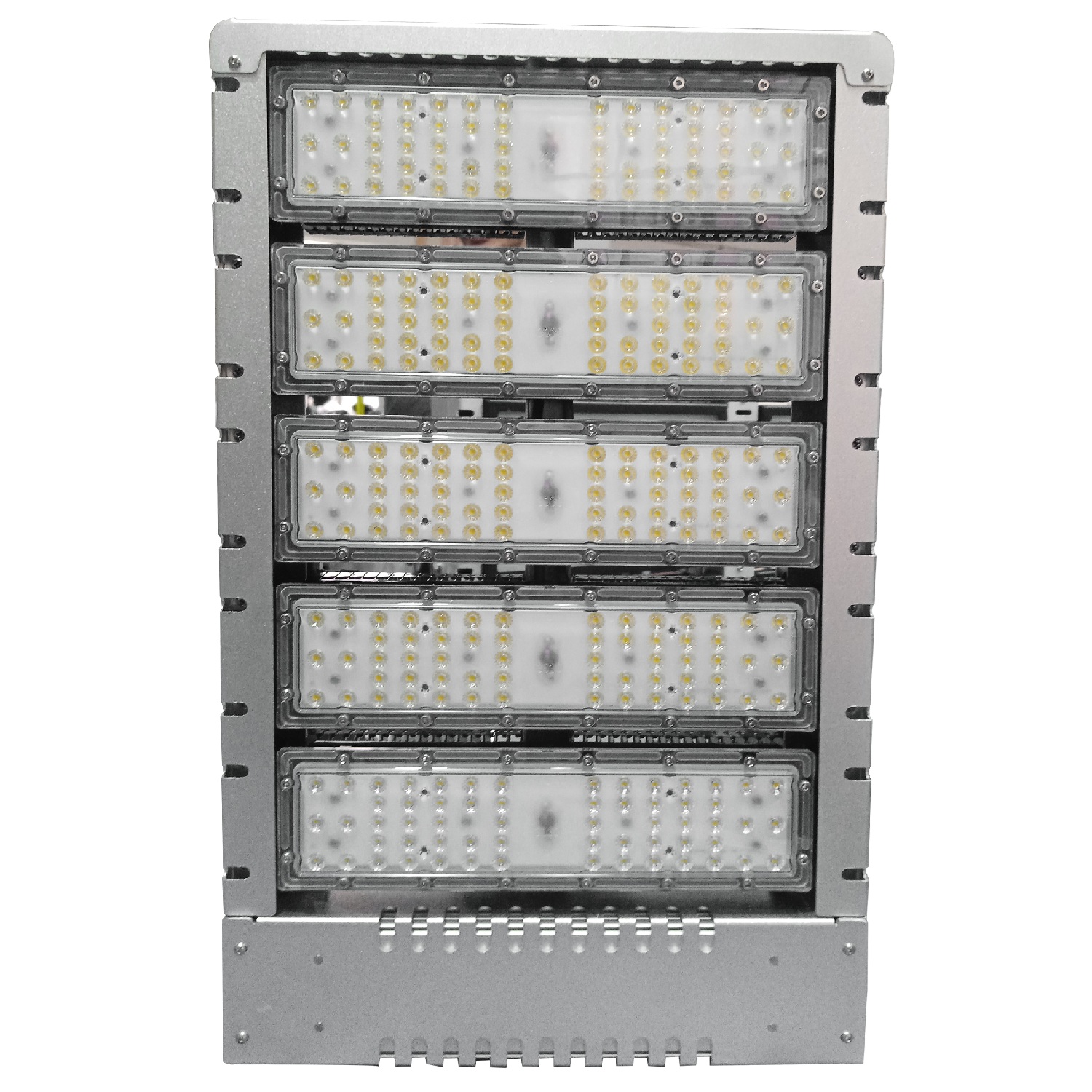

400 Watt Marine Grade LED Flood Light | 60000 Lumens | 5000K | 100-277V | IP68

Product Overview

This 400 Watt Marine Grade LED Flood Light is designed for high-output illumination in marine and corrosive environments. It delivers 60,000 lumens at 5000K, providing a daylight-white beam suitable for demanding outdoor and waterfront applications. The fixture is engineered for use on docks, vessels, and port facilities where exposure to saltwater, humidity, and harsh weather is routine.

The anodized aluminum housing and polycarbonate lens are built to withstand continuous operation in coastal and offshore locations. Yoke mounting allows for secure installation on structural surfaces, including bridge superstructures and marine platforms. This model is a direct replacement for 1000 Watt metal halide flood lights, supporting mounting heights and coverage areas typical of large-scale marine and industrial sites.

Core Performance and Output

This fixture outputs 60,000 lumens at 400 watts, with a standard 90° beam angle and optional 10°, 25°, or 60° optics for targeted distribution. The 5000K color temperature provides high visibility for operational safety and task clarity. CRI is rated at 75+, supporting accurate color rendering in outdoor and marine settings.

Electrical operation is 100-277V, 50/60 Hz, compatible with standard marine and industrial power systems. The fixture is ETL listed, IP68, and IK08 rated, supporting continuous exposure to water, salt, and impact. Excessive output may require careful aiming or shielding at low mounting heights to control glare and spill.

Adjustability and Control Options

The yoke mount allows for precise aiming and secure attachment to flat or structural surfaces. Multiple beam angle options (10°, 25°, 60°, 90°) enable adaptation to wide-area or focused lighting requirements. The fixture supports manual tilt adjustment for directional control.

No integrated dimming or advanced controls are included. External switching or circuit-level controls can be used for on/off operation. Beam angle selection should be specified at installation to match site requirements.

Longevity and Reliability

The anodized aluminum housing and marine-grade construction are designed for long-term resistance to corrosion, salt spray, and UV exposure. The polycarbonate lens provides impact resistance and maintains optical clarity over time. The fixture is rated for operation from -13°F to 131°F, supporting year-round use in coastal and offshore environments.

All components are sealed to IP68, preventing water ingress during submersion or heavy spray. The 5-year warranty covers defects in materials and workmanship under normal operating conditions.

Build Quality and Physical Characteristics

The fixture measures 12 inches wide by 19 inches high by 3.5 inches deep and weighs 15.5 lbs. The housing is anti-corrosion anodized aluminum, finished in gray for reduced glare and heat absorption. The lens is polycarbonate, providing IK08 impact protection.

All hardware is selected for marine compatibility. The yoke mount is designed for rigid attachment to steel, concrete, or composite surfaces commonly found in marine and port environments.

Where This Product Fits Best

This fixture is intended for use in harsh marine and corrosive environments where high-output, reliable lighting is required. Typical installations include docks, vessels, and port facilities, as well as coastal and offshore platforms exposed to saltwater and weather extremes.

• marine environment lighting
• dock lighting
• vessel lighting
• port facility lighting
• coastal facility lighting
• marina lighting
• offshore platform lighting
• corrosive environment lighting

All materials and seals are selected for continuous exposure to salt, moisture, and UV. The fixture is not intended for submerged operation beyond IP68 limits or for use in hazardous (classified) locations.

Installation and Long-Term Use

Yoke mounting supports attachment to flat or structural surfaces using marine-grade fasteners. The fixture can be installed on docks, pilings, vessel superstructures, or port facility frames. Power connection is made via standard 100-277V wiring, with all seals and gaskets pre-installed.

Routine inspection is recommended to confirm mounting integrity and lens cleanliness, especially in high-salt or debris-prone areas. No relamping or internal maintenance is required. All serviceable components are sealed from the environment.

How This Fixture Is Commonly Used

Typical mounting heights range from 15 to 40 feet, depending on the area to be illuminated and the selected beam angle. Fixtures are often spaced to provide overlapping coverage on docks, vessel decks, or port aprons. Layouts are determined by site geometry and required light levels.

Higher output and narrow beam options allow for increased spacing but may require careful aiming to avoid glare or spill into navigational areas. Wide beam angles are used for general area coverage, while narrow optics are specified for task or perimeter lighting.

Safety, Certifications, and Warranty

This fixture is ETL listed, IP68 rated, and IK08 rated. All construction materials are marine grade and suitable for corrosive environments. The operating temperature range is -13°F to 131°F.

A 5-year warranty is provided. All certifications and ratings are documented for compliance and inspection purposes.

Frequently Asked Questions

Q: What is the maximum recommended mounting height for this fixture?

A: Typical mounting heights range from 15 to 40 feet, depending on beam angle and site requirements.

Q: Can this fixture be used in continuous salt spray or splash zones?

A: Yes, the fixture is marine grade, IP68 rated, and designed for continuous exposure to salt spray and splash.

Q: Are beam angle options field adjustable?

A: Beam angle must be specified at installation; optics are not field adjustable after assembly.

Q: What is the recommended spacing for dock or port lighting layouts?

A: Spacing depends on mounting height and beam angle; typical layouts use 1.5 to 2 times the mounting height for uniform coverage.

Q: Is this fixture suitable for hazardous (classified) locations?

A: No, this fixture is not rated for hazardous or explosion-proof environments.

Application Questions and Clarification

Q: Can this fixture be installed on offshore platforms exposed to high winds and saltwater?

A: Yes, the fixture is designed for offshore platform use and is constructed for high wind and saltwater exposure.

Q: Is this light appropriate for vessel deck lighting where impact resistance is required?

A: Yes, the IK08 rating and polycarbonate lens provide impact resistance suitable for vessel deck applications.

Q: Does the fixture require any special maintenance in marina or port environments?

A: Routine inspection for mounting integrity and lens cleanliness is recommended; no internal maintenance is required.

Q: Can this fixture be used for corrosive environment lighting outside of marine applications?

A: Yes, the marine-grade construction is suitable for any corrosive environment where high-output lighting is needed.
