400 Watt LED Stadium Light | 60000 Lumens | 5700K | 100-277V or 277-480V | Optional Remote Driver

Product Overview

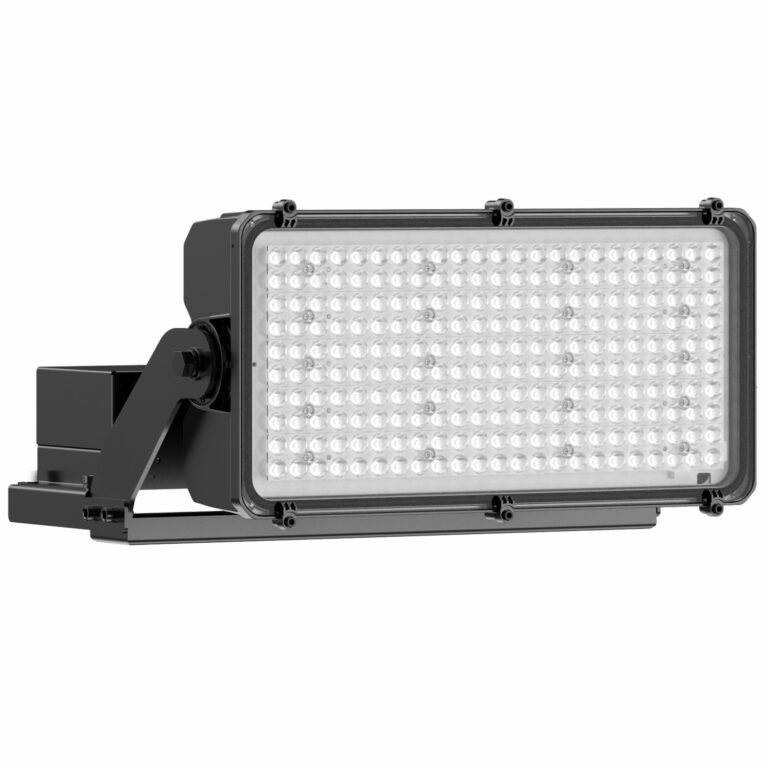

The 400 Watt LED Stadium Light is a high-output flood fixture designed for large-scale outdoor sports and area lighting. It delivers 60,000 lumens at 5700K, supporting both 100-277V and 277-480V input ranges. This model is engineered for demanding environments such as stadiums, sports fields, and large event venues where precise aiming and robust performance are required.

With a form factor suited for mounting heights typical of sports field lighting, this fixture is a direct replacement for legacy 1000W metal halide floodlights. The yoke or slip fitter mounting options, polycarbonate lens, and included aiming laser support accurate installation and long-term reliability in exposed outdoor settings.

Core Performance and Output

This fixture provides 60,000 lumens at 400 watts, achieving an efficacy of 150 lumens per watt. Multiple beam angle options?60° standard, with 10°, 30°, 45°, and T3 available?allow for tailored light distribution across various field layouts and site geometries. The 5700K color temperature and 80+ CRI support high-visibility environments.

0-10V dimming is standard, enabling integration with lighting controls for energy management or event-specific requirements. At lower mounting heights, output may be excessive for small venues or tightly spaced installations. Wider beam options can reduce uniformity at extreme mounting heights or when used for long-throw applications.

Adjustability and Control Options

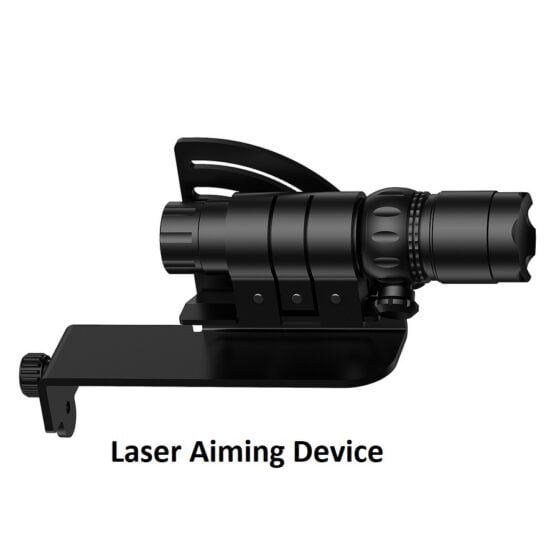

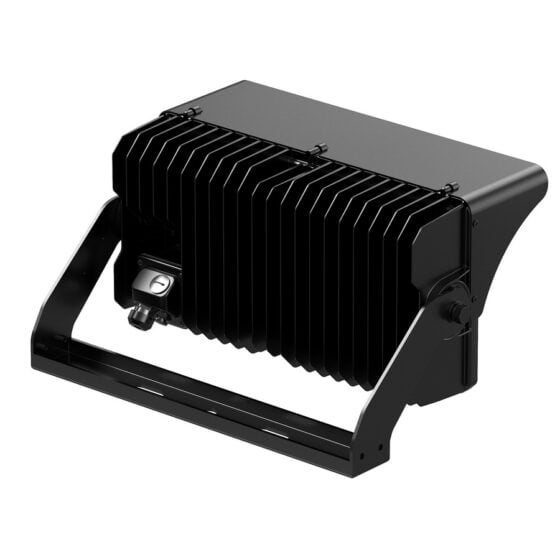

The fixture supports both yoke and slip fitter mounting, allowing for flexible installation on poles, crossarms, or structural supports. The integrated aiming laser and optional visor assist with precise fixture orientation and glare management. 0-10V dimming is included for compatibility with standard lighting control systems.

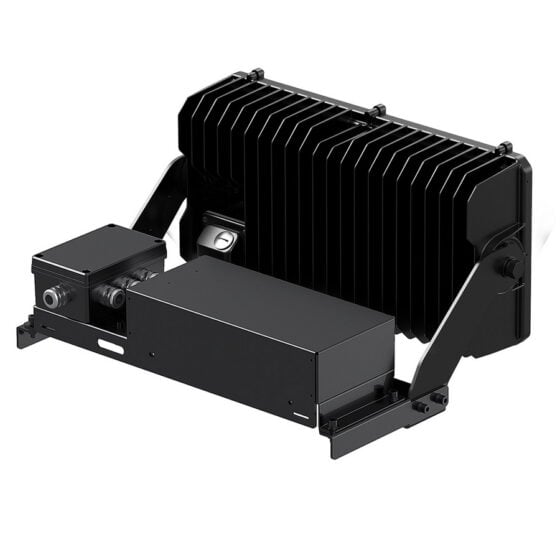

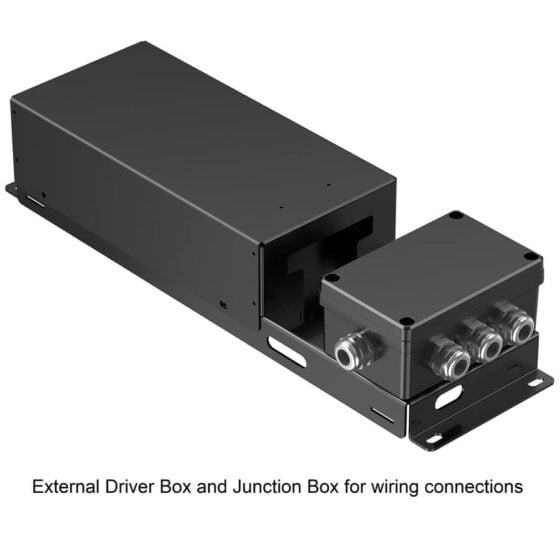

Remote driver options are available for installations requiring driver separation from the fixture body, supporting easier maintenance or thermal management in challenging environments.

Longevity and Reliability

Rated for 200,000 hours (L70), this fixture is designed for long-term operation in outdoor environments. The powder-coated aluminum housing, polycarbonate lens, and robust surge protection (10KV line-line, 20KV line-earth) support reliable performance under frequent switching and exposure to weather.

IP66 and IK08 ratings ensure resistance to dust, water, and moderate impact, reducing maintenance intervals and supporting consistent operation in high-traffic or public-access areas.

Build Quality and Physical Characteristics

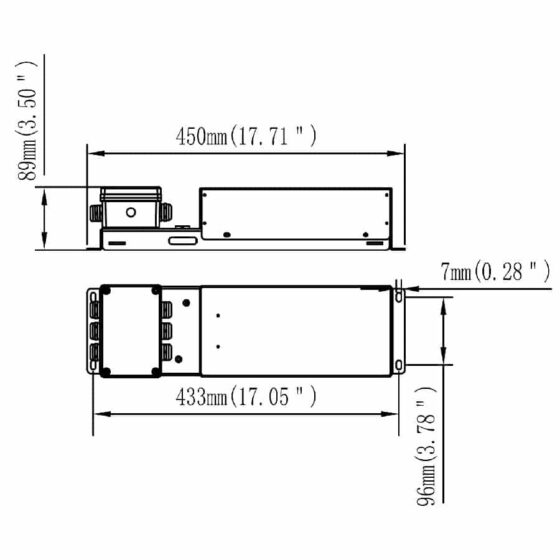

The fixture body measures 18.8 in W x 11.2 in H x 7.3 in D and weighs 14 lbs, with an additional 8 lbs for the driver box. The housing is constructed from powder-coated aluminum for corrosion resistance, and the lens is polycarbonate for impact durability. Standard finish is black.

Environmental ratings include IP66 for water and dust ingress, IK08 for impact resistance, and an operating temperature range of -22°F to 122°F. The fixture is supplied with a 4-foot cord for wiring flexibility.

Where This Product Fits Best

This stadium flood light is intended for large outdoor environments requiring high-output, controlled beam lighting. It is suitable for both new installations and retrofit projects where legacy metal halide fixtures are being replaced. The fixture is commonly deployed in sports fields, event venues, and large outdoor areas where uniform, high-intensity illumination is critical.

• outdoor sports facility lighting
• area lighting
• baseball field lighting
• event venue lighting
• basketball court lighting
• parking lot lighting
• tennis court lighting
• security lighting

Environmental characteristics include exposure to weather, potential for impact, and the need for precise aiming and uniformity across large open spaces. The fixture?s ratings and construction support use in both public and restricted-access outdoor sites.

Installation and Long-Term Use

Yoke and slip fitter mounting options allow attachment to poles, crossarms, or structural supports. The aiming laser assists with initial alignment, reducing setup time and supporting consistent aiming across multiple fixtures. The fixture?s EPA rating of 1.35 should be considered when selecting pole and mounting hardware for wind load compliance.

Routine maintenance is minimized by the fixture?s long lifespan and robust construction. Remote driver options can simplify driver replacement or service in installations with limited access. Surge protection and environmental ratings reduce the risk of failure due to electrical events or weather exposure.

How This Fixture Is Commonly Used

This fixture is typically installed at mounting heights ranging from 25 to 60 feet, depending on the application and required coverage. Spacing and aiming patterns are determined by field size, beam angle selection, and target light levels. For sports field lighting, fixtures are often grouped on poles or crossarms to achieve uniform horizontal and vertical illumination.

Higher output allows for reduced fixture counts but may require careful aiming and shielding to control glare and spill light. Layouts should account for beam overlap and site-specific requirements such as spectator areas or adjacent property boundaries.

Safety, Certifications, and Warranty

This fixture is ETL and DLC Premium certified. It carries an IP66 ingress protection rating and IK08 impact rating. Surge protection is rated at 10KV line-line and 20KV line-earth. The product is covered by a 5-year warranty.

All certifications and ratings are documented for code compliance and site acceptance. The fixture is suitable for use in environments requiring robust safety and performance standards.

Frequently Asked Questions

Q: What mounting options are available for this fixture?

A: Yoke and slip fitter mounting options are available. Both support secure attachment to poles or structural supports.

Q: What is the recommended mounting height for this 400W stadium light?

A: Typical mounting heights range from 25 to 60 feet, depending on the application and desired coverage.

Q: Can this fixture be used with lighting controls?

A: Yes, 0-10V dimming is standard and compatible with most lighting control systems.

Q: What is the EPA rating and why does it matter?

A: The EPA rating is 1.35. This value is used to determine wind load requirements for poles and mounting hardware.

Q: How should I plan fixture spacing for a sports field?

A: Spacing depends on beam angle, mounting height, and target light levels. Beam overlap and uniformity should be considered during layout planning.

Application Questions and Clarification

Q: Is this fixture suitable for use on a baseball field?

A: Yes, this model is commonly used for baseball field lighting and supports the output and aiming requirements of that application.

Q: Can this fixture be used for parking lot lighting?

A: Yes, it is suitable for large parking lot lighting where high-output flood coverage is needed.

Q: Is this fixture appropriate for building facade lighting?

A: This fixture can be used for building facade lighting on large structures where high-output and controlled beam distribution are required.

Q: Does the fixture support use in event venues or outdoor arenas?

A: Yes, it is designed for event venue lighting and outdoor arena applications where uniform, high-intensity illumination is needed.
