200 Watt LED Area Flood Light | 28000 Lumens | 5000K | 100V-277V or 277V-480V | Marine Grade Finish

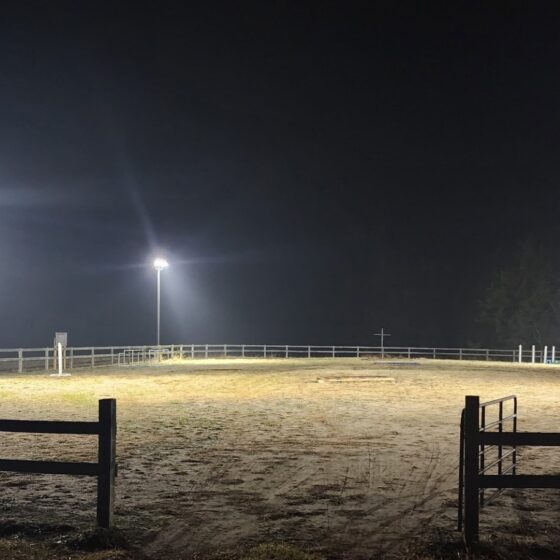

The IMF-200 is a great option for sports fields, arenas, and industrial areas. This is our best-selling flood light family for a reason with tons of light output and versatility. The high energy efficiency of these lights will provide significant energy savings compared to metal halide and halogen bulbs. Aluminum lighting modules can be adjusted individually. This fixture is the perfect solution for outdoor projects such as perimeter security lighting, parking lot lighting, sports fields, and other commercial lighting applications.
Cory Peterson | VP of Marketing and Sales Operations
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 200 |
| Lumens | 28000 |
| Lumens Per Watt | 140 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 4000K or 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 60° |
| Beam Angles (Opt) | 10° or 15° or 30° or 45° or 40*100° |
| Optics | Polycarbonate Optics and Tempered Glass Lens |
| Lifespan | 176,000 (L70) hours |
| Mounting | Slip Fitter or Trunnion |
| EPA Rating | 1.36 |
| Fixture Color | Gray |
| Frequency (Hz) | 50/60 |
Durable Construction
| Housing | Powder Coated Aluminum |
| Corrosion Resistance | C4 Marine Grade Standard or C5-H Optional |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 6kV line-line, 10kV line-earth |
| Operating Temperature | -22°F to 113°F |
| Certifications | ETL | DLC Premium |
| Warranty | 5 years |
Measurements

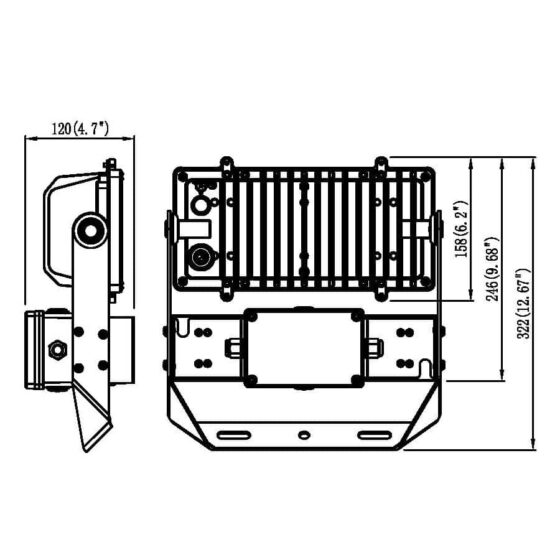

| Dimensions (in) | 12 W X 12.7 H X 4.7 D |
| Weight (lbs) | 13 |
| Cord Length | 5 Feet |
Features/Accessories
- Marine Grade
Standard Marine Grade Finish: Meets ISO 12944 C4 Marine Grade Specification. Upgrade to C5-H available upon request.
Product SKU Variations
- SKU: MLLG-AG-LED-IMF-200-5-60-TR
- SKU: MLLG-AG-LED-IMF-200-5-60-TR-HV
Download IES Files
Additional Resources
Product Overview
This 200W LED area flood light produces 28,000 lumens for outdoor area lighting, outdoor sports facility lighting, and other large exterior lighting layouts. It is available in 4000K or 5000K with 100V-277V or 277V-480V input voltage options.
The fixture replaces 400W metal halide flood lights while using 200W. Slip fitter and trunnion mounting support pole-mounted and structure-mounted installations.
Core Performance and Output
This flood light delivers 140 lumens per watt with a 70+ CRI. The standard 60 degree beam angle supports broad area coverage, while 10, 15, 30, 45, and 40×100 degree optics are available for more controlled distributions.
It operates on 50/60 Hz power and is available for 100V-277V or 277V-480V systems. Narrow optics require careful aiming, while wider distributions can produce excessive light at lower mounting heights when output is not matched to the layout.
Adjustability and Control Options
1-10V dimming is available for systems using compatible dimming controls. The selected voltage configuration must match the available electrical system.
Slip fitter mounting allows directional adjustment on a pole tenon. Trunnion mounting provides adjustable aiming from a structural mounting point.
Longevity and Reliability
The LED system is rated for 176,000 L70 hours. This rating identifies the point at which light output is expected to reach 70 percent of initial output.
Surge protection is rated at 6kV line-to-line and 10kV line-to-earth. The fixture operates from -22 degrees F to 113 degrees F.
Build Quality and Physical Characteristics
The fixture uses a powder-coated aluminum housing with polycarbonate optics and a tempered glass lens. The gray housing measures 12 inches wide by 12.7 inches high by 4.7 inches deep and weighs 13 pounds.
IP66 and IK08 ratings support exterior installation conditions. The standard C4 marine grade finish meets ISO 12944 C4 marine grade specification, and C5-H is available as an option.
Where This Product Fits Best
This fixture fits exterior locations requiring controlled high-output flood lighting, directional aiming, and weather-resistant construction. Its marine grade finish is relevant where corrosion exposure is a project consideration.
- area lighting

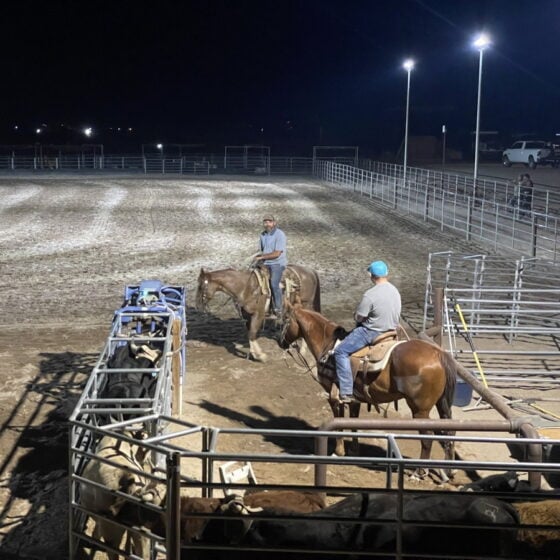

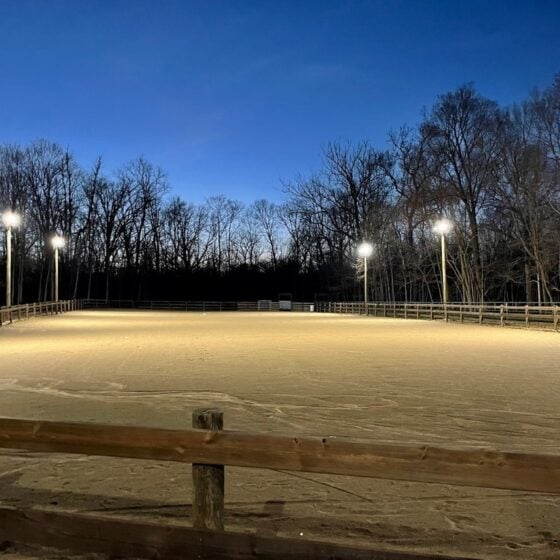

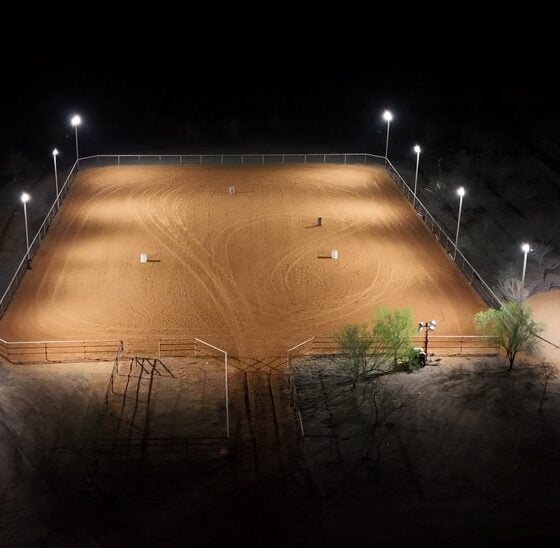

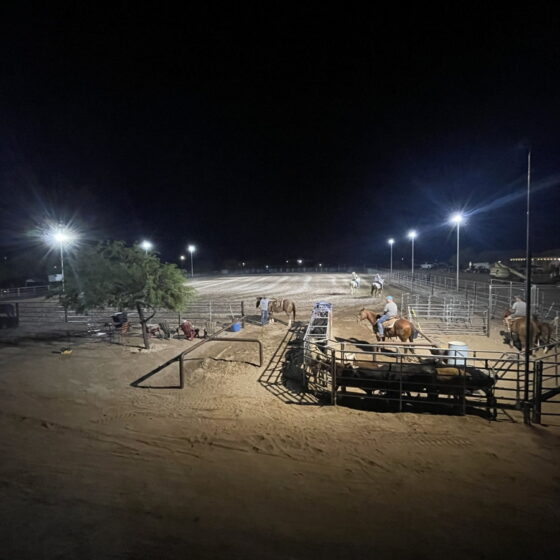

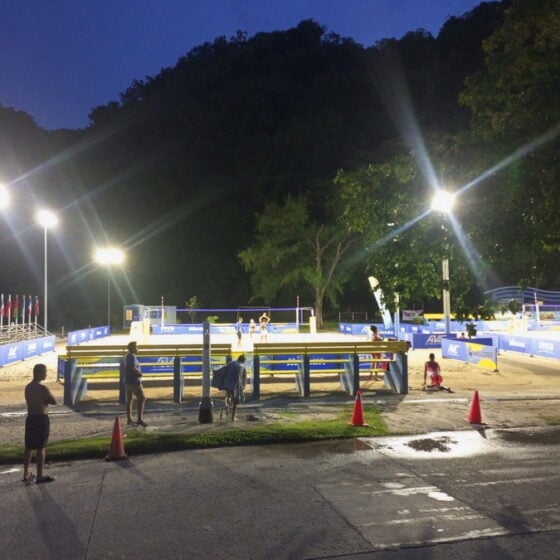

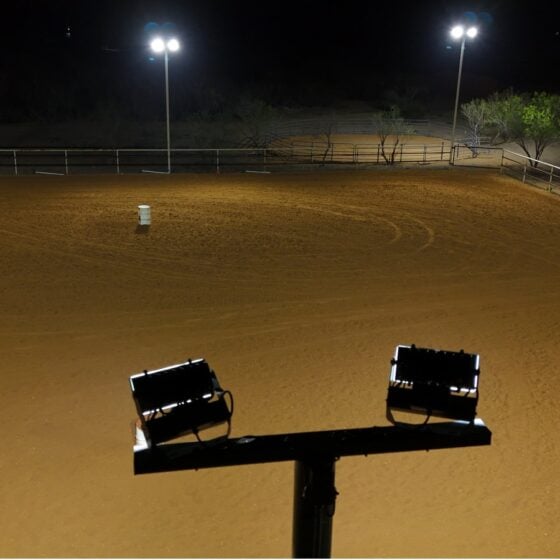

- outdoor sports facility lighting
- baseball field lighting
- parking lot lighting
- port and shipyard lighting
The IP66 enclosure, IK08 impact rating, and C4 marine grade finish support exposed outdoor conditions. C5-H protection is available where the project requires a higher corrosion-resistance classification.
Installation and Long-Term Use
Install the fixture using the slip fitter or trunnion mounting option appropriate for the support structure and aiming requirement. The 5-foot cord provides connection length at the fixture, but final wiring methods must match site electrical requirements.
Confirm fixture weight, EPA rating of 1.36, mounting hardware, and support structure capacity before installation. Long-term maintenance should include inspection of mounting hardware, lens condition, aiming position, and electrical connections.
How This Fixture Is Commonly Used

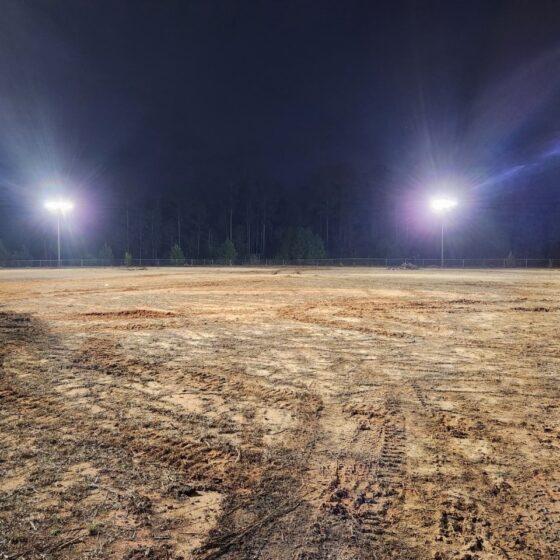

For area lighting and parking lot lighting, fixtures are typically positioned to direct the selected optic across the intended exterior layout. For baseball field lighting and outdoor sports facility lighting, aiming is set around the activity area to manage distribution and spill light.
Mounting height, pole or structure location, and optic selection determine the final spacing pattern. Higher output can reduce fixture count, but layout and aiming still control uniformity and glare.
Safety, Certifications, and Warranty
This fixture is ETL listed and DLC Premium listed. It is rated IP66 and IK08.
The warranty is 5 years. Surge protection is rated at 6kV line-to-line and 10kV line-to-earth.
Frequently Asked Questions
Q: What is the light output of this 200W LED area flood light?
A: The fixture produces 28,000 lumens at 140 lumens per watt.
Q: What voltage options are available?
A: The fixture is available in 100V-277V or 277V-480V configurations.
Q: Which mounting options are available?
A: Slip fitter and trunnion mounting options are available.
Q: What affects fixture layout for outdoor sports facility lighting?
A: Mounting height, fixture location, aiming, beam angle, and target light levels affect the layout. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Can this fixture be used for port and shipyard lighting?
A: Port and shipyard lighting is a valid application. The fixture has a standard C4 marine grade finish, with C5-H available as an option.
Q: Which optic should be considered for baseball field lighting?
A: The available optics include 10, 15, 30, 45, 60, and 40×100 degree distributions. Final optic selection depends on fixture location, mounting height, aiming, and layout requirements.
Q: What should be confirmed before mounting this fixture for area lighting?
A: Confirm the available voltage, mounting method, support structure capacity, fixture weight, and EPA rating of 1.36.
