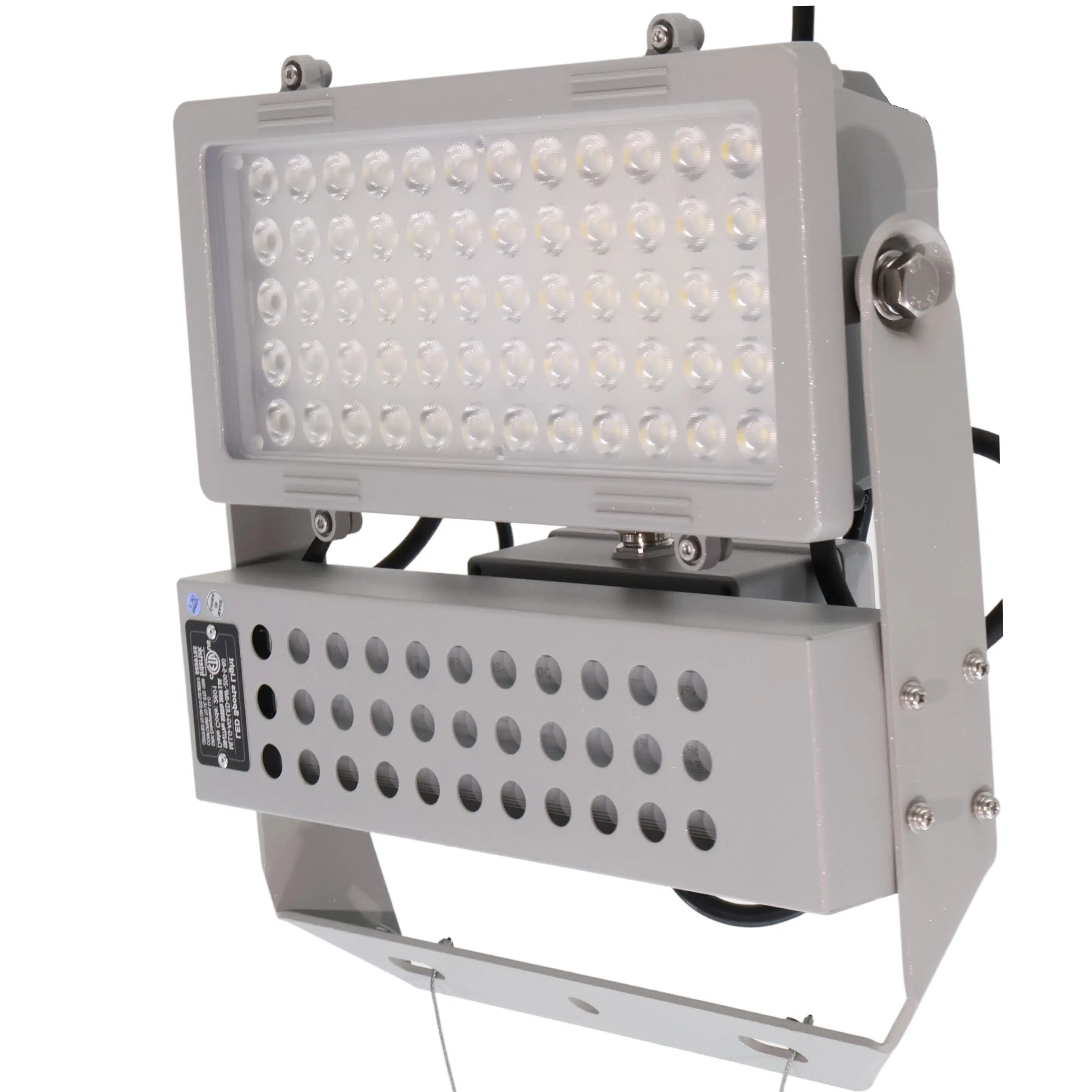

200 Watt LED Area Flood Light | 28000 Lumens | 5000K | 100V-277V or 277V-480V | Optional Marine Grade Finish

Product Overview

The 200 Watt LED Area Flood Light is engineered for robust outdoor lighting applications, delivering 28,000 lumens at a color temperature of 5000K. Designed to replace traditional 400 Watt metal halide fixtures, this flood light is suitable for a range of environments requiring high-intensity illumination. It operates efficiently across a voltage range of 100V-277V or 277V-480V, making it adaptable to various electrical systems. With options for slip fitter or trunnion mounting, it provides flexibility in installation across different settings.

This flood light is particularly well-suited for sports field lighting, including stadiums and baseball fields, where consistent and powerful lighting is essential. The optional marine grade finish enhances its durability in coastal or corrosive environments, ensuring long-term performance even in challenging conditions.

Core Performance and Output

With an output of 28,000 lumens, this 200 Watt LED flood light achieves an efficiency of 140 lumens per watt. It offers a standard beam angle of 60°, with optional angles ranging from 10° to 100°, allowing for tailored light distribution based on specific application needs. The polycarbonate optics and tempered glass lens ensure optimal light transmission and durability.

While the fixture is designed for high-output applications, care should be taken to avoid excessive glare at low mounting heights. Additionally, uniformity may decrease at higher mounting heights, necessitating careful planning of fixture placement and spacing.

Adjustability and Control Options

The flood light supports 1-10V dimming, providing control over light levels to suit different scenarios and energy-saving requirements. The choice between slip fitter and trunnion mounting allows for precise aiming and positioning, ensuring the light is directed exactly where needed.

These control options make the fixture adaptable to various lighting needs, from full illumination during events to reduced lighting for maintenance or security purposes.

Longevity and Reliability

Designed for longevity, this LED flood light boasts a lifespan of 176,000 hours (L70), significantly reducing maintenance and replacement costs over time. The robust construction, including powder-coated aluminum housing, ensures resilience against environmental factors.

Surge protection of 6kV line-line and 10kV line-earth further enhances reliability, safeguarding the fixture against electrical disturbances and extending its operational life.

Build Quality and Physical Characteristics

The flood light's housing is constructed from powder-coated aluminum, providing a durable and corrosion-resistant exterior. It is IP66 and IK08 rated, indicating strong protection against dust, water ingress, and mechanical impact.

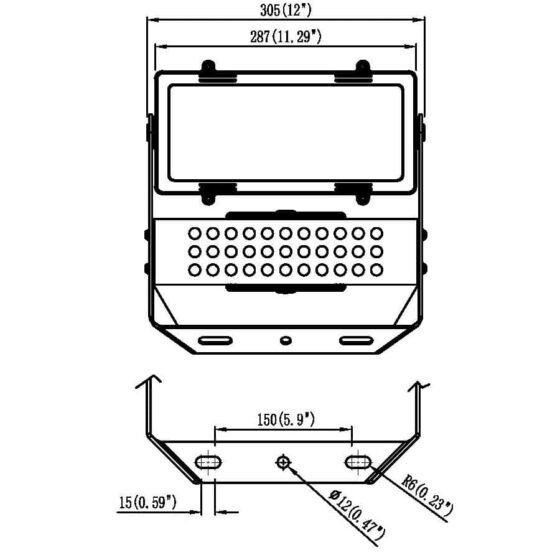

With dimensions of 12 inches wide, 12.7 inches high, and 4.7 inches deep, and weighing 13 pounds, the fixture is compact yet robust, suitable for various mounting scenarios. The optional marine grade finish meets ISO 12944 C4 specifications, making it ideal for marine and coastal applications.

Where This Product Fits Best

This LED flood light is ideal for environments requiring high-intensity, reliable lighting. Its robust construction and versatile mounting options make it suitable for a variety of outdoor applications.

• outdoor sports facility lighting
• baseball field lighting
• tennis court lighting
• parking lot lighting
• event venue lighting
• construction site lighting
• port and shipyard lighting

The fixture's environmental characteristics, including its IP66 and IK08 ratings, ensure it performs well in harsh outdoor conditions, providing reliable illumination in both dry and wet environments.

Installation and Long-Term Use

Installation is straightforward with options for slip fitter or trunnion mounting, allowing for flexibility in positioning and aiming. The fixture's compact size and lightweight design facilitate handling and installation, even in challenging locations.

For long-term use, the fixture's robust construction and high-quality components ensure minimal maintenance requirements. Regular inspections and cleaning will help maintain optimal performance and extend the fixture's lifespan.

How This Fixture Is Commonly Used

This flood light is typically mounted at heights ranging from 20 to 40 feet, depending on the application and desired light coverage. Spacing between fixtures will vary based on the specific lighting requirements and beam angle selected.

In high-output applications, fewer fixtures may be needed, but care should be taken to manage potential glare. Adjusting the beam angle and mounting height can help optimize light distribution and minimize any negative effects.

Safety, Certifications, and Warranty

The 200 Watt LED Area Flood Light is ETL and DLC Premium listed, ensuring compliance with industry standards for safety and performance. Its IP66 and IK08 ratings provide assurance of its durability and resistance to environmental factors.

The fixture includes a 5-year warranty, reflecting its quality and reliability. This warranty covers manufacturing defects and ensures peace of mind for long-term use.

Frequently Asked Questions

Q: What is the beam angle range for this flood light

A: The standard beam angle is 60°, with optional angles of 10°, 15°, 30°, 45°, and 40*100° available.

Q: Can this fixture be used in coastal environments

A: Yes, the optional marine grade finish meets ISO 12944 C4 specifications, making it suitable for coastal and marine environments.

Q: What is the recommended mounting height for optimal performance

A: The recommended mounting height ranges from 20 to 40 feet, depending on the specific application and desired light coverage.

Q: Does this flood light support dimming

A: Yes, it supports 1-10V dimming, allowing for adjustable light levels to suit different needs.

Application Questions and Clarification

Q: Is this flood light suitable for sports field lighting

A: Yes, it is ideal for outdoor sports facilities, including baseball fields and tennis courts, due to its high lumen output and robust construction.

Q: Can this fixture be used for parking lot lighting

A: Yes, it is well-suited for parking lot lighting, providing ample illumination and durability for outdoor environments.

Q: What are the environmental ratings of this flood light

A: It is IP66 and IK08 rated, indicating strong protection against dust, water ingress, and mechanical impact.
