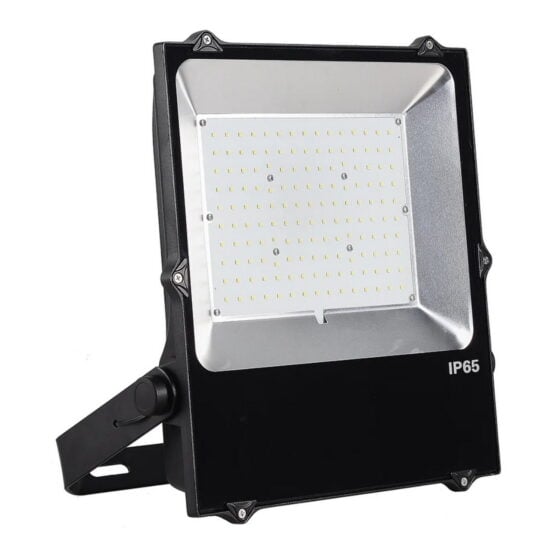

200 Watt LED Area Flood Light | 26000 Lumens | 5000K | 100-277V

Product Overview

This 200-watt LED area flood light produces 26,000 lumens at 5000K through a tempered glass lens with a 120-degree beam distribution. It is configured for exterior flood lighting where broad forward light is needed from a trunnion-mounted fixture.

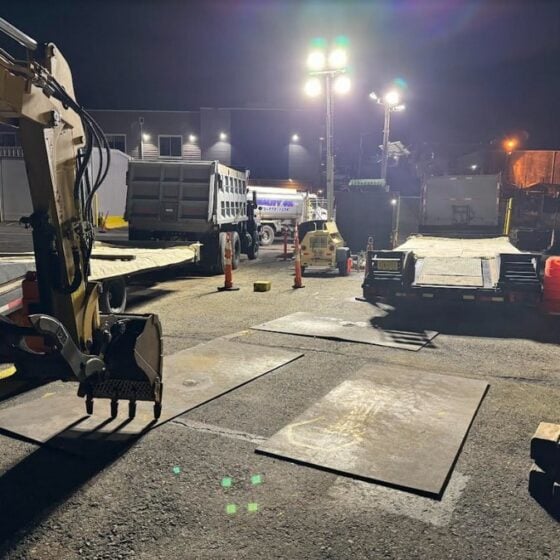

The fixture is commonly used for bridge lighting and construction site lighting, where mounting location, aiming angle, and glare control need to be reviewed as part of the layout. Its 100-277V input supports common commercial electrical systems.

Core Performance and Output

The fixture delivers 26,000 lumens at 130 lumens per watt. Its 120-degree beam angle provides a broad distribution for area lighting, security lighting, and other wide-coverage exterior layouts.

Input voltage is 100-277V at 50/60Hz. Total harmonic distortion is less than 15 percent. This fixture is not dimmable.

The 26,000-lumen output can be excessive at low mounting heights or where the fixture is aimed toward occupied areas. Higher mounting positions and wider spacing can reduce fixture count, but uniformity depends on the final layout and aiming angle.

Adjustability and Control Options

The trunnion mount allows the fixture to be aimed after installation. This supports adjustment of the light direction for bridge lighting, construction site lighting, and loading area lighting.

No dimming capability is provided. Control selection must be limited to switching arrangements that do not require dimming operation.

Longevity and Reliability

The rated lifespan is 50,000 hours. The fixture operates in ambient temperatures from -31F to 131F.

The IP65 rating supports use where the fixture is exposed to outdoor dust and water conditions. Long-term performance still depends on maintaining the lens, mounting hardware, and electrical connections.

Build Quality and Physical Characteristics

The housing is powder coated aluminum with a black finish. The tempered glass lens protects the optical assembly.

The fixture measures 14.2 by 15.7 by 5.5 inches and weighs 21 pounds. Its EPA rating is 1.7.

Where This Product Fits Best

This flood light fits exterior locations requiring broad light distribution, trunnion aiming, and IP65 environmental protection. Its output level is suited to larger area lighting tasks rather than low-level localized lighting.

• area lighting
• security lighting
• bridge lighting
• construction site lighting
• loading area lighting
• parking lot lighting

The aluminum housing, tempered glass lens, IP65 rating, and -31F to 131F operating range support exposed exterior conditions. Final placement must account for wind loading, mounting structure, aiming direction, and glare.

Installation and Long-Term Use

The fixture installs with a trunnion mount. The mounting structure must support the 21-pound fixture weight and accommodate the fixture EPA rating of 1.7.

Connection is made to a 100-277V, 50/60Hz electrical supply. Confirm voltage, branch circuit arrangement, and switching requirements before installation.

The adjustable trunnion should be set after the fixture is secured. Periodic inspection should include the lens, housing finish, mounting hardware, and electrical connections.

How This Fixture Is Commonly Used

For bridge lighting and construction site lighting, fixtures are positioned at mounting heights established by the site structure and required light distribution. The trunnion mount is then aimed toward the intended lighted area.

For area lighting, security lighting, parking lot lighting, and loading area lighting, fixtures are arranged in a layout that manages coverage between mounting points. Spacing varies with mounting height, target light levels, aiming angle, and required uniformity.

Higher output can reduce the number of fixtures in a layout, but it can also increase glare if aiming is not controlled. The 120-degree beam distribution should be considered with the fixture mounting position.

Safety, Certifications, and Warranty

This fixture is ETL listed. It is rebate eligible.

The fixture has an IP65 rating and a 5-year warranty. Operating temperature is rated from -31F to 131F.

Frequently Asked Questions

Q: What light output does this flood light provide?

A: This fixture produces 26,000 lumens while using 200 watts.

Q: What voltage does this fixture require?

A: The fixture operates on 100-277V, 50/60Hz power.

Q: Can this flood light be dimmed?

A: No. This fixture is not dimmable.

Q: What mounting method is included?

A: This flood light uses a trunnion mount for adjustable aiming.

Q: Is this fixture rated for exterior exposure?

A: Yes. The fixture has an IP65 rating and an operating temperature range of -31F to 131F.

Application Questions and Clarification

Q: Is this flood light appropriate for bridge lighting and construction site lighting?

A: Bridge lighting and construction site lighting are valid applications for this fixture. Final fit depends on the mounting structure, aiming direction, and required light distribution.

Q: What should be considered when planning fixture placement for area lighting or security lighting?

A: Mounting height, target light levels, aiming angle, and layout requirements affect fixture placement. The supplied product data does not establish a specific spacing value or fixture quantity.

Q: What should be confirmed for parking lot lighting and loading area lighting?

A: Confirm that the mounting structure supports the 21-pound fixture weight and EPA rating of 1.7. Review the 120-degree beam distribution and trunnion aiming position for the required coverage area.
