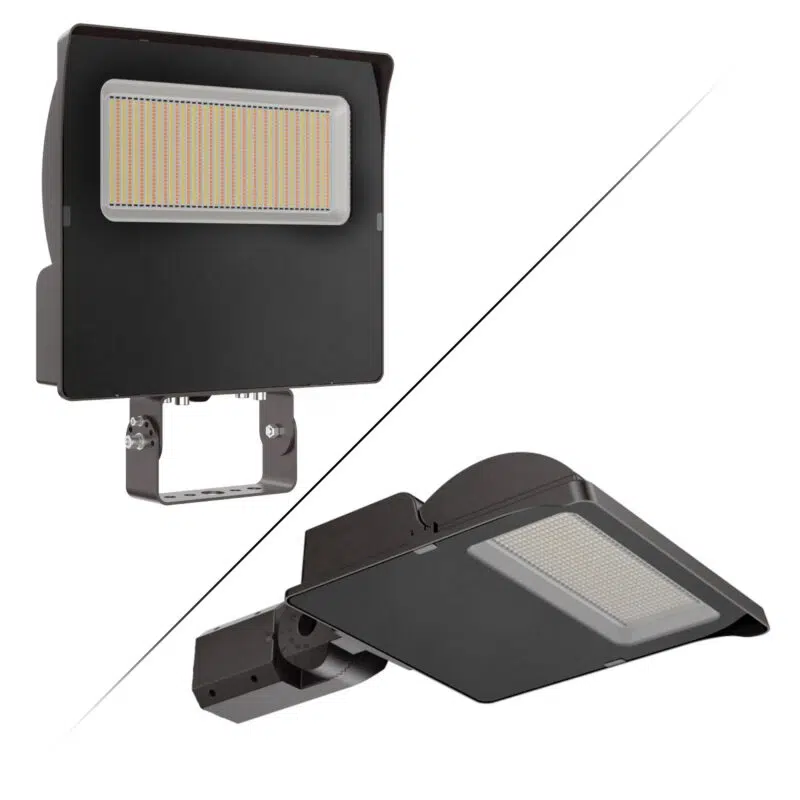

180 / 240 / 300 Watt Adjustable LED Flood Light | 31500 to 52500 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell

Product Overview

This is an adjustable-output LED flood light designed for exterior area and sports facility lighting. It provides selectable wattage settings of 180, 240, or 300 watts, with a lumen range suitable for replacing 1000W metal halide flood fixtures. The fixture includes field-adjustable color temperature (3000K, 4000K, or 5000K) and a built-in photocell for dusk-to-dawn operation. Typical installations include outdoor sports courts, horse arenas, and large event venues where robust, high-output lighting is required.

The fixture is engineered for demanding outdoor environments, with an IP66 and IK07 rating for weather and impact resistance. Yoke and slip fitter mounting options support pole, wall, or structure attachment at mounting heights commonly ranging from 18 to 35 feet, depending on application and light level requirements.

Core Performance and Output

This flood light delivers 31,500 to 52,500 lumens, depending on the selected wattage. The fixture achieves 175 lumens per watt, providing high efficiency for large area illumination. The 120° beam angle produces wide, uniform coverage suitable for open spaces and sports courts. Color temperature can be set to 3000K, 4000K, or 5000K to match site requirements or visual preference.

Electrical performance includes 100-277V input, a power factor of 0.9, and total harmonic distortion below 15%. The fixture is non-dimming and includes a built-in photocell for automatic dusk-to-dawn operation. At lower mounting heights, output may be excessive for small areas and can increase glare if not properly aimed. Uniformity may decrease at mounting heights above 35 feet without careful layout and aiming.

Adjustability and Control Options

Wattage and color temperature are field-adjustable using onboard switches, allowing adaptation to site-specific requirements or future changes. The built-in photocell enables automatic on/off control based on ambient light, reducing manual intervention for exterior applications. No dimming or advanced networked controls are included.

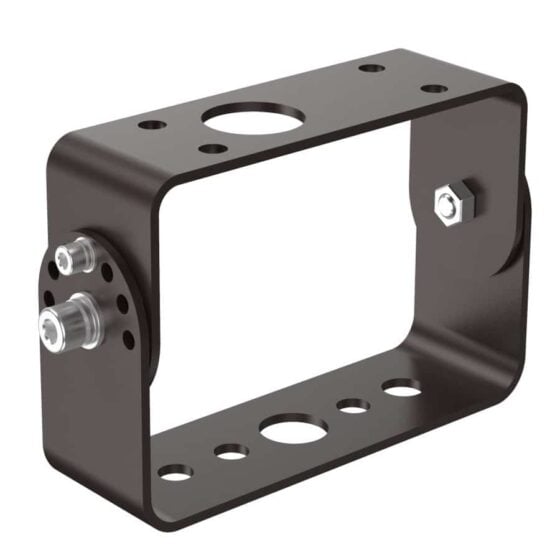

Mounting options include yoke and slip fitter brackets, supporting a range of aiming and installation scenarios. The fixture can be adjusted for precise coverage of courts, arenas, or large outdoor areas. Adjustment is tool-based and remains secure after aiming.

Longevity and Reliability

The fixture is rated for 164,000 hours (L70), supporting long-term operation in demanding outdoor environments. The LED driver and light engine are thermally managed for consistent performance across a wide temperature range. Surge protection is integrated (6KV line-line, 10KV line-earth) to guard against power fluctuations and lightning events.

Powder-coated aluminum housing and tempered glass optics provide resistance to corrosion, impact, and weathering. The fixture is designed for minimal maintenance, with no lamp or ballast replacements required during its service life.

Build Quality and Physical Characteristics

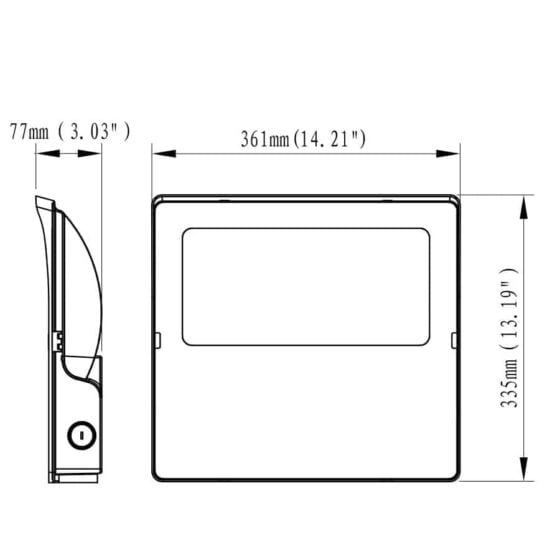

The housing is constructed from powder-coated aluminum, providing durability and corrosion resistance. The fixture measures 14.2 inches wide by 13.2 inches high by 3 inches deep and weighs 11.5 pounds. The tempered glass lens protects the LEDs and optics from debris and impact.

Ingress protection is rated at IP66 for dust and water resistance, and IK07 for impact resistance. The fixture is finished in bronze and includes a 16-inch cord for wiring. All mounting hardware is designed for secure attachment to poles, walls, or structural supports.

Where This Product Fits Best

This flood light is suited for exterior environments requiring high-output, wide-distribution lighting. It is commonly installed in sports facilities, event venues, and large outdoor areas where robust performance and adjustability are needed.

• basketball court lighting
• area lighting
• building facade lighting
• horse arena lighting
• outdoor sports facility lighting
• event venue lighting
• parking lot lighting
• security lighting

Environmental characteristics include exposure to rain, dust, and impact. The fixture is suitable for installation in locations with temperatures from -40°F to 122°F and where high ingress and impact protection are required.

Installation and Long-Term Use

Mounting options include yoke and slip fitter brackets, supporting installation on poles, walls, or structural frames. The fixture?s weight and size allow for single-person handling, but secure attachment and aiming are required for safety and performance. The 16-inch cord provides flexibility for wiring connections at the mounting point.

Routine maintenance is limited to periodic cleaning of the lens and inspection of mounting hardware. The built-in photocell reduces manual switching. No lamp or ballast replacements are required. For long-term reliability, ensure all seals and gaskets remain intact and that the fixture is not submerged or exposed to corrosive chemicals.

How This Fixture Is Commonly Used

Typical mounting heights range from 18 to 35 feet, depending on the application and required light levels. For sports courts and arenas, fixtures are often spaced to provide uniform coverage and minimize shadows, with aiming adjusted to reduce glare for players and spectators. In area and parking lot lighting, spacing and aiming are determined by site layout and pole locations.

Higher output settings can reduce the total fixture count but may require careful aiming to avoid excessive brightness or glare. Spacing and layout should be planned based on the selected wattage and site requirements.

Safety, Certifications, and Warranty

This fixture is ETL listed and DLC Premium qualified. It is rated IP66 for water and dust ingress and IK07 for impact resistance. Surge protection is integrated to meet outdoor electrical safety requirements.

The product includes a 5-year warranty covering manufacturing defects and performance. All components are designed for safe operation in outdoor environments within the specified temperature range.

Frequently Asked Questions

Q: What is the recommended mounting height for this flood light?

A: Typical mounting heights range from 18 to 35 feet, depending on the application and desired light levels.

Q: Can the wattage and color temperature be adjusted in the field?

A: Yes, both wattage and color temperature are adjustable using onboard switches inside the fixture.

Q: Is this fixture suitable for use in wet or exposed outdoor locations?

A: Yes, the fixture is IP66 rated for dust and water ingress and is designed for exposed outdoor environments.

Q: Does the fixture support dimming or advanced controls?

A: No, this model does not support dimming or networked controls. It includes a built-in photocell for dusk-to-dawn operation.

Q: How many fixtures are needed for a standard basketball court?

A: Fixture count depends on mounting height, aiming, and required light levels. Typical layouts use 4 to 8 fixtures per court.

Application Questions and Clarification

Q: Is this flood light appropriate for horse arena lighting?

A: Yes, this fixture is commonly used for horse arena lighting and provides suitable output and coverage for that application.

Q: Can this fixture be used for building facade lighting?

A: Yes, the wide beam angle and adjustable output make it suitable for building facade illumination.

Q: Is this fixture recommended for parking lot lighting?

A: Yes, it is frequently installed for parking lot lighting, especially where high output and wide coverage are required.

Q: Is this fixture suitable for use in correctional facility lighting?

A: This fixture can be used for correctional facility lighting where high-output, durable exterior lighting is needed.
