17 / 25 / 30 Watt Adjustable LED Flood Light | 2890 to 5100 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell

Product Overview

This adjustable LED flood light is designed for exterior site, architectural, and security lighting. It offers selectable wattage settings of 17, 25, or 30 watts, delivering up to 5100 lumens. The fixture supports color temperature adjustment between 3000K, 4000K, and 5000K, allowing adaptation to project requirements or site standards. Typical installations include building facades, perimeter security, and small-area site lighting, often as a direct replacement for 150W metal halide units.

The compact form factor (7 in W x 9 in H x 2 in D) and low weight (2.5 lbs) make it suitable for mounting on walls, poles, or structural elements using either yoke or knuckle hardware. The built-in photocell supports dusk-to-dawn operation for exterior applications. The fixture is UL listed and IP65 rated for outdoor use.

Core Performance and Output

This flood light provides three selectable output levels: 2890, 4250, or 5100 lumens, with an efficacy of 153 lumens per watt. The 120° beam angle delivers wide area coverage suitable for general site illumination, building accent, or perimeter lighting. Color temperature can be set to 3000K, 4000K, or 5000K as needed for visual comfort or site requirements.

Power factor is 0.9 with total harmonic distortion under 15%. The fixture operates on 100-277V input and is non-dimming. At lower mounting heights, the highest output setting may produce excessive brightness or glare in confined areas. Uniformity may decrease at mounting heights above 15 feet due to the wide beam distribution.

Adjustability and Control Options

Both wattage and color temperature are field-adjustable via onboard switches, allowing tuning during installation or future maintenance. This supports flexibility for changing site needs or compliance with local lighting codes. The fixture includes a built-in photocell for automatic dusk-to-dawn control, eliminating the need for external sensors or time clocks.

No onboard dimming is provided. Control is limited to on/off operation via the photocell or external switching. Adjustments to output and color must be made at the fixture.

Longevity and Reliability

The fixture is rated for 50,000 hours (L70) at typical operating conditions. The die-cast aluminum housing and tempered glass lens provide durability in outdoor environments. The IP65 rating protects against dust and water ingress, supporting reliable operation in exposed locations.

Operating temperature range is -40°F to 113°F. The fixture is suitable for most North American climates, but performance may be affected in locations with sustained temperatures above 113°F.

Build Quality and Physical Characteristics

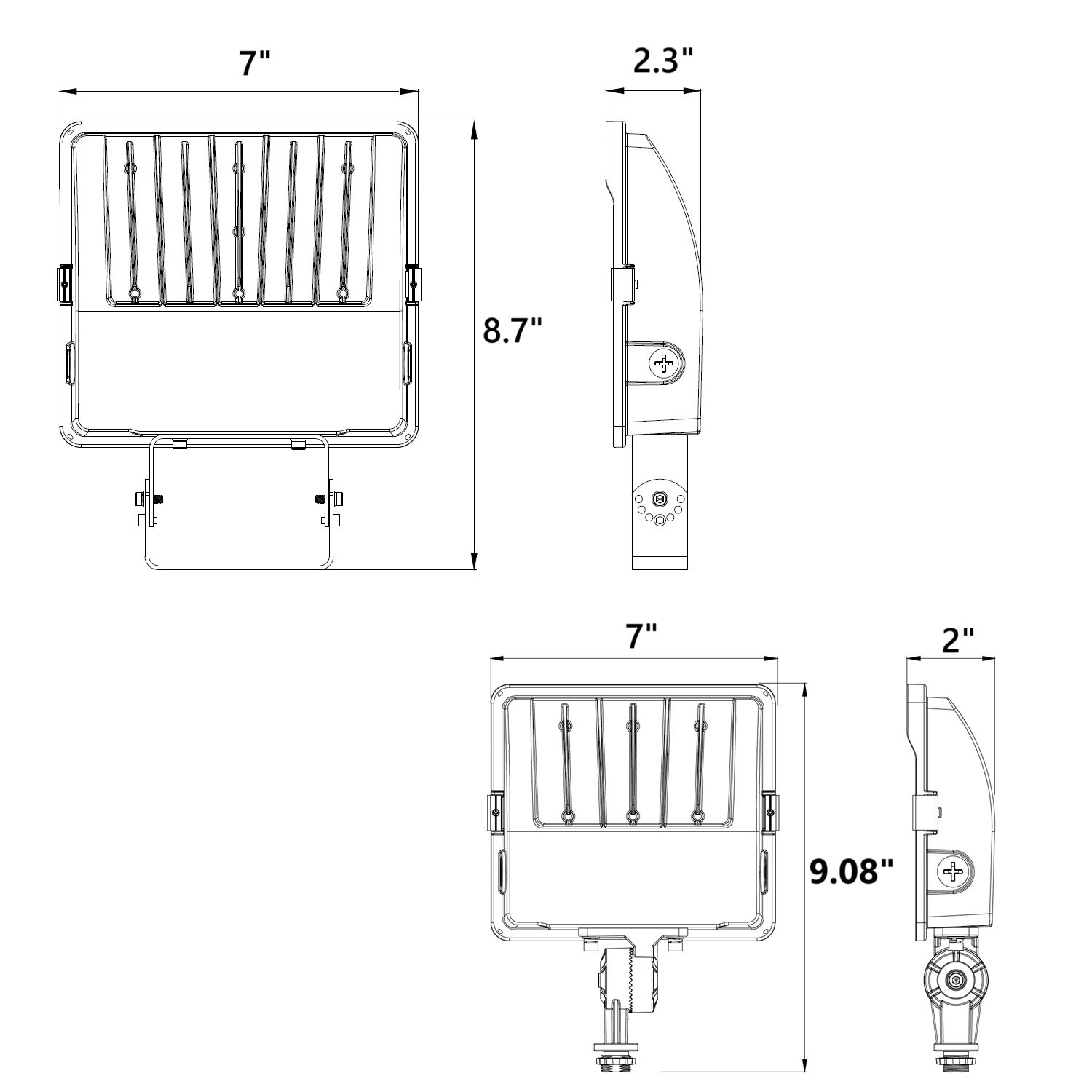

The housing is constructed from die-cast aluminum with a bronze finish. The lens is tempered glass for impact resistance and optical clarity. The fixture measures 7 inches wide by 9 inches high by 2 inches deep and weighs 2.5 pounds, supporting easy handling during installation.

Mounting options include yoke and knuckle hardware for attachment to walls, poles, or brackets. The fixture has an EPA rating of 0.8, suitable for use on standard site lighting poles in low-wind areas. All hardware is designed for exterior use and resists corrosion.

Where This Product Fits Best

This flood light is intended for small to mid-sized exterior lighting projects where adjustable output and color are required. It is commonly used for architectural site lighting, security lighting, and building facade illumination. The fixture is also suitable for lighting outdoor sports courts, event venues, and parking lot perimeters where moderate output is sufficient.

• area lighting
• building facade lighting
• security lighting
• outdoor sports facility lighting
• parking lot lighting
• event venue lighting
• loading area lighting
• basketball court lighting

Environmental suitability includes wet locations, outdoor mounting, and exposure to rain or dust. The fixture is not intended for high-mast, large-area, or hazardous location applications.

Installation and Long-Term Use

Installation is direct using the included yoke or knuckle mount. The fixture can be mounted to walls, poles, or structural brackets. The compact size and light weight simplify handling and alignment. Field adjustment of wattage and color temperature is accessible at the fixture body.

Routine maintenance is minimal. The tempered glass lens can be cleaned as needed. The built-in photocell reduces manual intervention for on/off control. Long-term reliability is supported by the sealed housing and robust construction. Replacement or adjustment does not require specialized tools.

How This Fixture Is Commonly Used

Typical mounting heights range from 8 to 15 feet, depending on the application and desired coverage. Spacing between fixtures varies based on output setting and site requirements, with higher output settings allowing wider spacing but potentially increasing glare in sensitive areas.

Common deployment includes perimeter mounting for security, wall mounting for building accent, and pole mounting for small parking lots or sports courts. When used for sports or event lighting, layout should consider uniformity and potential spill light. Selecting the appropriate output and color temperature during installation is critical for visual comfort and site compliance.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated. It is suitable for wet locations and meets standard safety requirements for exterior lighting. The product is eligible for utility rebates where applicable. A 5-year warranty covers manufacturing defects and performance under normal operating conditions.

No additional safety controls or emergency features are included. The fixture is not rated for hazardous or classified environments.

Frequently Asked Questions

Q: What is the recommended mounting height for this flood light?

A: Typical mounting heights are 8 to 15 feet, depending on the output setting and coverage needs.

Q: Can the wattage and color temperature be changed after installation?

A: Yes, both wattage and color temperature are field-adjustable at the fixture using onboard switches.

Q: Is this fixture compatible with dimming controls?

A: No, this model does not support dimming. Control is limited to on/off operation via the built-in photocell or external switching.

Q: What mounting options are available?

A: The fixture includes both yoke and knuckle mounting hardware for attachment to walls, poles, or brackets.

Q: How should fixtures be spaced for area lighting applications?

A: Spacing depends on the selected wattage and site requirements. Higher output settings allow wider spacing but may increase glare. Typical spacing is 1 to 1.5 times the mounting height.

Application Questions and Clarification

Q: Is this flood light suitable for large parking lots or high-mast lighting?

A: No, the output and beam distribution are designed for small to mid-sized areas. It is not intended for high-mast or large-area coverage.

Q: Can this fixture be used for outdoor sports court lighting?

A: Yes, it is suitable for small outdoor sports courts such as basketball or tennis courts, provided mounting height and spacing are appropriate for the desired light levels.

Q: Does the built-in photocell require any additional wiring?

A: No, the photocell is integrated and operates automatically when the fixture is connected to constant power.

Q: Is this fixture rated for use in hazardous or classified locations?

A: No, it is not rated for hazardous or classified environments. It is intended for general exterior site lighting.
