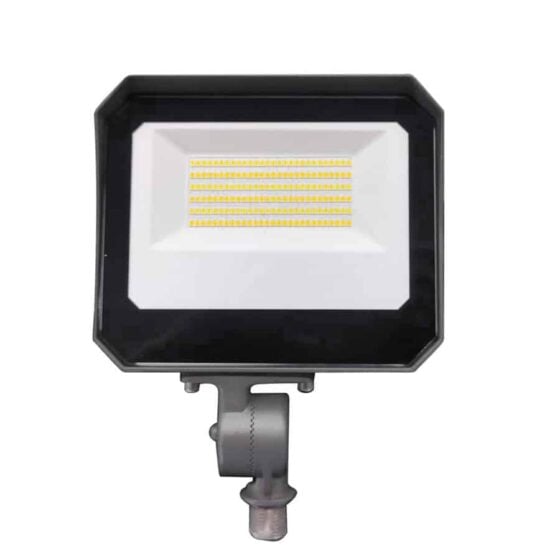

15 / 25 / 35 Watt Adjustable LED Flood Light | 2025 to 4700 Lumens | 3000K / 4000K / 5000K | 100-277V | Knuckle or Yoke Mount

Product Overview

This adjustable LED flood light is designed for targeted area illumination in exterior environments. The fixture offers selectable wattage settings of 15, 25, or 35 watts, supporting a range of output levels for architectural site lighting, security lighting, and building facade applications. Typical mounting heights range from 8 to 20 feet, making it suitable for small to mid-sized exterior zones, walkways, and perimeter areas. The fixture is available with either a knuckle or yoke mount for flexible installation on walls, poles, or ground stakes.

Color temperature can be set to 3000K, 4000K, or 5000K to match site requirements or existing lighting. The fixture is UL listed and IP65 rated for outdoor use, with a powder-coated aluminum housing and tempered glass lens for durability in exposed locations.

Core Performance and Output

This flood light delivers 2025 to 4700 lumens, depending on the selected wattage. Efficacy is 135 lumens per watt. The fixture is designed to replace 100-watt metal halide units in similar applications. Output is suitable for illuminating building facades, small parking areas, walkways, and security zones. The beam distribution is optimized for controlled area coverage without excessive spill.

At lower mounting heights, the 35-watt setting may produce higher brightness than needed for some applications. At the maximum mounting height, uniformity may decrease if spacing is extended beyond typical patterns for this output class.

Adjustability and Control Options

The fixture includes field-selectable wattage adjustment, allowing the installer to set the output to 15, 25, or 35 watts as needed. Color temperature can also be selected during installation, with options for 3000K, 4000K, or 5000K. This supports adaptation to site-specific requirements or changes in lighting standards over time.

No onboard dimming or advanced control features are included. The fixture operates on standard 100-277V circuits and is compatible with basic on/off switching.

Longevity and Reliability

The LED array and driver are rated for 50,000 hours (L70), supporting multi-year operation in exterior environments. The fixture is designed for consistent performance across a wide temperature range, from -4°F to 140°F. The powder-coated aluminum housing and tempered glass lens provide resistance to weather, impact, and corrosion.

Routine maintenance is limited to periodic cleaning of the lens and inspection of mounting hardware. No lamp or ballast replacements are required during the rated life.

Build Quality and Physical Characteristics

The fixture measures 9.8 inches in length and 6.9 inches in width, with a total weight of 5 pounds. The housing is constructed from powder-coated aluminum for corrosion resistance and durability. The lens is tempered glass, providing impact protection and optical clarity.

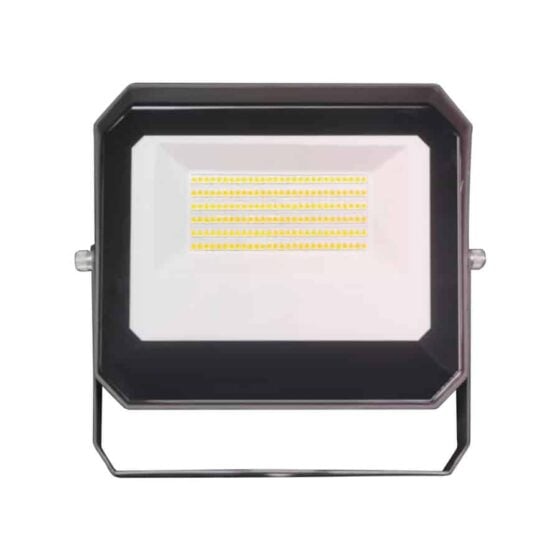

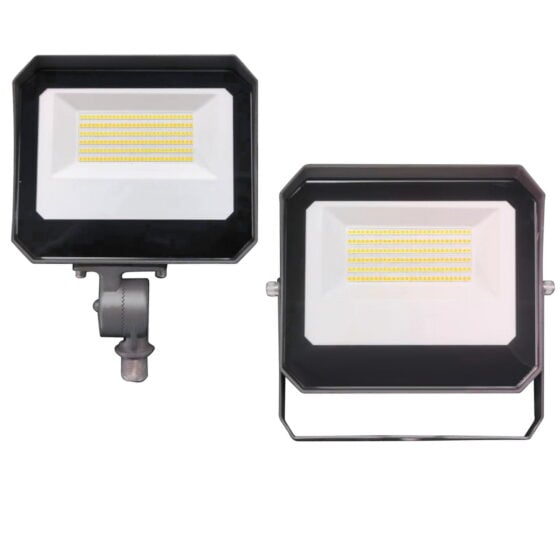

Mounting options include both knuckle and yoke brackets, supporting installation on walls, poles, or ground surfaces. The fixture is finished in bronze and has an EPA rating of 0.65 for wind load calculations.

Where This Product Fits Best

This adjustable LED flood light is intended for exterior area lighting and architectural site illumination where moderate output and flexible mounting are required. It is commonly used for perimeter security, building accent lighting, and small outdoor sports or event venues. The fixture is also suitable for illuminating parking lots, loading areas, and walkways in commercial or institutional settings.

• area lighting
• security lighting
• building facade lighting
• outdoor sports facility lighting
• parking lot lighting
• event venue lighting
• loading area lighting
• basketball court lighting

The fixture is IP65 rated for wet locations and can be installed in environments exposed to rain, dust, and temperature fluctuations. It is not intended for high-mast or large-area floodlighting where higher output is required.

Installation and Long-Term Use

Installation can be performed using either the knuckle or yoke mount, depending on the surface and aiming requirements. The fixture supports direct mounting to junction boxes, poles, or ground stakes. Wiring is completed using standard 100-277V connections. The compact size and moderate weight allow for single-person installation in most cases.

Long-term use requires minimal maintenance. The fixture should be periodically checked for debris accumulation on the lens and for secure mounting. No relamping or ballast service is needed. The adjustable wattage and color temperature allow for future adaptation if site requirements change.

How This Fixture Is Commonly Used

This flood light is typically installed at mounting heights between 8 and 20 feet, depending on the area to be illuminated and the selected wattage. Spacing and aiming are determined by the coverage pattern required for the application, with closer spacing used for uniform security lighting and wider spacing for accent or facade illumination.

In security and area lighting applications, fixtures are often spaced to provide overlapping coverage. For building facade or accent lighting, aiming and mounting height are adjusted to highlight architectural features. Higher output settings reduce the number of fixtures needed but may increase glare if not properly aimed or shielded.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated. It is suitable for wet locations and meets standard safety requirements for exterior lighting. The product is eligible for utility rebates where applicable. The manufacturer provides a 5-year warranty covering defects in materials and workmanship.

No special safety procedures are required beyond standard electrical and ladder safety during installation and maintenance.

Frequently Asked Questions

Q: What is the recommended mounting height for this flood light?

A: Typical mounting heights range from 8 to 20 feet, depending on the selected wattage and area coverage requirements.

Q: Can the wattage and color temperature be changed after installation?

A: Yes, both wattage and color temperature are field adjustable and can be changed as needed during maintenance.

Q: Is this fixture suitable for continuous dimming or advanced controls?

A: No, this model does not support dimming or advanced control integration. It operates on standard on/off switching.

Q: What is the expected lifespan of the fixture?

A: The fixture is rated for 50,000 hours (L70) under normal operating conditions.

Q: How should fixtures be spaced for uniform area lighting?

A: Spacing depends on mounting height and wattage setting. For uniform coverage, fixtures are typically spaced to allow overlapping light patterns, with adjustments based on site layout and required light levels.

Application Questions and Clarification

Q: Is this flood light appropriate for large parking lots or high-mast lighting?

A: No, the output level is intended for small to mid-sized areas. For large parking lots or high-mast applications, higher output fixtures are required.

Q: Can this fixture be used for outdoor sports courts?

A: Yes, it is suitable for small outdoor sports courts such as basketball or tennis courts, provided mounting height and spacing are matched to the required light levels.

Q: Is the fixture rated for installation in wet or exposed environments?

A: Yes, the fixture is IP65 rated and suitable for wet locations and outdoor exposure.

Q: What mounting options are available?

A: The fixture includes both knuckle and yoke mounting options for installation on walls, poles, or ground surfaces.
