125 / 150 / 200 / 250 Watt Adjustable LED Flood Light | 20750 to 41500 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Slip Fitter or Yoke Mount

Product Overview

This adjustable LED flood light is designed for high-output exterior illumination in commercial and industrial environments. It offers selectable wattage settings of 125, 150, 200, or 250 watts, supporting a wide range of area and directional lighting needs. Typical use cases include replacing 400W metal halide fixtures for parking lots, building facades, and security perimeters at mounting heights from 18 to 35 feet.

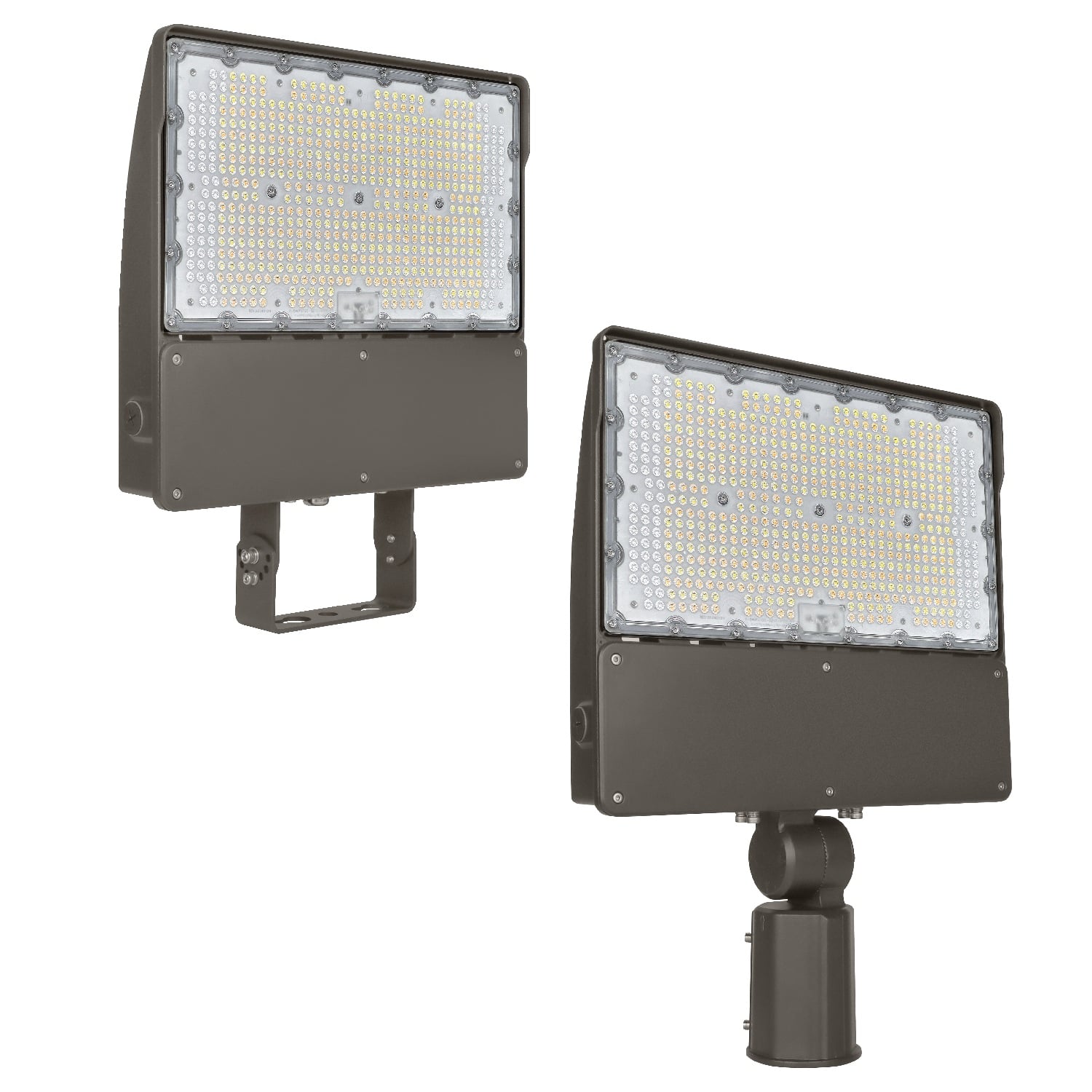

The fixture supports both slip fitter and yoke mounting, allowing for installation on poles, walls, or structural surfaces. Color temperature is field-adjustable between 3000K, 4000K, and 5000K to match site requirements or existing lighting. The design is suited for outdoor environments exposed to weather and moderate temperature swings.

Core Performance and Output

Output ranges from 20,750 to 41,500 lumens, with a maximum efficacy of 166 lumens per watt. The 120-degree beam angle provides wide area coverage, suitable for open lots, building perimeters, and sports courts. The fixture operates on 100-277V input and maintains a power factor of 0.9 for efficient electrical performance.

Selectable wattage allows tuning output to match site needs or reduce glare in sensitive areas. At lower mounting heights, the highest output setting may produce excessive brightness or glare. Uniformity may decrease at mounting heights above 35 feet due to the wide beam distribution.

Adjustability and Control Options

Both wattage and color temperature are field-adjustable via onboard switches, supporting on-site tuning without fixture replacement. The fixture does not include dimming capability or integrated controls. Mounting options include slip fitter for pole arms and yoke for wall or surface attachment, supporting a range of aiming and orientation requirements.

Adjustment features allow adaptation to changing site needs or future lighting upgrades without rewiring or fixture swap. No occupancy or daylight controls are integrated; external controls must be specified separately if required.

Longevity and Reliability

The fixture is rated for 50,000 hours (L70) and uses a die-cast aluminum housing with a tempered glass lens for impact and weather resistance. The IP65 rating protects against dust and water jets, supporting reliable operation in exposed outdoor locations.

Operating temperature range is -40F to 113F, suitable for most North American climates. No internal fans or moving parts are present, reducing maintenance requirements. The fixture is covered by a 5-year warranty.

Build Quality and Physical Characteristics

The housing is constructed from die-cast aluminum with a bronze finish. The fixture measures 16.4 inches high by 14 inches wide by 2.6 inches deep and weighs 12 pounds. The tempered glass lens protects LEDs from impact and environmental exposure.

EPA rating is 1.2, supporting use on standard area lighting poles. All hardware is corrosion-resistant for outdoor use. The fixture is UL listed and rebate eligible where applicable.

Where This Product Fits Best

This LED flood light is intended for exterior area and directional lighting in commercial and industrial settings. It is commonly used for perimeter security, parking lot illumination, and building facade lighting. The adjustable output and color temperature support deployment across a range of site types and lighting requirements.

• area lighting
• parking lot lighting
• security lighting
• building facade lighting
• event venue lighting
• loading area lighting
• basketball court lighting
• outdoor sports facility lighting

Suitable for outdoor environments exposed to rain, dust, and temperature swings. Not intended for hazardous, marine, or corrosive environments. Mounting hardware and pole selection must match EPA and weight requirements for wind load compliance.

Installation and Long-Term Use

Slip fitter and yoke mounting options support installation on round or square poles, walls, or structural surfaces. The fixture is designed for single-person handling and can be installed using standard tools. Field-adjustable switches are accessible after opening the housing.

Routine maintenance is limited to periodic cleaning of the lens and inspection of mounting hardware. No lamp or ballast replacements are required. Ensure mounting surfaces and poles meet EPA and weight requirements for the selected configuration.

How This Fixture Is Commonly Used

Typical mounting heights range from 18 to 35 feet, depending on output setting and site requirements. Fixtures are spaced to provide overlapping coverage for uniform illumination in parking lots, building perimeters, or sports courts. For security or facade lighting, aiming is adjusted to minimize glare and light trespass.

Higher output settings reduce the number of fixtures needed but may increase glare or require careful aiming. Spacing and layout should be confirmed based on site photometric analysis and local lighting codes.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated. It is eligible for utility rebates where applicable. The product is covered by a 5-year warranty from the date of installation.

No hazardous location or marine certifications are included. All electrical connections must comply with local codes and standards. Follow installation instructions for safe operation and long-term reliability.

Frequently Asked Questions

Q: What is the maximum recommended mounting height for this flood light?

A: The fixture is typically installed at heights up to 35 feet. Above this, uniformity and effective coverage may decrease due to the wide beam angle.

Q: Can the wattage and color temperature be adjusted after installation?

A: Yes, both wattage and color temperature are field-adjustable using onboard switches accessible inside the housing.

Q: Is this fixture compatible with dimming controls?

A: No, this model does not support dimming. Output is controlled only by the onboard wattage selector.

Q: What mounting options are available?

A: The fixture includes both slip fitter and yoke mounting options for installation on poles, walls, or structural surfaces.

Q: How should fixture spacing be determined for parking lot or area lighting?

A: Spacing depends on mounting height, output setting, and required light levels. Photometric analysis is recommended to confirm layout and uniformity.

Application Questions and Clarification

Q: Is this flood light suitable for use in marine or corrosive environments?

A: No, this fixture is not rated for marine or corrosive environments. Use only in standard outdoor commercial or industrial settings.

Q: Can this fixture be used for outdoor sports facility lighting?

A: Yes, it is commonly used for outdoor sports courts, event venues, and similar applications where wide area coverage is required.

Q: Does the fixture support installation on existing light poles?

A: Yes, provided the pole meets the EPA and weight requirements for the fixture and mounting hardware.

Q: What is the recommended maintenance for this fixture?

A: Periodic cleaning of the lens and inspection of mounting hardware are recommended. No lamp or ballast replacements are required.
