1200 Watt LED Stadium Light | 180000 Lumens | 5700K | 100-277V | Optional Remote Driver

Product Overview

The 1200 Watt LED Stadium Light is a high-output flood fixture designed for large-scale outdoor sports and area lighting. It delivers 180,000 lumens at 5700K, supporting demanding environments such as stadiums, sports fields, and expansive exterior venues. The fixture is engineered for yoke mounting and is suitable for installations where legacy 2000W metal halide systems are being replaced or upgraded.

This model is built for use at significant mounting heights, typically 40 feet and above, where wide-area coverage and high light levels are required. The fixture?s robust construction and advanced optics support reliable operation in exposed outdoor settings, including sports complexes and event venues.

Core Performance and Output

This fixture provides 180,000 lumens at 1200 watts, achieving an efficacy of 150 lumens per watt. Multiple beam angle options (60°, 10°, 30°, 45°, T3) allow for tailored light distribution, supporting both focused and wide-area coverage. The polycarbonate lens ensures consistent optical performance and impact resistance.

0-10V dimming is standard, enabling integration with lighting controls for energy management and event scheduling. At lower mounting heights, output may be excessive and require careful aiming or dimming to control glare and spill. Uniformity can be affected at extreme mounting heights without proper layout and aiming.

Adjustability and Control Options

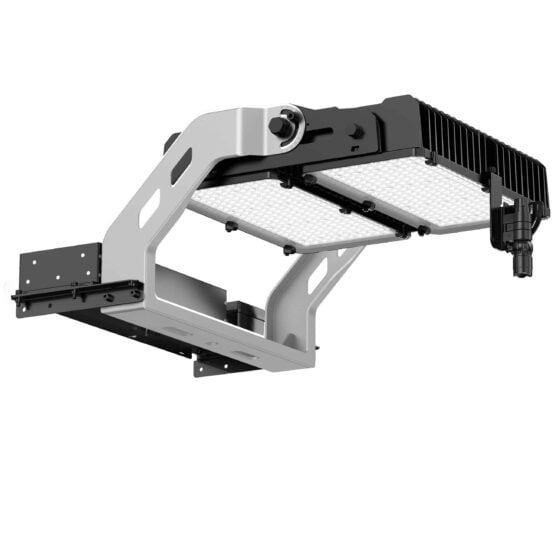

The fixture includes a yoke mount for precise aiming and secure attachment to poles or structural supports. Beam angle selection supports application-specific requirements, from narrow spot to wide flood distributions. 0-10V dimming is integrated for compatibility with standard lighting control systems.

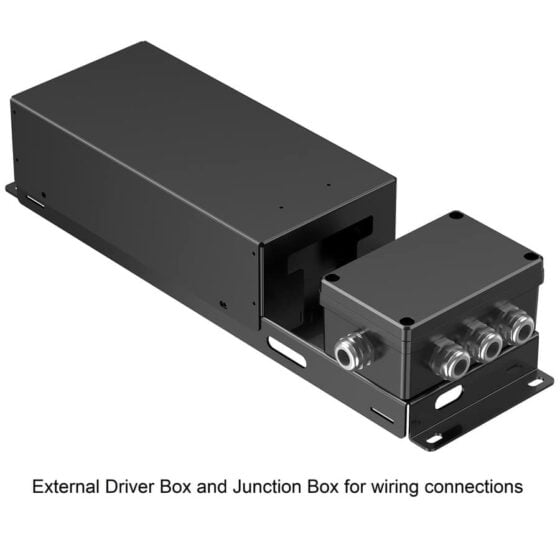

An optional remote driver configuration is available, allowing for flexible installation in locations with limited access or where weight distribution is a concern. The fixture supports both 100-277V and optional 277-480V input ranges.

Longevity and Reliability

The fixture is rated for 200,000 hours (L70), supporting long-term operation in demanding environments. The powder-coated aluminum housing and polycarbonate lens provide resistance to corrosion and impact (IK08), while the IP66 rating ensures protection against dust and powerful water jets.

Integrated surge protection (10KV line-line, 20KV line-earth) guards against electrical disturbances common in outdoor installations. The fixture is designed for consistent performance across a wide temperature range, from -22°F to 122°F.

Build Quality and Physical Characteristics

The housing is constructed from powder-coated aluminum for durability and corrosion resistance. The fixture measures 20 inches wide by 22.5 inches high by 11.3 inches deep, with a fixture body weight of 42 lbs and a driver box weight of 14.5 lbs. The black finish is standard for exterior integration.

The polycarbonate lens provides impact resistance and optical clarity. The fixture?s EPA rating of 2.68 should be considered when selecting poles and mounting hardware for wind load compliance.

Where This Product Fits Best

This fixture is designed for large outdoor environments requiring high-output, uniform illumination. It is suitable for installations where robust construction and advanced optical control are necessary to meet sports and area lighting standards.

• outdoor sports facility lighting
• area lighting
• baseball field lighting
• event venue lighting
• basketball court lighting
• parking lot lighting
• airport apron lighting
• security lighting

The fixture?s IP66 and IK08 ratings support use in exposed locations subject to weather and impact. Suitable for both new construction and retrofit projects where high mounting heights and wide coverage are required.

Installation and Long-Term Use

The yoke mount allows for secure attachment to poles, cross arms, or structural supports. The fixture?s weight and EPA rating require appropriate mounting hardware and pole selection for wind load compliance. Remote driver options can simplify installation in locations with limited access or where minimizing fixture weight is critical.

Routine maintenance is minimized due to the long LED lifespan and robust housing. Periodic inspection of mounting hardware and electrical connections is recommended, especially in high-wind or corrosive environments. The fixture is compatible with standard 0-10V dimming controls for integration into site-wide lighting management systems.

How This Fixture Is Commonly Used

This fixture is typically installed at mounting heights of 40 to 80 feet, depending on the application and required light levels. Common layouts include pole-mounted arrays for field and area lighting, as well as perimeter mounting for event venues and parking lots. Spacing and aiming are determined by beam angle selection and site geometry.

Higher output allows for reduced fixture count in large areas, but may require careful aiming and shielding to control glare and light spill. Fixture orientation and beam selection should be coordinated during design to achieve uniform coverage and compliance with site lighting requirements.

Safety, Certifications, and Warranty

This fixture is ETL and DLC Premium certified. It is rated IP66 for water and dust ingress and IK08 for impact resistance. Integrated surge protection meets 10KV line-line and 20KV line-earth requirements.

The product includes a 5-year warranty covering manufacturing defects and performance. All components are designed for safe operation in outdoor environments with wide temperature fluctuations.

Frequently Asked Questions

Q: What is the recommended mounting height for this 1200W stadium light?

A: Typical mounting heights range from 40 to 80 feet, depending on the application and required light levels.

Q: Which beam angles are available for this fixture?

A: Beam angle options include 60°, 10°, 30°, 45°, and T3 distributions.

Q: Is this fixture compatible with 277-480V electrical systems?

A: Yes, an optional configuration supports 277-480V input.

Q: What is the EPA rating and how does it affect installation?

A: The EPA rating is 2.68. This value must be considered when selecting poles and mounting hardware to ensure wind load compliance.

Q: How should fixture spacing be determined for sports field lighting?

A: Spacing depends on mounting height, beam angle, and target light levels. Photometric analysis is recommended for precise layout.

Application Questions and Clarification

Q: Is this fixture suitable for use in covered indoor sports facilities?

A: This model is designed for outdoor use. For covered indoor facilities, consider fixtures with lower output and different mounting options.

Q: Can this fixture be used for airport apron or port lighting?

A: Yes, the output and construction are suitable for large exterior areas such as airport aprons and port facilities.

Q: What maintenance is required for long-term operation?

A: Routine inspection of mounting hardware and electrical connections is recommended. The fixture?s LED lifespan minimizes the need for frequent maintenance.
