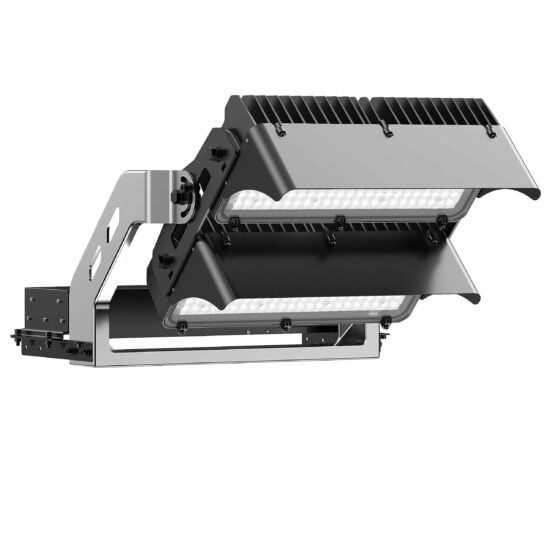

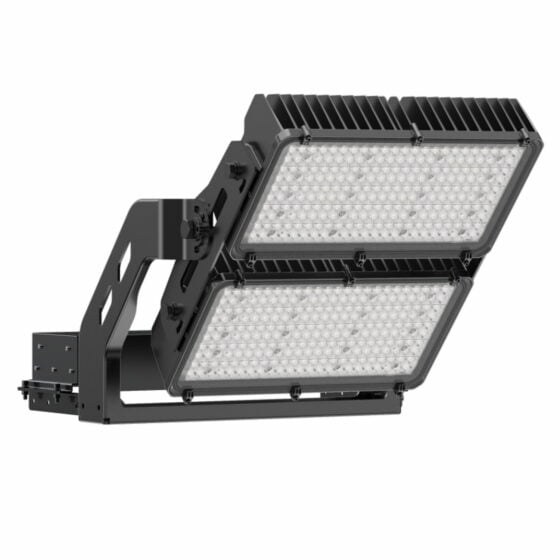

1200 Watt LED Stadium Light | 180000 Lumens | 5700K | 100-277V | Optional Remote Driver

Product Overview

This 800 Watt LED Stadium Light delivers 120,000 lumens at 5700K. It is designed to replace 1500 Watt metal halide fixtures in outdoor and indoor sports lighting applications.

The fixture operates on 100V-277V input, with an optional 277V-480V configuration. It supports 0-10V dimming and offers multiple beam angle options, including 60°, 10°, 30°, 45°, and T3.

The housing is powder coated aluminum with a black finish. The fixture uses a polycarbonate lens and is built for high-output, long-life operation with a rated lifespan of 200,000 hours (L70).

Dimensions are 20 x 17 x 9.2 inches. The fixture weight is 30.2 lbs, and the driver box weighs 12 lbs.

Where This Product Fits Best

This fixture is suited for stadiums, sports fields, and large outdoor venues requiring high-output lighting. It is also used in arenas and large-scale industrial sites where broad, powerful illumination is needed.

The yoke mount allows for secure installation on poles, crossarms, or structural supports. The EPA rating of 1.92 supports use in exposed outdoor locations where wind load is a consideration.

With an IP66 rating, the fixture can be installed in environments exposed to rain, dust, and harsh weather. The IK08 rating supports use in areas where impact resistance is required.

Operating temperature range is -22°F to 122°F, allowing for year-round use in a wide range of climates.

Performance and Functional Considerations

The fixture delivers 150 lumens per watt, providing high efficiency for large-area lighting. The 80+ CRI supports color rendering suitable for sports and event applications.

Multiple beam angle options allow for precise light distribution, from narrow spot to wide flood and Type 3 patterns. This flexibility supports both field and spectator area coverage.

0-10V dimming is supported for output adjustment when paired with compatible controls. Surge protection is rated at 10KV line-line and 20KV line-earth for electrical reliability.

The polycarbonate lens and powder coated aluminum housing provide durability in demanding environments. The fixture is ETL listed and DLC Premium qualified.

Installation and Long-Term Use

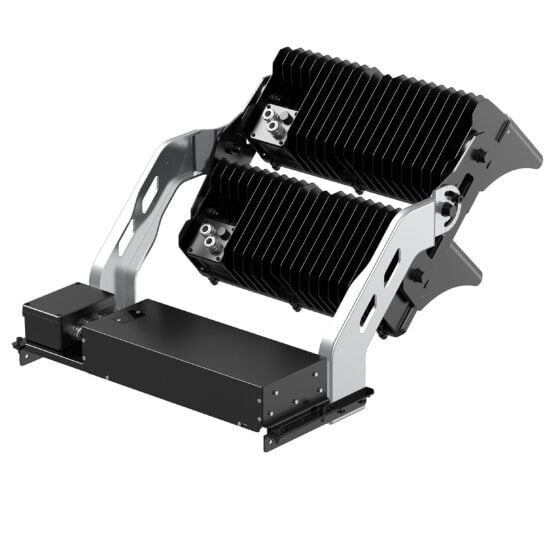

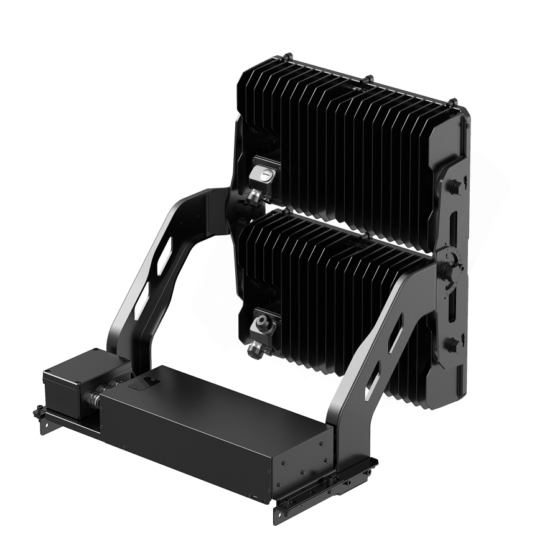

The yoke mount supports installation on a variety of structures, including poles and trusses. The fixture and driver box are separate components, with the driver box weighing 12 lbs.

EPA rating of 1.92 should be considered when selecting mounting locations and hardware, especially in high-wind areas. The fixture?s weight and dimensions require secure mounting and handling during installation.

With a rated lifespan of 200,000 hours (L70), the fixture is designed for long-term operation with minimal maintenance. The powder coated finish and IP66 rating support use in outdoor and corrosive environments.

Operating temperature range allows for installation in both hot and cold climates without performance loss.

How This Fixture Is Commonly Used

After installation, you can adjust the fixture?s aim using the yoke mount to direct light where needed. The available beam angles allow you to tailor coverage for field, court, or spectator areas as required by your site.

0-10V dimming lets you reduce output when full brightness is not needed, provided your control system supports this function. The fixture?s high lumen output is relied on for consistent, uniform lighting during events or operations.

The IP66 and IK08 ratings mean you can expect the fixture to withstand exposure to rain, dust, and incidental impacts during routine facility use. The powder coated housing and polycarbonate lens are designed for durability in active environments.

Routine inspection of mounting hardware and electrical connections is recommended, but the long rated lifespan minimizes the need for frequent servicing or lamp changes.

Safety, Certifications, and Warranty

This fixture is ETL listed and DLC Premium qualified.

It carries a 5-year warranty from LED Lighting Supply.

Surge protection is rated at 10KV line-line and 20KV line-earth. The fixture is rated IP66 for protection against water and dust ingress, and IK08 for impact resistance.

The housing is powder coated aluminum for corrosion resistance in outdoor environments.

Frequently Asked Questions

What input voltages are supported?
This fixture operates on 100V-277V input. An optional configuration supports 277V-480V.

What is the lumen output?
The fixture delivers 120,000 lumens.

What mounting method is used?
The fixture uses a yoke mount.

Is this fixture DLC Premium qualified?
Yes, this fixture is DLC Premium qualified.

What is the warranty period?
LED Lighting Supply provides a 5-year warranty on this fixture.

What environmental ratings does this fixture have?
The fixture is rated IP66 for water and dust protection and IK08 for impact resistance.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
