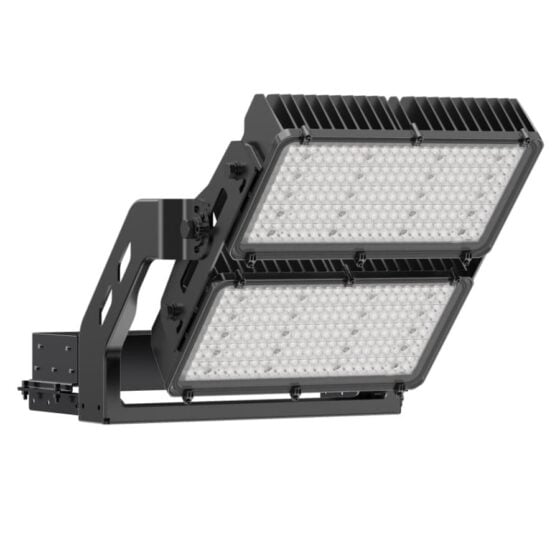

960 Watt LED Stadium Light | 144000 Lumens | 5700K | 100-277V | Optional Remote Driver
Watts: | 960 |
Lumens/Watt: | 150 |
Replaces: | 1500 Watt Metal Halide |
Dimmable: | 0-10V |
Beam Angle: | 60°(std), 10°, 30°, 45°, T3 |
Housing: | Powder Coated Aluminum (Marine Grade Optional) |
Mounting: | Trunnion |
Dimensions: | 20 in W in X 21 in H X 11.3 in D |
Warranty: | 5 years |
Rated Life: | 200,000 (L70) hours |
Out of stock
960 Watt high power flood light - sport light produces 144000 lumens at 150 lumens/watt replacing 1500 Watt Metal Halide. Aluminum lighting modules can be adjusted individually. All fixtures are equipped with a 1-10V dimmable driver and built-in 20KvA surge protection.
It comes with a 100V-277V or 277V-480V Optional LED Driver, 3000K or 4000K or 5700K color temperatures, and a 60° standard beam angle. This fixture has a Trunnion-style mount. The driver for the fixture can be mounted on the light bracket or remotely on or inside the pole. Visors and an optional precision aiming laser are also available.
They are Wet Location ip66 rated and High Impactik08 rated and can operate in temperatures ranging from -22°F to +122°F.
Optional Configurations:
Beam Angles: 10°, 30°, 45°, T3 (60° standard)
High Voltage: 277-480V (100-277V standard)
Color Temperature: 3000K & 4000K (5700K standard)
Precision Aiming Laser
Light Visor
Watts: | 960 |
Lumens: | 144000 |
Lumens/Watt: | 150 |
Replaces: | 1500 Watt Metal Halide |
Color Temp: | 3000K | 4000K | 5700K |
CRI: | 80+ |
IP Rating: | IP66 |
IK Rating: | IK08 |
Input Voltage: | 100V-277V | 277V-480V Optional |
Surge Protection: | 10KV line-line, 20KV line-earth |
Operating Temp: | -22°F to +122°F |
Rated Life: | 200,000 (L70) hours |
Dimmable: | 0-10V |
Beam Angle: | 60°(std), 10°, 30°, 45°, T3 |
Optics: | Polycarbonate Lens |
Frequency: | 50/60 hz |
Housing: | Powder Coated Aluminum (Marine Grade Optional) |
Fixture Color: | Black |
Mounting: | Trunnion |
EPA Rating: | 2.3 |
Dimensions: | 20 in W in X 21 in H X 11.3 in D |
Weight: | Fixture body 36 lbs Driver Box 14.5 lbs |
Warranty: | 5 years |
