70 Watt Square LED Canopy Light | 9330 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Black Housing

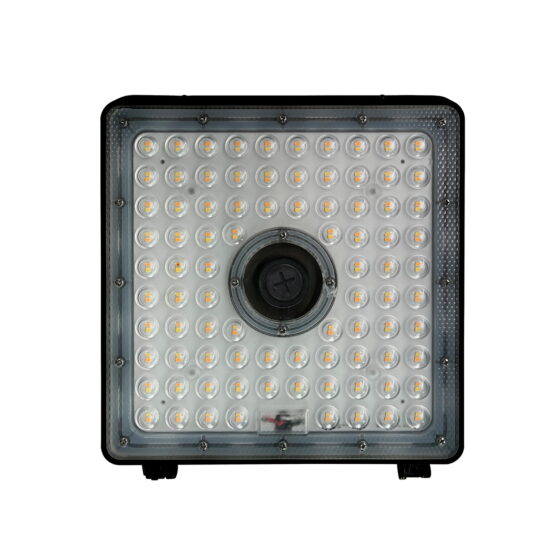

70 watts and color adjustable 3000K | 4000K | 5000K LED canopy fixture. It is a vandal-proof fixture and comes with a powder-coated black aluminum heat sink housing that provides superior heat dissipation. It comes with a clear impact-resistant polycarbonate lens. Its wide beam angle lens provides wide distribution and coverage. The fixture is surface-mounted.
Cory Peterson | VP of Marketing and Sales Operations
1759 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 70 |
| Lumens | 9330 |
| Lumens Per Watt | 133 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 90° |
| Optics | Polycarbonate Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting | Pendant or Surface |
| Fixture Color | Black |
| Frequency (Hz) | 50/60 |
| Power Factor | .90 |
| THD | 20% Max |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Surge Protection | 6kV |
| Operating Temperature | -4°F to 122°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 10 L X 10 W X 3 H |
| Weight (lbs) | 5 |
Features/Accessories
- Color Adjustable
- Motion Sensor
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 70 watt square LED canopy light provides 9,330 lumens through a 90 degree distribution. It is configured for canopy-mounted lighting where a compact, low-profile fixture is needed.
The fixture has selectable 3000K, 4000K, and 5000K color temperatures, with pendant or surface mounting. Its output is listed as a replacement for a 250 watt metal halide fixture.
Core Performance and Output
This fixture produces 9,330 lumens at 70 watts, delivering 133 lumens per watt. The 90 degree beam angle provides a broad downward distribution through the polycarbonate lens.
It operates on 100-277V, 50/60 Hz power with a 0.90 power factor and 20% maximum THD. The 1-10V dimming capability supports compatible dimming controls.
The 9,330-lumen output can be excessive where mounting height is limited or existing light levels are already high. Fixture placement should account for canopy height, target light levels, and the 90 degree distribution.
Adjustability and Control Options
The selectable color temperature switch provides 3000K, 4000K, or 5000K output from the same fixture. Color selection should be set before final commissioning.
This canopy light supports 1-10V dimming and is available with a motion sensor. Control wiring and sensor configuration should be coordinated with the canopy lighting layout.
Longevity and Reliability
The LED system is rated for 150,000 hours L70 life. This rating identifies the point at which light output is expected to reach 70 percent of its initial level.
A 6kV surge protection device is included. The fixture is rated for operation from -4 degrees F to 122 degrees F.
Build Quality and Physical Characteristics

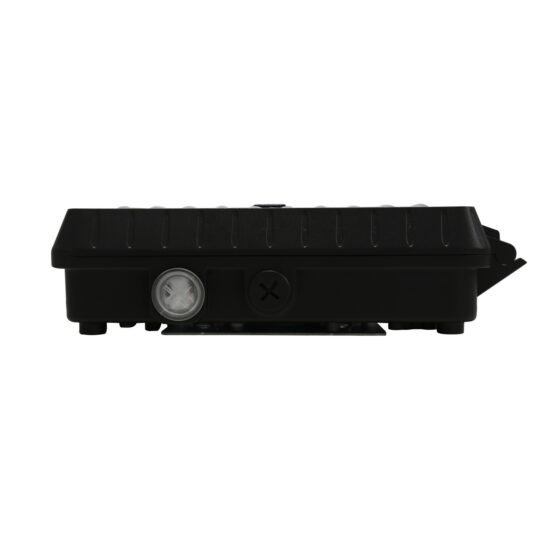

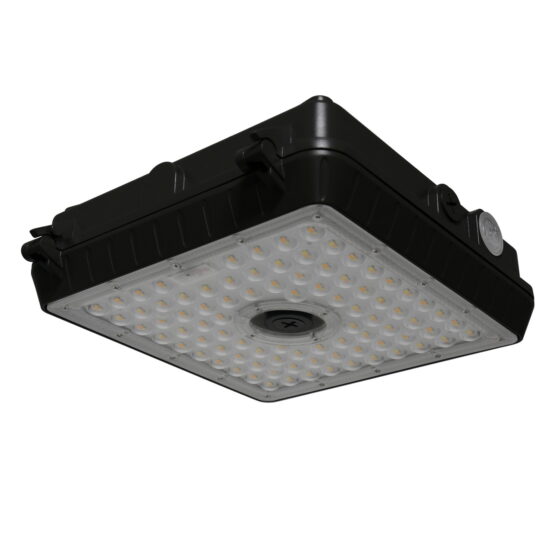

The fixture uses a die-cast aluminum housing with a black finish and a polycarbonate lens. It measures 10 inches long by 10 inches wide by 3 inches high and weighs 5 pounds.
The IP65 rating supports use where the fixture is exposed to dust and water. Pendant and surface mounting configurations are available.
Where This Product Fits Best
This fixture fits covered exterior canopy environments that need a downward-facing lighting distribution, selectable color temperature, and 100-277V operation.
- gas station lighting
- fueling area lighting
- parking canopy lighting
- drive-through canopy lighting
- loading canopy lighting
- entry canopy lighting
- covered walkway lighting
The IP65 enclosure, die-cast aluminum housing, and -4 degrees F to 122 degrees F operating range support exposed covered-canopy conditions. Fixture location should keep the 90 degree beam pattern aligned with the illuminated canopy area.
Installation and Long-Term Use

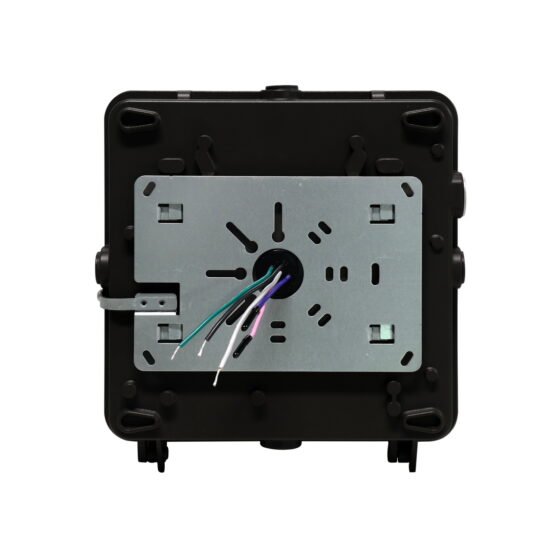

Surface mounting keeps the fixture close to the canopy structure, while pendant mounting lowers the fixture below the mounting surface. The selected mounting method must match the available canopy structure and wiring location.
Use the 100-277V input range to match the available supply voltage. For dimmed or motion-sensor installations, complete control connections before commissioning and verify operation after color temperature selection.
How This Fixture Is Commonly Used
In gas station lighting, fueling area lighting, and parking canopy lighting, fixtures are arranged across the canopy structure to maintain consistent downward coverage. Mounting height is determined by the existing canopy construction.
For drive-through canopy lighting, loading canopy lighting, entry canopy lighting, and covered walkway lighting, fixture positions follow the covered travel path or overhang layout. Spacing varies with mounting height, selected color temperature, target light levels, and the 90 degree beam distribution.
Safety, Certifications, and Warranty
This fixture is UL listed and rebate eligible. It is rated IP65.
The warranty period is 5 years. The fixture includes 6kV surge protection.
Frequently Asked Questions
Q: What is the light output of this canopy fixture?
A: The fixture produces 9,330 lumens at 70 watts.
Q: What color temperatures are available?
A: The fixture has selectable 3000K, 4000K, and 5000K color temperatures.
Q: What voltage does this fixture operate on?
A: It operates on 100-277V, 50/60 Hz power.
Q: What mounting options are available?
A: The fixture supports pendant or surface mounting.
Q: Is this fixture rated for gas station lighting and fueling area lighting?
A: Gas station lighting and fueling area lighting are listed applications for this canopy light. The fixture is IP65 rated and operates from -4 degrees F to 122 degrees F.
Application Questions and Clarification
Q: What should be reviewed when placing fixtures for parking canopy lighting?
A: Review canopy mounting height, structural mounting locations, target light levels, and the 90 degree beam distribution. The supplied data does not establish a specific fixture spacing value.
Q: Can the color temperature be selected for drive-through canopy lighting?
A: Yes. The fixture provides selectable 3000K, 4000K, and 5000K color temperatures.
Q: What should be confirmed for a motion-sensor installation under an entry canopy?
A: Confirm the mounting location, control wiring, and sensor configuration. The fixture is available with a motion sensor.
