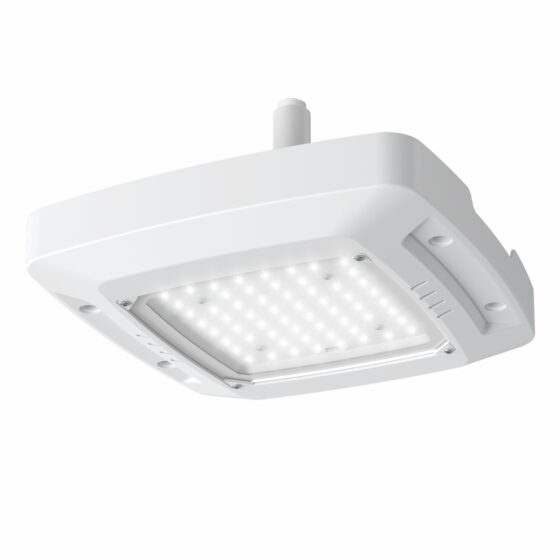

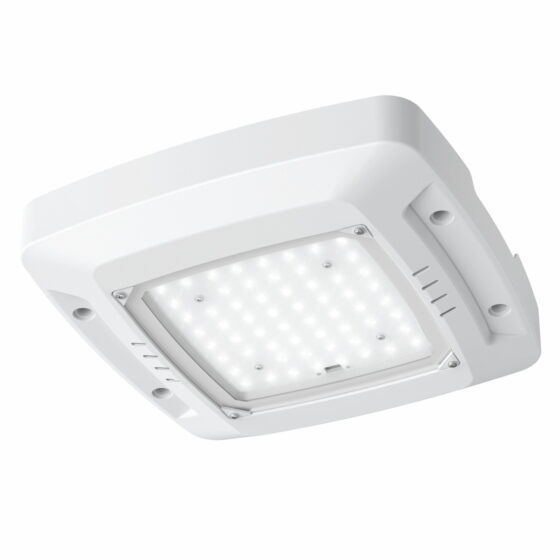

36 / 60 / 90 / 120 Watt Adjustable LED Canopy Light | 4860 to 16200 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V

Product Overview

This LED canopy light offers selectable wattage settings of 36, 60, 90, or 120 watts, delivering lumen outputs from 4860 up to 16200 lumens. The fixture supports color temperature adjustment between 3500K, 4000K, and 5000K.

It operates on 100-277V input and is designed for both pendant and surface mounting. The fixture uses a die-cast aluminum housing finished in white and measures 14.5 by 14.5 by 2.5 inches, weighing 8.6 pounds.

The beam angle is 120 degrees. The fixture is rated for a lifespan of 150,000 hours (L70) and has a power factor above 0.90 with total harmonic distortion below 20%.

It is designed to replace 250 or 400 watt metal halide canopy lights. The fixture is non-dimming and operates at 50-60Hz.

Where This Product Fits Best

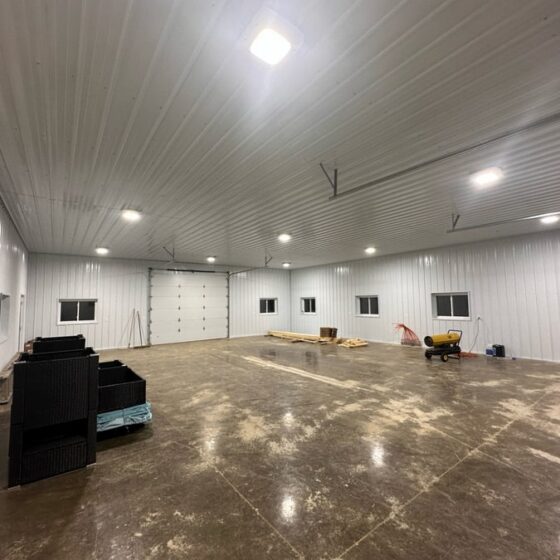

This canopy light is suitable for covered outdoor areas, parking structures, loading docks, and drive-throughs where high output and adjustable settings are required. It can also be used in indoor locations that require robust, weather-resistant lighting.

The IP65 rating allows use in environments exposed to dust and water jets, making it appropriate for locations where weather or washdown is a concern. The IK08 rating supports use in areas where the fixture may be subject to moderate impact.

Selectable wattage and color temperature allow adaptation to changing lighting needs or site requirements. The fixture is compatible with 100-277V electrical systems, supporting a wide range of commercial and industrial installations.

Surface and pendant mounting options provide flexibility for both retrofit and new construction scenarios.

Performance and Functional Considerations

The fixture delivers up to 135 lumens per watt, supporting energy-efficient operation. Output can be set to four different wattage levels, allowing adjustment for required brightness or energy use.

Color temperature can be set to 3500K, 4000K, or 5000K, supporting applications that require warmer or cooler light. The 70+ CRI supports general visibility and color recognition in most commercial and industrial settings.

The 120-degree beam angle provides broad, even coverage suitable for canopy and area lighting. The fixture is non-dimming and does not support external dimming controls.

10kV surge protection is built in, supporting operation in locations with electrical disturbances or exposure to lightning events.

Installation and Long-Term Use

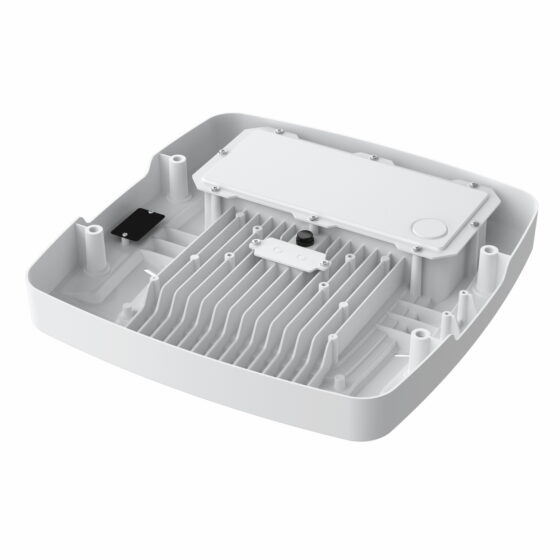

The fixture supports both surface and pendant mounting. The die-cast aluminum housing is designed for durability and corrosion resistance in outdoor or demanding indoor environments.

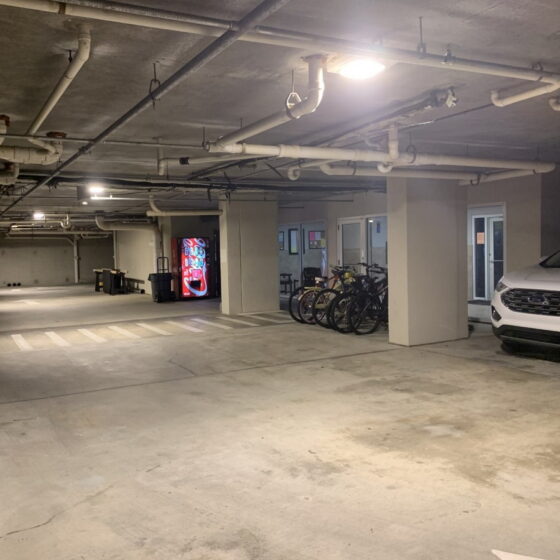

With an IP65 rating, the fixture can be installed in locations exposed to dust and water jets, such as parking garages or covered walkways. The IK08 rating allows the fixture to withstand moderate impacts from incidental contact or vandalism.

Operating temperature range is -22°F to 122°F, supporting installation in both cold and hot climates. The fixture?s weight and dimensions should be considered when planning mounting and support structures.

Long-term maintenance is minimized by the 150,000 hour L70 lifespan. The fixture is designed for reliable operation over extended periods with minimal intervention.

How This Fixture Is Commonly Used

After installation, you can set the wattage and color temperature to match site requirements. This allows you to adjust light output and appearance as needs change, without replacing the fixture.

Once set, the fixture operates at the selected settings and requires no ongoing adjustment. The broad beam angle provides consistent coverage for large canopy or covered areas.

The fixture?s robust housing and environmental ratings mean it can be relied on in locations exposed to weather, dust, or moderate physical contact. Day-to-day operation is straightforward, with no dimming or control adjustments required.

Routine cleaning and inspection are supported by the fixture?s accessible design and durable finish. The fixture is designed for long-term, low-maintenance use in demanding environments.

Safety, Certifications, and Warranty

This fixture is ETL listed and DLC Premium qualified.

The IP65 rating allows use in locations exposed to dust and water jets. The IK08 rating supports use in areas where moderate impact is possible.

10kV surge protection is built in to support electrical safety in areas prone to surges.

LED Lighting Supply provides a 5-year warranty on this fixture.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100-277V input.

What is the maximum light output?
The fixture delivers up to 16200 lumens at the highest wattage setting.

What mounting options are available?
The fixture supports both surface and pendant mounting.

What certifications does this fixture carry?
This fixture is ETL listed and DLC Premium qualified.

What is the warranty period?
LED Lighting Supply provides a 5-year warranty.

What environmental conditions can this fixture handle?
The fixture is rated for operation from -22°F to 122°F and is IP65 and IK08 rated.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
