80 / 100 / 120 / 150 Watt Adjustable LED Post Top Light | 10400 to 19500 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V

Product Overview

This adjustable LED post top light provides 80, 100, 120, or 150 watts and selectable 3000K, 4000K, or 5000K color temperature from one fixture. It mounts on a 3-inch pole and uses a Type 5 distribution for area coverage around the pole.

The fixture is configured for post top lighting, pedestrian area lighting, decorative site lighting, and campus lighting. Its 19,500-lumen maximum output also supports replacement of 400-watt metal halide post top fixtures where pole condition and mounting arrangement are suitable.

Core Performance and Output

Output is selectable at 10,400, 13,000, 15,600, or 19,500 lumens. Fixture efficacy is 130 lumens per watt, with an 80+ CRI.

The standard Type 5 distribution provides broad light around the pole. The frosted tempered glass optic helps diffuse the emitted light.

The fixture operates on 100-277V, 50/60Hz power. Power factor is greater than 0.90 and total harmonic distortion is below 20%.

The highest output setting can be excessive where lower light levels are required. Light levels and uniformity depend on pole height, fixture output selection, and site layout.

Adjustability and Control Options

Wattage is field adjustable across four output settings. Color temperature is also adjustable between 3000K, 4000K, and 5000K.

1-10V dimming is provided for compatible control systems. A photocell is included for daylight-responsive operation.

Wattage and color settings should be established before final commissioning. Control wiring and photocell operation should be verified during installation.

Longevity and Reliability

This fixture is rated for 50,000 L70 hours. The L70 rating identifies the point at which light output is expected to reach 70% of initial output.

The die-cast aluminum housing and tempered glass optic support long-term outdoor installation. The IP65 rating addresses dust and water ingress.

Build Quality and Physical Characteristics

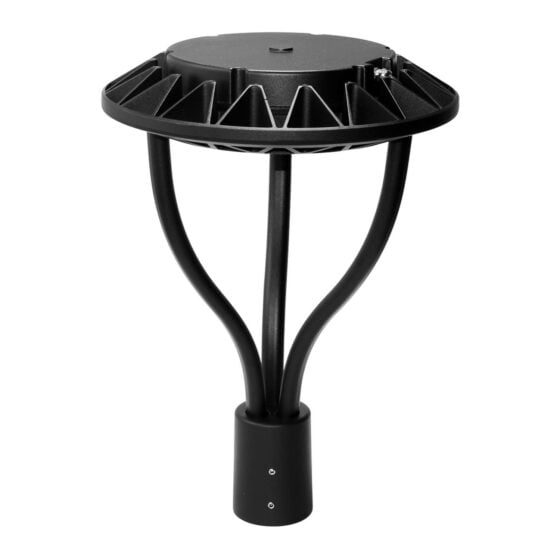

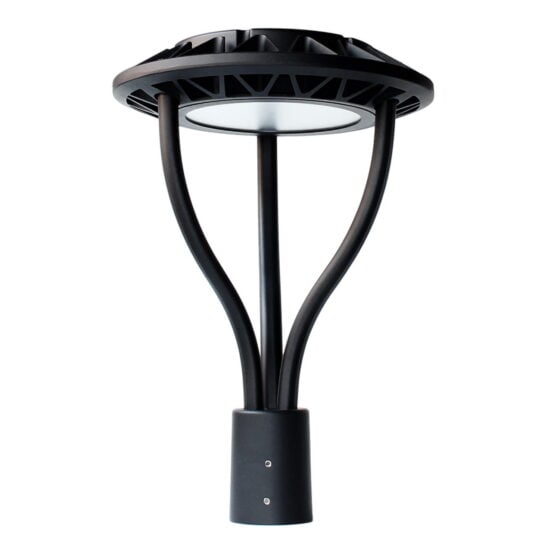

The fixture uses a black die-cast aluminum housing with a frosted tempered glass optic. Overall dimensions are 25.6 inches high by 17 inches in diameter.

It is designed for 3-inch pole mounting. The fixture has an EPA rating of 1.75.

Pole, bracket, and foundation capacity must be evaluated against the fixture EPA rating and local wind loading requirements. The mounting pole must accept the 3-inch pole connection.

Where This Product Fits Best

This post top fixture fits outdoor pedestrian and decorative pole-mounted lighting layouts where broad Type 5 distribution is needed. Selectable wattage and color temperature allow the fixture to be configured for different site conditions within the supported applications.

• post top lighting
• pedestrian area lighting
• decorative site lighting
• campus lighting
• courtyard lighting
• pathway lighting
• park lighting

The IP65-rated enclosure supports outdoor exposure. Pole loading, wind conditions, and existing pole dimensions remain project-specific considerations.

Installation and Long-Term Use

Install the fixture on a compatible 3-inch pole and confirm the pole assembly supports the 1.75 EPA rating. Complete line-voltage, dimming, and photocell connections according to the project wiring arrangement.

Set wattage and color temperature before energizing the installation. Verify photocell response after installation where the photocell is used.

Long-term maintenance should include inspection of the pole connection, housing, lens, and electrical connections. Keep the frosted tempered glass optic clear of accumulated debris.

How This Fixture Is Commonly Used

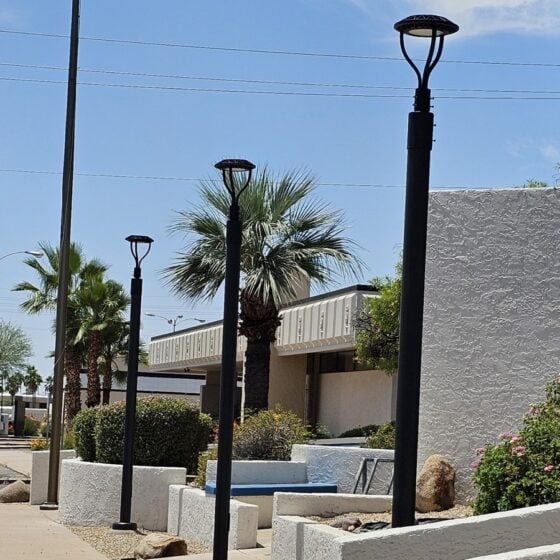

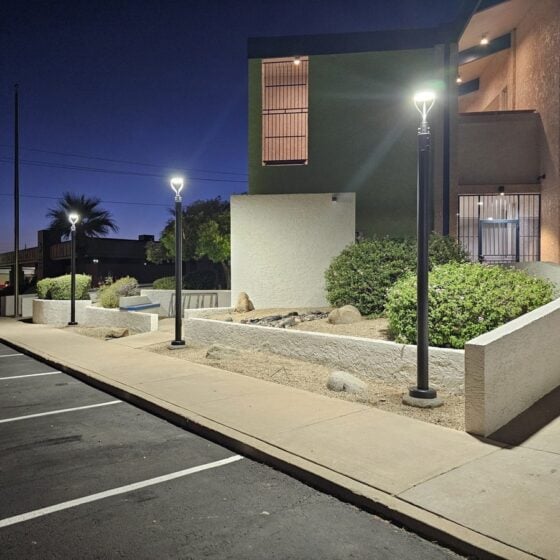

In post top lighting and decorative site lighting layouts, fixtures are mounted on poles positioned along the planned pedestrian or site circulation pattern. The Type 5 optic distributes light around each pole rather than directing output in one narrow direction.

For campus lighting, park lighting, courtyard lighting, and pathway lighting, pole locations are coordinated with the intended travel paths and open areas. Mounting height, pole placement, and selected wattage determine the final lighting pattern.

Higher wattage settings can reduce the number of pole locations required in a layout, but they can also increase light levels near the fixture. Final spacing depends on mounting height, target light levels, and layout requirements.

Safety, Certifications, and Warranty

This fixture is ETL listed. It is rebate eligible.

The fixture is IP65 rated. It includes a 5-year warranty.

Frequently Asked Questions

Q: What wattage and lumen settings are available?

A: The fixture is adjustable between 80, 100, 120, and 150 watts. Output settings are 10,400, 13,000, 15,600, and 19,500 lumens.

Q: Can the color temperature be changed?

A: Yes. The fixture provides selectable 3000K, 4000K, and 5000K color temperature settings.

Q: What pole size does this fixture mount on?

A: This fixture is designed for 3-inch pole mounting.

Q: Does this fixture support dimming and photocell operation?

A: The fixture supports 1-10V dimming and includes a photocell.

Q: What distribution does this post top light use?

A: The standard distribution is Type 5.

Application Questions and Clarification

Q: Is this fixture appropriate for pathway lighting and pedestrian area lighting?

A: Pathway lighting and pedestrian area lighting are supported applications. Final fixture placement depends on mounting height, target light levels, and layout requirements.

Q: What should be confirmed before installing this fixture on an existing pole?

A: Confirm the pole accepts a 3-inch mounting connection and supports the fixture EPA rating of 1.75. Local wind loading requirements also affect pole and foundation evaluation.

Q: Can this fixture be configured differently for campus lighting and courtyard lighting?

A: The fixture provides selectable wattage and selectable 3000K, 4000K, or 5000K color temperature. Final settings should match the project lighting requirements.

Web ID: 1558
