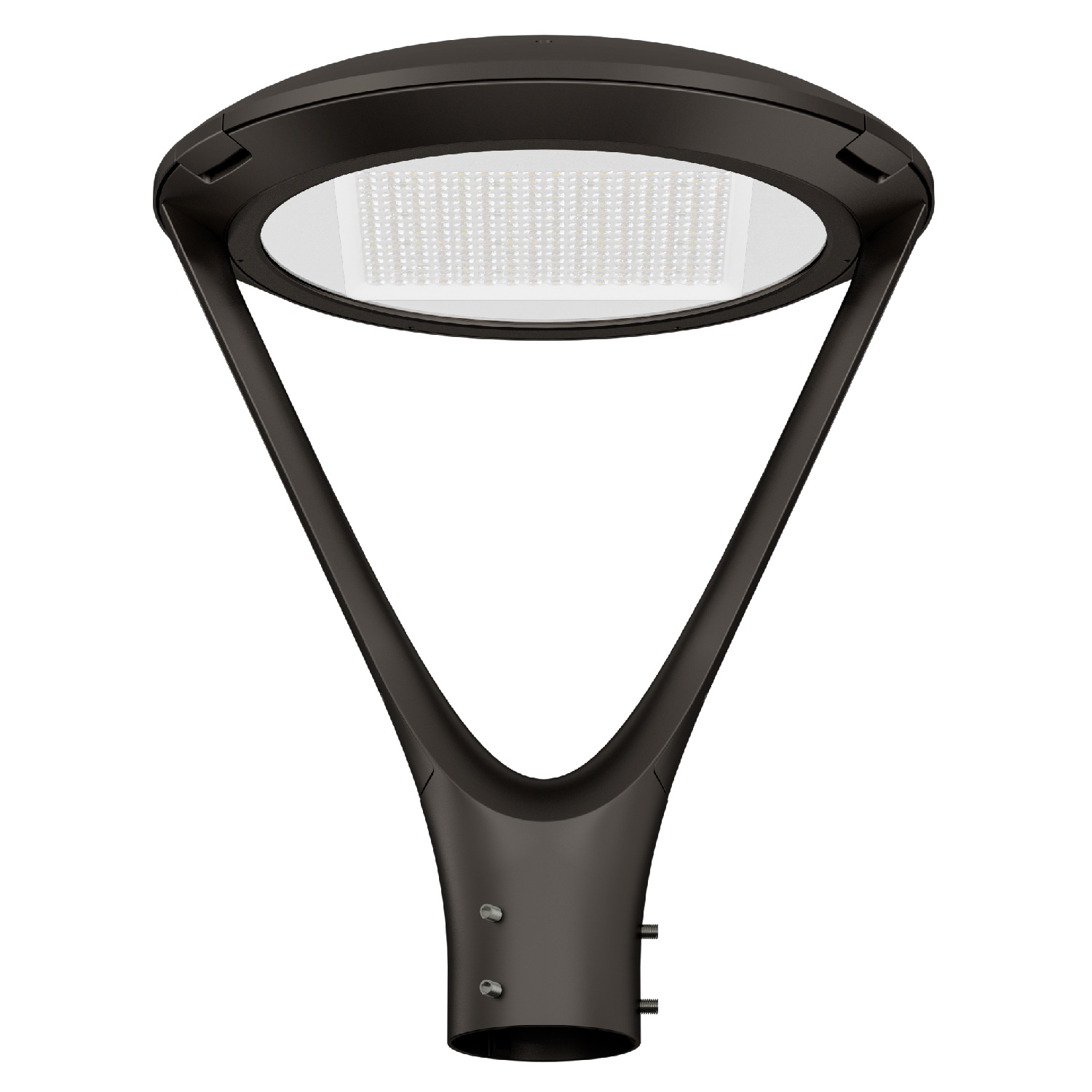

76 / 105 / 125 Watt Adjustable LED Post Top Light | 11020 to 18125 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V

Product Overview

This adjustable LED post top light is designed for exterior site and pedestrian area lighting where architectural appearance and uniform illumination are required. The fixture supports selectable wattages of 76, 105, or 125 watts, delivering up to 18,125 lumens. It is suitable for mounting on standard 3-inch poles and is commonly used as a direct replacement for 400W metal halide post tops in outdoor environments.

The fixture provides field-adjustable color temperature (3000K, 4000K, or 5000K) to match site requirements or existing installations. Typical mounting heights range from 12 to 20 feet, supporting a wide range of site layouts including campuses, parks, and municipal walkways.

Core Performance and Output

This post top fixture offers three selectable output levels: 11,020, 15,225, or 18,125 lumens, with a maximum efficacy of 145 lumens per watt. The Type 5 distribution provides uniform 360-degree coverage, supporting even illumination across open areas and pathways. Power factor exceeds 0.92, and the fixture operates on 100-277V input at 50/60Hz.

Color temperature can be set to 3000K, 4000K, or 5000K as needed. Output at the highest setting may be excessive for small pedestrian areas or low mounting heights, and glare control should be considered in close-proximity installations. Uniformity may decrease if pole spacing exceeds typical design guidelines for post top layouts.

Adjustability and Control Options

Both wattage and color temperature are field-adjustable via onboard controls, allowing adaptation to site-specific requirements or future changes in use. This flexibility supports phased upgrades or adjustments after installation without fixture replacement.

No integrated occupancy or daylight sensors are included. External controls or networked lighting systems can be added if required, but are not standard with this model.

Longevity and Reliability

The fixture is rated for 50,000 hours (L70) and includes a 5-year warranty. Die-cast aluminum housing and a tempered glass lens provide long-term durability in outdoor environments. The fixture includes 10kV surge protection to guard against electrical transients.

Operating temperature range is -22°F to 113°F, supporting year-round use in most climates. Routine cleaning of the lens and housing is recommended to maintain optical performance in dusty or debris-prone areas.

Build Quality and Physical Characteristics

The fixture measures 16.77 inches in diameter and 20.75 inches in height. It mounts directly to a 3-inch pole using a secure mechanical interface. The bronze finish is standard and matches most site lighting poles and accessories.

IP65 rating ensures protection against dust and water jets, suitable for exposed outdoor locations. The fixture?s EPA rating of 2 should be considered when selecting poles for wind load compliance. All hardware is corrosion-resistant for long-term exterior use.

Where This Product Fits Best

This LED post top light is intended for exterior architectural and pedestrian area lighting where uniformity, appearance, and field adjustability are required. It is commonly used in campus environments, municipal sites, parks, and decorative site lighting projects.

• post top lighting
• pedestrian area lighting
• decorative site lighting
• campus lighting
• park lighting
• municipal lighting
• courtyard lighting
• pathway lighting

Suitable for outdoor environments exposed to weather, including walkways, plazas, and landscaped areas. Not intended for roadway or high-mast area lighting.

Installation and Long-Term Use

The fixture is designed for direct mounting to 3-inch round poles using standard hardware. Installation requires secure pole attachment and electrical connection to 100-277V supply. The fixture?s weight and EPA should be checked against pole specifications for wind loading.

Routine inspection of mounting hardware and periodic cleaning of the lens are recommended for long-term performance. Field adjustability allows for output or color changes after installation if site requirements change.

How This Fixture Is Commonly Used

Typical mounting heights range from 12 to 20 feet, with pole spacing determined by desired light levels and uniformity. Type 5 distribution supports even coverage in open areas, plazas, and along walkways. Fixtures are often spaced 2.5 to 4 mounting heights apart, depending on site geometry and output setting.

Higher output settings can reduce fixture count but may increase glare in close-proximity pedestrian areas. Adjusting wattage and color temperature after installation allows for tuning to site conditions or user preference.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated. It includes 10kV surge protection and is suitable for use in wet locations. The product is rebate eligible where applicable. A 5-year warranty covers manufacturing defects and performance.

All components are rated for outdoor use and meet standard safety requirements for exterior site lighting.

Frequently Asked Questions

Q: What is the maximum mounting height recommended for this post top fixture?

A: Typical mounting heights range from 12 to 20 feet. Higher mounting may reduce ground-level illumination and uniformity.

Q: Can the color temperature and wattage be changed after installation?

A: Yes, both color temperature and wattage are field-adjustable using onboard controls.

Q: What type of pole is required for mounting?

A: The fixture mounts to standard 3-inch round poles using included hardware.

Q: Is this fixture suitable for use in coastal or corrosive environments?

A: The fixture is IP65 rated and uses corrosion-resistant materials, but for highly corrosive or marine environments, additional protection may be required.

Q: How many fixtures are needed for a typical pedestrian walkway?

A: Fixture spacing depends on mounting height, output setting, and required light levels. Common practice is 2.5 to 4 mounting heights apart.

Application Questions and Clarification

Q: Is this fixture appropriate for roadway or parking lot lighting?

A: This fixture is designed for post top, pedestrian area, and decorative site lighting. It is not intended for roadway or large parking lot applications.

Q: Can this fixture be used for campus pathway lighting?

A: Yes, it is commonly used for campus lighting, including pathways, courtyards, and pedestrian areas.

Q: Does the fixture support networked controls or sensors?

A: No integrated controls or sensors are included. External controls can be added if required.
