30 / 50 / 60 Watt Adjustable LED Decorative Post Top Light | 3600 to 7200 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Optional Photocell

Product Overview

This adjustable LED decorative post top light provides 3600, 6000, or 7200 lumens from selectable 30W, 50W, and 60W settings. It mounts on a 3 inch pole and uses a Type 5 distribution for broad area coverage around the pole.

The fixture supports selectable 3000K, 4000K, and 5000K color temperatures. It is commonly used as a replacement for 250W metal halide post top fixtures where existing pole-mounted decorative lighting is being updated.

Core Performance and Output

Output is selectable at 3600, 6000, or 7200 lumens with an efficacy of 120 lumens per watt. The Type 5 distribution projects light outward in a circular pattern for pole-mounted site lighting layouts.

The fixture operates on 100-277V, 50/60Hz power. Power factor is greater than 0.90 and total harmonic distortion is below 20%.

The 60W setting can produce excessive light at lower mounting heights or in closely spaced pole layouts. Higher mounting heights and wider pole spacing require review of light levels and uniformity before final layout selection.

Adjustability and Control Options

Wattage is field selectable at 30W, 50W, or 60W. Color temperature is field selectable at 3000K, 4000K, or 5000K.

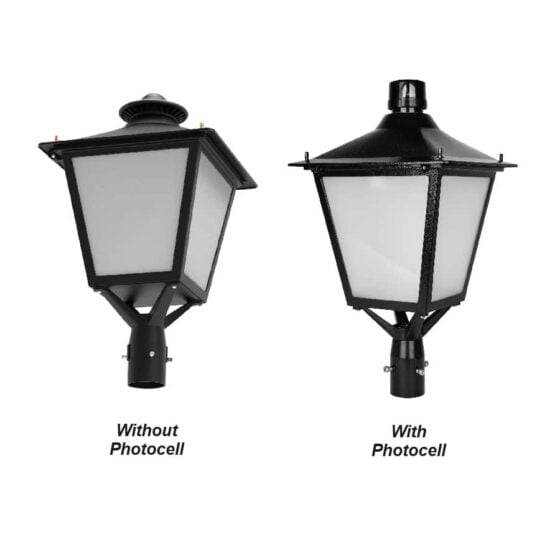

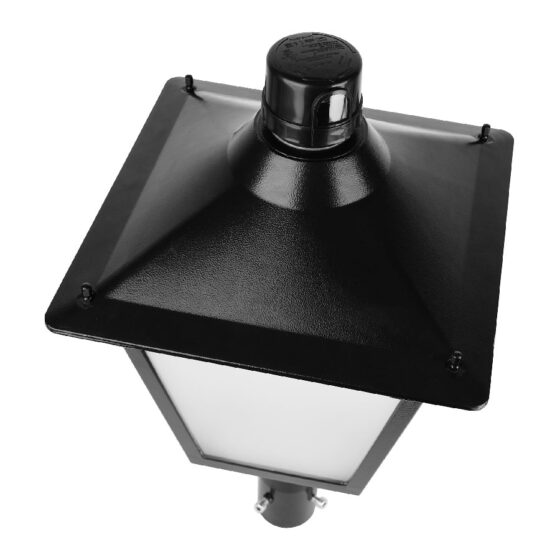

The fixture supports 1-10V dimming. It is available with no photocell or with a photocell.

Longevity and Reliability

This post top light is rated for 50,000 hours L70 life. The selectable wattage setting allows output to be matched to the installed pole layout.

Long-term performance depends on maintaining the pole connection, wiring compartment, lens surface, and photocell configuration where equipped. Damage to the frosted tempered glass should be addressed before the fixture remains in service.

Build Quality and Physical Characteristics

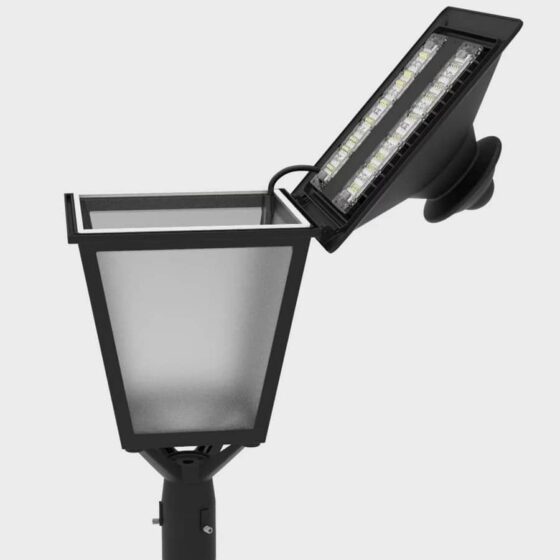

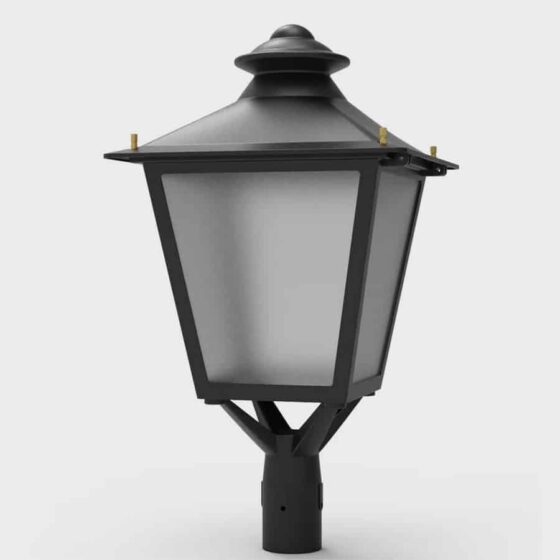

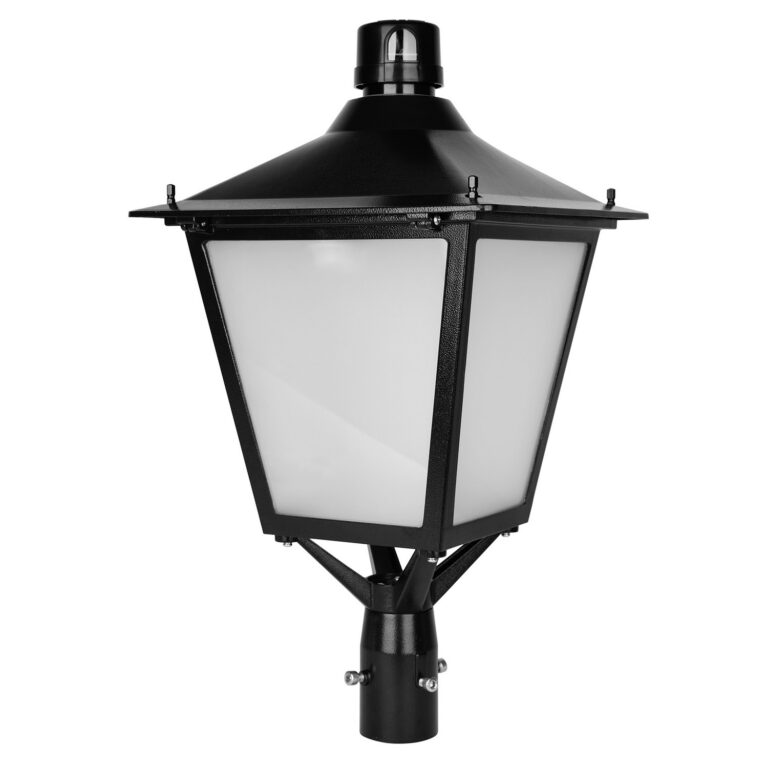

The fixture uses a die-cast aluminum housing with a black finish. Frosted tempered glass covers the optical assembly.

Its IP65 rating supports exterior installation conditions. The fixture measures 11.9 inches by 11.9 inches by 26 inches.

The fixture mounts to a 3 inch pole. Its EPA rating is 1.2 and must be considered with the pole and site wind-load requirements.

Where This Product Fits Best

This fixture fits pole-mounted decorative lighting layouts where broad Type 5 distribution and selectable output are needed. Its 3 inch pole mount supports standard post top lighting configurations.

• post top lighting
• pedestrian area lighting
• decorative site lighting
• campus lighting
• courtyard lighting
• pathway lighting
• municipal lighting

The die-cast aluminum housing, frosted tempered glass, and IP65 rating support outdoor exposure. The fixture is intended for installations using a 3 inch pole and an EPA requirement compatible with 1.2.

Installation and Long-Term Use

Install the fixture on a compatible 3 inch pole and verify that the pole structure supports the fixture EPA rating of 1.2. Confirm supply voltage is within the 100-277V range before energizing the fixture.

Set wattage and color temperature before final commissioning. Where dimming or a photocell is used, verify the selected control configuration during installation.

Mounting height affects the spread of the Type 5 distribution and the resulting light levels. Access for future cleaning, inspection, and service should be considered when locating poles.

How This Fixture Is Commonly Used

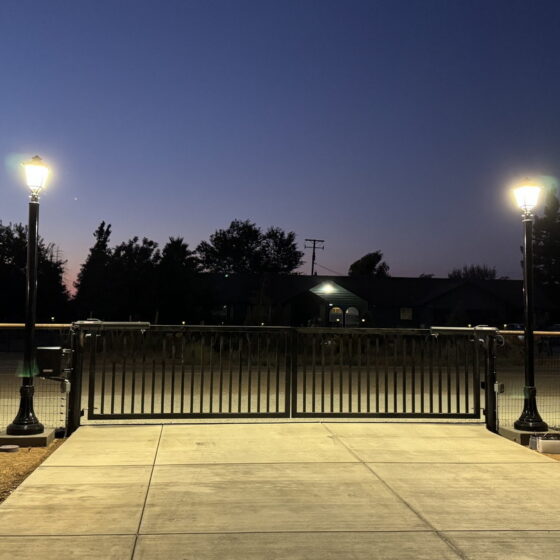

In post top lighting and decorative site lighting layouts, fixtures are placed on poles to provide outward light distribution around pedestrian routes, courtyards, campuses, pathways, and municipal lighting areas. The Type 5 optic supports a circular distribution pattern from each pole location.

Mounting height and pole spacing are coordinated with the selected wattage setting, color temperature, target light levels, and required uniformity. Higher output can reduce fixture count, but it can also increase light levels near the pole.

Photocell-equipped fixtures are used where automatic operation is required. 1-10V dimming can be incorporated where compatible controls are part of the lighting layout.

Safety, Certifications, and Warranty

This fixture is ETL listed. It is rebate eligible.

The fixture is IP65 rated. It includes a 5-year warranty.

Frequently Asked Questions

Q: What wattage and lumen settings are available?

A: The fixture has selectable 30W, 50W, and 60W settings producing 3600, 6000, and 7200 lumens.

Q: What color temperatures can be selected?

A: The fixture has selectable 3000K, 4000K, and 5000K color temperatures.

Q: What pole size does this post top light require?

A: The fixture is designed for 3 inch pole mounting.

Q: Does this fixture support dimming and photocell options?

A: The fixture supports 1-10V dimming and is available with no photocell or with a photocell.

Q: What factors affect post top lighting layout planning?

A: Mounting height, selected wattage, Type 5 distribution, target light levels, pole spacing, and uniformity requirements affect the layout. Specific spacing values are not established by the supplied product data.

Application Questions and Clarification

Q: Is this fixture appropriate for pathway lighting and pedestrian area lighting?

A: Pathway lighting and pedestrian area lighting are valid applications for this pole-mounted fixture. Final fit depends on the selected wattage, mounting height, pole spacing, and target light levels.

Q: What should be reviewed for campus lighting or municipal lighting installations?

A: Review the 3 inch pole mount, EPA rating of 1.2, 100-277V supply voltage, selected output, color temperature, and required control configuration.

Q: Can the fixture output be adjusted after installation?

A: The fixture has selectable 30W, 50W, and 60W output settings. Wattage selection should be confirmed before final commissioning.
