20 / 30 / 40 / 60 Watt Adjustable LED Post Top Light | 2600 to 7800 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell

Product Overview

This adjustable LED post top light is a pole-mounted exterior fixture for post top lighting, pedestrian area lighting, decorative site lighting, and campus lighting. It provides selectable wattage and color temperature settings in one fixture.

The fixture mounts to a 3 inch pole and uses a Type 5 distribution for broad area coverage around the pole. Its 20 to 60 watt settings provide an LED replacement option for 250 watt metal halide post top fixtures.

Core Performance and Output

Selectable output settings include 20, 30, 40, and 60 watts, producing 2,600, 3,900, 5,200, and 7,800 lumens. Fixture efficacy is 130 lumens per watt.

The Type 5 distribution directs light in a circular pattern around the pole. The 60 watt setting can be excessive where lower light levels are required, while lower settings may require closer pole spacing to maintain layout consistency.

The fixture operates on 100-277V, 50/60Hz power. Power factor is greater than 0.90 and total harmonic distortion is less than 20%.

Adjustability and Control Options

Wattage is adjustable between 20, 30, 40, and 60 watts. Color temperature is selectable at 3000K, 4000K, or 5000K.

The fixture supports 1-10V dimming and includes a built-in photocell. The photocell supports dusk-to-dawn operation where that control method is required.

Longevity and Reliability

The LED system is rated for 50,000 hours at L70. This rating identifies the point at which light output is expected to reach 70% of initial output.

Wattage and color selection should be set during installation and documented for future maintenance. Consistent settings across a pole layout help maintain a uniform appearance.

Build Quality and Physical Characteristics

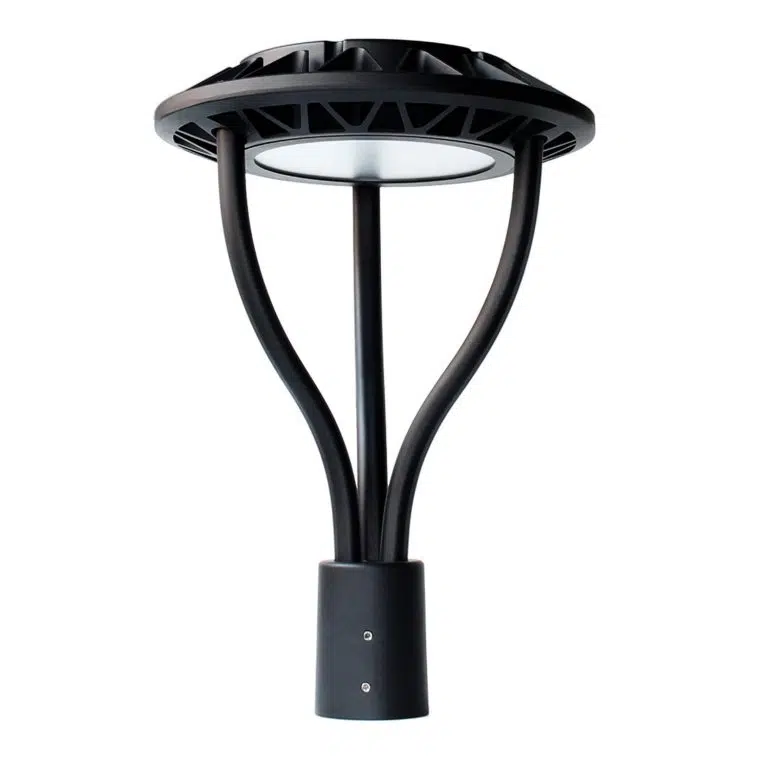

The housing is die-cast aluminum with a black finish. Frosted tempered glass protects the optics and softens the emitted light.

The fixture is IP65 rated. Overall dimensions are 25.6 inches high by 17 inches in diameter.

The fixture uses a 3 inch pole mount and has an EPA rating of 1.75. Pole and mounting structure selection must account for the fixture EPA rating.

Where This Product Fits Best

This fixture fits exterior pole-mounted lighting layouts that need adjustable output, selectable color temperature, and broad Type 5 distribution. The available output range supports lower and moderate-output decorative pole installations.

• post top lighting
• pedestrian area lighting
• decorative site lighting
• campus lighting
• courtyard lighting
• pathway lighting

The IP65-rated enclosure supports exposed exterior installation conditions. The 3 inch pole mount and 1.75 EPA rating need to match the installed pole and structural requirements.

Installation and Long-Term Use

The fixture installs on a 3 inch pole. Verify pole dimensions, fixture EPA loading, voltage, and branch wiring before installation.

Select wattage and color temperature before final commissioning. Confirm photocell operation and 1-10V control wiring when those functions are used.

Long-term service includes cleaning the frosted tempered glass and checking mounting hardware, wiring connections, and fixture settings. Access planning should account for the pole-mounted installation location.

How This Fixture Is Commonly Used

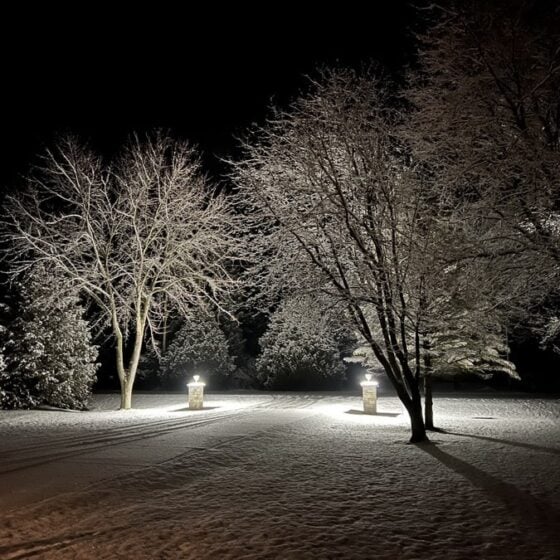

In post top lighting and decorative site lighting layouts, fixtures are placed on poles to provide Type 5 coverage around each mounting point. Pedestrian area lighting, campus lighting, courtyard lighting, and pathway lighting layouts typically use repeated pole locations to create continuous exterior illumination.

Mounting height is determined by the installed pole and project lighting requirements. Pole spacing and fixture output settings vary with the selected wattage, target light levels, and required uniformity.

Higher wattage settings can reduce the number of pole locations needed in a layout, but they also increase output at each fixture location. The selected 3000K, 4000K, or 5000K setting should remain consistent across a connected lighting area.

Safety, Certifications, and Warranty

This fixture is ETL listed and rebate eligible. It is IP65 rated.

The fixture includes a 5 year warranty. Installation must use a pole and mounting structure capable of supporting the fixture EPA rating.

Frequently Asked Questions

Q: What wattage settings are available?

A: The fixture has selectable 20, 30, 40, and 60 watt settings.

Q: What light output does each wattage setting provide?

A: The 20 watt setting produces 2,600 lumens, 30 watts produces 3,900 lumens, 40 watts produces 5,200 lumens, and 60 watts produces 7,800 lumens.

Q: What color temperature settings are available?

A: The fixture is selectable at 3000K, 4000K, or 5000K.

Q: Does this post top light include photocell control?

A: Yes. The fixture includes a built-in photocell.

Q: What should be reviewed when planning pole spacing and fixture output?

A: Review the selected wattage, Type 5 distribution, mounting height, target light levels, and layout requirements. The supplied product data does not establish a specific pole spacing value.

Application Questions and Clarification

Q: Is this fixture appropriate for post top lighting and pedestrian area lighting?

A: Yes. Post top lighting and pedestrian area lighting are primary applications for this pole top light category.

Q: What should be confirmed for campus lighting or courtyard lighting installations?

A: Confirm the 3 inch pole mount, fixture EPA rating of 1.75, available 100-277V power, and the selected wattage and color temperature settings.

Q: Can this fixture be used where exposed exterior conditions are present?

A: The fixture is IP65 rated and uses a die-cast aluminum housing with frosted tempered glass.
