300 Watt LED Billboard Light | 48000 Lumens | 5000K | 100V-277V
This 300 Watt LED billboard fixture is a strong choice for outdoor signage where high output and wide, controlled light distribution are critical. Delivering 48000 lumens at 160 lumens per watt, it efficiently replaces 1000 Watt metal halide systems while offering long-term reliability with a 244,000-hour L70 lifespan. The IP65 and IK08 ratings ensure durability against weather and impacts, and the die-cast aluminum housing resists corrosion. Flexible yoke and slip fitter mounting simplifies installation on various billboard structures. This fixture is ideal for outdoor billboard applications.
Dwayne Kula | President, CTO and Founder
257 in stock (can be backordered)
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 300 |
| Lumens | 48000 |
| Lumens Per Watt | 160 |
| Replaces | 1000 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 4000K or 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | Type 5 |
| Beam Angles (Opt) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 244,000 (L70) hours |
| Mounting | Yoke or Slip Fitter |
| EPA Rating | .68 [ARM Mount] |
| Fixture Color | Bronze |
| Frequency (Hz) | 50-60Hz |
| Power Factor | > .92 |
| THD | < 15% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Surge Protection | 6kV line-line, 10kV line-earth |
| Operating Temperature | -22°F to 113°F |
| Certifications | ETL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 24.61 L X 11.93 W X 3.22 H |
| Weight (lbs) | 16.76 lbs |
Product Overview
This 300 watt LED billboard light provides 48,000 lumens for billboard lighting, sign lighting, outdoor advertising lighting, and monument sign lighting. It is available in 4000K or 5000K and uses Type 5 distribution as standard, with Type 3 available as an option.
The fixture operates on 100V-277V or 277V-480V electrical systems and can replace a 1000 watt metal halide fixture where the existing layout and light levels support the conversion. Yoke and slip fitter mounting support common sign-structure installation methods.
Core Performance and Output
The fixture delivers 48,000 lumens at 300 watts, producing 160 lumens per watt. A 70+ CRI supports general sign-face and surrounding-area illumination.
Type 5 optics provide a broad distribution pattern. Type 3 optics provide a more directional distribution where the sign layout requires controlled forward throw.
Power factor is greater than 0.92 and total harmonic distortion is less than 15%. The fixture operates at 50-60Hz.
This output level can be excessive where the fixture is mounted close to a smaller sign face. Layout and aiming need to control light spill beyond the intended sign area.
Adjustability and Control Options
1-10V dimming is included for installations using compatible dimming controls. A photocell is available for automatic operation based on ambient light conditions.

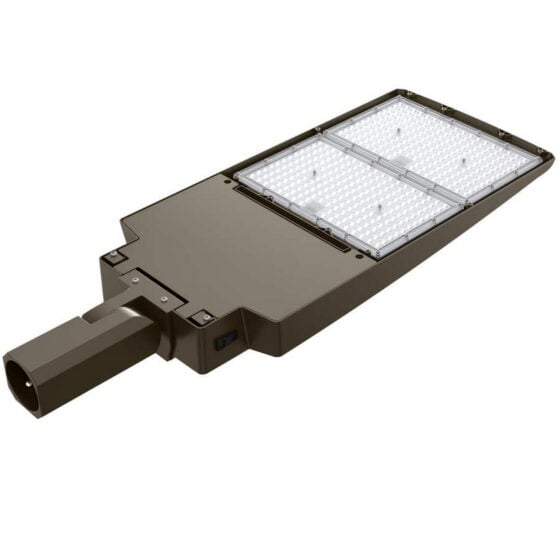

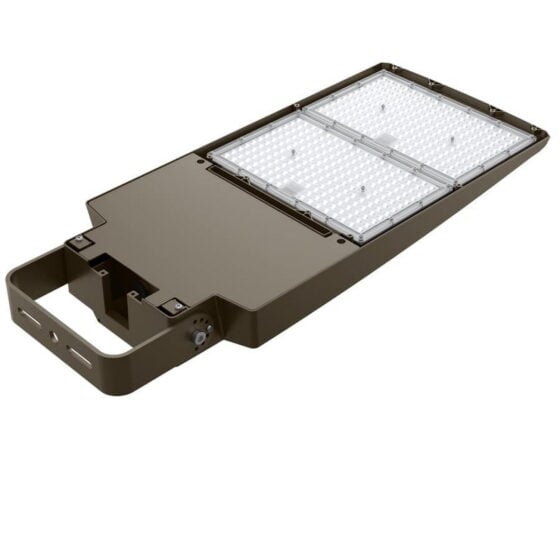

The yoke mount provides fixture aiming adjustment at the mounting point. The slip fitter mount supports installation on compatible tenons and allows fixture orientation during setup.
Longevity and Reliability
The rated L70 life is 244,000 hours. This rating identifies the point at which light output is expected to remain at 70 percent of initial output.
Integrated surge protection is rated at 6kV line-to-line and 10kV line-to-earth. The operating temperature range is -22F to 113F.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a bronze finish. A polycarbonate lens protects the optical system.
The fixture is IP65 rated and IK08 rated. It measures 24.61 inches long by 11.93 inches wide by 3.22 inches high and weighs 16.76 pounds.
Where This Product Fits Best
This fixture fits permanent exterior sign installations requiring high-output illumination and broad or directional optical distribution. Its IP65 rating supports outdoor exposure.
- billboard lighting
- outdoor advertising lighting
- sign lighting
- monument sign lighting
- roadside sign lighting
- pylon sign lighting
The die-cast aluminum housing, polycarbonate lens, IP65 rating, and IK08 rating support exterior locations exposed to weather and physical impact. Final fixture selection depends on sign dimensions, mounting position, aiming direction, and required light levels.
Installation and Long-Term Use
Confirm the available supply voltage before installation. This fixture is available for 100V-277V or 277V-480V operation.
Yoke mounting requires a mounting surface that supports the fixture weight and allows aiming adjustment. Slip fitter mounting requires a compatible mounting tenon.
Set aiming after the fixture is secured to direct light across the intended sign face. Inspect mounting hardware, lens condition, and electrical connections during routine maintenance.
How This Fixture Is Commonly Used
Billboard lighting and outdoor advertising lighting installations generally position fixtures to project light across the sign face from the sign structure. Monument sign lighting, roadside sign lighting, and pylon sign lighting layouts depend on the available mounting location and sign geometry.
Mounting height follows the sign structure and the fixture mounting point. Fixtures are arranged along the sign length or positioned to cover individual sign faces, with aiming set after installation.
Spacing varies with sign size, mounting position, optic selection, and required light levels. Type 5 distribution can cover a broader area, while Type 3 distribution provides more directional control.
Safety, Certifications, and Warranty
This fixture is ETL listed and DLC Premium listed.
It has an IP65 rating and IK08 rating. The warranty is 5 years.
Frequently Asked Questions
Q: What is the light output of this LED billboard light?
A: The fixture produces 48,000 lumens at 300 watts, with an efficacy of 160 lumens per watt.
Q: What beam distributions are available?
A: Type 5 is the standard distribution. Type 3 is available as an option.
Q: What mounting options are available?
A: The fixture is available with a yoke mount or slip fitter mount.
Q: Can this fixture be dimmed?
A: Yes. It supports 1-10V dimming.
Q: What electrical voltages are available?
A: The fixture is available in 100V-277V or 277V-480V configurations.
Q: What is the expected LED life rating?
A: The rated life is 244,000 hours at L70.
Application Questions and Clarification
Q: Is this fixture intended for billboard lighting and sign lighting?
A: Yes. Billboard lighting and sign lighting are primary applications for this product family.
Q: Can this fixture be used for monument sign lighting?
A: Monument sign lighting is a primary application for this product family. Mounting position, optic selection, and aiming direction need to match the sign layout.
Q: What should be reviewed when planning fixture placement for outdoor advertising lighting?
A: Sign dimensions, mounting position, aiming direction, optic selection, and required light levels affect fixture placement. The supplied product data does not establish a specific spacing value.
Q: Is a photocell available for roadside sign lighting?
A: A photocell is available. Roadside sign lighting is a secondary application for this product family.
