150 Watt LED Billboard Light | 24000 Lumens | 5000K | 100V-277V
This 150 Watt LED billboard fixture is a strong choice for outdoor signage due to its high 24,000 lumen output, 160 lumens per watt efficiency, and robust die-cast aluminum construction with anti-corrosion coating. Its IP65 and IK08 ratings ensure reliable operation in wet, dusty, and moderately impacted environments, while integrated surge protection and a 5-year warranty add long-term value. Type 3 and Type 5 optics, multiple mounting options, and wide voltage compatibility make it adaptable for various billboard and large sign applications.
Dwayne Kula | President, CTO and Founder
316 in stock (can be backordered)
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 150 |
| Lumens | 24000 |
| Lumens Per Watt | 160 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 4000K or 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | Type 5 |
| Beam Angles (Opt) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 244,000 (L70) hours |
| Mounting | Yoke or Slip Fitter |
| EPA Rating | .43 [ARM Mount] |
| Fixture Color | Bronze |
| Frequency (Hz) | 50-60Hz |
| Power Factor | > .92 |
| THD | < 15% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Surge Protection | 6kV line-line, 10kV line-earth |
| Operating Temperature | -22°F to 113°F |
| Certifications | ETL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 15.63 L X 11.25 W X 3.22 H |
| Weight (lbs) | 9.48 lbs |
Product Overview
This 150 watt LED billboard light provides 24,000 lumens for billboard lighting, sign lighting, and outdoor advertising lighting. It is available in 4000K or 5000K with Type 5 standard distribution or optional Type 3 distribution.
The fixture replaces a 400 watt metal halide fixture in suitable existing installations. Yoke and slip fitter mounting support different aiming and mounting arrangements.
Core Performance and Output
The fixture delivers 24,000 lumens at 160 lumens per watt. It operates on 100V-277V or 277V-480V power at 50-60Hz, with power factor above 0.92 and THD below 15%.
Type 5 optics provide the standard distribution, while Type 3 optics are available where a more directional pattern is required. Output and distribution must match the sign size, mounting position, and required light level to avoid uneven illumination.
The 150 watt output can be excessive where fixtures are mounted close to a smaller sign face. Wider mounting positions or higher installation locations can require layout review to maintain uniform coverage.
Adjustability and Control Options
This fixture supports 1-10V dimming. A photocell is available for daylight-responsive operation.

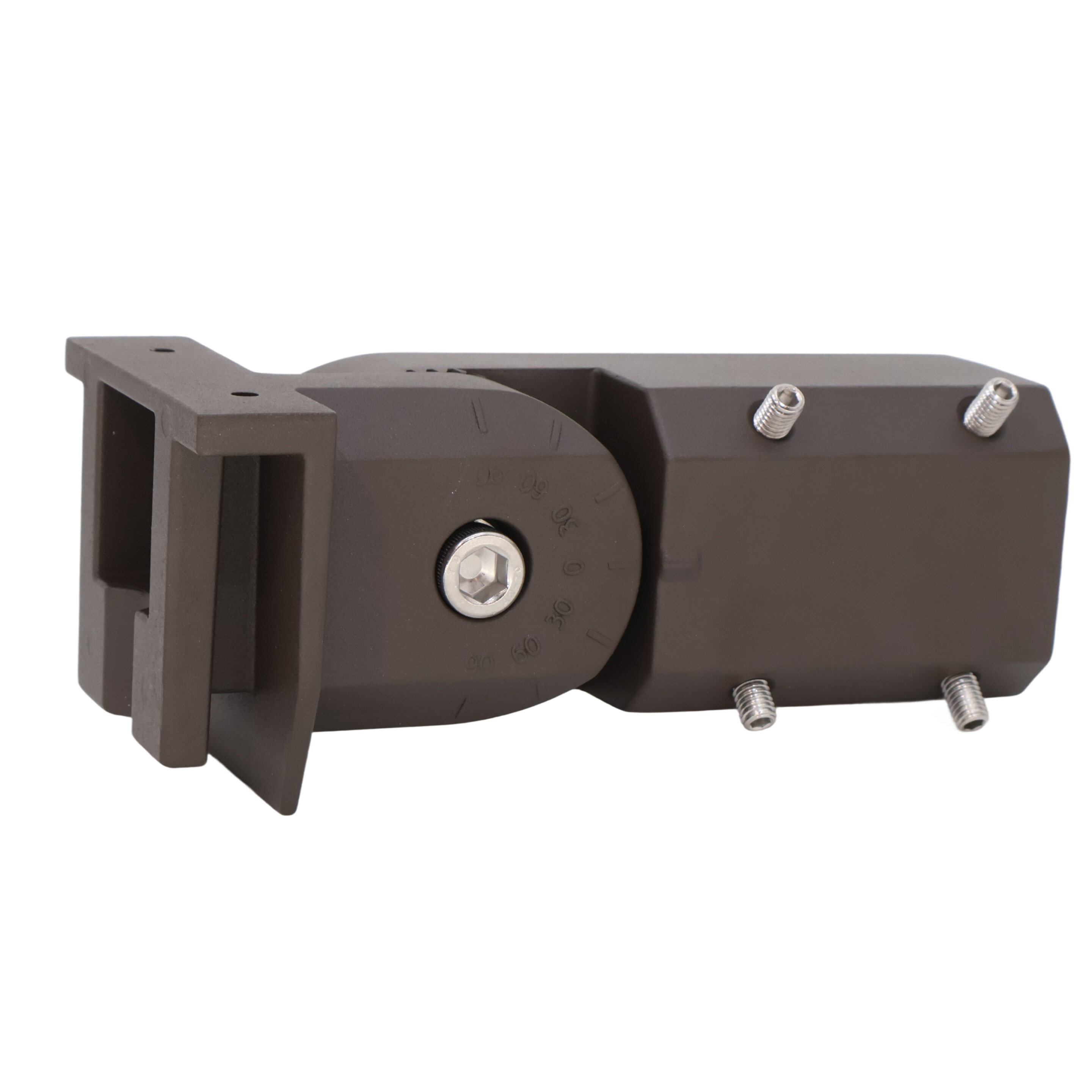

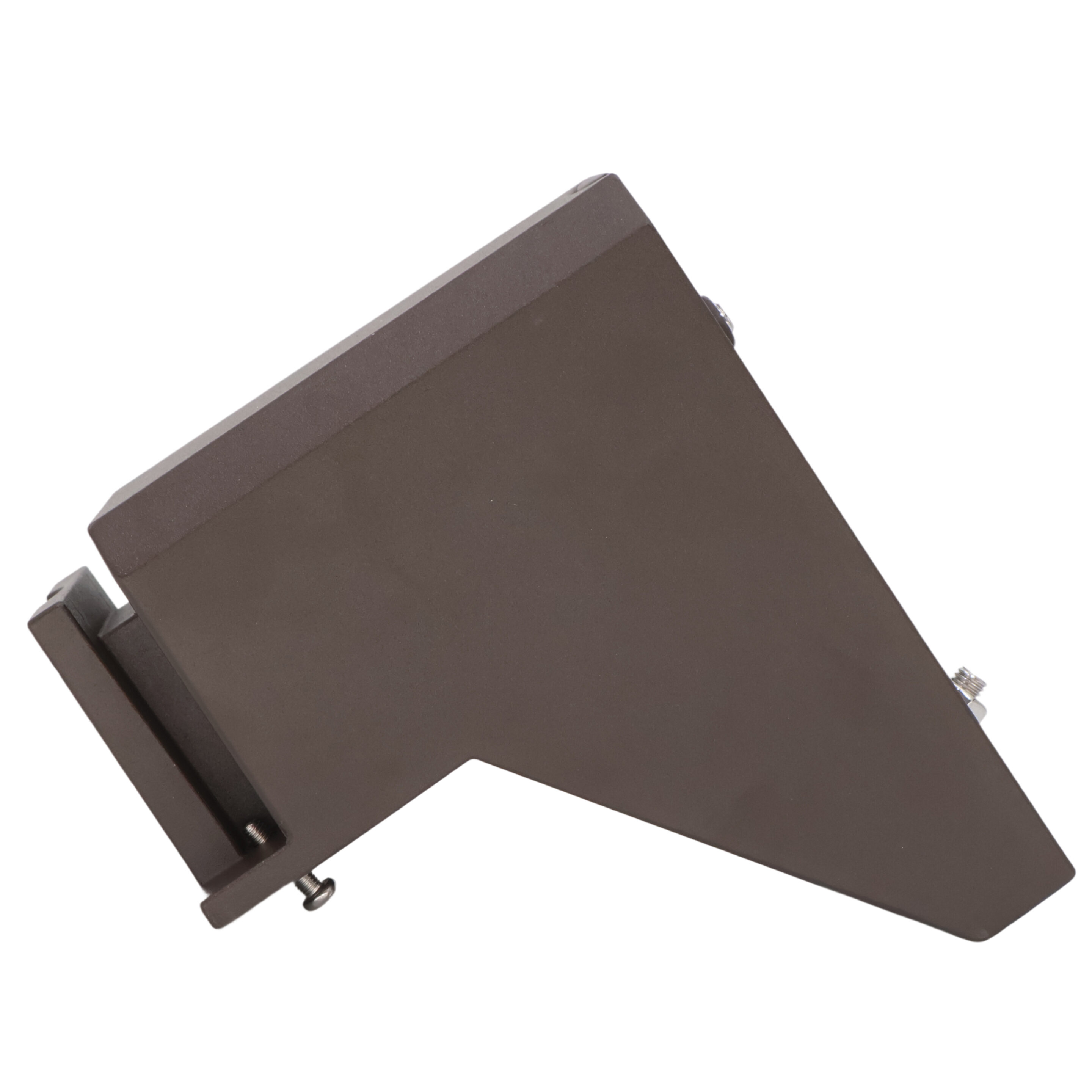

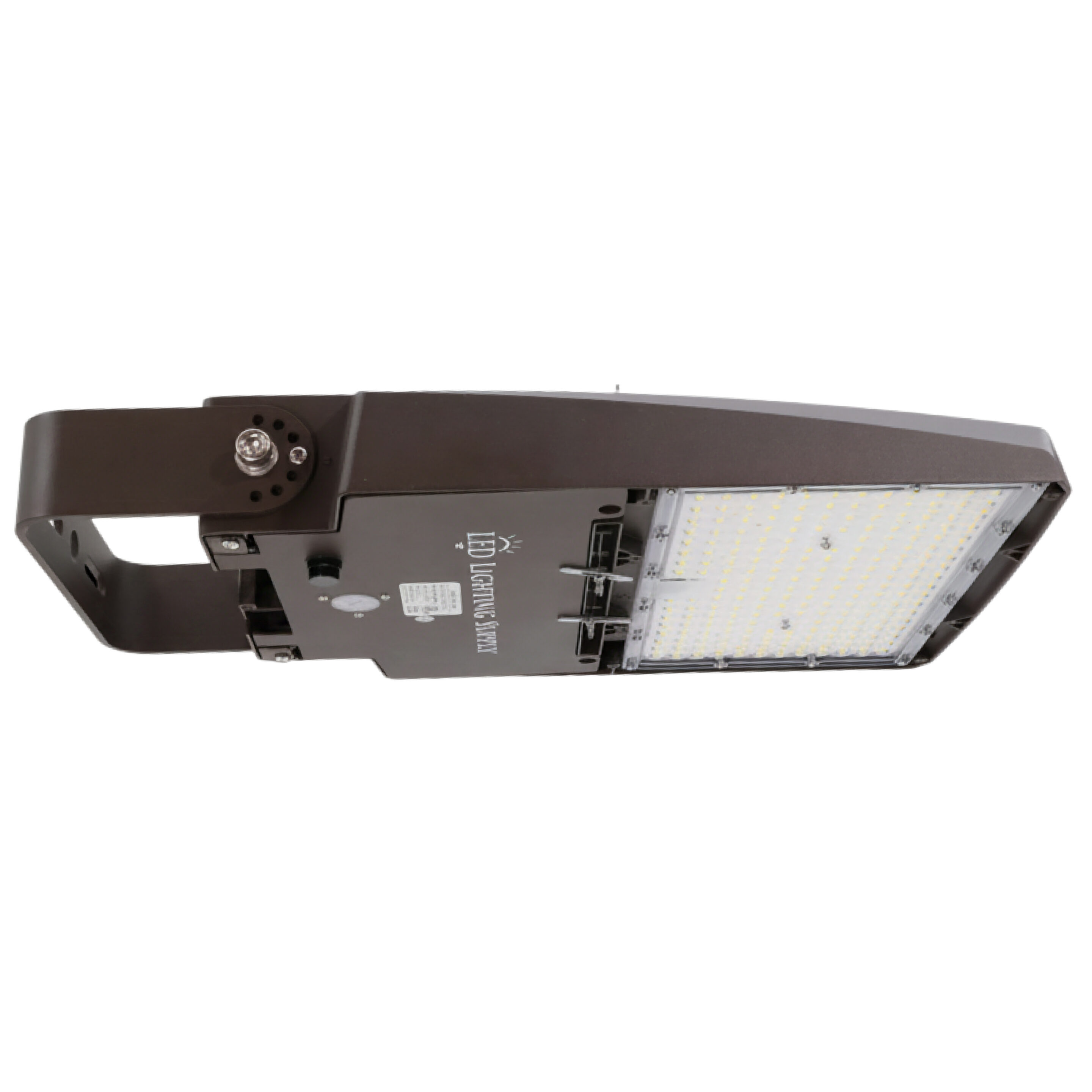

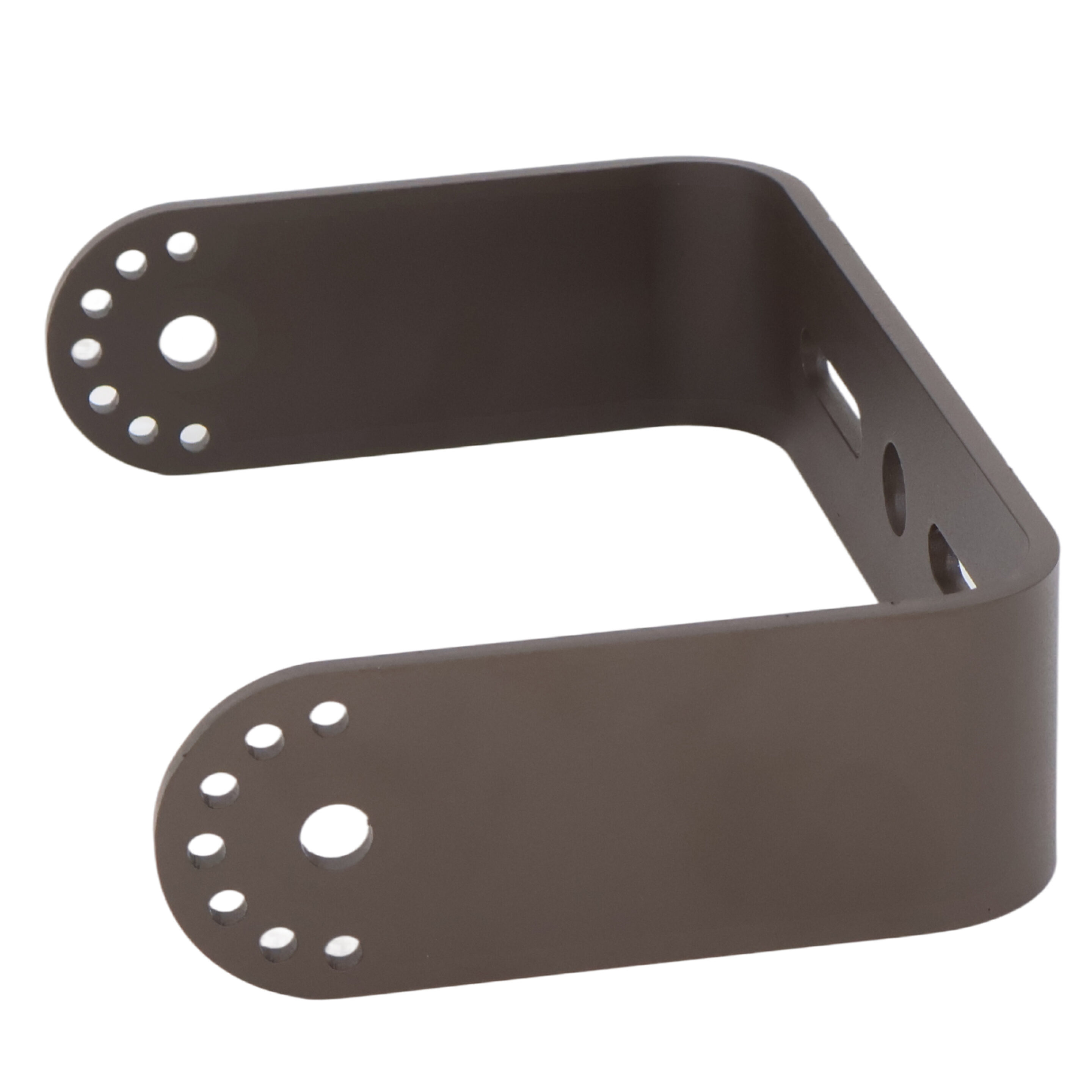

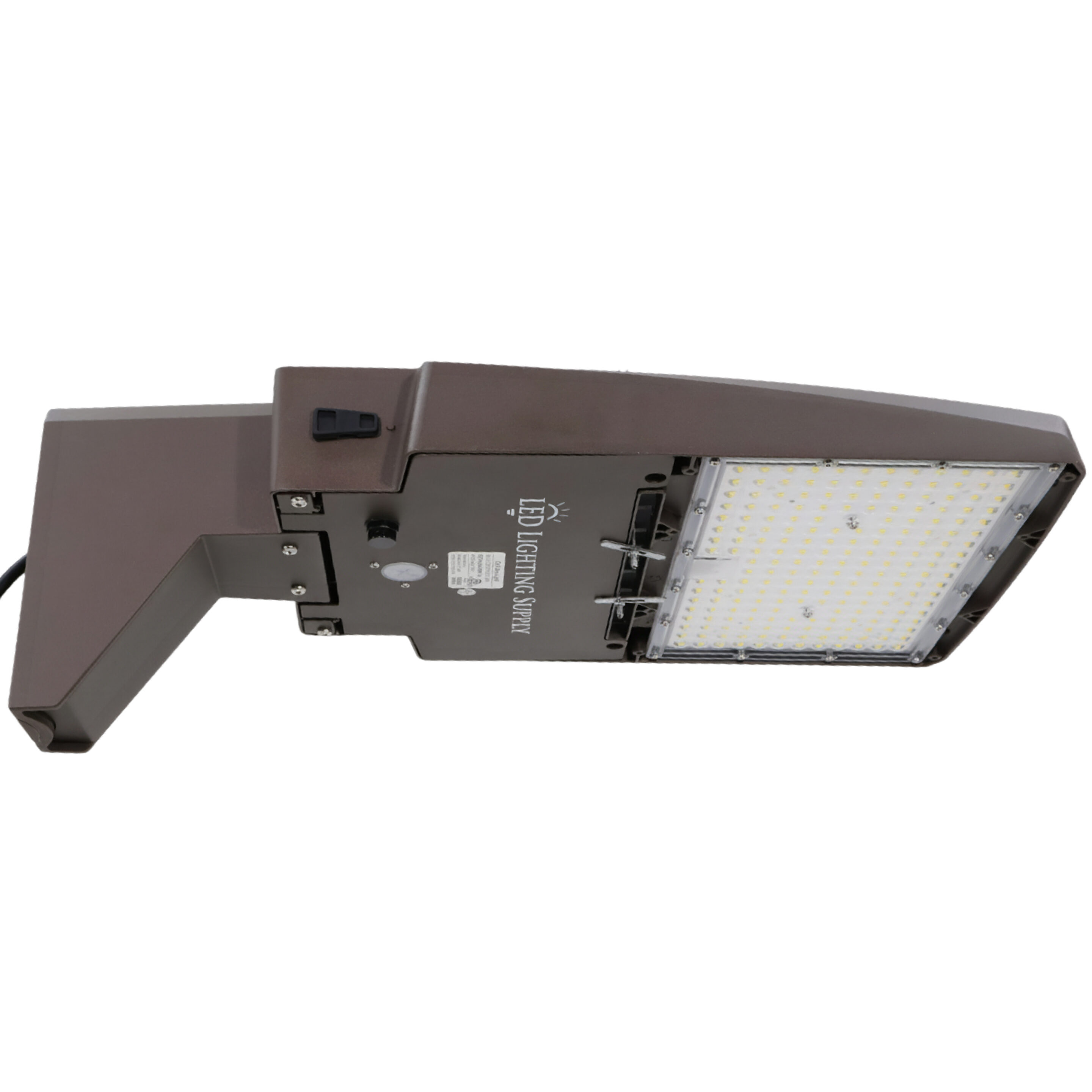

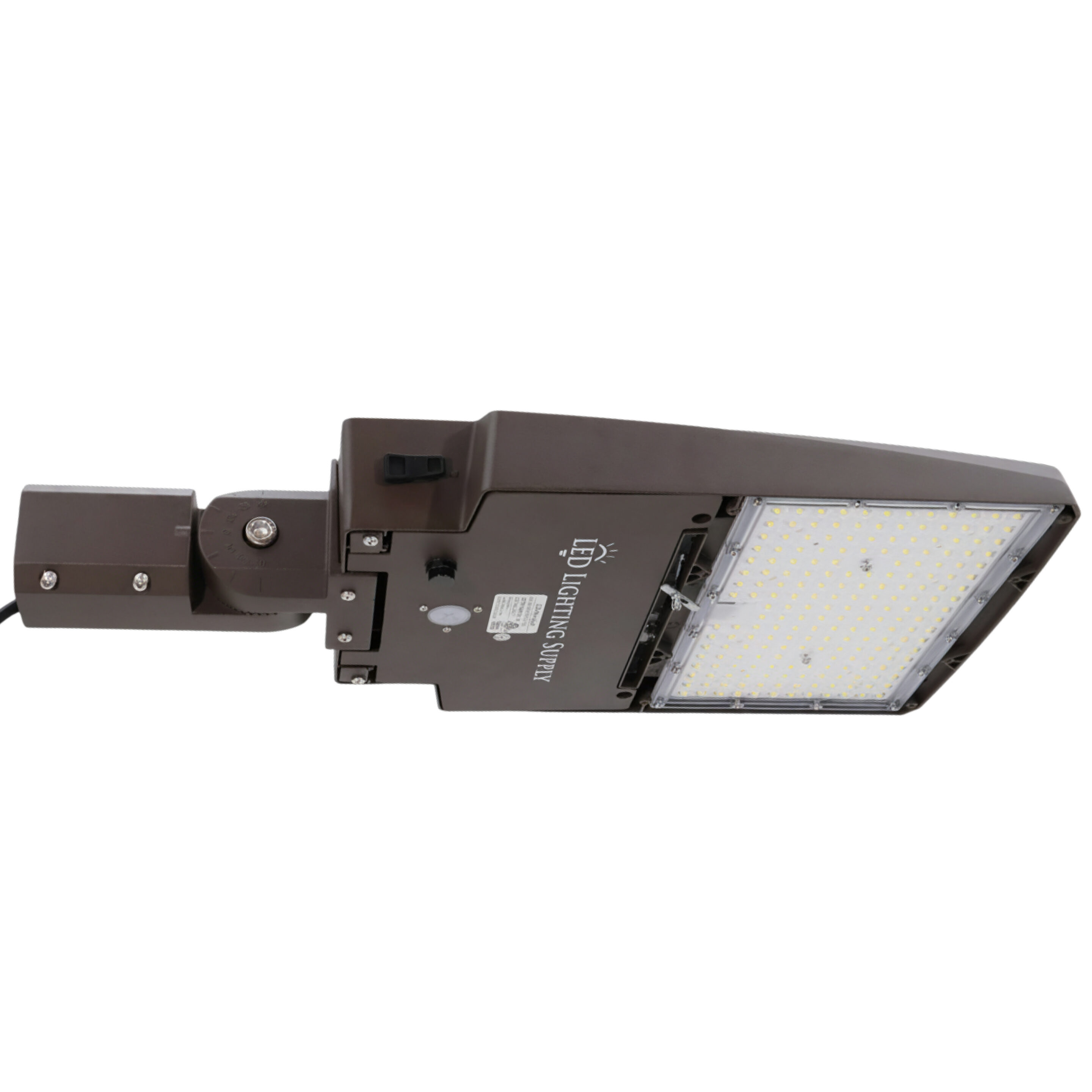

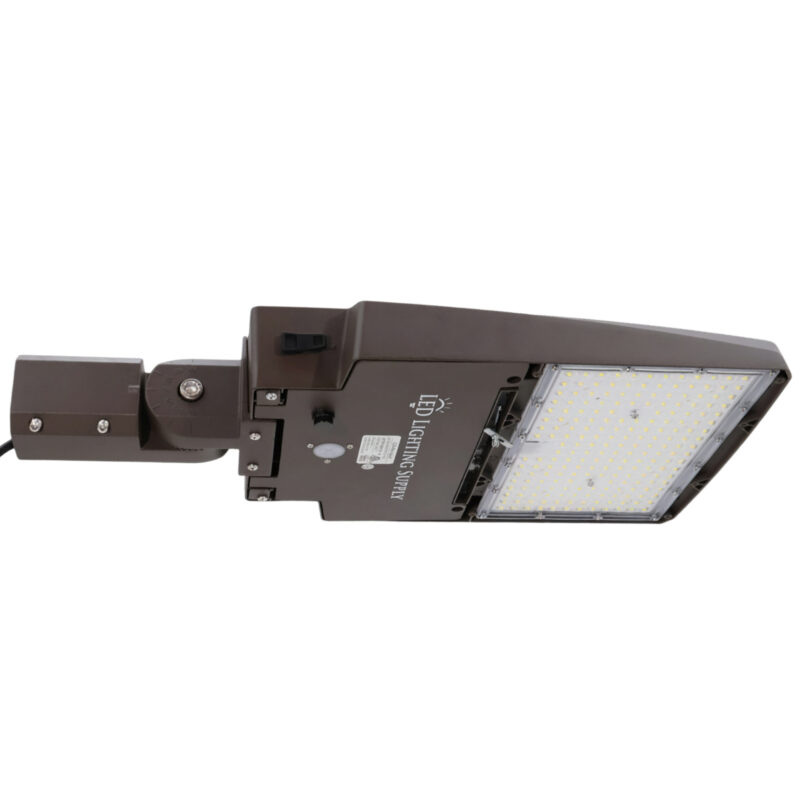

The yoke mount allows fixture aiming adjustment. The slip fitter mount supports pole-mounted installation where the mounting location and fixture orientation require a slip fitter connection.
Longevity and Reliability
The rated L70 lifespan is 244,000 hours. Surge protection is rated at 6kV line-line and 10kV line-earth.
The fixture operates from -22 degrees F to 113 degrees F. Long-term performance depends on maintaining the mounting position, electrical connections, and lens condition.
Build Quality and Physical Characteristics

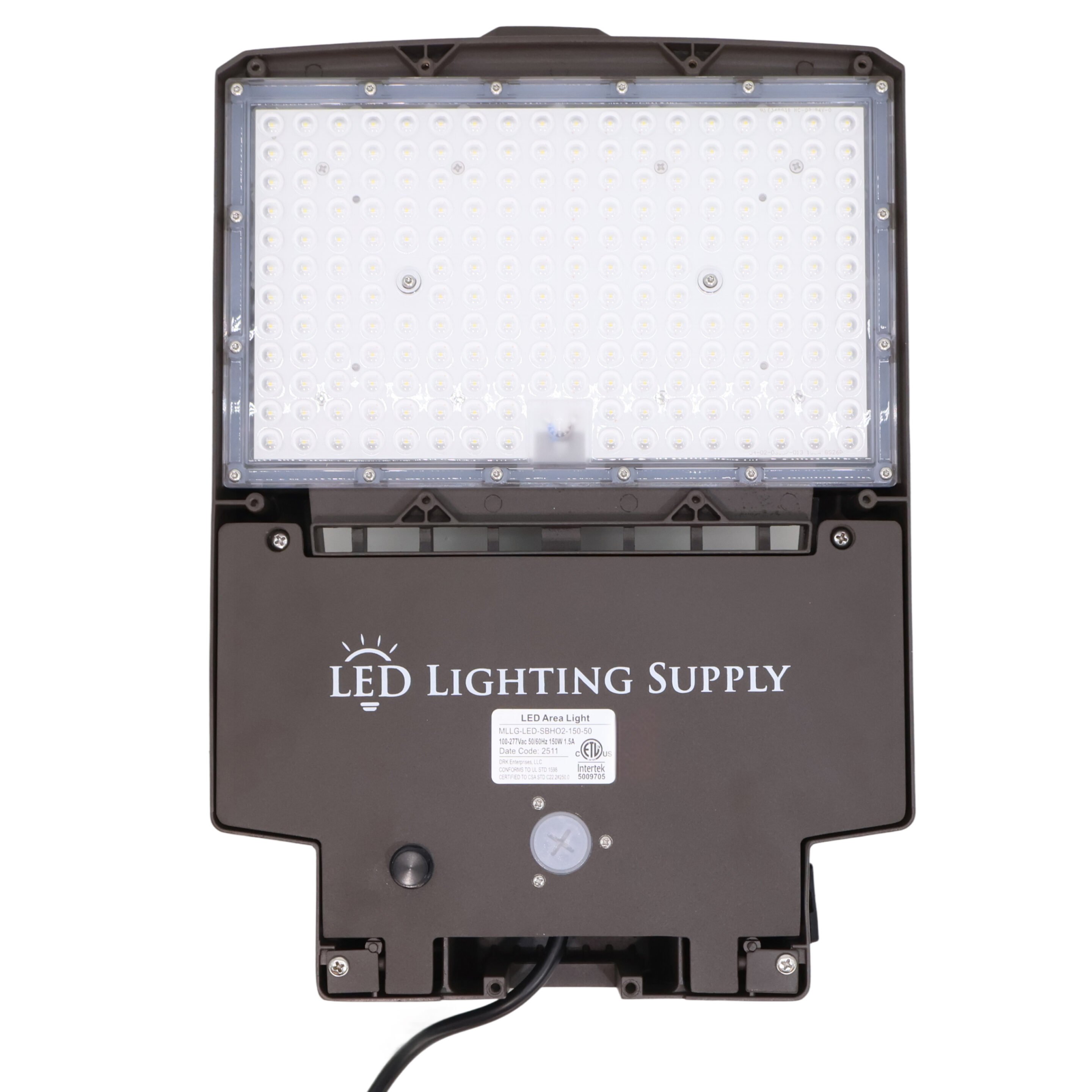

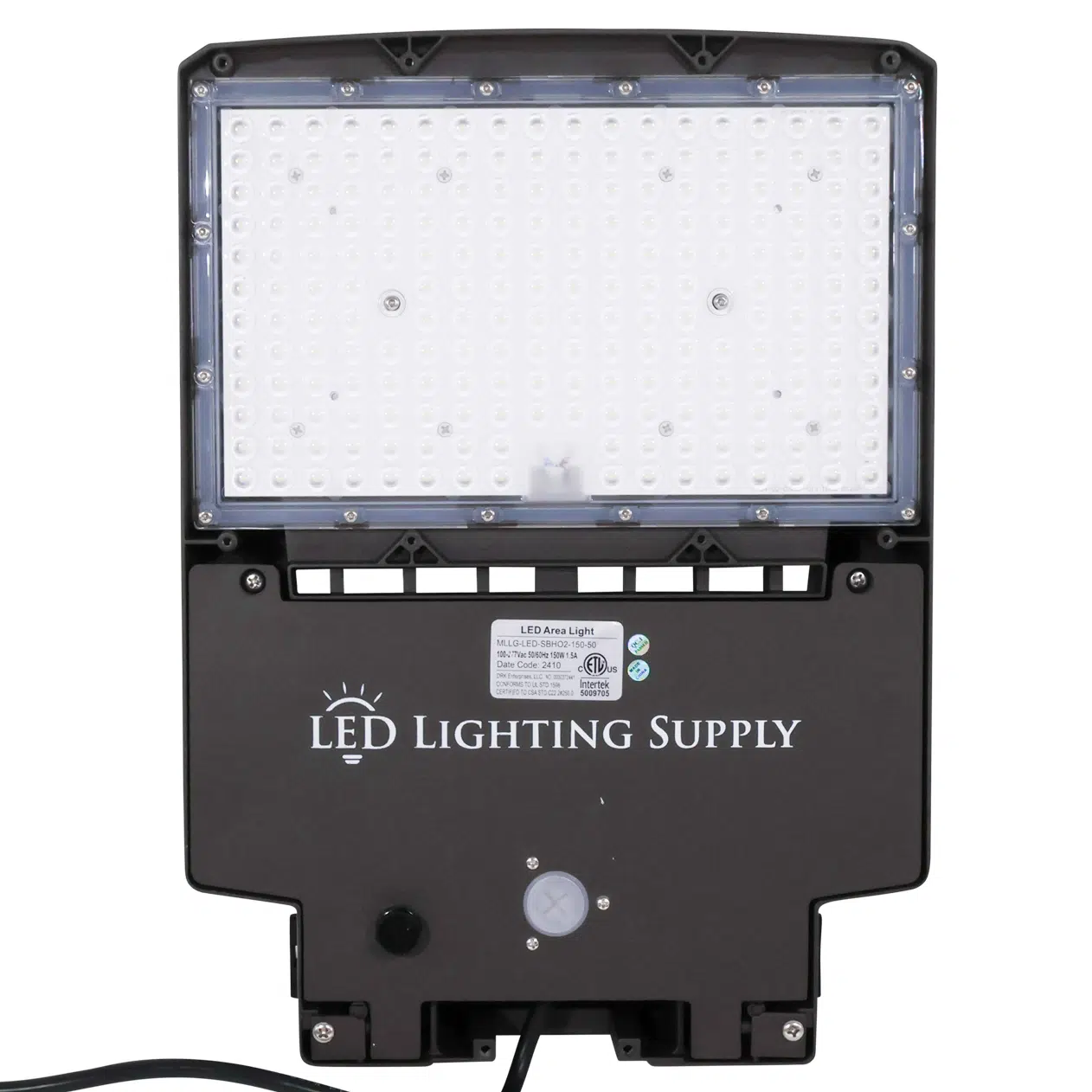

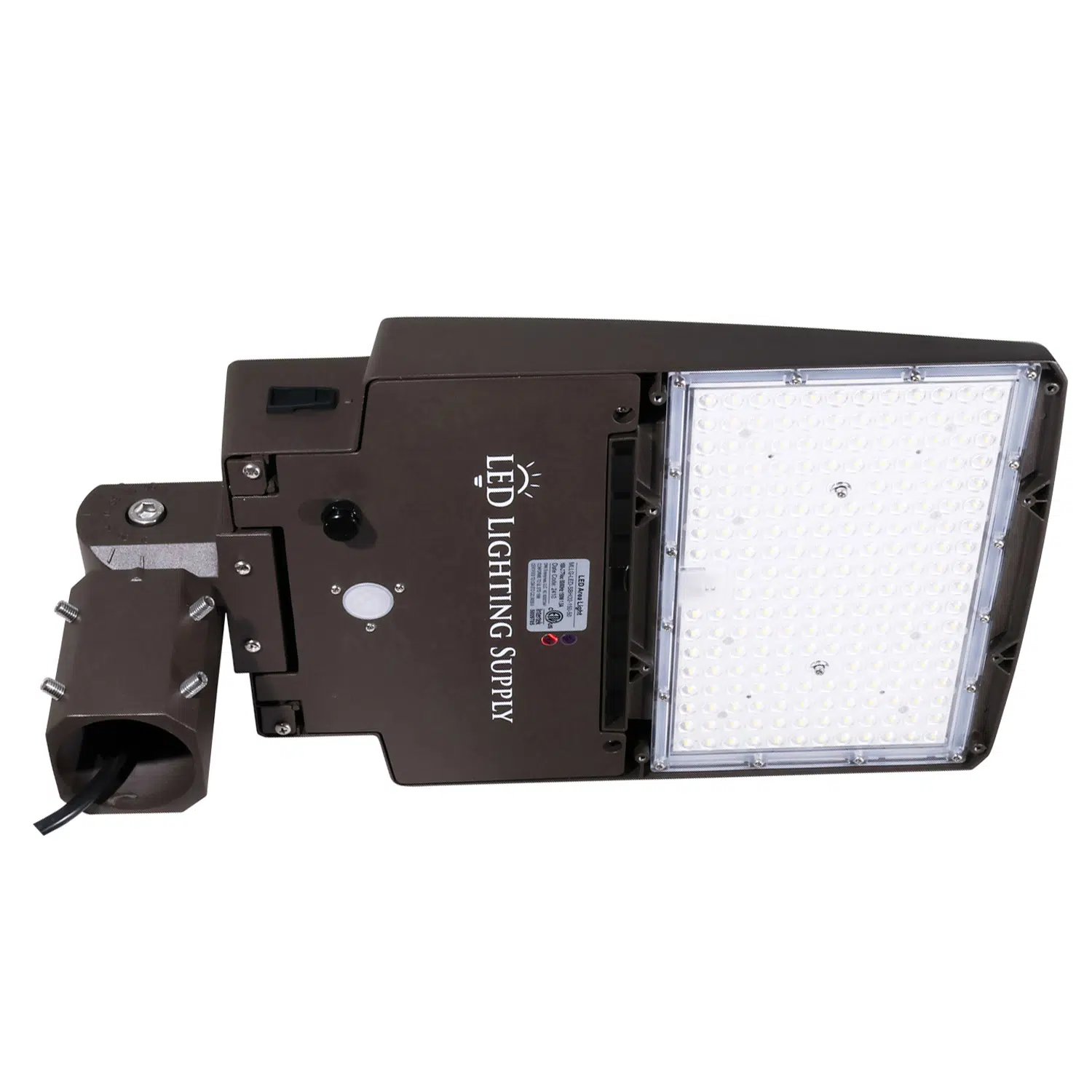

The housing is die-cast aluminum with a bronze finish. The fixture uses a polycarbonate lens.
It measures 15.63 inches long by 11.25 inches wide by 3.22 inches high and weighs 9.48 pounds. The EPA rating is 0.43 with arm mount.
The fixture is IP65 rated and IK08 rated. The compact housing allows use where fixture size, wind loading, and mounting hardware capacity need to be considered together.
Where This Product Fits Best
This fixture fits exterior sign and advertising installations that require directional LED output, durable housing, and available pole or yoke mounting. Its 24,000-lumen output is suited to larger illuminated sign surfaces and billboard structures.
- billboard lighting
- outdoor advertising lighting
- sign lighting
- roadside sign lighting
- pylon sign lighting
- monument sign lighting
IP65 and IK08 ratings support exposed outdoor conditions. Fixture selection should account for available voltage, mounting method, wind exposure, aiming access, and the distribution needed across the sign surface.
Installation and Long-Term Use
Install the fixture using the yoke or slip fitter mount specified for the mounting structure. Confirm fixture orientation, wiring voltage, and mounting hardware capacity before energizing the installation.
Use the aiming adjustment to direct output across the intended sign surface. Check the final aiming position after dark, since daytime alignment does not confirm light distribution.
Inspect the lens, mounting hardware, and electrical connections during routine maintenance. Keep the polycarbonate lens clean to preserve available output and distribution.
How This Fixture Is Commonly Used
For billboard lighting and outdoor advertising lighting, fixtures are positioned to direct light across the sign surface rather than beyond its edges. Yoke mounting is used where the fixture is attached directly to a supporting structure, while slip fitter mounting is used for compatible pole-mounted arrangements.
Mounting height is determined by the sign structure, fixture position, and selected optical distribution. Type 5 distribution is the standard option, while Type 3 distribution can be used where a more directional pattern is needed.
Fixture spacing and layout depend on sign dimensions, mounting height, target light level, and optical selection. Higher output can reduce fixture count, but poor aiming or excessive spacing can create uneven illumination.
Safety, Certifications, and Warranty
This fixture is ETL certified and DLC Premium certified.
The fixture has a 5-year warranty. IP65 and IK08 ratings are provided.
Frequently Asked Questions
Q: How much light does this 150 watt LED billboard light produce?
A: It produces 24,000 lumens at 160 lumens per watt.
Q: What voltage options are available?
A: The fixture is available in 100V-277V or 277V-480V configurations.
Q: What mounting options are available?
A: The fixture is available with yoke or slip fitter mounting.
Q: What beam distributions are offered?
A: Type 5 is the standard distribution. Type 3 is available as an option.
Q: What factors affect fixture layout for billboard lighting?
A: Mounting height, sign dimensions, target light level, fixture position, and optical distribution affect fixture layout. The supplied data does not establish a fixed spacing value or fixture quantity.
Application Questions and Clarification
Q: Is this fixture suitable for roadside sign lighting?
A: Roadside sign lighting is a listed secondary application. Final fit depends on the mounting arrangement, available voltage, sign dimensions, and required distribution.
Q: When should Type 3 distribution be considered?
A: Type 3 is the optional distribution. It should be considered when the installation requires a more directional pattern than the standard Type 5 distribution.
Q: Can this fixture be used with a photocell?
A: A photocell is available for this fixture.
