64 / 96 / 120 Watt Adjustable LED Vapor Tight Light | 9258 to 17359 lumens | 3500K / 4000K / 5000K | 100-277V | 8 Foot | Optional Battery Backup

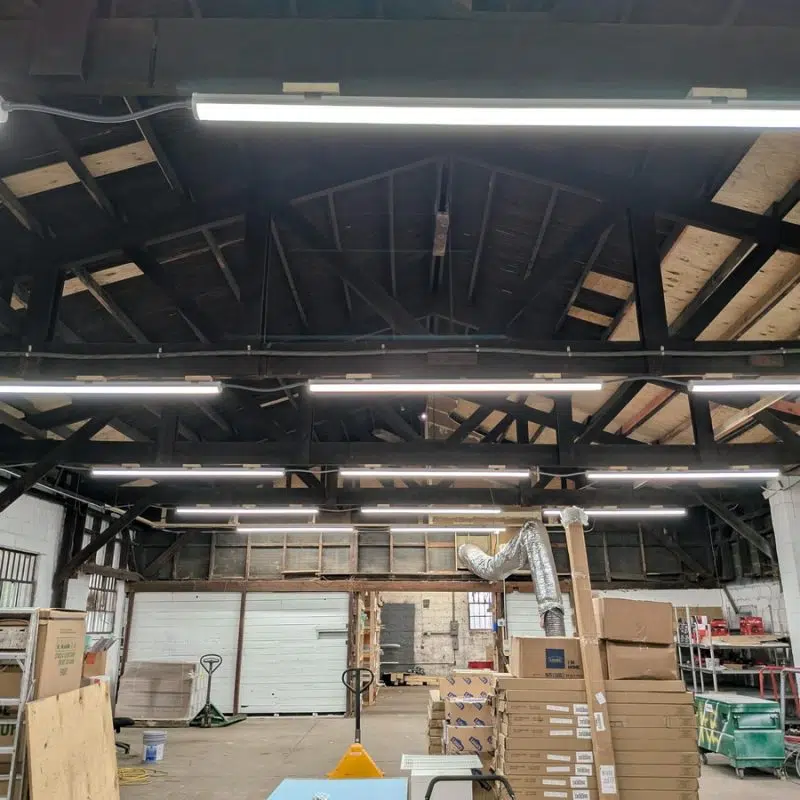

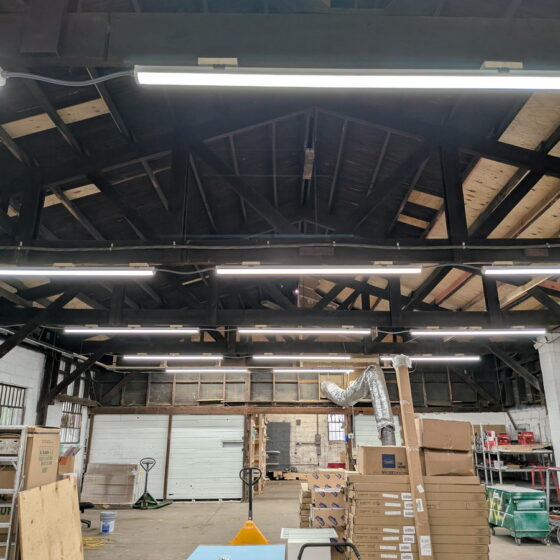

This 8-foot LED vapor tight fixture is a strong choice for demanding commercial and industrial settings where moisture, dust, or washdown conditions are present, thanks to its IP66 rating, impact-resistant polycarbonate housing, and wide -40°F to 122°F operating range. Selectable wattage and color temperature allow on-site adjustment to match specific lighting needs, while 140 lumens per watt efficiency supports energy savings. Surface mounting and the ability to link fixtures for continuous runs simplify installation in warehouses, manufacturing areas, utility corridors, and parking structures. Note that this fixture does not support dimming or advanced controls, operating as standard on/off only.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 64 | 96 | 120 |
| Lumens | 9258 | 13773 | 17359 |
| Lumens Per Watt | 140 |
| Replaces | 250 or 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | No |
| Beam Angles (Std) | 120° |
| Lifespan | 50,000 (L70) hours |
| Mounting | Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
Durable Construction
| Housing | Polycarbonate |
| IP Rating | IP66 |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 122°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 94 3/4 x 3 9/16 |
| Weight (lbs) | 9 lbs |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Standard (No EMB)
- Emergency Backup Battery
Product SKU Variations
- SKU: MLLG-AL-LED-LIN-VP8-120-CC
- SKU: MLLG-AL-LED-LIN-VP8-120-CC-20EM
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 8-foot LED vapor tight fixture is a surface-mounted linear light with adjustable 64W, 96W, and 120W output settings. It provides selectable 3500K, 4000K, and 5000K color temperatures in a sealed polycarbonate housing.
The fixture operates on 100-277V and is available with an optional emergency backup battery. Its IP66 construction supports installations where moisture, dust, and routine cleaning are operating considerations.
Core Performance and Output
Output ranges from 9,258 to 17,359 lumens across the selectable wattage settings. Fixture efficacy is 140 lumens per watt, with a 120-degree beam distribution for broad linear coverage.
The fixture operates at 50/60Hz with a power factor above 0.90 and includes 6kV surge protection. The 120W setting can produce excessive light at lower mounting heights, while mounting height and layout affect uniformity across longer runs.
Adjustability and Control Options
Wattage is adjustable between 64W, 96W, and 120W. Color temperature is adjustable between 3500K, 4000K, and 5000K.
This fixture is not dimmable. The optional emergency backup battery is available for installations requiring battery-backed operation.
Longevity and Reliability
The LED system is rated for 50,000 hours at L70. This rating supports long operating periods where fixture access and maintenance interruptions need to be limited.
The fixture operates from -40 degrees F to 122 degrees F. Internal 6kV surge protection helps address electrical transient exposure.
Build Quality and Physical Characteristics
The housing is polycarbonate and finished in white. The fixture measures 94 3/4 inches long by 3 9/16 inches wide and weighs 9 pounds.
IP66 protection supports use in wet and dusty conditions. Surface mounting keeps the fixture close to the mounting plane and is suited to continuous or individual fixture layouts.
Where This Product Fits Best
This vapor tight fixture fits enclosed, wet, cold, and utility-oriented areas where a sealed linear fixture and broad distribution are required. The selectable output settings allow the fixture to be matched to different light-level requirements within these environments.
- washdown area lighting
- cold storage lighting
- parking garage lighting
- utility room lighting
- food processing lighting
- stairwell lighting
- locker room lighting
Its IP66 rating and -40 degrees F to 122 degrees F operating range support wet, dusty, and cold operating conditions. Final suitability for washdown area lighting depends on the cleaning process and installation details.
Installation and Long-Term Use
This fixture uses surface mounting. Confirm the mounting surface, fixture orientation, branch voltage, and access for future service before installation.
Mounting height affects light distribution and perceived brightness. The selected wattage and color temperature should be set before commissioning so the installed layout is evaluated at the intended operating settings.
How This Fixture Is Commonly Used
In parking garage lighting, utility room lighting, and stairwell lighting, fixtures are typically arranged in linear runs or aligned with the space geometry. Surface-mounted placement keeps the 8-foot fixture positioned along ceilings or structural mounting planes.
For cold storage lighting, washdown area lighting, and food processing lighting, mounting height and fixture spacing are set around required light levels and the physical layout. Higher output can reduce fixture count, but spacing and mounting height still control uniformity.
Safety, Certifications, and Warranty
This fixture is UL listed. It is rebate eligible.
The fixture has an IP66 rating and a 5-year warranty. Optional emergency backup battery configurations are available.
Frequently Asked Questions
Q: What wattage settings are available?
A: The fixture has selectable 64W, 96W, and 120W settings.
Q: What light output does this fixture provide?
A: Output is 9,258 lumens at 64W, 13,773 lumens at 96W, and 17,359 lumens at 120W.
Q: Can the color temperature be adjusted?
A: Yes. The fixture has selectable 3500K, 4000K, and 5000K color temperatures.
Q: Is this fixture dimmable?
A: No. This fixture is not dimmable.
Q: Is an emergency backup battery available?
A: Yes. An optional emergency backup battery configuration is available.
Q: What should be considered when planning fixture layout?
A: Mounting height, selected wattage, target light levels, and layout requirements affect fixture placement. Specific spacing values are not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture suited for cold storage lighting?
A: The fixture is rated for operation from -40 degrees F to 122 degrees F and has an IP66 rating. These specifications support evaluation for cold storage lighting.
Q: What should be reviewed for washdown area lighting?
A: Review the cleaning process, mounting location, and installation details. The fixture has an IP66 rating.
Q: Can the fixture be configured for different light-level needs in parking garage lighting?
A: Yes. The fixture has selectable 64W, 96W, and 120W output settings, with 9,258 to 17,359 lumens.
