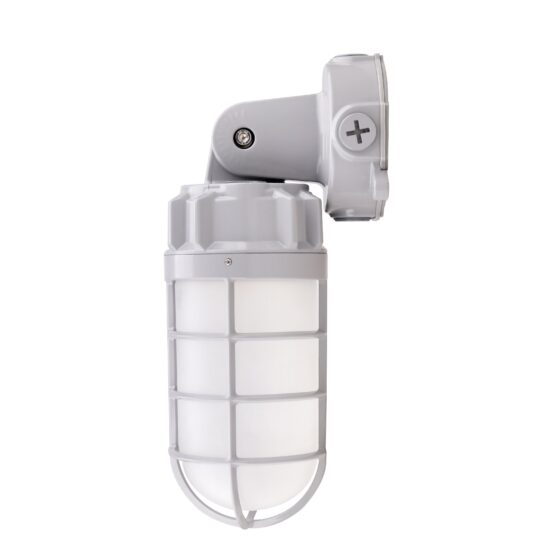

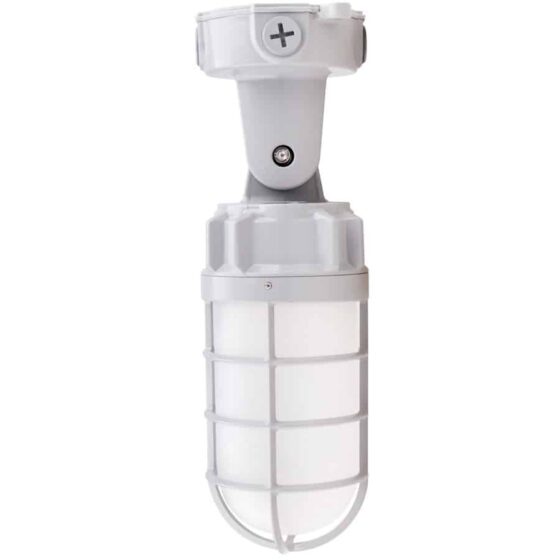

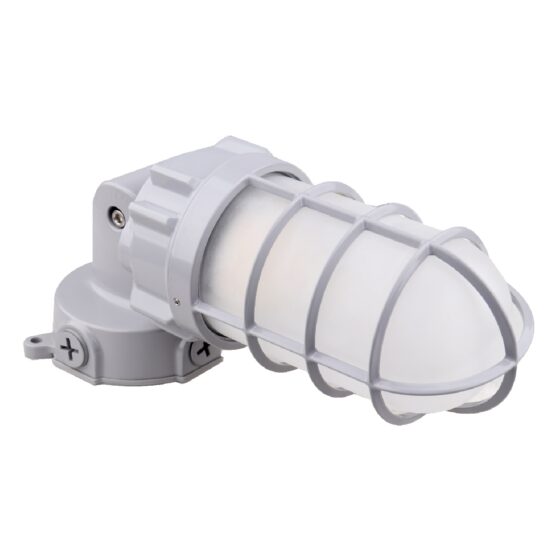

21 Watt LED Vapor Tight Jelly Jar Light | 2520 Lumens | 5000K | 100-277V
This 21 Watt LED vapor tight jelly jar fixture is a strong choice for demanding environments where moisture, dust, or impact are concerns, thanks to its IP65 rating, die-cast aluminum body, tempered glass dome, and wire guard. Delivering 2520 lumens at 5000K with a wide 160° beam, it efficiently replaces 100 Watt metal halide units and provides broad, consistent illumination for wall-mounted applications. Ideal for utility rooms, exterior walls, loading docks, stairwells, and corridors, it is UL listed and supports 1-10V dimming. It is not suitable for hazardous locations.
Dwayne Kula | President, CTO and Founder
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 21 |
| Lumens | 2520 |
| Lumens Per Watt | 120 |
| Replaces | 100 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 160° |
| Lifespan | 50,000 (L70) hours |
| Mounting | Wall |
| Fixture Color | Gray |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 12.64 H x 5 D |
| Weight (lbs) | 4 |
IES Files
Product Description
Key Features
- Brand: LED Lighting Supply
- Watts: 21
- Lumens: 2520
- Lumens Per Watt: 120
- Replaces: 100 Watt Metal Halide
- Voltage: 100V-277V
- Color Temperature: 5000K
- CRI: 80+
- Dimming: 1-10V
- Beam Angles (Std): 160°
- Lifespan: 50,000 (L70) hours
- Mounting: Wall
- Fixture Color: Gray
- Frequency (Hz): 50/60
- Power Factor: > .90
Durable Construction
- Housing: Die-Cast Aluminum
- IP Rating: IP65
- Certifications: UL | Rebate Eligible
- Warranty: 5 years
Measurements
- Dimensions (in): 12.64 H x 5 D
- Weight (lbs): 4
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This is a simplified room utilization factor. It accounts for room reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual floor-level light distribution. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces. Actual light levels may vary based on fixture optics, mounting conditions, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
The 21 Watt LED Vapor Tight Jelly Jar Light is designed for environments requiring durable and reliable lighting solutions. With a lumen output of 2520 lumens and a color temperature of 5000K, this fixture is suitable for various commercial and industrial applications. It operates within a voltage range of 100-277V, making it versatile for different electrical systems. This fixture is particularly effective as a replacement for 100 Watt metal halide lights, providing energy efficiency and long-term performance.
Constructed with a die-cast aluminum housing, the fixture is IP65 rated, ensuring protection against dust and water ingress. This makes it ideal for outdoor and damp environments. The wall-mounted design allows for easy installation on building exteriors, providing effective pathway and perimeter lighting.
Core Performance and Output
This LED fixture delivers 2520 lumens with an efficiency of 120 lumens per watt. The 160° beam angle ensures wide coverage, making it suitable for general area lighting. The fixture supports 1-10V dimming, allowing for adjustable light levels to suit specific needs. It operates efficiently across a frequency range of 50/60 Hz with a power factor greater than 0.90, ensuring stable performance.
While the fixture is designed for wall mounting, excessive output at low mounting heights may result in glare. It is recommended to consider the mounting height and surrounding environment to optimize light distribution and minimize any potential issues.
Adjustability and Control Options
The 21 Watt LED Vapor Tight Jelly Jar Light features 1-10V dimming capability, providing flexibility in light output control. This allows users to adjust the brightness according to the specific requirements of the area, enhancing energy savings and user comfort. The dimming function is compatible with standard dimming systems, ensuring seamless integration into existing setups.
While the fixture offers dimming options, it does not include advanced control features such as motion sensors or daylight harvesting. Users should consider additional control systems if these functionalities are required for their application.
Longevity and Reliability
With a lifespan of 50,000 hours (L70), this LED fixture offers long-term reliability and reduced maintenance needs. The robust construction and high-quality components ensure consistent performance over time, even in challenging environments. The fixture's durability is further supported by its IP65 rating, providing protection against dust and water ingress.
The fixture's reliability is backed by a 5-year warranty, offering peace of mind and assurance of quality. Regular maintenance and cleaning can help maintain optimal performance and extend the fixture's lifespan.
Build Quality and Physical Characteristics
The fixture is constructed with a die-cast aluminum housing, providing strength and durability. Its gray finish offers a neutral appearance that blends well with various architectural styles. The compact design, with dimensions of 12.64 inches in height and 5 inches in depth, allows for unobtrusive installation on building exteriors.
Weighing 4 pounds, the fixture is lightweight yet sturdy, facilitating easy handling and installation. The IP65 rating ensures protection against environmental factors, making it suitable for outdoor and damp locations.
Where This Product Fits Best
This LED Vapor Tight Jelly Jar Light is ideal for environments requiring robust and reliable lighting solutions. Its design and performance make it suitable for:
- building facade lighting
- security lighting
- commercial exterior wall lighting
- perimeter lighting
- entry lighting
The fixture's IP65 rating and durable construction make it well-suited for outdoor applications, providing effective lighting in various weather conditions. Its versatility in voltage operation allows for use in different electrical systems, enhancing its applicability across multiple settings.
Installation and Long-Term Use

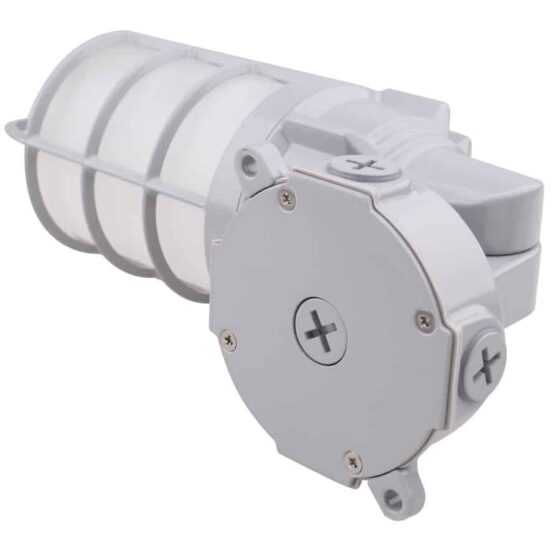

The fixture is designed for wall mounting, offering straightforward installation on building exteriors. Its compact size and lightweight design facilitate easy handling during installation. The fixture's robust construction ensures long-term performance, even in challenging environments.
For optimal performance, it is important to consider the mounting height and surrounding environment. Regular maintenance, such as cleaning the fixture and checking electrical connections, can help maintain its performance and extend its lifespan.
How This Fixture Is Commonly Used
This LED Vapor Tight Jelly Jar Light is commonly used in outdoor settings where reliable and durable lighting is required. Typical mounting heights range from 8 to 12 feet, providing effective illumination for pathways and building perimeters. The fixture's wide beam angle allows for broad coverage, reducing the number of fixtures needed for large areas.
Spacing between fixtures may vary based on the desired light levels and specific application requirements. While higher output can reduce the number of fixtures needed, it may also increase the potential for glare, particularly at lower mounting heights.
Safety, Certifications, and Warranty
The fixture is UL listed, ensuring compliance with safety standards. Its IP65 rating provides protection against dust and water ingress, making it suitable for outdoor and damp environments. The fixture is also rebate eligible, offering potential cost savings through energy efficiency programs.
A 5-year warranty backs the fixture, providing assurance of quality and reliability. This warranty covers defects in materials and workmanship, offering peace of mind for long-term use.
Frequently Asked Questions
Q: What is the recommended mounting height for this fixture?
A: The recommended mounting height is between 8 to 12 feet for optimal light distribution.
Q: Can this fixture be used in wet locations?
A: Yes, the fixture is IP65 rated, making it suitable for wet and outdoor locations.
Q: Does this fixture support dimming?
A: Yes, it supports 1-10V dimming, allowing for adjustable light output.
Q: What is the expected lifespan of this fixture?
A: The fixture has an expected lifespan of 50,000 hours (L70).
Q: Is this fixture suitable for replacing a 100 Watt metal halide light?
A: Yes, it is designed to replace 100 Watt metal halide lights, offering improved energy efficiency.
Application Questions and Clarification
Q: What are the primary applications for this fixture?
A: Primary applications include building facade lighting, security lighting, and commercial exterior wall lighting.
Q: Can this fixture be used for entry lighting?
A: Yes, it is suitable for entry lighting, providing effective illumination for building entrances.
Q: Is this fixture appropriate for perimeter lighting?
A: Yes, it is well-suited for perimeter lighting, offering reliable and durable performance.
