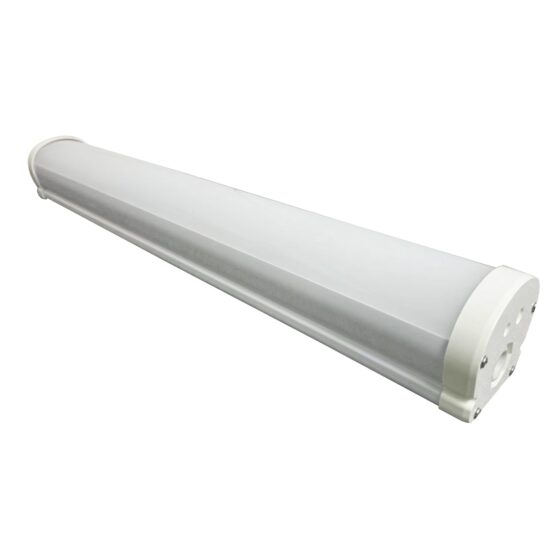

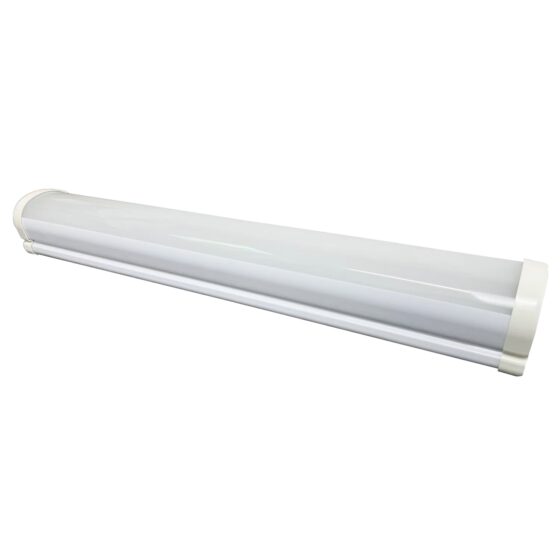

16 / 24 / 28 Watt Adjustable LED Vapor Tight Light | 2075 to 3200 Lumens | 3500K / 4000K / 5000K Adjustable | 100-277V | 2 Foot

Product Overview

This is a 2-foot, adjustable LED vapor tight fixture designed for demanding environments where moisture, dust, and debris are present. The fixture offers selectable wattage (16W, 24W, 28W) and color temperature (3500K, 4000K, 5000K) to match a range of lighting requirements. Typical installations include service pits, maintenance areas, and equestrian facilities where durability and ingress protection are required.

The polycarbonate housing and IP66 rating provide full protection against water and particulate intrusion. This fixture is commonly used as a direct replacement for 100W or 150W metal halide vapor tight units, supporting surface mounting in utility and washdown spaces.

Core Performance and Output

This fixture delivers 2075 to 3200 lumens, depending on the selected wattage. The output is distributed through a 120° polycarbonate lens, providing wide, uniform coverage suitable for low to moderate mounting heights. Efficacy is 115 lumens per watt, supporting energy-efficient operation in continuous-use environments.

Color temperature can be set to 3500K, 4000K, or 5000K at installation. The fixture operates on 100-277V input and maintains a power factor above 0.90. Output is best suited for mounting heights up to 10 feet; excessive output may occur if installed in confined or low-ceiling spaces.

Adjustability and Control Options

Both wattage and color temperature are field adjustable using onboard switches, allowing adaptation to changing requirements or site conditions. This flexibility supports standardization across multiple areas with varying light level needs.

No dimming or advanced control options are integrated. The fixture is designed for simple on/off operation, with all adjustments made manually at the fixture during installation or maintenance.

Longevity and Reliability

The fixture is rated for 80,000 hours of operation, supporting long-term deployment in continuous-use or high-cycle environments. The polycarbonate housing and lens resist impact and chemical exposure common in washdown and utility spaces.

Integrated 6kV surge protection guards against electrical disturbances. The fixture operates reliably in ambient temperatures from -40°F to 122°F, minimizing risk of failure in unconditioned or exposed locations.

Build Quality and Physical Characteristics

The housing and lens are constructed from polycarbonate, providing impact resistance and non-corrosive performance. The fixture is sealed to IP66, preventing ingress of water and dust. Surface mounting hardware is included for direct attachment to ceilings or overhead structures.

Dimensions are 23 9/16 in x 3 9/16 in x 3 3/16 in, and the fixture weighs 3.3 lbs. The white finish supports use in clean or utility environments. No external metal parts are exposed, reducing corrosion risk in damp or chemical-prone areas.

Where This Product Fits Best

This fixture is designed for wet, dusty, or corrosive environments where reliable, sealed lighting is required. It is commonly installed in locations with frequent washdown, exposure to water spray, or airborne particulates. The output and form factor are suited for low to moderate ceiling heights and continuous operation.

• washdown area lighting
• parking garage lighting
• cold storage lighting
• utility room lighting
• food processing lighting
• car wash lighting
• stairwell lighting
• outdoor covered walkway lighting

IP66 sealing, polycarbonate construction, and wide temperature tolerance support use in both indoor and sheltered outdoor environments. The fixture is not intended for hazardous locations or high-mounting applications above 10 feet.

Installation and Long-Term Use

Surface mounting is standard, with hardware provided for direct attachment to flat ceilings or overhead structures. The fixture?s compact size allows installation in confined spaces, such as service pits or utility corridors. All adjustments for wattage and color temperature are made at the fixture before energizing.

Routine cleaning and inspection are simplified by the smooth, sealed housing. No relamping is required over the rated life. The fixture is designed for minimal maintenance in environments with frequent washdown or airborne contaminants.

How This Fixture Is Commonly Used

Typical mounting heights range from 7 to 10 feet, with fixtures spaced to provide uniform coverage based on selected wattage and area reflectance. In washdown and utility rooms, fixtures are often installed in continuous rows or evenly spaced along aisles.

Spacing and fixture count should be adjusted based on the selected output and required light levels. Higher wattage settings reduce the number of fixtures needed but may increase glare in low-ceiling areas.

Safety, Certifications, and Warranty

This fixture is UL listed and IP66 rated. It includes integrated 6kV surge protection. The product is covered by a 5-year warranty. It is eligible for utility rebates where applicable.

No hazardous location or NSF certifications are included. The fixture is suitable for use in wet locations and food processing areas where IP66 and UL listing are required.

Frequently Asked Questions

Q: What is the maximum recommended mounting height for this fixture?

A: The fixture is best suited for mounting heights up to 10 feet to maintain uniform light levels and avoid excessive glare.

Q: How are wattage and color temperature adjusted?

A: Both wattage and color temperature are set using onboard switches located inside the fixture housing. Adjustments must be made before energizing the fixture.

Q: Is this fixture dimmable or compatible with lighting controls?

A: No, this fixture does not support dimming or advanced control systems. It is designed for on/off operation only.

Q: Can this fixture be used in food processing or washdown areas?

A: Yes, the fixture is IP66 rated and UL listed, supporting use in food processing and washdown environments where sealed, non-corrosive lighting is required.

Q: What is the expected lifespan and maintenance requirement?

A: The fixture is rated for 80,000 hours of operation and requires minimal maintenance beyond routine cleaning and inspection.

Q: How should fixtures be spaced for uniform coverage?

A: Spacing depends on selected wattage, mounting height, and area reflectance. For most washdown or utility spaces, fixtures are spaced 6 to 10 feet apart for even illumination.

Application Questions and Clarification

Q: Is this fixture suitable for hazardous locations or explosion proof requirements?

A: No, this fixture is not rated for hazardous or classified locations. It is intended for wet, washdown, and utility environments only.

Q: Can this fixture be installed outdoors?

A: The fixture is IP66 rated and can be installed in outdoor covered or sheltered locations, but it is not intended for direct exposure to driving rain or open sky installations.

Q: Is this fixture appropriate for stairwell or corridor lighting?

A: Yes, the output and form factor support use in stairwells and corridors, especially where moisture or dust is present.

Q: Does the fixture require special tools or accessories for installation?

A: No special tools are required. Surface mounting hardware is included, and standard electrical tools are sufficient for installation.
