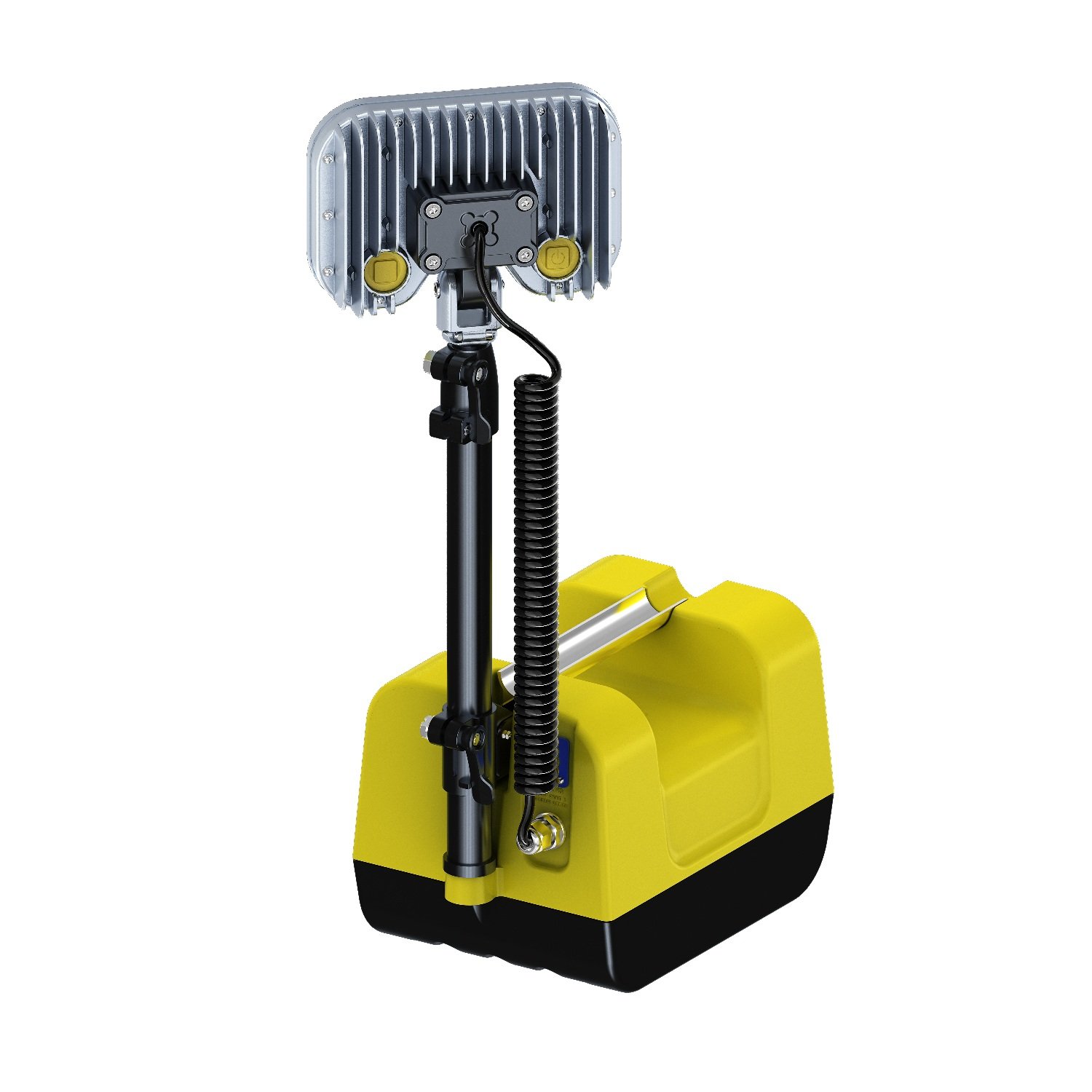

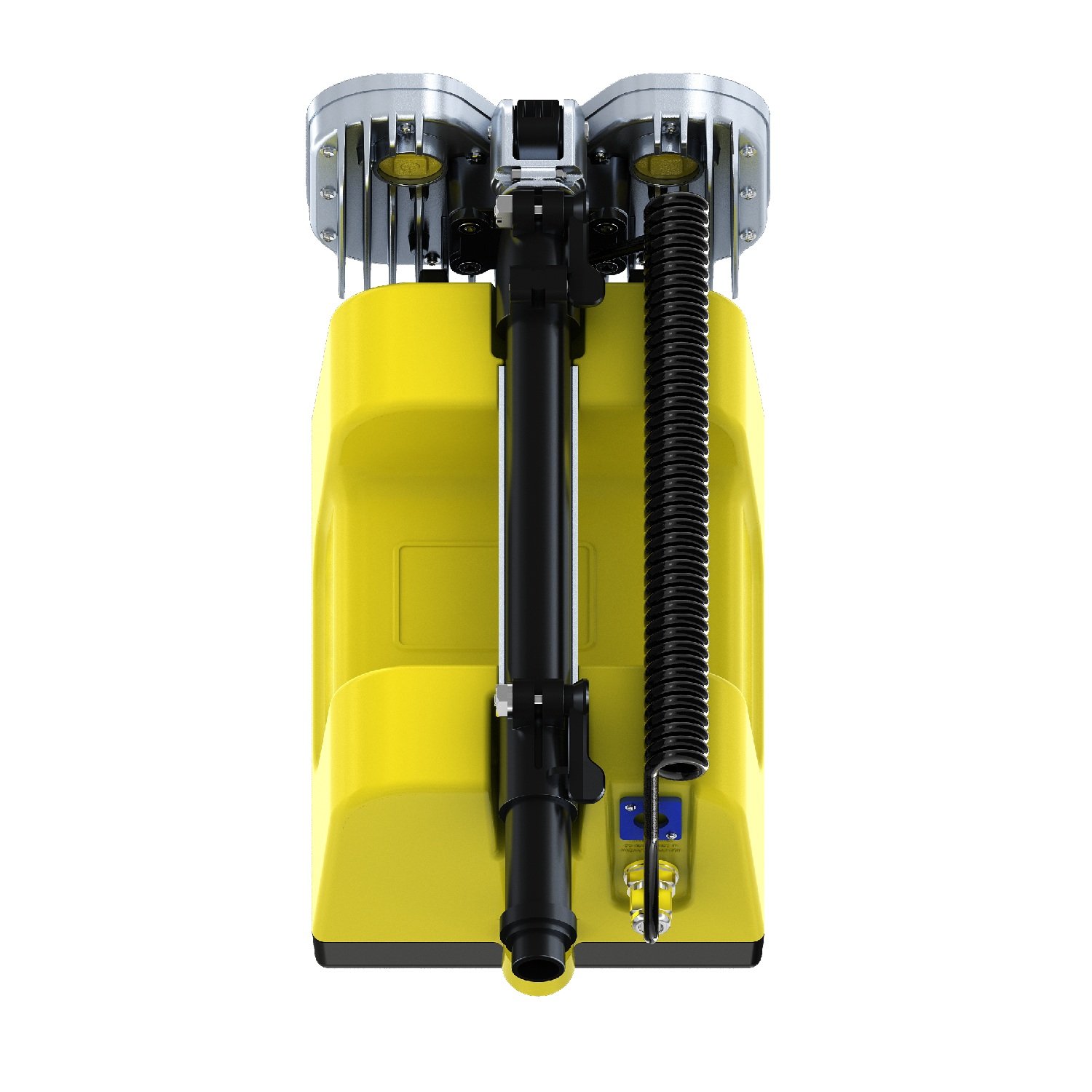

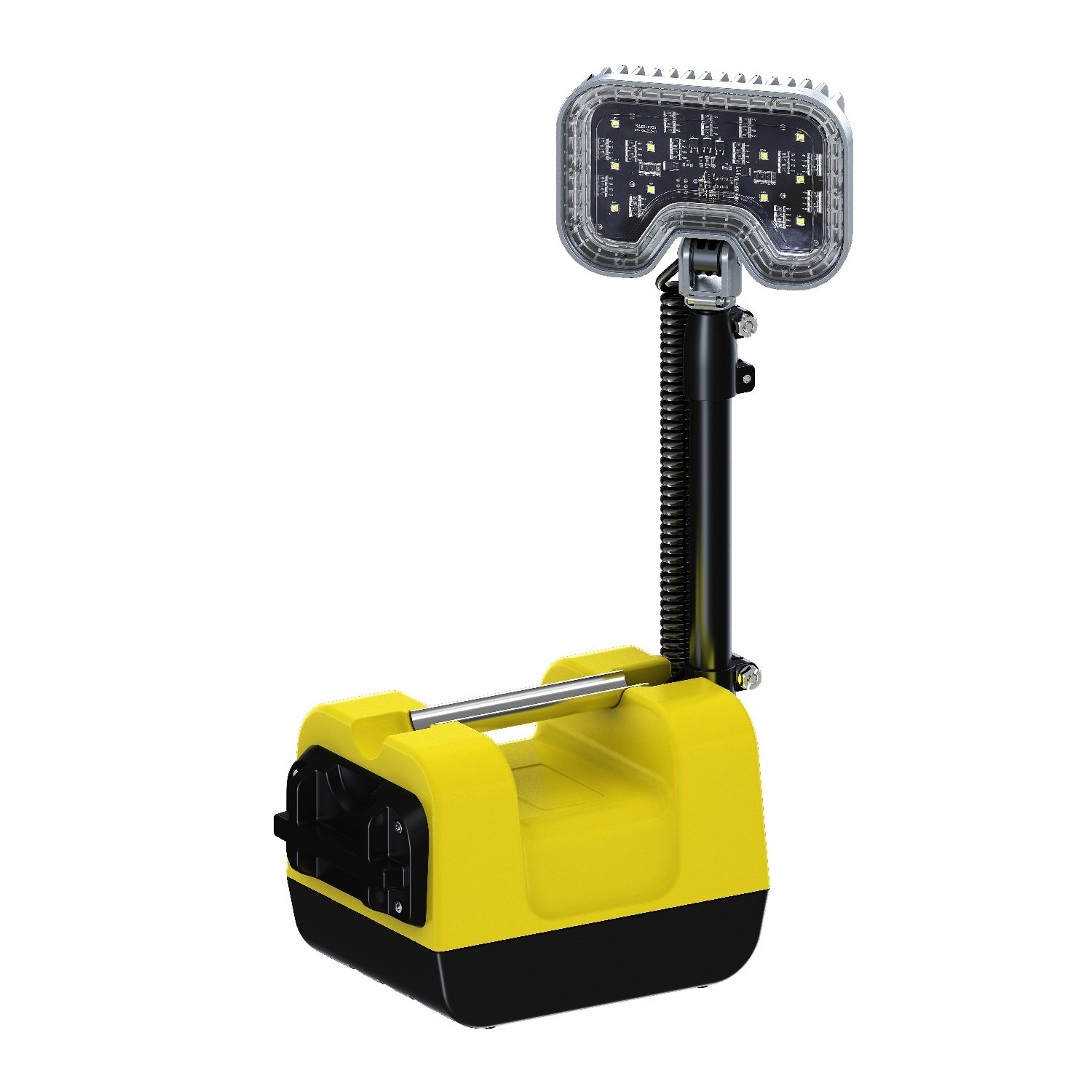

20 Watt Portable Explosion Proof LED Work Light | 1600 Lumens | Class 1 Div 1 | 5000K | 10 Hour Run Time | Intrinsically Safe
This 20 watt intrinsically safe LED fixture is a strong choice for hazardous locations requiring portable lighting, as it meets Class I, Division 1, Groups A, B, C, D, T4 standards and is UL 913 listed. Its IP66 rating ensures reliable operation in environments with water spray or heavy dust, while the rechargeable battery provides up to 10 hours of run time per charge. The 1600 lumen, 5000K output with a 120 degree beam angle delivers broad, clear illumination, making it well suited for refineries, chemical plants, tank farms, and confined spaces where fixed wiring is impractical.
Dwayne Kula | President, CTO and Founder
38 in stock
Product Specifications
UL Specs
- UL 913 Hazardous Locations – Intrinsically Safe
- Class I, Division 1, Groups A, B, C, D, T4
Key Features
| Brand | LED Lighting Supply |
| Watts | 20 |
| Lumens | 1600 |
| Lumens Per Watt | 80 |
| Color Temperature | 5000K |
| Dimming | No |
| Beam Angles (Std) | 120° |
| Lifespan | 50,000 (L70) hours |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| IP Rating | IP66 |
| Certifications | UL |
| Warranty | 5 years |
Notes:
- 10 Hour Run Time
- 100-240V AC Charger Included
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 20-watt portable explosion proof LED work light provides 1,600 lumens of 5000K light for hazardous location lighting. It is intrinsically safe and rated for Class I, Division 1, Groups A, B, C, and D locations.
The portable format supports temporary light placement where a fixed fixture is not required. The included 100-240V AC charger supports charging, and the light has a stated 10-hour run time.
Core Performance and Output
The fixture delivers 1,600 lumens at 20 watts, producing 80 lumens per watt. A 120-degree beam angle provides broad work-area distribution rather than a narrow directional beam.
It operates at 50-60Hz with a power factor greater than 0.95 and total harmonic distortion below 10 percent. The 1,600-lumen output is intended for localized portable illumination and may be excessive when positioned too close to reflective work surfaces.
The broad beam spreads light across the immediate work area, but uniformity decreases as the light is placed farther from the intended area. Final placement should account for obstructions, working distance, and required light direction.
Adjustability and Control Options
This work light is not dimmable. Light output remains at its fixed operating level.
The portable design allows the fixture to be moved as work conditions change. It does not include stated control, dimming, or sensor options.
Longevity and Reliability
The LED light source has a rated L70 life of 50,000 hours. L70 indicates the point at which light output is rated at 70 percent of initial output.
The stated 10-hour run time should be considered when planning temporary work periods. Charging availability and work duration affect continued use between charging cycles.
Build Quality and Physical Characteristics
The enclosure is rated IP66. This portable fixture is built for use in hazardous location lighting where a protected, movable light source is required.
The work light is rated Class I, Division 1, Groups A, B, C, and D, T4. Its physical form is intended for portable deployment rather than permanent fixed installation.
Where This Product Fits Best
This fixture fits hazardous locations requiring portable, intrinsically safe work lighting. Its output and broad beam are suited to temporary illumination within the listed explosion proof lighting applications.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
- solvent storage area lighting
Its Class I, Division 1 classification and IP66 rating address the stated hazardous-location and enclosure requirements. Application fit still depends on the specific location classification and the required portable light placement.
Installation and Long-Term Use
This is a portable work light, so permanent mounting hardware is not specified. Position the fixture where its broad beam reaches the immediate work area without creating avoidable glare.
The effective mounting height is determined by where the portable fixture is placed during use rather than by a fixed installation elevation. Keep charging cycles aligned with the stated 10-hour run time and use the included 100-240V AC charger.
How This Fixture Is Commonly Used
In hazardous location lighting, explosion proof lighting, paint booth lighting, and chemical processing facility lighting, the fixture is positioned near the active work area for temporary illumination. Its portable format allows placement to change as work moves within the listed applications.
For oil and gas facility lighting, refinery lighting, and solvent storage area lighting, placement should maintain useful beam direction while limiting direct glare toward personnel. Spacing and layout vary with the work area, target light level, and the number of portable lights in use.
Safety, Certifications, and Warranty
UL 913 Hazardous Locations – Intrinsically Safe.
Class I, Division 1, Groups A, B, C, D, T4. UL certified. IP66 rated.
This fixture includes a 5-year warranty.
Frequently Asked Questions
Q: What light output does this portable work light provide?
A: It provides 1,600 lumens at 20 watts with a 5000K color temperature.
Q: Is this explosion proof work light dimmable?
A: No. Dimming is not included.
Q: What hazardous location classification does this light carry?
A: It is rated UL 913 Hazardous Locations – Intrinsically Safe and Class I, Division 1, Groups A, B, C, and D, T4.
Q: How long is the stated run time?
A: The stated run time is 10 hours.
Q: How should portable light placement be planned?
A: Placement should account for the work area, target light level, beam direction, and glare. The supplied product data does not establish a specific spacing value or fixture quantity.
Application Questions and Clarification
Q: Is this light suitable for hazardous location lighting?
A: Yes. Hazardous location lighting is a listed primary application, and the fixture is UL 913 intrinsically safe with a Class I, Division 1, Groups A, B, C, and D, T4 rating.
Q: Can this fixture be used for paint booth lighting?
A: Paint booth lighting is a listed primary application. Final placement should match the specific work area and required light direction.
Q: What should be checked for oil and gas facility lighting or refinery lighting?
A: Confirm the location classification and required light placement. Oil and gas facility lighting and refinery lighting are listed secondary applications.
