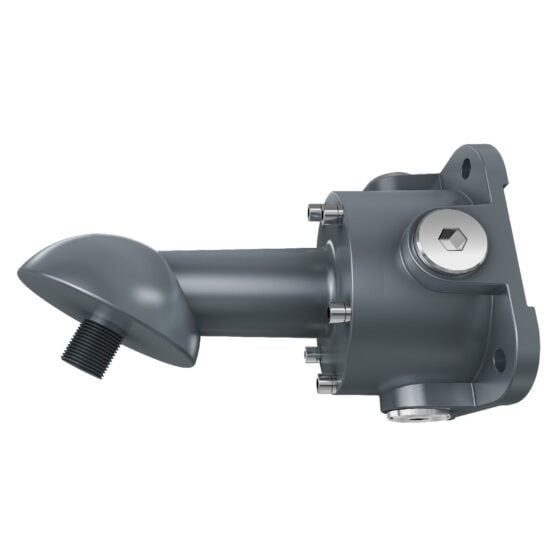

Explosion Proof Arm Bracket With Junction Box | 25 Degree Mount | Class 1 Div 1
This mounting box is a strong choice for hazardous location lighting because it is UL844 listed for both Class 1 and Class 2, Division 1 and 2 environments, supporting Groups A through G, which covers a wide range of explosive gas and dust atmospheres. Its IP67 rating ensures reliable protection against dust and temporary water immersion, making it suitable for washdown areas and sites with high particulate exposure. The compact, durable construction and 5-year warranty support long-term use in demanding settings like chemical plants, refineries, and grain processing facilities where sealed, compliant installations are essential.
Dwayne Kula | President, CTO and Founder
251 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
Durable Construction
| IP Rating | IP67 |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 5.6 x 5.6 x 4.2 |
Product Description
UL Specs
- UL844 Hazardous Location
- Class 1 Div 1: Groups A, B, C, D
- Class 1 Div 2: Groups A, B, C, D
- Class 2 Div 1: Groups E,F,G
- Class 2 Div 2: Groups F,G
Key Features
- Brand: LED Lighting Supply
Durable Construction
- IP Rating: IP67
- Warranty: 5 years
Measurements
- Dimensions (in): 5.6 x 5.6 x 4.2
Designed for:
- Explosion Proof EXPLA fixtures
- Explosion Proof EXPLB fixtures
- Explosion Proof EXPLC fixtures
- Explosion Proof EXPLD fixtures
- Explosion Proof EXPLG fixtures
Web ID: 1991
