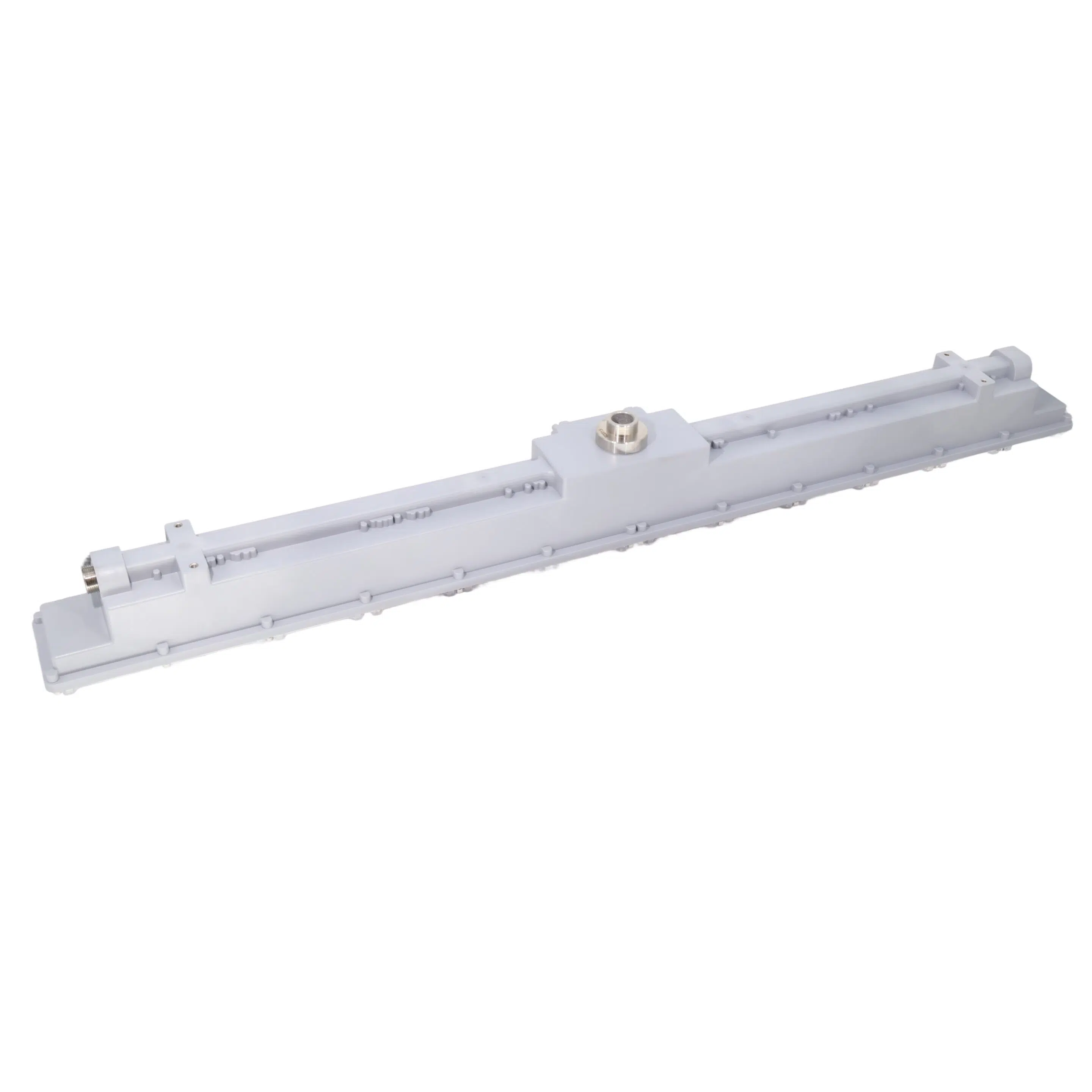

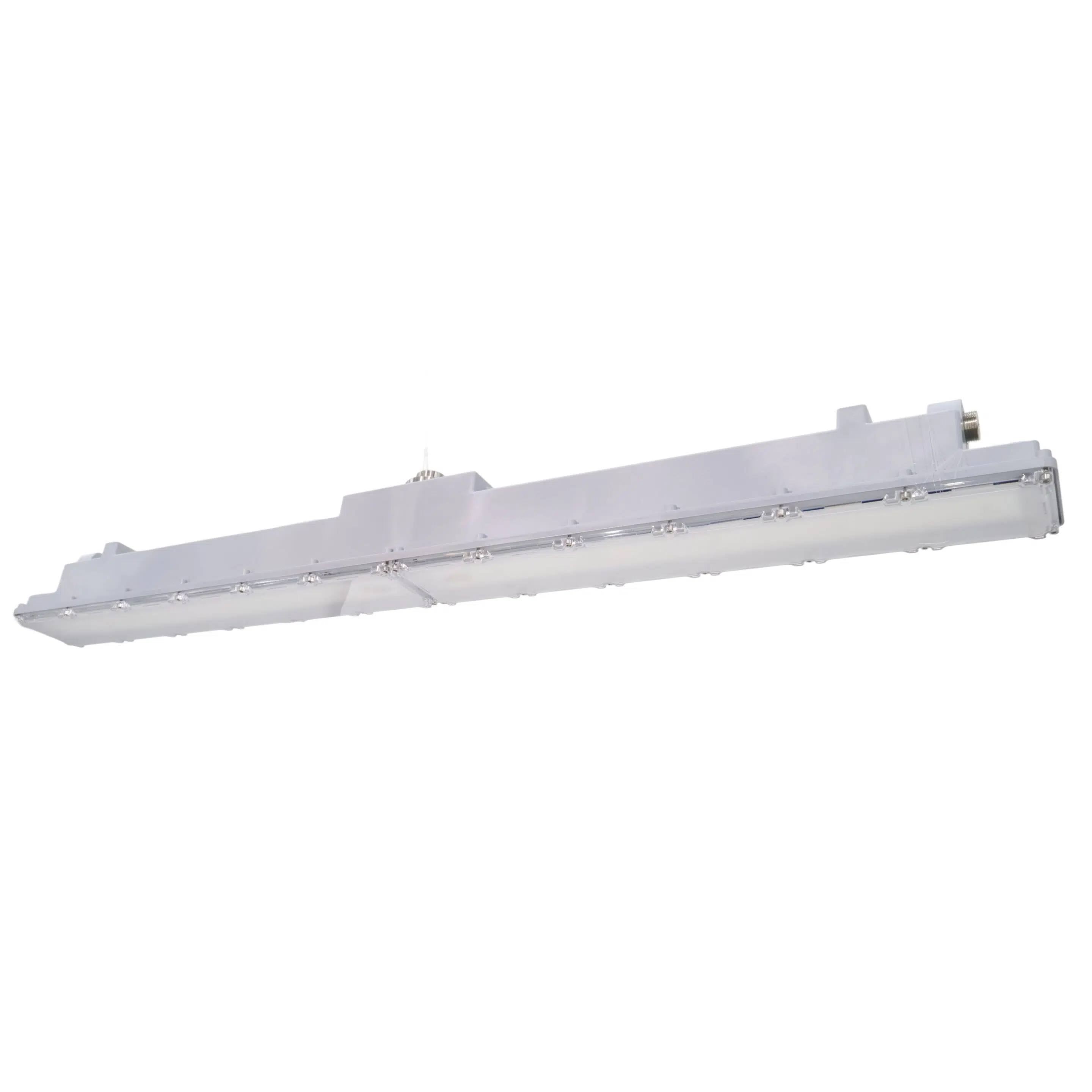

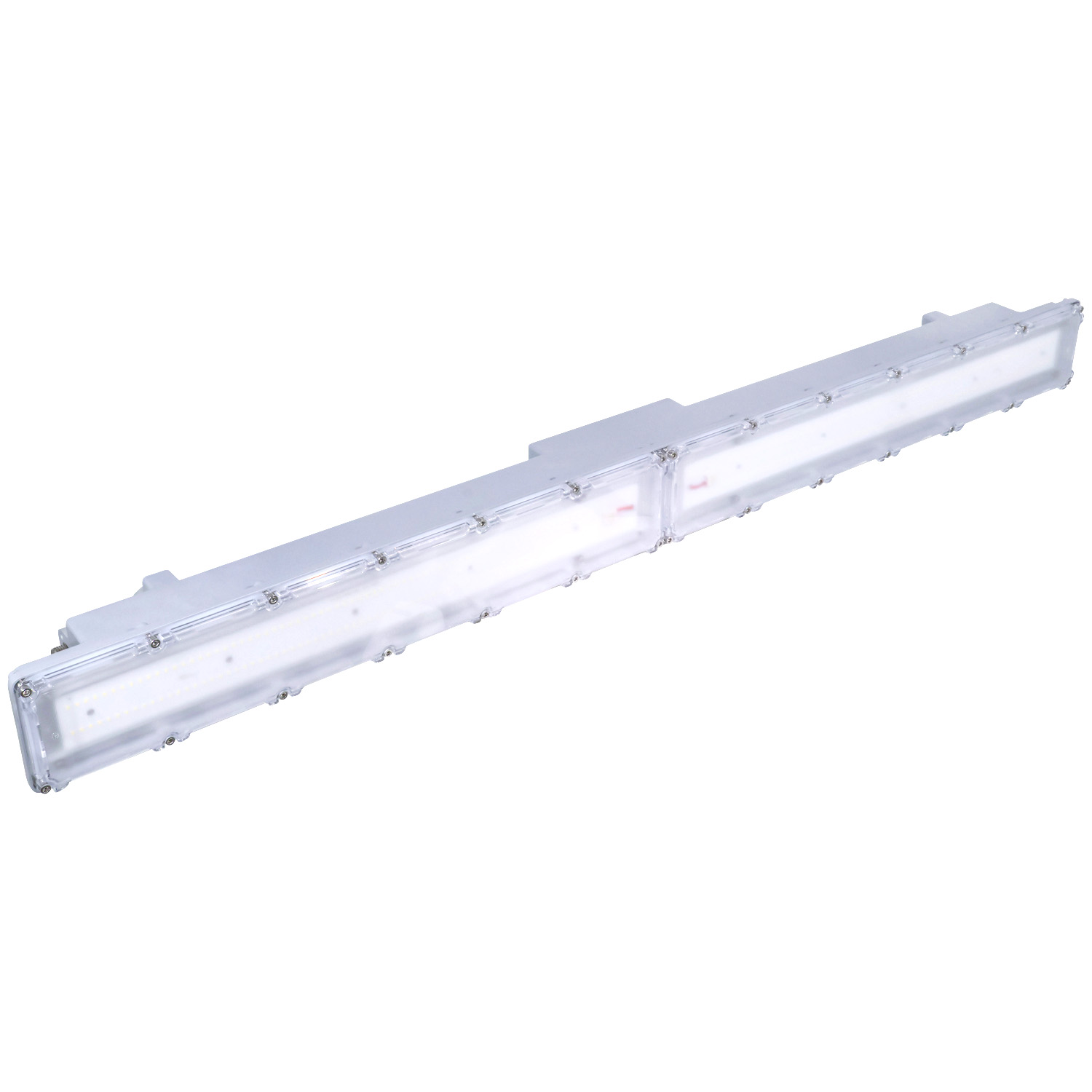

80 Watt Explosion Proof Linear LED Light | 12800 Lumens | Class 1 Div 2 | 5000K | 100-277V | 4 Foot
This 80 watt LED linear fixture is a strong choice for hazardous and demanding environments due to its robust fiberglass reinforced polycarbonate construction, IP66 and IK08 ratings, and certifications for Class 1 Division 2, Class 2 Division 2, and Class 3 hazardous locations. Delivering 12,800 lumens at 160 lumens per watt with a 120 degree beam angle, it provides broad, even illumination while significantly reducing energy use compared to 250 watt metal halide systems. Its long 150,000 hour (L70) lifespan, wide operating temperature range, and multiple mounting options make it ideal for industrial sites, process areas, cold storage, and facilities requiring regular washdowns.
Dwayne Kula | President, CTO and Founder
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class 1 Division 2, Group B,C,D
- Class 2, Division 2, Groups F,G
- Class 3
- UL 1598 Suitable for Wet Locations
- UL1598A Marine Outside Type
- CSA / ATEX / IECEX
Key Features
| Brand | LED Lighting Supply |
| Watts | 80 |
| Lumens | 12800 |
| Lumens Per Watt | 160 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Frosted Polycarbonate Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting | Surface or Trunnion or 3/4 in NPT Pendant |
| Fixture Color | Gray |
| Frequency (Hz) | 50/60 |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| Housing | Fiberglass reinforced polycarbonate |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 10kV |
| Operating Temperature | -31°F to 131°F |
| Certifications | UL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 48.5 x 4.7 x 4.8 |
| Weight (lbs) | 11.2 |
| Cord Length | No Cord |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 4-foot explosion proof linear LED light provides 12,800 lumens at 80 watts with a 5000K color temperature. It is built for hazardous location lighting where a linear fixture format, sealed construction, and multiple mounting methods are required.
The fixture operates on 100-277V power and replaces a 250-watt metal halide fixture. Its fiberglass reinforced polycarbonate housing, frosted lens, and IP66 rating support use in classified and wet-location conditions.
Core Performance and Output

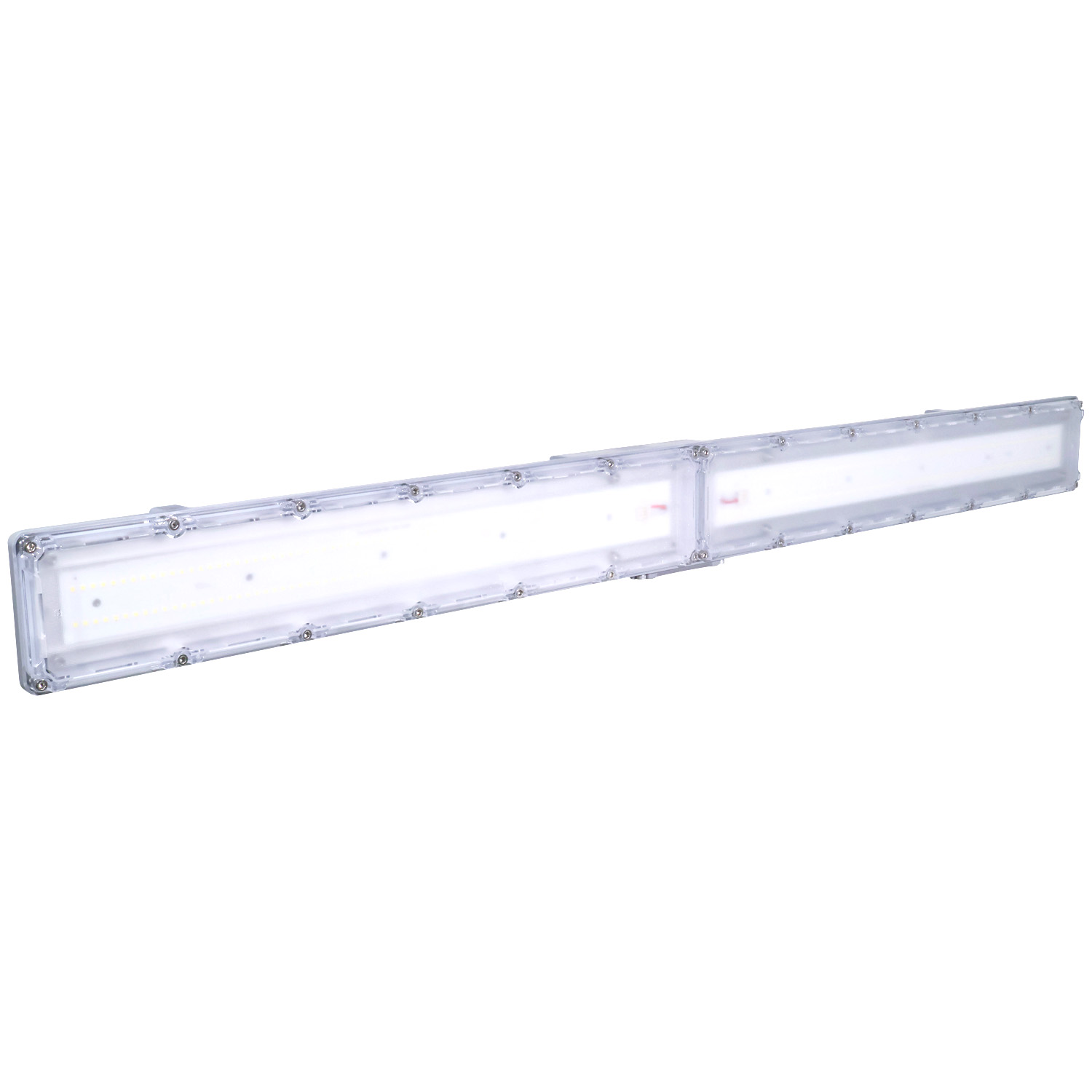

The fixture delivers 12,800 lumens at 160 lumens per watt. The 120-degree beam distribution and frosted polycarbonate lens provide broad linear light distribution with reduced direct source visibility.
It operates at 100-277V, 50/60Hz, with a power factor above 0.90 and THD below 10%. The 80-watt output can be excessive where lower light levels or close mounting positions are required.
Output distribution and uniformity depend on mounting height, fixture orientation, and layout. Higher mounting positions require layout review to maintain even light across the intended area.
Adjustability and Control Options
This fixture supports 1-10V dimming. Dimming can be used where the control system and project requirements call for reduced output.
The fixture has a fixed 5000K color temperature and a fixed 120-degree beam angle. The frosted lens is the standard optical configuration.
Longevity and Reliability
Rated life is 150,000 hours at L70. The fixture includes 10kV surge protection for electrical transient exposure.
Operating temperature is rated from -31F to 131F. The five-year warranty applies to the fixture.
Build Quality and Physical Characteristics
The housing is fiberglass reinforced polycarbonate with a gray finish. The fixture is rated IP66 and IK08.
Overall dimensions are 48.5 x 4.7 x 4.8 inches, and fixture weight is 11.2 pounds. No cord is included.
Where This Product Fits Best
This fixture fits classified lighting work where a linear explosion proof fixture is required. Its listed classifications, wet-location suitability, and sealed housing support demanding hazardous location lighting conditions.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
The fixture is also rated UL 1598A Marine Outside Type and carries IP66 and IK08 ratings. Environmental conditions, classification requirements, mounting position, and available supply voltage must align with the installation.
Installation and Long-Term Use
Surface, trunnion, and 3/4 inch NPT pendant mounting are available. The selected mounting method should match the fixture orientation, support structure, and installation layout.
The fixture operates on 100-277V and has no attached cord. Access for inspection, cleaning, and future service should be maintained around the 4-foot fixture body.
How This Fixture Is Commonly Used
In hazardous location lighting and chemical processing facility lighting layouts, the linear body is positioned to follow the lighted work area or equipment arrangement. Mounting height is determined by the project layout and required light levels.
Paint booth lighting and oil and gas facility lighting layouts commonly use repeated linear fixture rows or fixture runs where broad 120-degree distribution is needed. Spacing varies with mounting height, target light levels, and the required uniformity across the installation.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. Class I Division 2, Groups B, C, D. Class II Division 2, Groups F, G. Class III.
UL 1598 Suitable for Wet Locations. UL 1598A Marine Outside Type. CSA, ATEX, and IECEx. Warranty: five years.
Frequently Asked Questions
Q: What light output does this explosion proof linear fixture provide?
A: The fixture delivers 12,800 lumens while consuming 80 watts.
Q: What voltage does this fixture use?
A: It operates on 100-277V at 50/60Hz.
Q: Can this fixture be dimmed?
A: Yes. It supports 1-10V dimming.
Q: What mounting options are available?
A: Surface, trunnion, and 3/4 inch NPT pendant mounting are available.
Application Questions and Clarification
Q: Is this fixture intended for hazardous location lighting?
A: Yes. It is listed for UL 844 Hazardous Locations and Class I Division 2, Class II Division 2, and Class III classifications.
Q: What should be reviewed when planning a paint booth lighting layout?
A: Mounting height, target light levels, fixture orientation, and layout requirements affect placement. A specific spacing value is not established by the supplied product data.
Q: Can this fixture be used where wet-location suitability is required?
A: Yes. It is UL 1598 Suitable for Wet Locations and rated IP66.
