2 Head 8 Watt Explosion Proof LED Emergency Light and Exit Sign | 1040 Lumens | Class 1 Div 1 | 5000K | 100-277V
This 8-watt LED wall-mounted fixture is a strong choice for hazardous, marine, and wet environments where safety, durability, and reliability are critical. Its UL and ETL certifications for Class I, II, and III hazardous locations, along with IP66 and IK10 ratings, ensure it withstands water, dust, and high-impact conditions. The 1040-lumen output at 5000K provides effective localized illumination for areas such as chemical plants, refineries, marine facilities, and industrial egress routes. Wall mounting is required, and the fixture's weight demands secure installation.
Dwayne Kula | President, CTO and Founder
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 1, Groups C, D
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 924 Emergency Lighting
- UL 1598A Marine Outside Type
- UL 1598 Wet Locations
- UL 8750 LED Safety
Key Features
| Brand | LED Lighting Supply |
| Watts | 8 |
| Lumens | 1040 |
| Lumens Per Watt | 130 |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| Dimming | No |
| Lifespan | 50,000 (L70) hours |
| Mounting | Wall |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Surge Protection | 10 kV |
| Operating Temperature | -4°F to 140°F |
| Certifications | ETL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 18.3 x 26.5 x 6.5 |
| Weight (lbs) | 55 |
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

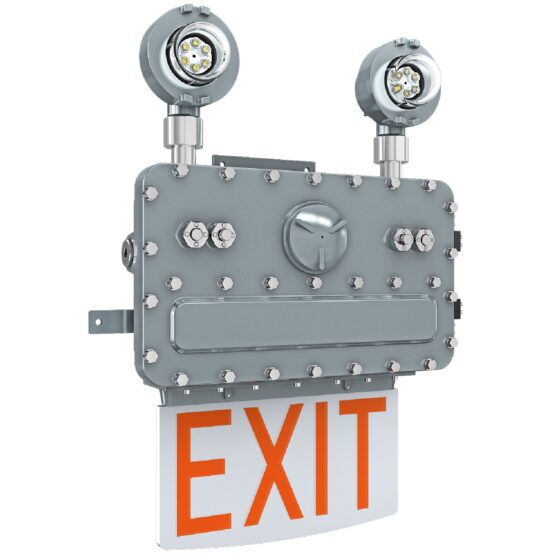

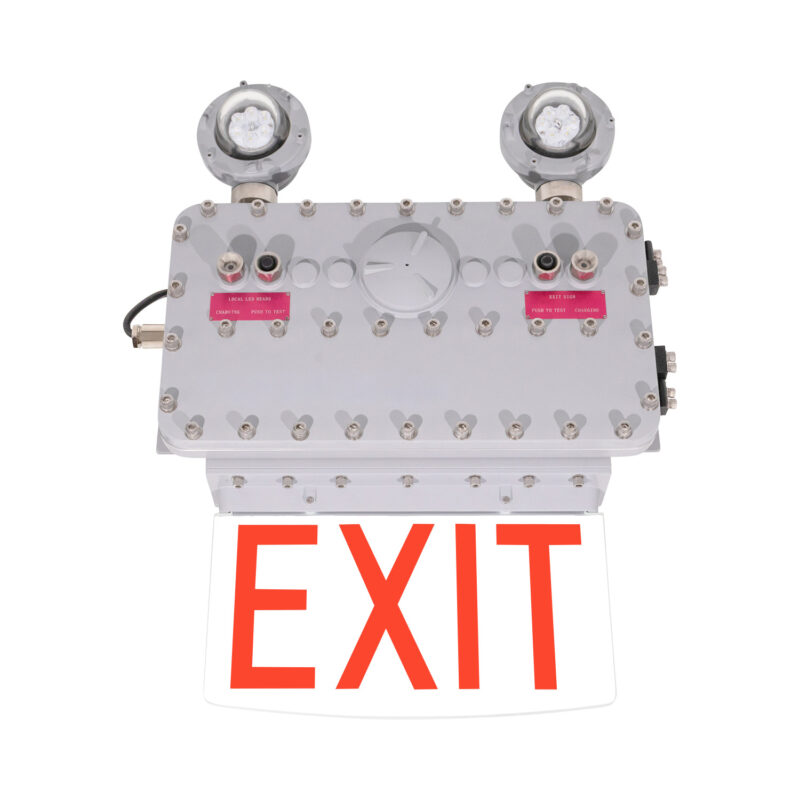

This 2-head explosion proof LED emergency light and exit sign provides 1040 lumens at 5000K from an 8-watt LED system. It is built for wall-mounted emergency lighting and exit marking in classified hazardous locations.
The die-cast aluminum housing, IP66 rating, and IK10 impact rating support installation where moisture, dust, and physical exposure are present. The fixture operates on 100-277V input power and is not dimmable.
Core Performance and Output
The fixture delivers 1040 lumens at 130 lumens per watt. The two emergency light heads provide directional emergency illumination, while the integrated exit sign supports marked egress paths.
Input voltage is 100-277V at 50-60Hz. Power factor is greater than 0.95 and total harmonic distortion is below 10%.
This output level is intended for emergency and exit lighting rather than general area illumination. Final wall locations must account for required emergency light coverage and exit sign visibility.
Adjustability and Control Options
This fixture is a fixed-output emergency light and exit sign. It does not support dimming.
The two light heads allow directional positioning during installation. Head orientation should be set after the wall-mounted fixture is secured and the intended emergency lighting path is established.
Longevity and Reliability
The LED system is rated for 50,000 L70 hours. This rating reflects the point at which light output is expected to remain at 70 percent of initial output.
The fixture includes 10 kV surge protection. It is rated for operation from -4 degrees F to 140 degrees F.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with an IP66 rating and IK10 impact rating. The fixture is built for wall mounting.

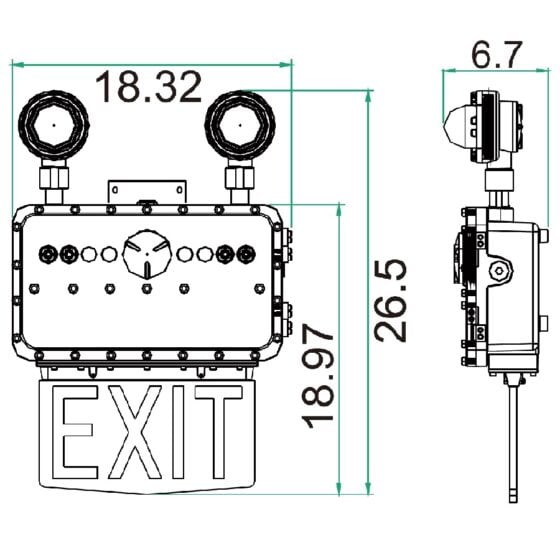

Overall dimensions are 18.3 x 26.5 x 6.5 inches. Fixture weight is 55 pounds, so the wall structure and mounting method must support the installed load.
Where This Product Fits Best
This explosion proof emergency light and exit sign fits classified locations requiring emergency lighting, exit marking, and a wall-mounted enclosure suitable for wet and exposed conditions.
- hazardous location lighting
- explosion proof lighting
- chemical processing facility lighting
- paint booth lighting
- marine environment lighting
- oil and gas facility lighting
The Class I, II, and III classifications, IP66 rating, and marine outside type listing align with installations exposed to hazardous atmospheres, wet conditions, dust, and physical impact.
Installation and Long-Term Use
Wall mounting is the specified installation method. The 55-pound fixture requires a secure mounting surface and mounting arrangement appropriate for the fixture weight.
Installation location should allow the exit sign and emergency heads to remain visible and unobstructed. Input power must be within the 100-277V range.
Long-term service should include inspection of the housing, lens assemblies, mounting points, and electrical connections. The IP66 enclosure should remain sealed after installation and maintenance work.
How This Fixture Is Commonly Used
In hazardous location lighting and explosion proof lighting layouts, the fixture is wall mounted at locations requiring exit marking and emergency illumination. Placement follows the facility emergency lighting layout and the physical route being marked.
For chemical processing facility lighting, paint booth lighting, and oil and gas facility lighting, wall locations are selected around accessible structural surfaces and required emergency paths. The light heads are aimed after mounting to direct illumination where needed.
Spacing and fixture count vary with the emergency lighting layout, wall locations, and required light coverage. Higher wall mounting positions can change the direction and reach of the two light heads.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. Class I, Division 1, Groups C and D. Class I, Division 2, Groups A, B, C, and D.
Class II, Division 1, Groups E, F, and G. Class II, Division 2, Groups F and G. Class III.
UL 924 Emergency Lighting. UL 1598A Marine Outside Type. UL 1598 Wet Locations. UL 8750 LED Safety. ETL.
This fixture includes a 5-year warranty.
Frequently Asked Questions
Q: What is the light output of this explosion proof emergency light and exit sign?
A: The fixture produces 1040 lumens at 5000K from an 8-watt LED system.
Q: What input voltage does this fixture accept?
A: The fixture operates on 100-277V input power at 50-60Hz.
Q: Can this emergency light and exit sign be dimmed?
A: No. This fixture does not support dimming.
Q: What mounting method is specified?
A: The specified mounting method is wall mounting.
Q: What affects fixture placement in a hazardous location lighting layout?
A: Wall location, emergency lighting layout, exit sign visibility, and required light coverage affect placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture listed for marine environment lighting?
A: Yes. The fixture is UL 1598A Marine Outside Type and UL 1598 Wet Locations listed.
Q: What hazardous location classifications are listed for this fixture?
A: It is listed for Class I, Division 1, Groups C and D; Class I, Division 2, Groups A, B, C, and D; Class II, Division 1, Groups E, F, and G; Class II, Division 2, Groups F and G; and Class III.
Q: What should be confirmed before wall mounting this fixture?
A: Confirm the wall structure can support the 55-pound fixture, the installation location supports required visibility, and the available input voltage is within the 100-277V range.
