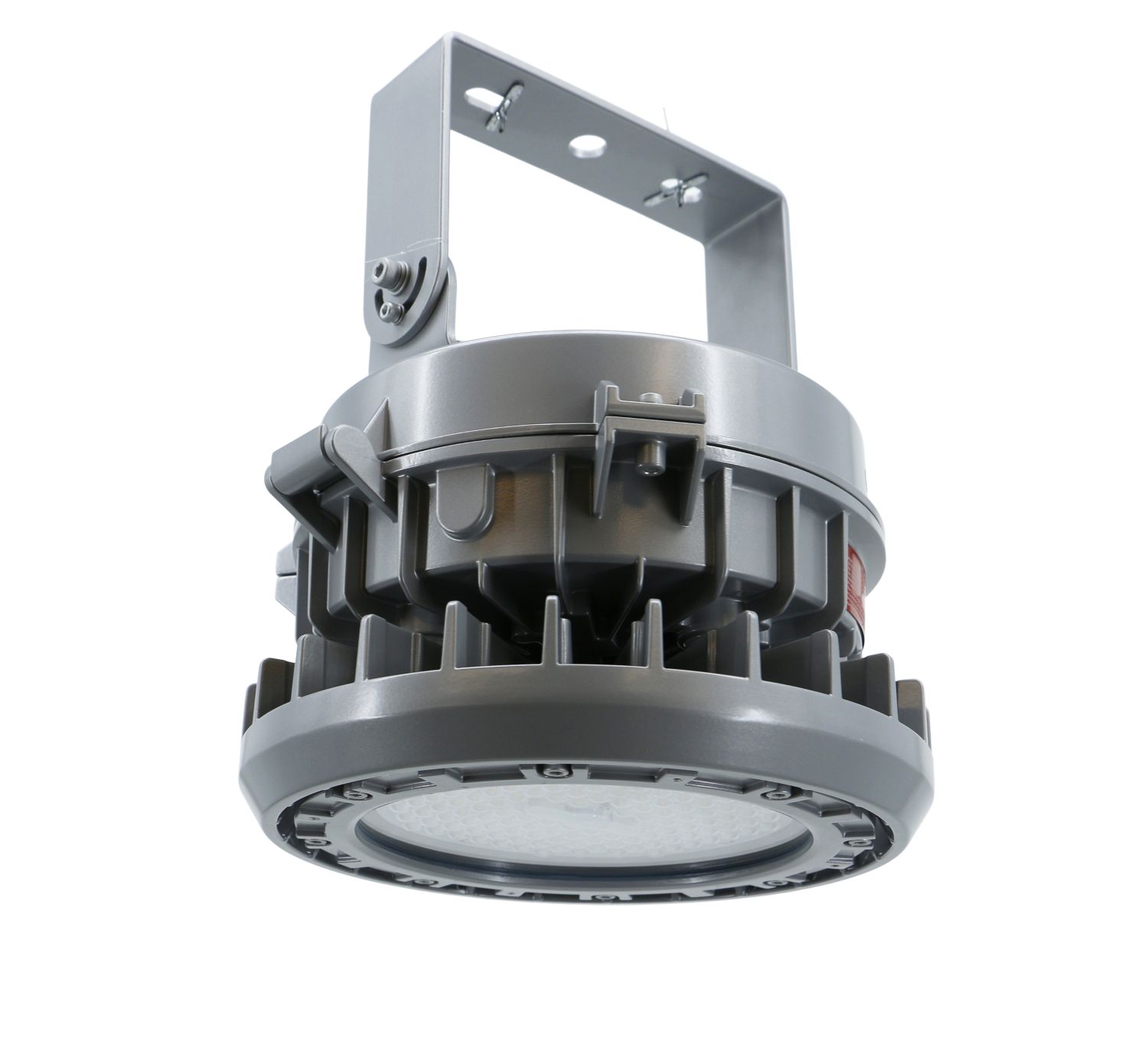

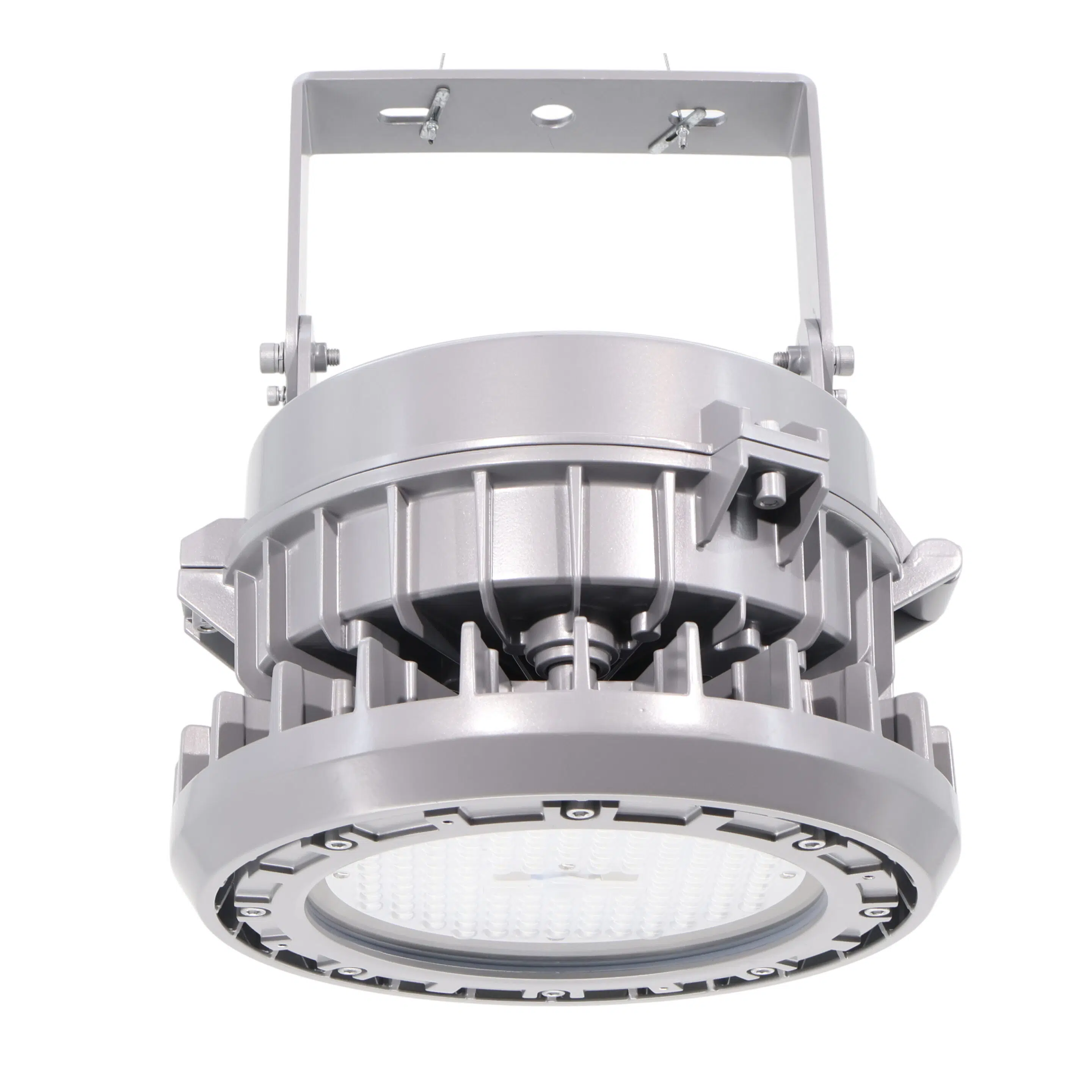

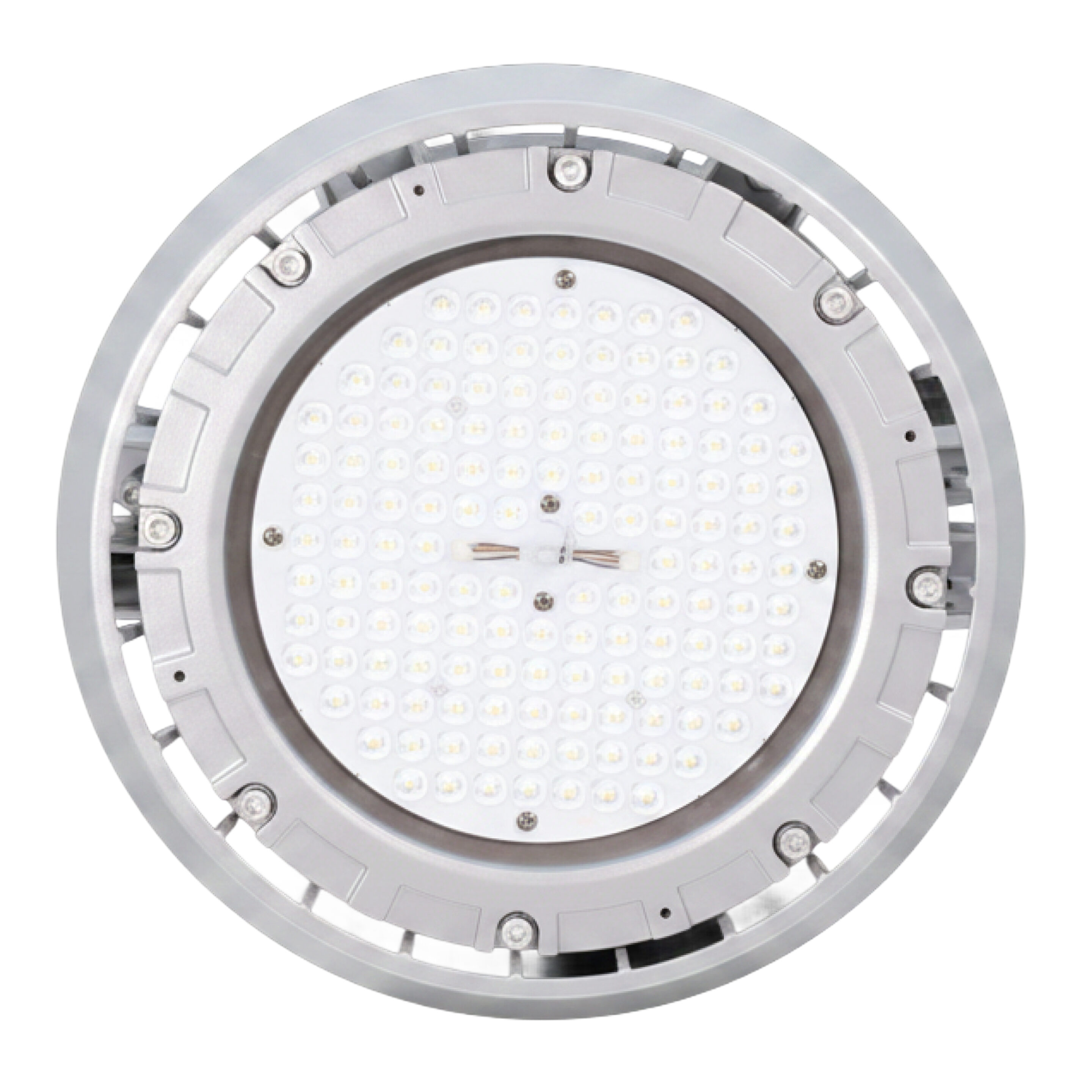

75 Watt Round Explosion Proof LED Light | 10500 Lumens | Class 1 Div 2 | 5000K | 100-277V
This 75 watt round explosion proof LED fixture is a strong choice for hazardous and industrial environments requiring Class 1 Division 2, Class 2 Division 1 and 2, or Class 3 ratings, thanks to its robust powder coated aluminum housing, IP66 and IK08 ratings, and tempered glass lens. Delivering 10,500 lumens at 5000K with a wide 120 degree beam, it provides broad, even illumination ideal for chemical plants, refineries, paint shops, grain processing, wastewater treatment, and marine facilities. Multiple mounting options, 1-10V dimming, and a 150,000 hour L70 lifespan support reliable, low-maintenance operation in demanding, wet, or corrosive locations.
Dwayne Kula | President, CTO and Founder
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 75 |
| Lumens | 10500 |
| Lumens Per Watt | 140 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 150,000 (L70) hours |

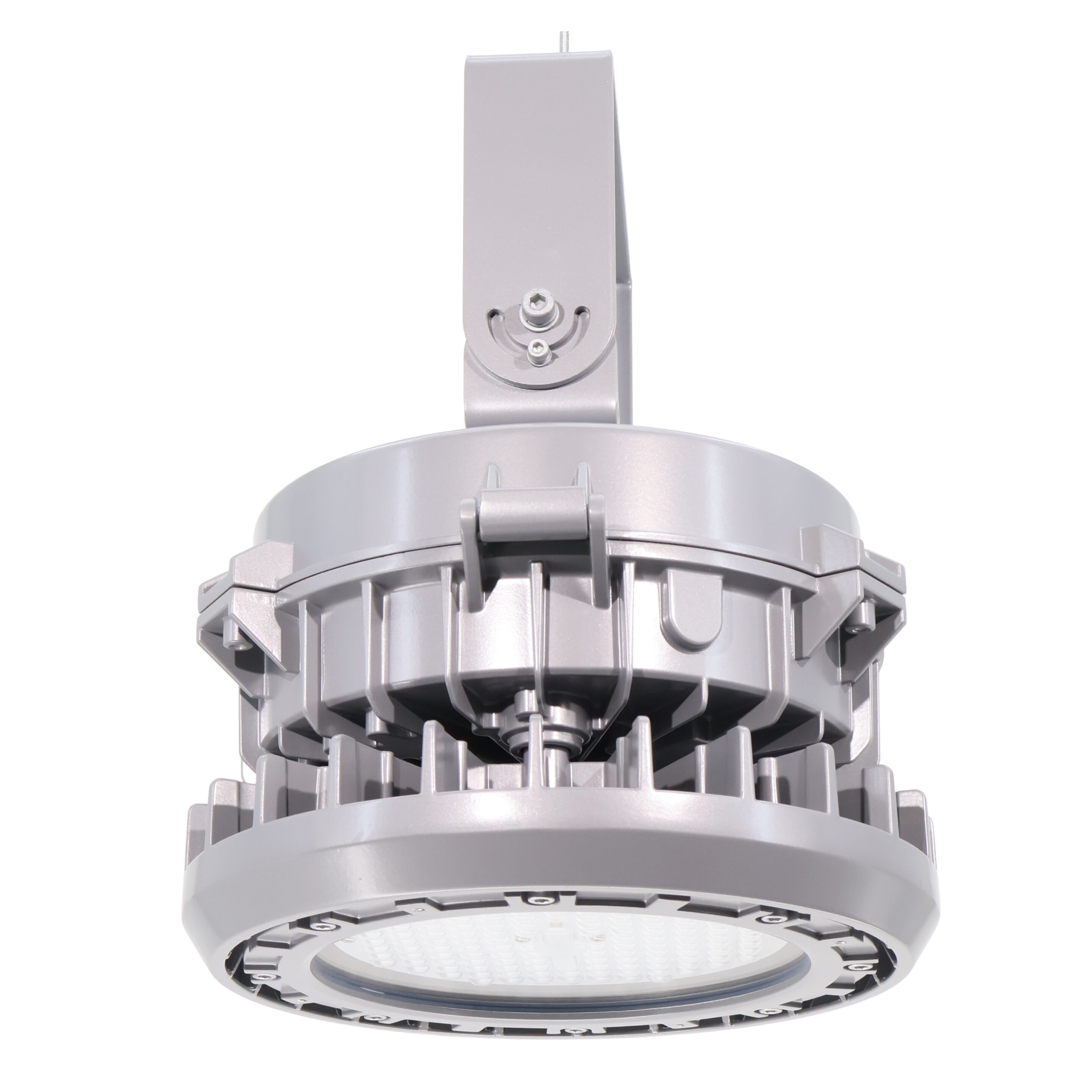

| Mounting | Yoke or 3/4 in NPT Pendant |

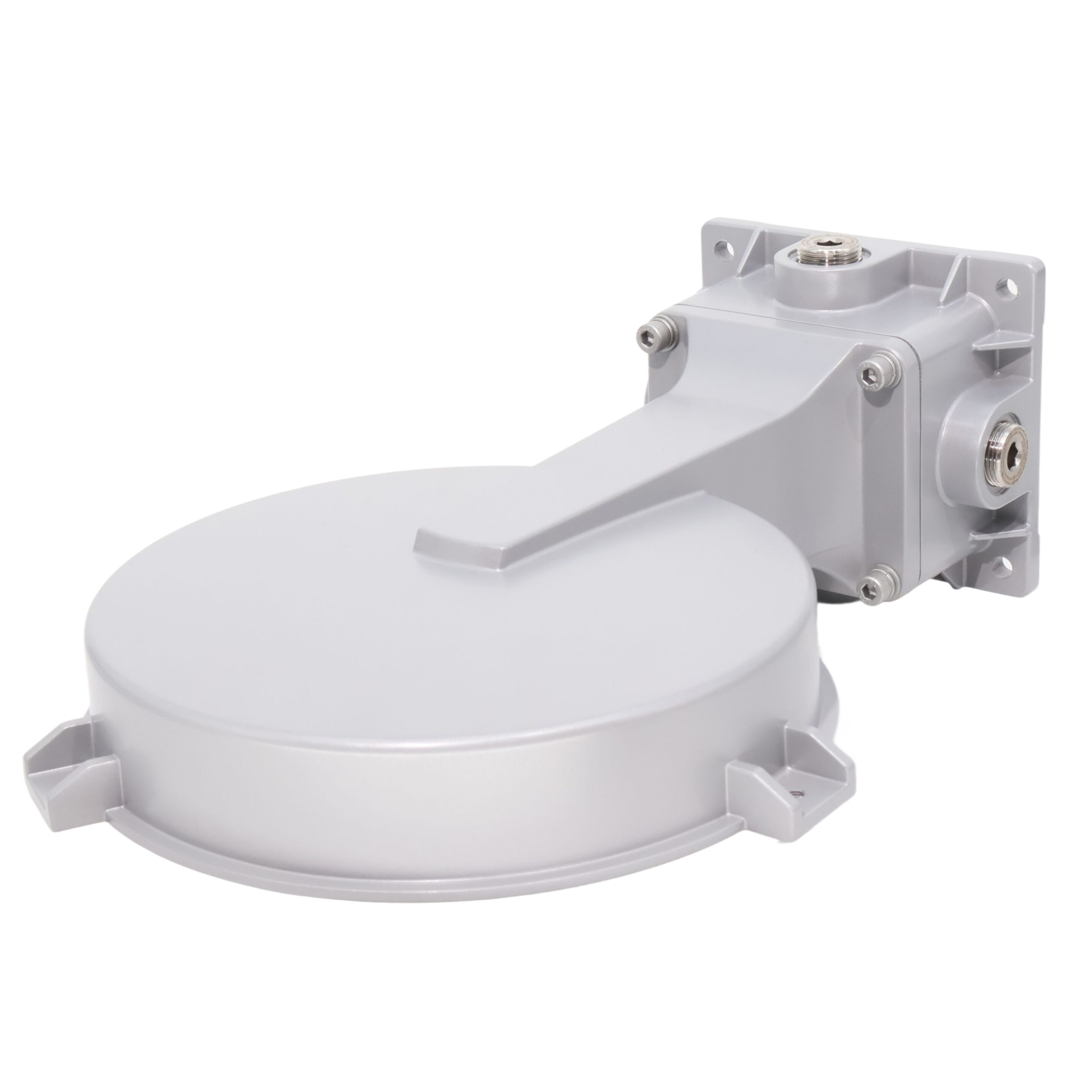

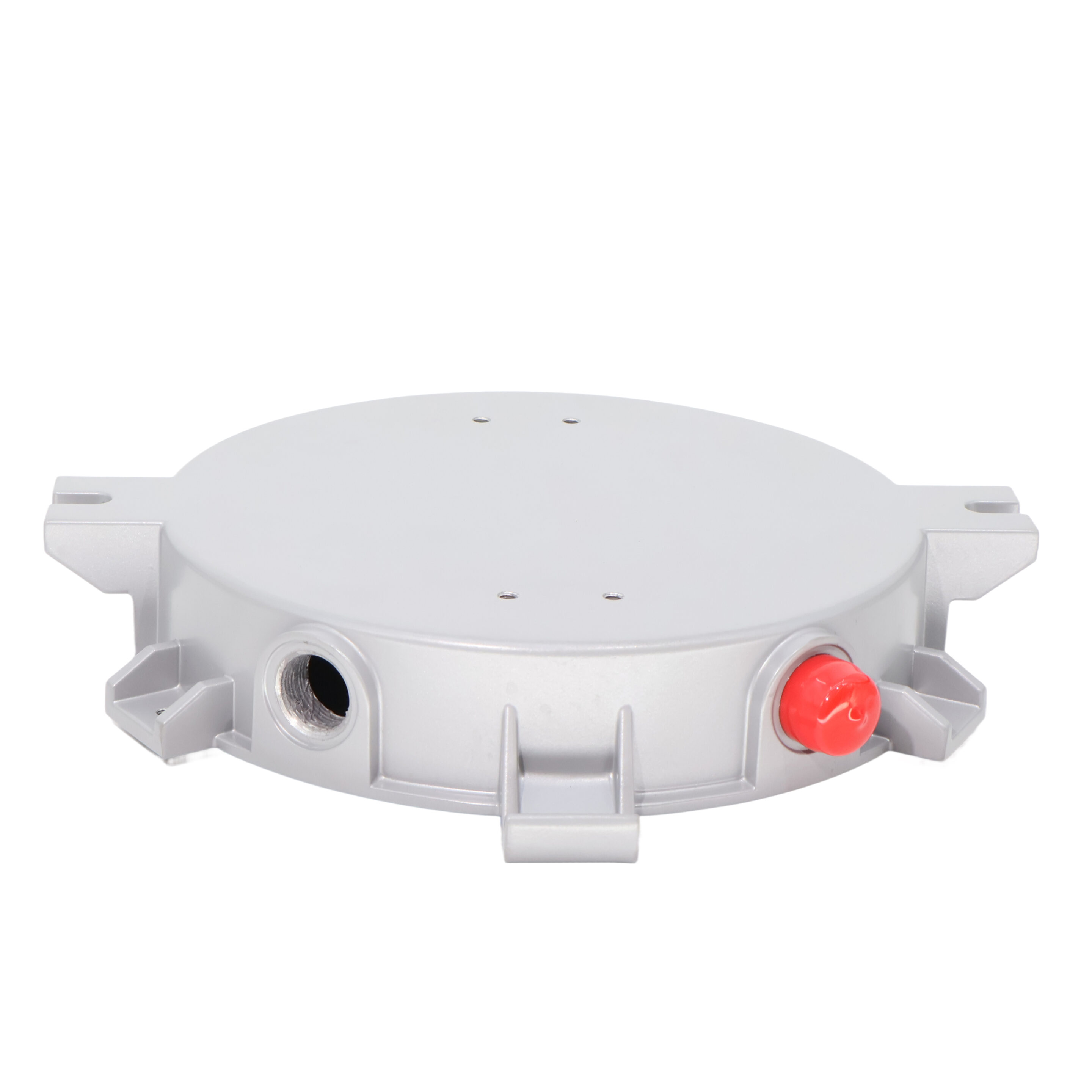

| Mounting (Opt) | Surface or Wall |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| Housing | Powder Coated Aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 149°F |
| Certifications | UL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 11.8 W X 13.7 H |
| Weight (lbs) | 13 |
| Cord Length | No Cord |
IES Files
Product Description
UL Specs
- UL844 Hazardous Locations
- Class 1 Division 2, Group A,B,C,D
- Class 2, Division 1, Groups E,F,G
- Class 2, Division 2, Groups F,G
- Class 3
- UL 1598 Suitable for Wet Locations
- UL1598A Marine Outside Type
- CSA, ATEX, IECEX
Key Features
- Brand: LED Lighting Supply
- Watts: 75
- Lumens: 10500
- Lumens Per Watt: 140
- Replaces: 400 Watt Metal Halide
- Voltage: 100V-277V
- Color Temperature: 5000K
- CRI: 70+
- Dimming: 1-10V
- Beam Angles (Std): 120°
- Optics: Tempered Glass Lens
- Lifespan: 150,000 (L70) hours
- Mounting: Yoke or 3/4 in NPT Pendant
- Mounting (Opt): Surface or Wall
- Fixture Color: Gray
- Frequency (Hz): 50-60Hz
- Power Factor: >.90
- THD: < 10%
Durable Construction
- Housing: Powder Coated Aluminum
- IP Rating: IP66
- IK Rating: IK08
- Surge Protection: 10kV
- Operating Temperature: -40°F to 149°F
- Certifications: UL
- Warranty: 5 years
Measurements
- Dimensions (in): 11.8 W X 13.7 H
- Weight (lbs): 13
- Cord Length: No Cord
Notes
You may also like...
-
150 Watt Round Explosion Proof LED Light | 21000 Lumens | Class 1 Div 2 | 5000K | 100-277V
Availability: 121 In Stock Ships 2-3 DaysRetail Price: $738.89 -
240 Watt Round Explosion Proof LED Light | 33600 Lumens | Class 1 Div 2 | 5000K | 100-277V | Optional 10 Year Warranty
Availability: 350 In Stock Ships 2-3 DaysRetail Price: $843.56
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room light use factor to generate a preliminary lighting layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room Light Use Factor: Suggested starting points: open warehouse 0.85–0.90, clean light-colored space 0.75–0.85, typical warehouse 0.65–0.75, racked or obstructed space 0.50–0.65, dark or complex space 0.40–0.55.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual floor-level light distribution. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room light use factor, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces. Actual light levels may vary based on fixture optics, mounting conditions, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 75 Watt Round Explosion Proof LED Light is engineered for hazardous location lighting, providing a robust solution for environments where safety is paramount. Delivering 10,500 lumens at a color temperature of 5000K, this fixture is suitable for oil and gas facilities, chemical processing areas, and other hazardous locations. Designed to replace 400 Watt metal halide fixtures, it operates efficiently within a voltage range of 100-277V.
With certifications including UL844, Class I/II/III, ATEX, and IECEx, this fixture is built to withstand challenging conditions. Its IP66 and IK08 ratings ensure protection against dust, water, and impact, making it ideal for both indoor and outdoor hazardous environments. The fixture can be mounted using a yoke or 3/4 inch NPT pendant, offering flexibility in installation.
Core Performance and Output
This explosion-proof LED fixture offers a high lumen output of 10,500 lumens with an efficiency of 140 lumens per watt. The 120-degree beam angle provides broad coverage, suitable for large areas requiring uniform illumination. The fixture's electrical performance is optimized with a power factor greater than 0.90 and a total harmonic distortion of less than 10%.
While the fixture is designed for high-output applications, excessive output may occur at low mounting heights, potentially leading to glare. It is recommended to consider the mounting height and application environment to ensure optimal performance and safety.
Adjustability and Control Options
The fixture supports 1-10V dimming, allowing for adjustable light levels to suit specific application needs. This feature is particularly useful in environments where varying light levels are required for different tasks or safety protocols. The dimming capability also contributes to energy savings and extended fixture life.
Mounting options include yoke and 3/4 inch NPT pendant, with additional surface or wall mounting available. These options provide flexibility in installation, accommodating various structural and environmental constraints.
Longevity and Reliability
With a lifespan of 150,000 hours (L70), this LED fixture is designed for long-term reliability in demanding environments. The robust construction and high-quality components ensure consistent performance over time, reducing maintenance needs and operational disruptions.
The fixture's surge protection of 10kV further enhances its reliability, safeguarding against electrical disturbances common in industrial settings. This feature is crucial for maintaining uninterrupted operation in areas with fluctuating power conditions.
Build Quality and Physical Characteristics
The fixture is constructed from powder-coated aluminum, providing durability and resistance to corrosion. Its IP66 rating ensures protection against dust and powerful water jets, while the IK08 rating indicates strong impact resistance. These characteristics make it suitable for harsh environments where physical and environmental challenges are present.
Operating temperatures range from -40°F to 149°F, allowing the fixture to function effectively in extreme conditions. The fixture's gray color and compact dimensions (11.8 inches wide by 13.7 inches high) facilitate integration into various industrial settings without compromising aesthetics or space.
Where This Product Fits Best
This explosion-proof LED light is best suited for environments where hazardous conditions are present, such as oil and gas facilities and chemical processing areas. Its robust design and certifications make it ideal for locations requiring stringent safety standards.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
- offshore rig lighting
The fixture's environmental characteristics, including its IP66 and IK08 ratings, ensure it can withstand exposure to dust, water, and impacts, making it suitable for both indoor and outdoor hazardous environments.
Installation and Long-Term Use
Installation is straightforward with options for yoke or 3/4 inch NPT pendant mounting, allowing for flexibility in various structural setups. The fixture's compact size and lightweight design (13 lbs) facilitate handling and installation in confined or elevated spaces.
For long-term use, the fixture's robust construction and high-quality components ensure minimal maintenance requirements. Regular inspections and cleaning are recommended to maintain optimal performance, especially in environments with high levels of dust or corrosive substances.
How This Fixture Is Commonly Used
Commonly installed at mounting heights ranging from 10 to 20 feet, this fixture provides effective illumination for hazardous areas. Spacing and layout patterns depend on the specific application and desired light levels, with higher output reducing the number of fixtures needed but potentially increasing glare.
In environments where uniformity is critical, careful planning of fixture placement and spacing is essential to achieve the desired lighting effect while minimizing shadows and dark spots.
Safety, Certifications, and Warranty
This fixture is certified for use in hazardous locations, meeting UL844, Class I/II/III, ATEX, and IECEx standards. It is also UL 1598 suitable for wet locations and UL1598A marine outside type, ensuring compliance with safety regulations in various environments.
The fixture comes with a 5-year warranty, providing assurance of its quality and reliability. Regular maintenance and adherence to installation guidelines will help maximize the fixture's lifespan and performance.
Frequently Asked Questions
Q: What is the recommended mounting height for this fixture?
A: The recommended mounting height ranges from 10 to 20 feet, depending on the specific application and desired light levels.
Q: Can this fixture be used in marine environments?
A: Yes, the fixture is UL1598A marine outside type certified, making it suitable for marine environments.
Q: What dimming options are available?
A: The fixture supports 1-10V dimming, allowing for adjustable light levels to suit specific needs.
Q: What is the lifespan of this LED fixture?
A: The fixture has a lifespan of 150,000 hours (L70), ensuring long-term reliability in demanding environments.
Application Questions and Clarification
Q: Is this fixture suitable for use in paint booths?
A: Yes, this fixture is suitable for paint booth lighting, providing safe and effective illumination in hazardous environments.
Q: Can this fixture be used in offshore rig lighting?
A: Yes, the fixture is suitable for offshore rig lighting, with certifications and ratings that ensure safety and reliability in such environments.
Q: What are the primary applications for this explosion-proof light?
A: Primary applications include hazardous location lighting, explosion proof lighting, paint booth lighting, and chemical processing facility lighting.
Q: Are there any specific environmental conditions this fixture is designed to withstand?
A: The fixture is designed to withstand harsh conditions, including exposure to dust, water, and impacts, with an IP66 and IK08 rating.
