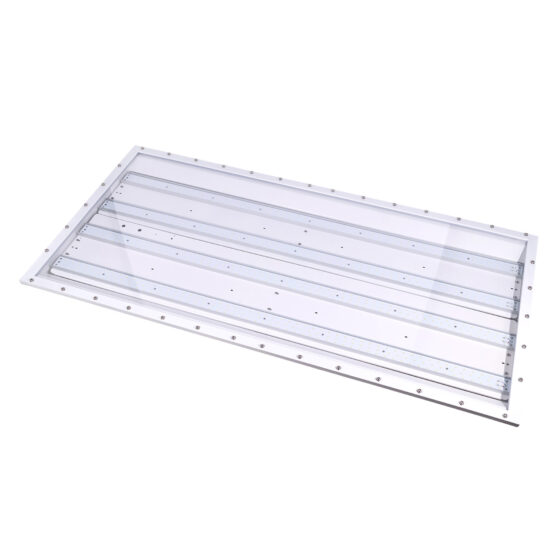

60 Watt Explosion Proof 2x4 Low Profile Linear LED Light | 8400 Lumens | Class 1 Div 2 | 5000K | 100-277V

Product Overview

This 60 Watt Explosion Proof 2x4 Low Profile Linear LED Light is designed for hazardous location lighting where flammable gases, vapors, or combustible dusts are present. The fixture delivers 8400 lumens at 5000K and operates on 100-277V. It is suitable for Class I Division 2, Class II Division 1, and Class III environments, supporting use in chemical processing, paint booths, and other hazardous industrial settings. The low-profile linear form factor allows for installation in areas with limited ceiling space or where a streamlined fixture is required.

Typical installations include replacement of 250W metal halide fixtures in hazardous locations, with mounting options for chain-cable, recessed, or surface mounting. The fixture is built for environments requiring both explosion proof and NSF-rated lighting, including facilities with washdown or food safety requirements.

Core Performance and Output

This fixture outputs 8400 lumens at 60 watts, providing an efficacy of 140 lumens per watt. The 120° beam angle delivers broad, uniform coverage suitable for general area illumination in hazardous environments. The fixture supports 1-10V dimming for output adjustment where required. Power factor is greater than 0.95, and total harmonic distortion is less than 10%.

At mounting heights between 10 and 18 feet, the output is appropriate for most hazardous location general lighting needs. Excessive output may occur at lower mounting heights, and uniformity may decrease if spacing exceeds recommended patterns for the application.

Adjustability and Control Options

The fixture includes 1-10V dimming capability, allowing for integration with compatible dimming controls or building management systems. This supports energy management and task-specific lighting adjustments in hazardous environments. No onboard occupancy or daylight sensors are included; external controls must be specified if required.

Mounting options include chain-cable, recessed, or surface installation, providing flexibility for different ceiling types and site conditions. The fixture is not designed for pendant or pole mounting.

Longevity and Reliability

The fixture is rated for 50,000 hours (L70), supporting long-term operation in demanding environments. The polycarbonate lens and sealed housing protect internal components from dust, moisture, and impact. The fixture maintains performance in ambient temperatures from -22°F to 122°F.

Reliability is supported by a 5-year warranty. The fixture is suitable for continuous operation in hazardous locations, including areas with routine washdown or exposure to corrosive agents.

Build Quality and Physical Characteristics

The housing is constructed for hazardous location use, with an IP66 ingress protection rating and IK09 impact resistance. The fixture measures 49 x 23 x 3.7 inches and weighs 88 lbs. The low-profile design allows installation in areas with limited overhead clearance.

The polycarbonate lens is shatter-resistant and suitable for environments requiring NSF-rated equipment. The fixture is UL 844 listed for hazardous locations and meets requirements for Class I, II, and III installations.

Where This Product Fits Best

This fixture is intended for hazardous locations where explosion proof, dust proof, and washdown-rated lighting is required. It is commonly installed in environments with flammable gases, vapors, or combustible dusts, as well as areas requiring NSF-rated fixtures for food safety or washdown protocols.

• hazardous location lighting
• explosion proof lighting
• paint booth lighting
• chemical processing facility lighting
• oil and gas facility lighting
• refinery lighting
• marine environment lighting
• wastewater treatment lighting

The fixture is suitable for indoor or covered outdoor use in locations with exposure to dust, moisture, or corrosive agents. It is not intended for general-purpose industrial or warehouse lighting outside of hazardous or classified areas.

Installation and Long-Term Use

Chain-cable, recessed, and surface mounting options support installation on concrete, steel, or finished ceilings. The fixture?s weight and size require secure mounting points and may require two-person handling during installation. All wiring and installation must comply with hazardous location electrical codes and site safety protocols.

Routine maintenance is minimized by the sealed, impact-resistant housing. The fixture is designed for environments with regular washdown or cleaning cycles. Long-term performance is maintained in areas with temperature fluctuations and exposure to corrosive or wet conditions.

How This Fixture Is Commonly Used

Typical mounting heights range from 10 to 18 feet, depending on required light levels and ceiling structure. Fixtures are spaced to achieve uniform coverage, with layout patterns determined by the size and classification of the hazardous area. In paint booths and chemical processing areas, fixtures are often installed in continuous rows or grid patterns to minimize shadowing.

Higher output allows for reduced fixture count in some layouts, but may increase glare if installed at low mounting heights or in confined spaces. Spacing and layout should be confirmed based on site-specific requirements and hazardous location classifications.

Safety, Certifications, and Warranty

This fixture is UL 844 listed for hazardous locations and certified for Class I Division 2 Groups A, B, C, D; Class II Division 1 Groups F, G; and Class III. It is IP66 and IK09 rated, and NSF certified. The fixture is suitable for use in classified hazardous locations, washdown areas, and environments requiring food safety compliance.

A 5-year warranty covers manufacturing defects and performance. All installations must comply with local and national codes for hazardous locations.

Frequently Asked Questions

Q: What hazardous location classifications does this fixture meet?

A: This fixture is UL 844 listed for Class I Division 2 Groups A, B, C, D; Class II Division 1 Groups F, G; and Class III.

Q: What mounting options are available for this fixture?

A: Chain-cable, recessed, and surface mounting are supported. Pendant and pole mounting are not available.

Q: What is the recommended mounting height for this fixture?

A: Typical mounting heights are 10 to 18 feet, depending on required light levels and area classification.

Q: Is this fixture suitable for use in washdown or food processing areas?

A: Yes, the fixture is NSF rated and IP66, supporting use in washdown and food safety environments.

Q: How should fixture spacing be determined in hazardous locations?

A: Spacing depends on mounting height, required light levels, and hazardous area classification. Layout should be confirmed based on site-specific needs.

Application Questions and Clarification

Q: Can this fixture be used in marine or offshore hazardous locations?

A: Yes, the fixture is suitable for marine environment lighting and offshore rig lighting where hazardous location ratings are required.

Q: Is this fixture appropriate for use in solvent storage areas?

A: Yes, it is suitable for solvent storage area lighting in classified hazardous locations.

Q: Does the fixture support dimming controls?

A: Yes, 1-10V dimming is supported for integration with compatible control systems.

Q: What is the impact of installing this fixture at lower mounting heights?

A: Installing at lower heights may result in higher light levels and increased glare. Output may be excessive for small or confined spaces.
