60 Watt Explosion Proof LED Light | 8100 Lumens | Class 1 Div 1 | 5000K | 100V-277V
This 60 watt hazardous location LED fixture is a strong choice for environments where flammable gases, vapors, or combustible dusts are present, offering 8100 lumens at 135 lumens per watt as a direct replacement for 250 watt metal halide systems. Its UL 844, UL 1598, UL 1598A Marine Outside Type, ABS, and ETL certifications, along with IP66 and IK10 ratings, ensure reliable operation in classified, wet, marine, and high-impact areas. Adjustable beam angles and robust mounting options make it well suited for chemical plants, refineries, offshore platforms, and wet industrial or marine facilities.
Dwayne Kula | President, CTO and Founder
129 in stock
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 1, Groups C,D
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
Key Features
| Brand | LED Lighting Supply |
| Watts | 60 |
| Lumens | 8100 |
| Lumens Per Watt | 135 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | 120° |
| Beam Angles (Opt) | 40° or 60° or 90° |
| Optics | Tempered Glass Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Yoke or 3/4 in NPT Pendant |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Copper Free Aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Surge Protection | 10kV |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 11.6 X 11.6 X 9.57 |
| Weight (lbs) | 27 |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 60-watt explosion proof LED light delivers 8,100 lumens at 5000K for hazardous location lighting. It is built for Class I, II, and III classified areas where fixture construction, mounting method, and environmental ratings must match the site conditions.
The fixture replaces a 250-watt metal halide fixture and uses a copper-free aluminum housing, tempered glass lens, and sealed IP66 construction. Yoke and 3/4 in NPT pendant mounting support different structural and conduit layouts.
Core Performance and Output
The fixture produces 8,100 lumens at 135 lumens per watt. Standard output uses a 120 degree beam angle, with 40 degree, 60 degree, and 90 degree optical options available for more controlled distribution.
It operates on 100V-277V, 50-60Hz power with a power factor greater than 0.95 and THD below 10 percent. The 120 degree optic provides broad coverage, while narrower optics concentrate output in directional layouts.
At low mounting heights, the 8,100-lumen output may create excessive brightness if fixture placement is not controlled. Narrower beam angles require layout planning to maintain uniform coverage between fixtures.
Adjustability and Control Options
This fixture is non-dimming. It operates at full output when energized.
Beam distribution can be selected through the available 40 degree, 60 degree, 90 degree, or standard 120 degree optics. Mounting can be configured with either a yoke or 3/4 in NPT pendant connection.
Longevity and Reliability
The LED system is rated for 50,000 hours to L70. This rating identifies the point at which light output is expected to maintain 70 percent of its initial level.
A 10kV surge protection device is included. The fixture is rated for operation from -22 degrees F to 122 degrees F.
Build Quality and Physical Characteristics

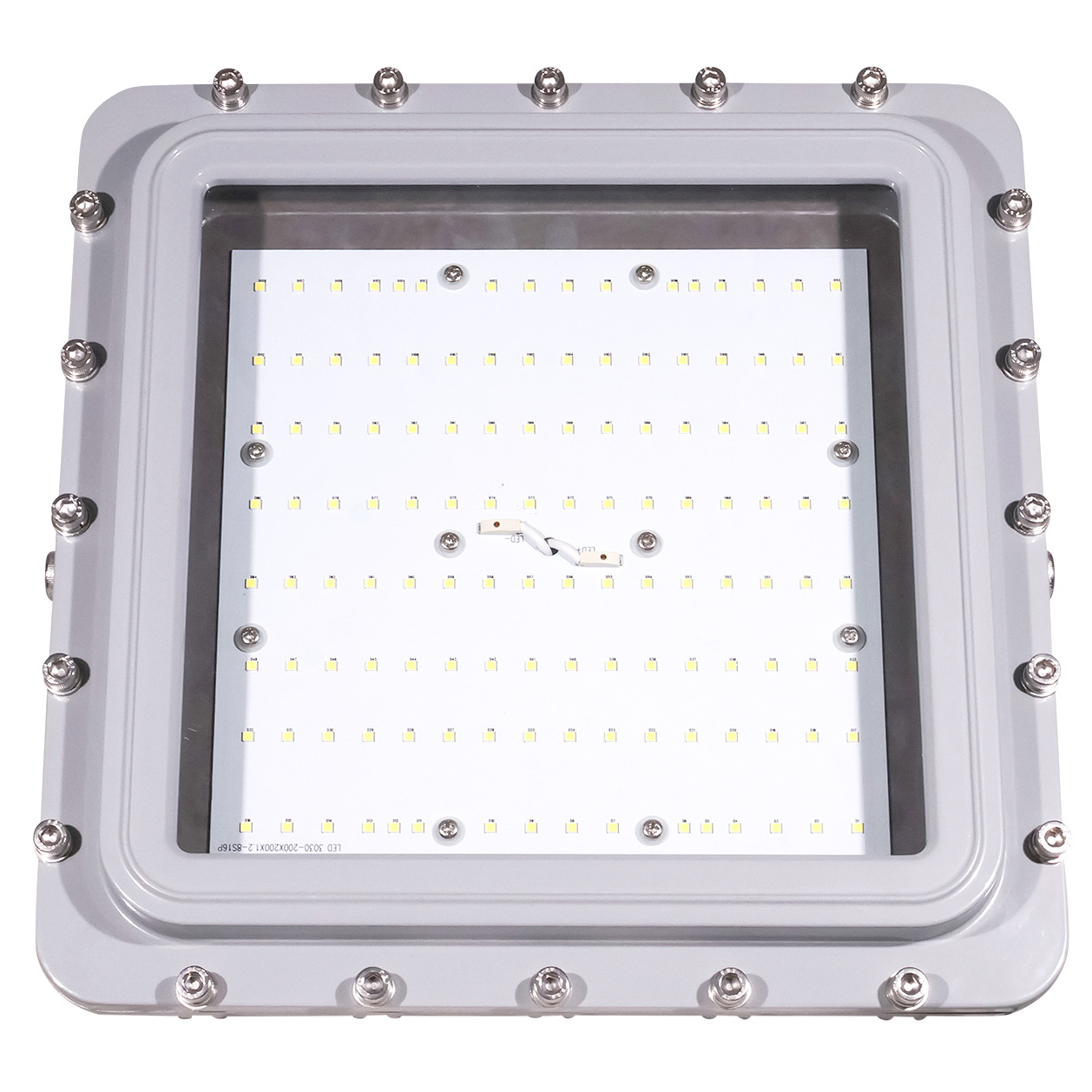

The housing is copper-free aluminum with a gray finish. A tempered glass lens protects the optical system.
The fixture is IP66 rated and IK10 rated. It measures 11.6 x 11.6 x 9.57 inches and weighs 27 pounds.
Where This Product Fits Best
This fixture fits classified and hazardous environments that require explosion proof lighting equipment. Its Class I, II, and III ratings, wet-location suitability, and sealed construction support installations exposed to hazardous materials, moisture, or demanding operating conditions.
- hazardous location lighting
- paint booth lighting
- chemical processing facility lighting
- explosion proof lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
- wastewater treatment lighting
UL 1598 wet-location suitability, UL 1598A Marine Outside Type, ABS, IP66, and IK10 ratings address environmental and physical exposure requirements. Final application fit depends on the specific area classification and required group designation.
Installation and Long-Term Use

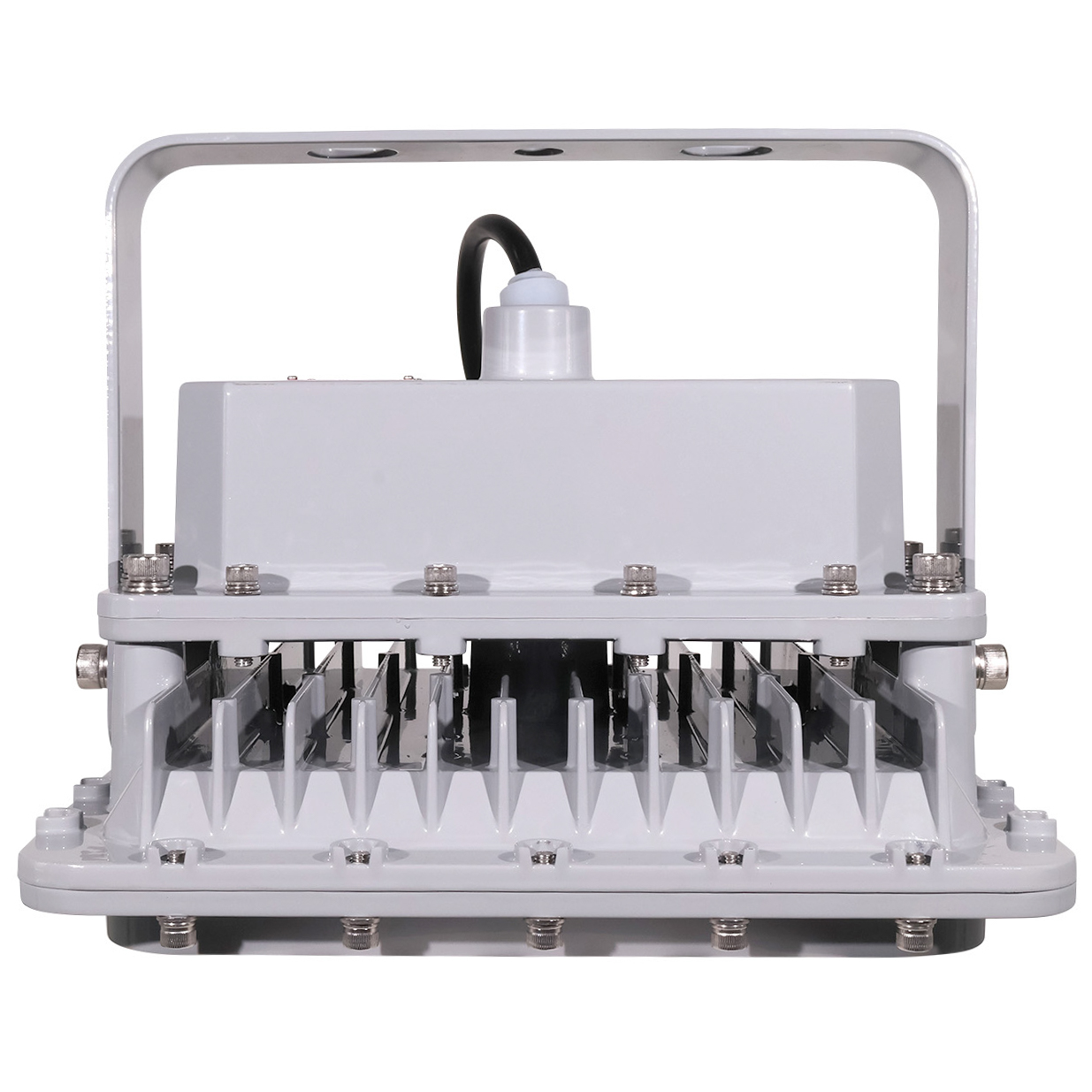

The fixture mounts by yoke or 3/4 in NPT pendant connection. The 27-pound fixture weight and selected mounting method must be accounted for in the supporting structure and conduit arrangement.
Installers should verify the classified-area designation against the fixture’s Class I, II, and III listings before installation. The operating voltage must be within the 100V-277V range.
Long-term maintenance should include inspection of the lens, housing, mounting connection, and electrical entry points. The sealed housing and tempered glass lens are intended for demanding environments, but site conditions still determine inspection intervals.
How This Fixture Is Commonly Used
In hazardous location lighting and paint booth lighting, fixtures are positioned around the required work area based on mounting height, selected optic, and target light levels. Yoke mounting supports directional aiming, while pendant mounting places the fixture below the supporting structure.
For chemical processing facility lighting, refinery lighting, and oil and gas facility lighting, layouts commonly use the 120 degree optic for broad distribution or narrower optics where output must be directed. Mounting height and area classification must be confirmed before finalizing placement.
Spacing varies with the selected beam angle, mounting height, and required light level. Higher output concentration from narrower optics can reduce spill outside the intended area but requires closer review of coverage uniformity.
Safety, Certifications, and Warranty
This fixture is UL 844 listed for hazardous locations. It is rated for Class I, Division 1, Groups C and D; Class I, Division 2, Groups A, B, C, and D; Class II, Division 1, Groups E, F, and G; Class II, Division 2, Groups F and G; and Class III.
It is UL 1598 suitable for wet locations, UL 1598A Marine Outside Type, ABS rated, ETL listed, and rebate eligible. The fixture carries a 5-year warranty.
Frequently Asked Questions
Q: What is the light output of this explosion proof fixture?
A: The fixture uses 60 watts and produces 8,100 lumens at 5000K.
Q: Is this fixture dimmable?
A: No. This fixture is non-dimming.
Q: What mounting options are available?
A: The fixture is available with yoke mounting or 3/4 in NPT pendant mounting.
Q: What beam angles are available for layout planning?
A: The standard beam angle is 120 degrees. Optional beam angles are 40 degrees, 60 degrees, and 90 degrees.
Q: Can this fixture be used for paint booth lighting?
A: Paint booth lighting is a listed primary application. The applicable hazardous-area classification must match the fixture listing.
Application Questions and Clarification
Q: What should be verified for hazardous location lighting?
A: Verify the area class, division, and group requirements against the fixture’s UL 844 hazardous-location listing.
Q: What should be considered when selecting an optic for chemical processing facility lighting?
A: Consider mounting height, required light levels, and the intended layout. The available optics are 40 degrees, 60 degrees, 90 degrees, and 120 degrees.
Q: Does the fixture have ratings relevant to marine environment lighting?
A: The fixture is UL 1598A Marine Outside Type, ABS rated, and IP66 rated.
