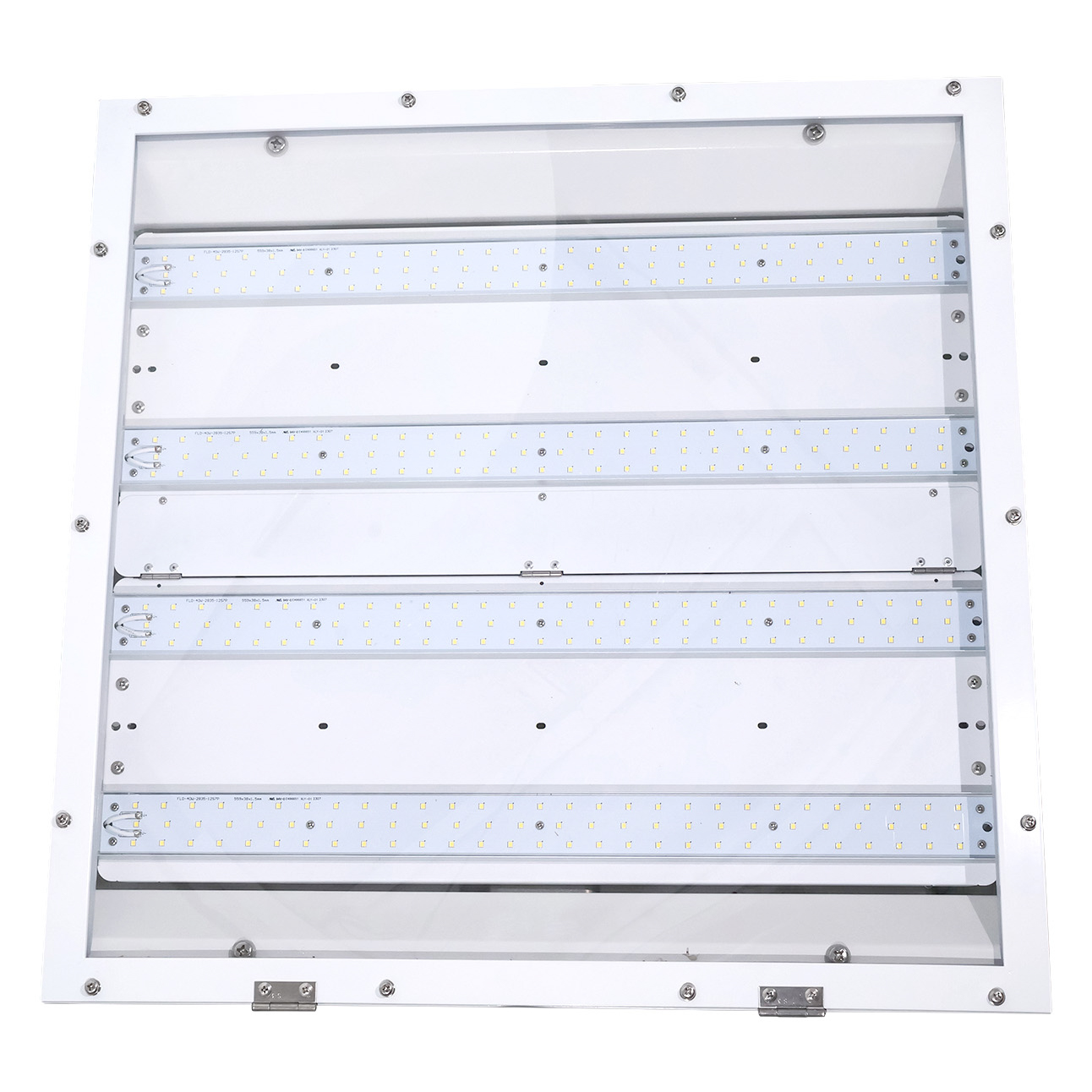

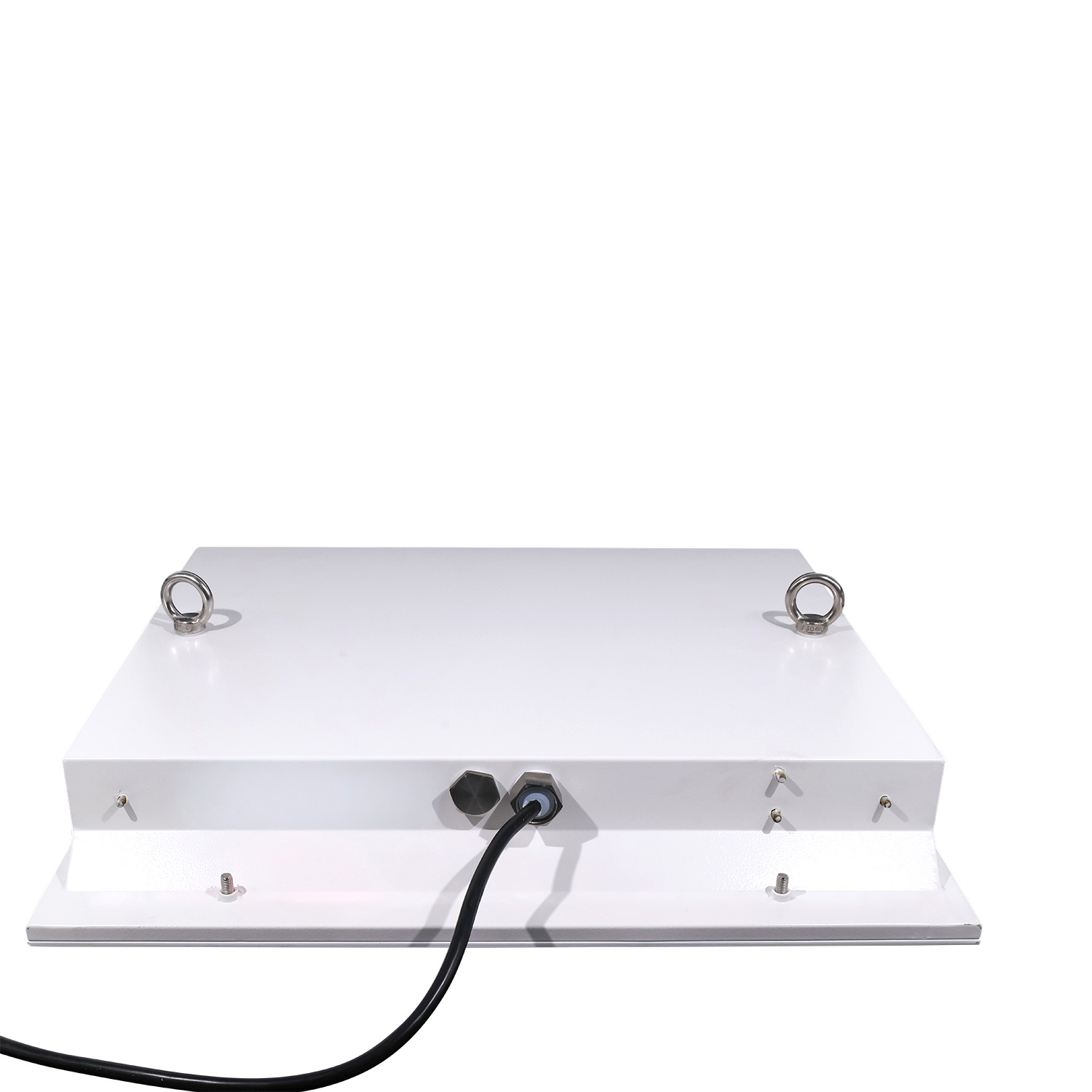

40 Watt Explosion Proof 2×2 Low Profile Linear LED Light | 5600 Lumens | Class 1 Div 2 | 5000K | 100-277V
The 40 Watt Explosion Proof 2×2 Low Profile Linear LED Light is an excellent choice for hazardous locations, offering 5600 lumens at 5000K with a robust 140 lumens per watt efficiency. Its UL 844, Class I/II/III, IP66, and IK09 ratings ensure durability and safety in challenging environments like paint booths and industrial sites. With versatile mounting options and a wide 120° beam angle, it provides reliable illumination in areas requiring explosion-proof lighting, making it ideal for manufacturing facilities and hazardous locations. Its 50,000-hour lifespan and 5-year warranty further enhance its reliability.
Neil Peterson | CEO and Chief Lighting Specialist
88 in stock
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class 1, Division 2, Groups A,B,C,D
- Class 2, Division 1, Groups F,G
- Class 3
Key Features
| Brand | LED Lighting Supply |
| Watts | 40 |
| Lumens | 5600 |
| Lumens Per Watt | 140 |
| Replaces | 150 or 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Chain-Cable or Recessed or Surface |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| IP Rating | IP66 |
| IK Rating | IK09 |
| Operating Temperature | -22°F to 122°F |
| Certifications | UL | Rebate Eligible | NSF Rated |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 25.2 X 23.8 X 3.7 |
| Weight (lbs) | 46.3 |
Download IES Files
Additional Resources
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 40-watt explosion proof 2×2 low profile linear LED light delivers 5,600 lumens at 5000K. It is built for hazardous location lighting, explosion proof lighting, paint booth lighting, and chemical processing facility lighting.
The fixture supports 100-277V input and provides a broad 120-degree distribution through a polycarbonate lens. Chain-cable, recessed, and surface mounting support different installation conditions within classified areas.
Core Performance and Output
The fixture produces 5,600 lumens at 140 lumens per watt. Its 120-degree beam angle provides broad light distribution for layouts requiring even coverage from a low profile linear fixture.
Electrical performance includes 100-277V operation, 50-60Hz frequency, power factor above 0.95, and THD below 10 percent. The 1-10V dimming capability supports compatible dimming systems.
At low mounting heights, 5,600 lumens may produce excessive light levels if fixtures are placed too closely. Wider fixture spacing reduces overlap but can reduce uniformity between rows.
Adjustability and Control Options
This fixture supports 1-10V dimming. Dimming wiring and control compatibility must be verified during fixture layout and electrical planning.
The 5000K color temperature and 70+ CRI are fixed product characteristics. The standard optical distribution is 120 degrees.
Longevity and Reliability
The LED system is rated for 50,000 L70 hours. L70 indicates the point at which light output is rated at 70 percent of initial output.
The fixture operates from -22F to 122F. Its five-year warranty supports long-term maintenance planning.
Build Quality and Physical Characteristics
The fixture measures 25.2 by 23.8 by 3.7 inches and weighs 46.3 pounds. Its low profile 2×2 form factor supports recessed or surface-mounted installations where fixture depth matters.
IP66 and IK09 ratings support use in demanding operating conditions. The polycarbonate lens protects the optical system while maintaining the 120-degree distribution.
Where This Product Fits Best
This fixture fits classified and hazardous operating areas requiring a linear low profile light with Class I, Division 2 capability and Class II, Division 1 capability.
- hazardous location lighting
- paint booth lighting
- chemical processing facility lighting
- explosion proof lighting
- oil and gas facility lighting
- refinery lighting
- wastewater treatment lighting
Its IP66 rating, IK09 rating, -22F to 122F operating range, and listed hazardous-location classifications are relevant where environmental exposure and classified-area requirements affect fixture selection.
Installation and Long-Term Use
Chain-cable, recessed, and surface mounting are available. The 46.3-pound fixture weight and mounting method should be accounted for before installation.
Installations must use the supplied hazardous-location classification information for the specific area. Electrical supply must be within the 100-277V input range.
How This Fixture Is Commonly Used
In hazardous location lighting and paint booth lighting, the fixture is positioned to provide broad distribution across the required work area. Mounting height must be coordinated with the selected mounting method, fixture output, and target light level.
In chemical processing facility lighting, refinery lighting, and wastewater treatment lighting, layouts typically use repeated fixture rows or fixture locations based on the area configuration. Higher output can reduce fixture count, but layout spacing still controls overlap and uniformity.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations listed. Class I, Division 2, Groups A, B, C, and D. Class II, Division 1, Groups F and G. Class III.
UL listed. NSF rated. Rebate eligible. IP66 rated. IK09 rated.
The fixture includes a five-year warranty.
Frequently Asked Questions
Q: What is the light output of this explosion proof linear fixture?
A: The fixture delivers 5,600 lumens while operating at 40 watts.
Q: What voltage does this fixture accept?
A: The fixture operates on 100-277V input at 50-60Hz.
Q: Is 1-10V dimming available?
A: Yes. This fixture supports 1-10V dimming.
Q: What mounting methods are available?
A: Chain-cable, recessed, and surface mounting are available.
Q: How should fixture spacing be planned?
A: Mounting height, target light levels, and layout requirements affect fixture spacing. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Can this fixture be used for paint booth lighting?
A: Paint booth lighting is a listed primary application for this explosion proof light.
Q: What hazardous-location classifications apply to this fixture?
A: The fixture is UL 844 Hazardous Locations listed for Class I, Division 2, Groups A, B, C, and D; Class II, Division 1, Groups F and G; and Class III.
Q: What should be confirmed before selecting a mounting method?
A: Confirm the available mounting condition and account for the fixture dimensions of 25.2 by 23.8 by 3.7 inches and weight of 46.3 pounds.
