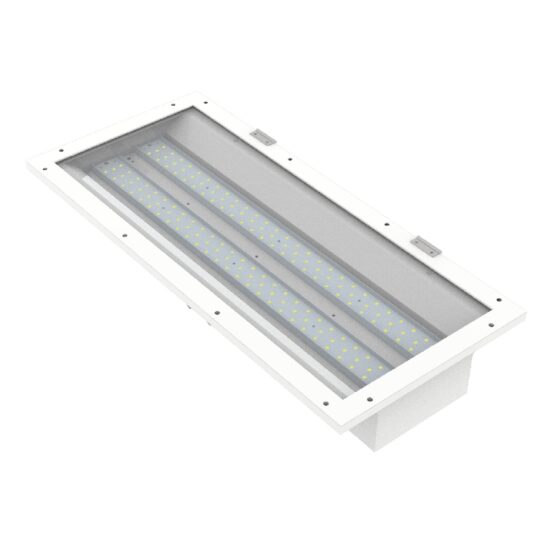

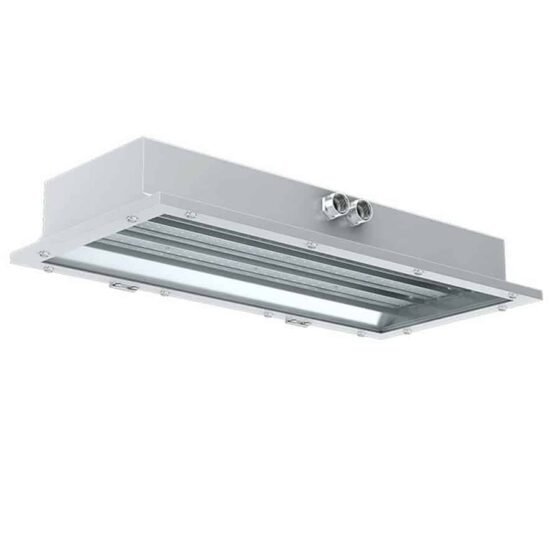

40 Watt Explosion Proof 1×2 Low Profile Linear LED Light | 5600 Lumens | Class 1 Div 2 | 5000K | 100-277V
This 40 watt LED fixture is a strong choice for hazardous locations requiring UL 844 compliance, offering 5600 lumens at 140 lumens per watt to directly replace 150 watt metal halide units. Its IP66 and IK09 ratings ensure reliable operation in environments exposed to water jets, dust, and moderate impact, while the NSF rating supports use in washdown or food processing areas. Flexible mounting options and 1-10V dimming simplify integration in manufacturing, processing, storage, and handling spaces where hazardous materials are present.
Dwayne Kula | President, CTO and Founder
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class 1, Division 2, Groups A,B,C,D
- Class 2, Division 1, Groups F,G
- Class 3
Key Features
| Brand | LED Lighting Supply |
| Watts | 40 |
| Lumens | 5600 |
| Lumens Per Watt | 140 |
| Replaces | 150 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Chain-Cable or Recessed or Surface |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| IP Rating | IP66 |
| IK Rating | IK09 |
| Operating Temperature | -22°F to 122°F |
| Certifications | UL | Rebate Eligible | NSF Rated |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 25.2 X 12 X 3.7 |
| Weight (lbs) | 19.8 |
Additional Resources
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 40-watt explosion proof low profile linear LED light delivers 5,600 lumens at 5000K. It is configured for hazardous location lighting where a compact linear fixture is needed.
The fixture supports chain-cable, recessed, and surface mounting. Its 1×2 low profile form factor fits paint booth lighting and other classified lighting layouts where fixture depth and mounting access matter.
Core Performance and Output
The fixture produces 5,600 lumens at 140 lumens per watt. A 120-degree beam distribution provides broad light spread through the polycarbonate lens.
It operates on 100-277V, 50-60Hz power with a power factor above 0.95 and THD below 10%. The 40-watt output replaces 150-watt metal halide lighting.
Output can be excessive where low mounting heights place the fixture directly in the line of sight. Higher mounting heights require layout review to maintain required light levels and uniformity.
Adjustability and Control Options
This fixture supports 1-10V dimming. Dimming can be used where light output needs to be adjusted after installation.
The fixture is supplied with a 120-degree standard beam angle. No alternate beam distributions are specified.
Longevity and Reliability
The rated lifespan is 50,000 L70 hours. The fixture operates in temperatures from -22 F to 122 F.
The IP66 enclosure rating and IK09 impact rating support use in demanding classified environments. Long-term performance still depends on correct mounting, wiring, and environmental conditions.
Build Quality and Physical Characteristics
The gray fixture measures 25.2 x 12 x 3.7 inches and weighs 19.8 pounds. Its low profile linear housing supports recessed, surface, or chain-cable installation.
A polycarbonate lens protects the optical system. The fixture construction is rated IP66 and IK09.
Where This Product Fits Best
This fixture fits classified lighting layouts requiring a low profile linear form factor, 100-277V operation, and broad distribution. The 40-watt output is suited to localized and lower-output hazardous location lighting layouts.
- hazardous location lighting
- paint booth lighting
- chemical processing facility lighting
- explosion proof lighting
- oil and gas facility lighting
- solvent storage area lighting
UL 844 hazardous location classifications, IP66 protection, and the stated operating temperature range define the environmental conditions addressed by this fixture.
Installation and Long-Term Use
Installers can use chain-cable, recessed, or surface mounting based on the existing structure and fixture layout. The 19.8-pound fixture weight and 25.2-inch body length should be considered before selecting the mounting arrangement.
Confirm the site voltage is within the 100-277V range and match the installation to the listed hazardous location classification. Maintain access for wiring, inspection, and future fixture service.
How This Fixture Is Commonly Used
In hazardous location lighting and paint booth lighting layouts, the fixture is mounted at a project-specific height based on the available structure, target light level, and required coverage. Linear rows can be arranged to follow the work area or equipment layout.
In chemical processing facility lighting and oil and gas facility lighting, fixture placement is coordinated around classified areas and mounting access. Spacing varies with mounting height, target light levels, and the 120-degree distribution.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. Class 1, Division 2, Groups A, B, C, D. Class 2, Division 1, Groups F, G. Class 3.
NSF Rated. Rebate Eligible. IP66. IK09. Warranty: 5 years.
Frequently Asked Questions
Q: What light output does this fixture provide?
A: This fixture delivers 5,600 lumens while using 40 watts.
Q: What voltage does this fixture use?
A: The fixture operates on 100-277V, 50-60Hz power.
Q: What mounting options are available?
A: The fixture supports chain-cable, recessed, and surface mounting.
Q: Can the fixture be dimmed?
A: Yes. It supports 1-10V dimming.
Q: What should be considered when planning fixture placement?
A: Mounting height, target light levels, layout requirements, and the 120-degree beam distribution affect fixture placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture classified for hazardous location lighting?
A: Yes. It is UL 844 Hazardous Locations rated for Class 1, Division 2, Groups A, B, C, D; Class 2, Division 1, Groups F, G; and Class 3.
Q: What should be confirmed for paint booth lighting installation?
A: Confirm the site classification, available mounting method, supply voltage, and required fixture layout. The fixture supports chain-cable, recessed, and surface mounting on 100-277V power.
Q: What environmental ratings apply to chemical processing facility lighting?
A: The fixture is rated IP66 and IK09 and operates from -22 F to 122 F.
