40 Watt Explosion Proof Jelly Jar LED Light | 5600 Lumens | Class 1 Div 2 | 5000K | 100-277V | Surface Mount | Pendant Mount | Wall Mount
Dwayne Kula | President, CTO and Founder
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
Key Features
| Brand | LED Lighting Supply |
| Watts | 40 |
| Lumens | 5600 |
| Lumens Per Watt | 140 |
| Replaces | 175 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Lifespan | 50,000 (L70) hours |
| Mounting | Surface or Wall or 3/4 in NPT Pendant |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Copper Free Aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 9 x 13 |
| Weight (lbs) | 14 |
Product SKU Variations
- SKU: MLLG-E-LED-EXPLO-40-50-C1D2-SM
- SKU: MLLG-E-LED-EXPLO-40-50-C1D2-WM
- SKU: MLLG-E-LED-EXPLO-40-50-C1D2-PM
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 40-watt explosion proof jelly jar LED light delivers 5,600 lumens at 5000K for classified hazardous locations. Its compact 9 x 13 inch housing supports surface, wall, or 3/4 inch NPT pendant mounting.
The fixture is listed as a replacement for 175-watt metal halide lighting. It is built for hazardous location lighting and paint booth lighting where a durable enclosed fixture and defined hazardous-location classifications are required.
Core Performance and Output
The fixture produces 5,600 lumens at 140 lumens per watt. A 120-degree beam angle provides broad distribution from a compact jelly jar form factor.
Input voltage is 100-277V at 50-60Hz. Power factor is greater than 0.95, and total harmonic distortion is less than 10 percent.
The 40-watt output is suited to localized hazardous-area lighting layouts. Fixture placement, mounting height, and target light levels affect uniformity and glare.
Adjustability and Control Options
1-10V dimming is provided. The control connection and dimming system must be compatible with the fixture’s 1-10V dimming capability.

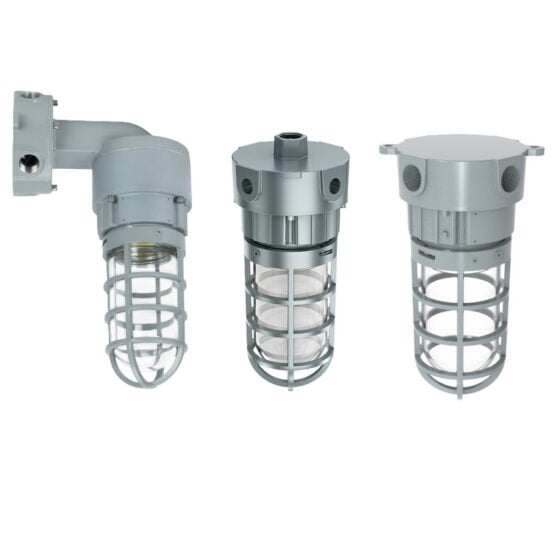

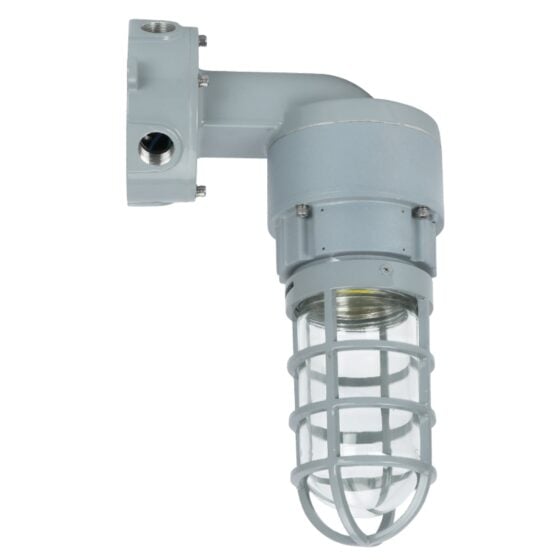

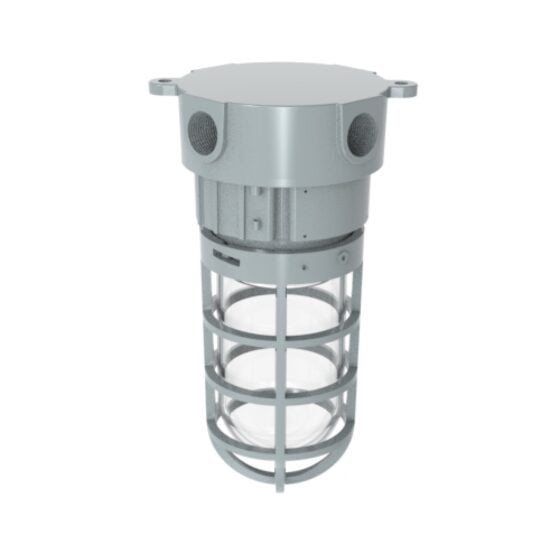

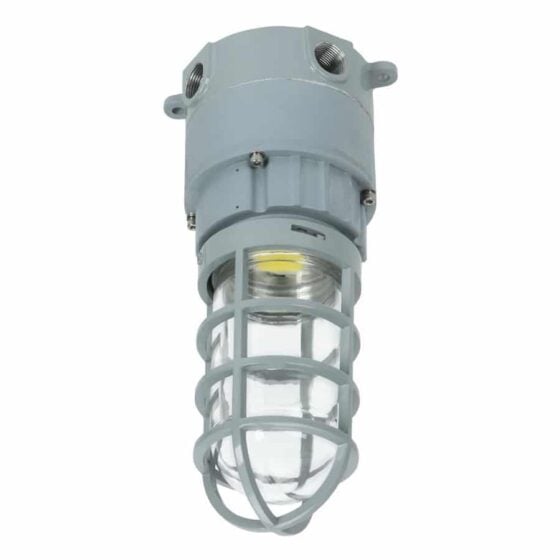

Mounting options include surface mount, wall mount, and 3/4 inch NPT pendant mount. The selected mounting method should match the fixture orientation and available mounting location.
Longevity and Reliability
Rated life is 50,000 L70 hours. The fixture includes a 5-year warranty.
LED operation reduces relamping requirements compared with the listed 175-watt metal halide replacement configuration. Long-term maintenance access should still be considered when selecting the mounting arrangement.
Build Quality and Physical Characteristics
The housing is copper-free aluminum. The fixture measures 9 x 13 inches and weighs 14 pounds.
IP66 and IK10 ratings support use where dust, water exposure, and impact resistance are project considerations. The enclosed jelly jar form factor is intended for demanding classified-location installations.
Where This Product Fits Best
This fixture fits classified locations requiring a compact, broad-beam LED fixture with surface, wall, or pendant mounting options. Its listed hazardous-location classifications support defined industrial and marine environments.
- hazardous location lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- marine environment lighting
- solvent storage area lighting
UL 844 hazardous-location listings include Class I, Division 2 Groups A, B, C, and D; Class II, Division 1 Groups E, F, and G; Class II, Division 2 Groups F and G; and Class III. UL 1598 wet-location suitability, UL 1598A Marine Outside Type, ABS, IP66, and IK10 ratings are provided.
Installation and Long-Term Use
Installation uses the selected surface, wall, or 3/4 inch NPT pendant mounting method. Fixture weight, mounting surface condition, and fixture orientation should be reviewed before installation.
The 100-277V input range supports common commercial and industrial voltage systems within that range. Wiring and controls must be configured for the installed voltage and any 1-10V dimming connection.
For long-term service, maintain access to the fixture for inspection and replacement. The housing and mounting arrangement should remain secure in the installed environment.
How This Fixture Is Commonly Used

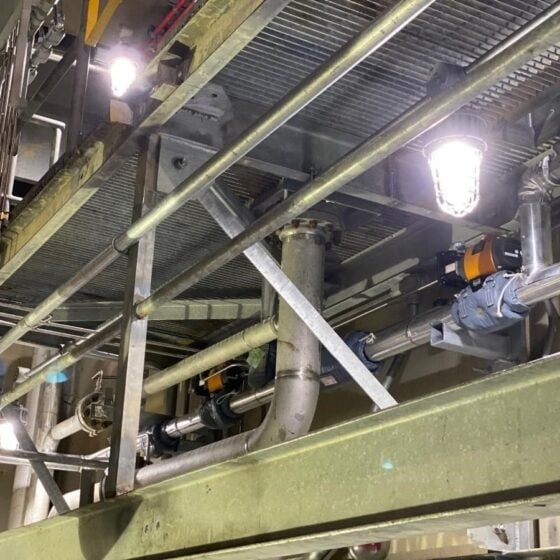

In hazardous location lighting and chemical processing facility lighting, this fixture is mounted where its 120-degree distribution can provide broad local coverage. Surface and wall mounting are used where the fixture needs to be placed directly on a structural surface.

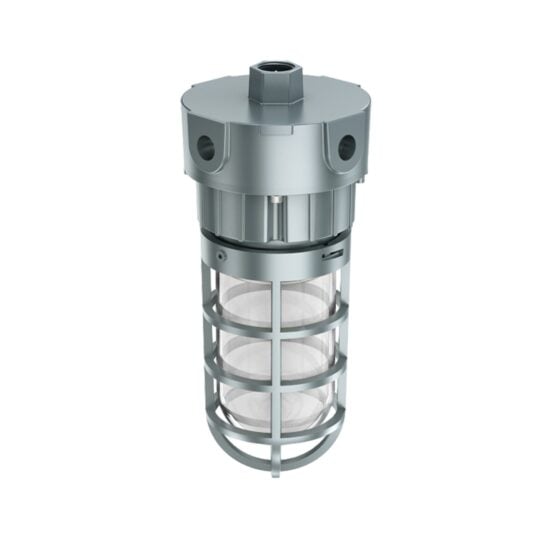

For paint booth lighting, oil and gas facility lighting, and solvent storage area lighting, pendant mounting can position the fixture below the mounting plane when a 3/4 inch NPT connection is available. Mounting height affects the light pattern at the work area.
Spacing varies with mounting height, target light levels, and the required layout. Higher placement expands the coverage pattern but can reduce light levels at the task plane.
Safety, Certifications, and Warranty
UL 844 hazardous locations. Class I, Division 2, Groups A, B, C, D. Class II, Division 1, Groups E, F, G. Class II, Division 2, Groups F, G. Class III.
UL 1598 Suitable for Wet Locations. UL 1598A Marine Outside Type. ABS. UL. Rebate eligible.
The fixture carries a 5-year warranty.
Frequently Asked Questions
Q: What light output does this explosion proof fixture provide?
A: The fixture delivers 5,600 lumens while using 40 watts. Efficacy is 140 lumens per watt.
Q: What hazardous-location classifications are listed for this fixture?
A: The fixture is UL 844 listed for Class I, Division 2, Groups A, B, C, and D; Class II, Division 1, Groups E, F, and G; Class II, Division 2, Groups F and G; and Class III.
Q: What mounting methods are available?
A: The fixture supports surface mounting, wall mounting, and 3/4 inch NPT pendant mounting.
Q: What should be considered when planning fixture placement?
A: Mounting height, target light levels, beam distribution, and layout requirements affect fixture placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture intended for paint booth lighting?
A: Paint booth lighting is a listed primary application for this explosion proof light. Final application fit must align with the fixture’s stated hazardous-location classifications.
Q: Can this fixture be used for marine environment lighting?
A: Marine environment lighting is a listed secondary application. The fixture is UL 1598A Marine Outside Type and ABS certified.
Q: What electrical range should be confirmed before installation?
A: Confirm that the available supply voltage is within the fixture’s 100-277V input range. The fixture operates at 50-60Hz.
