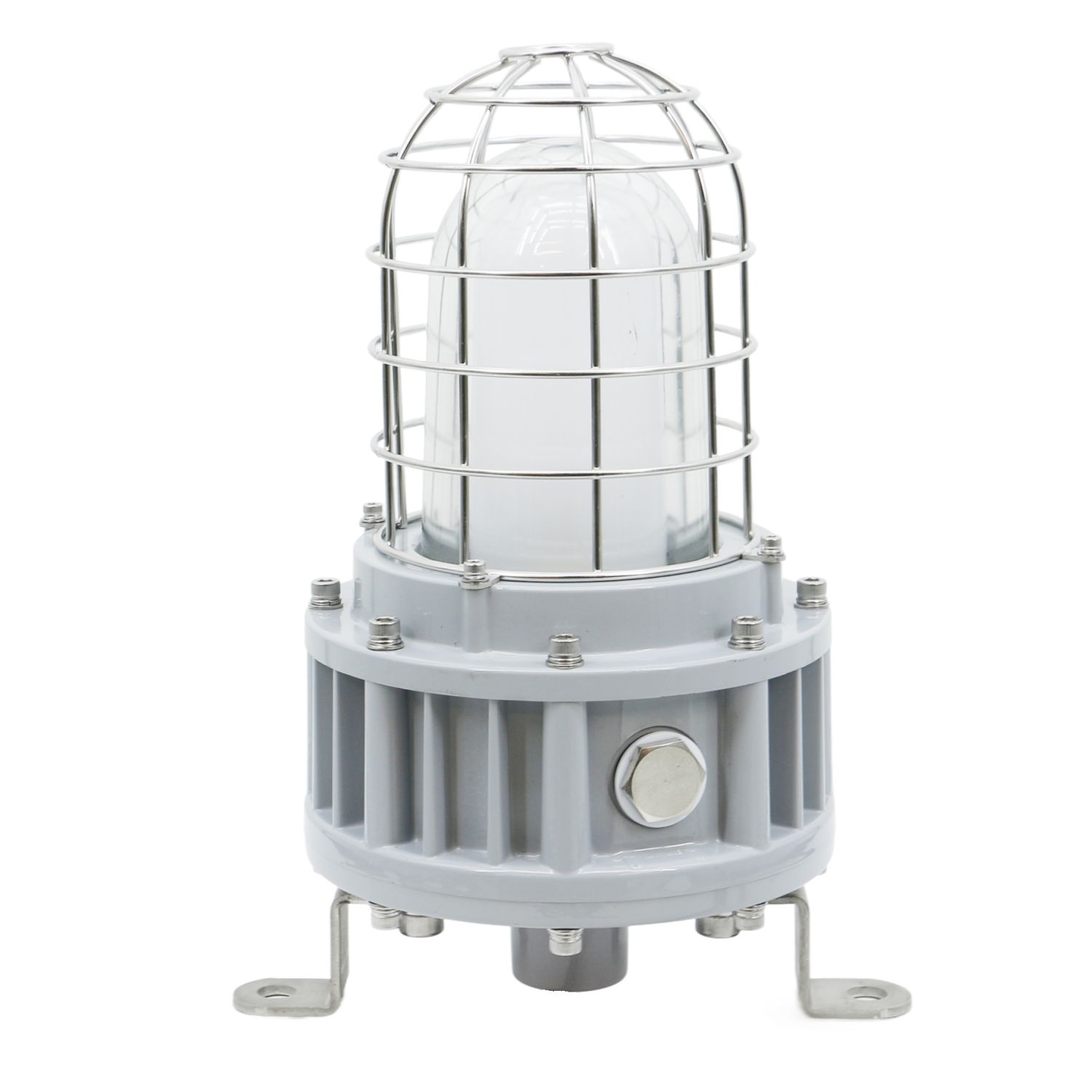

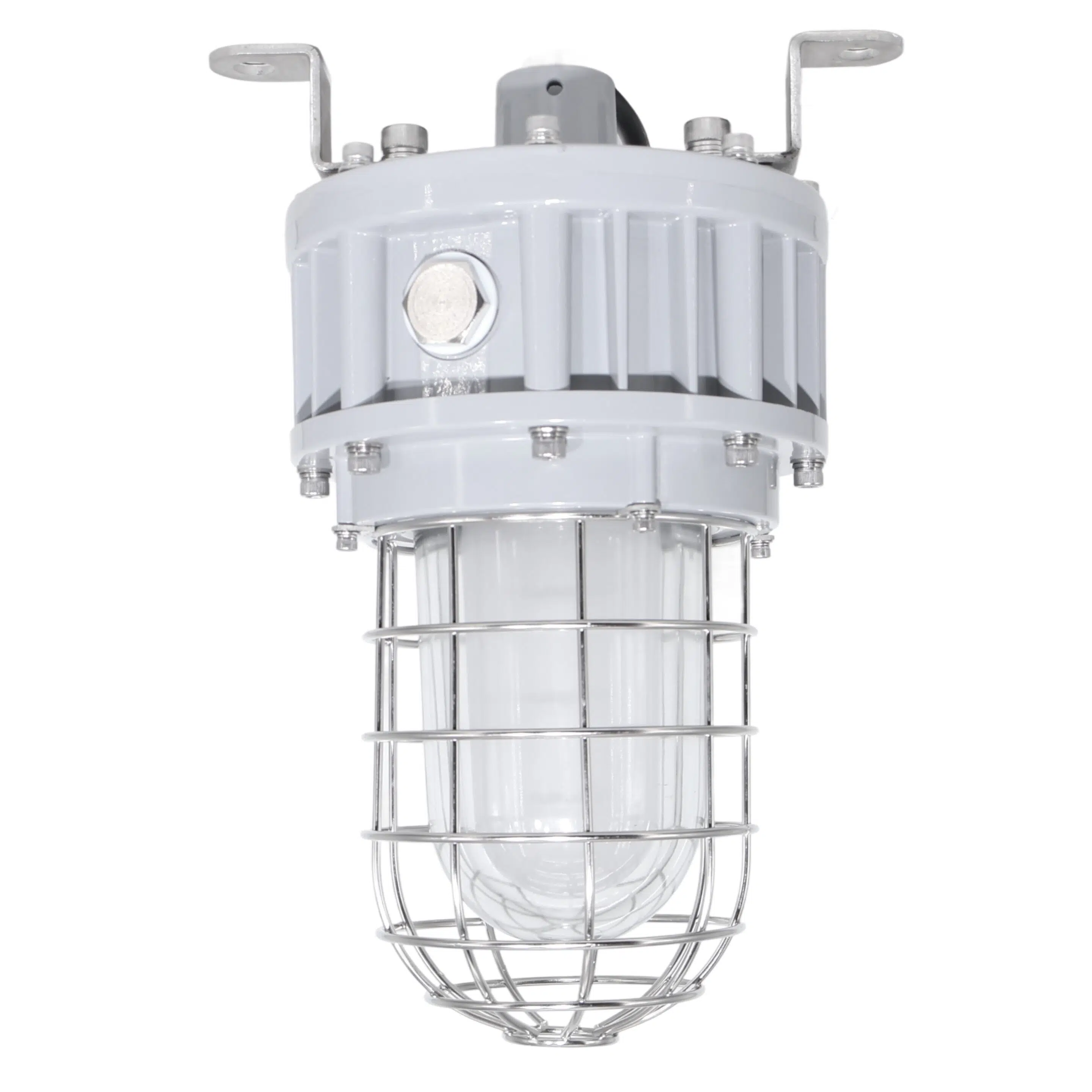

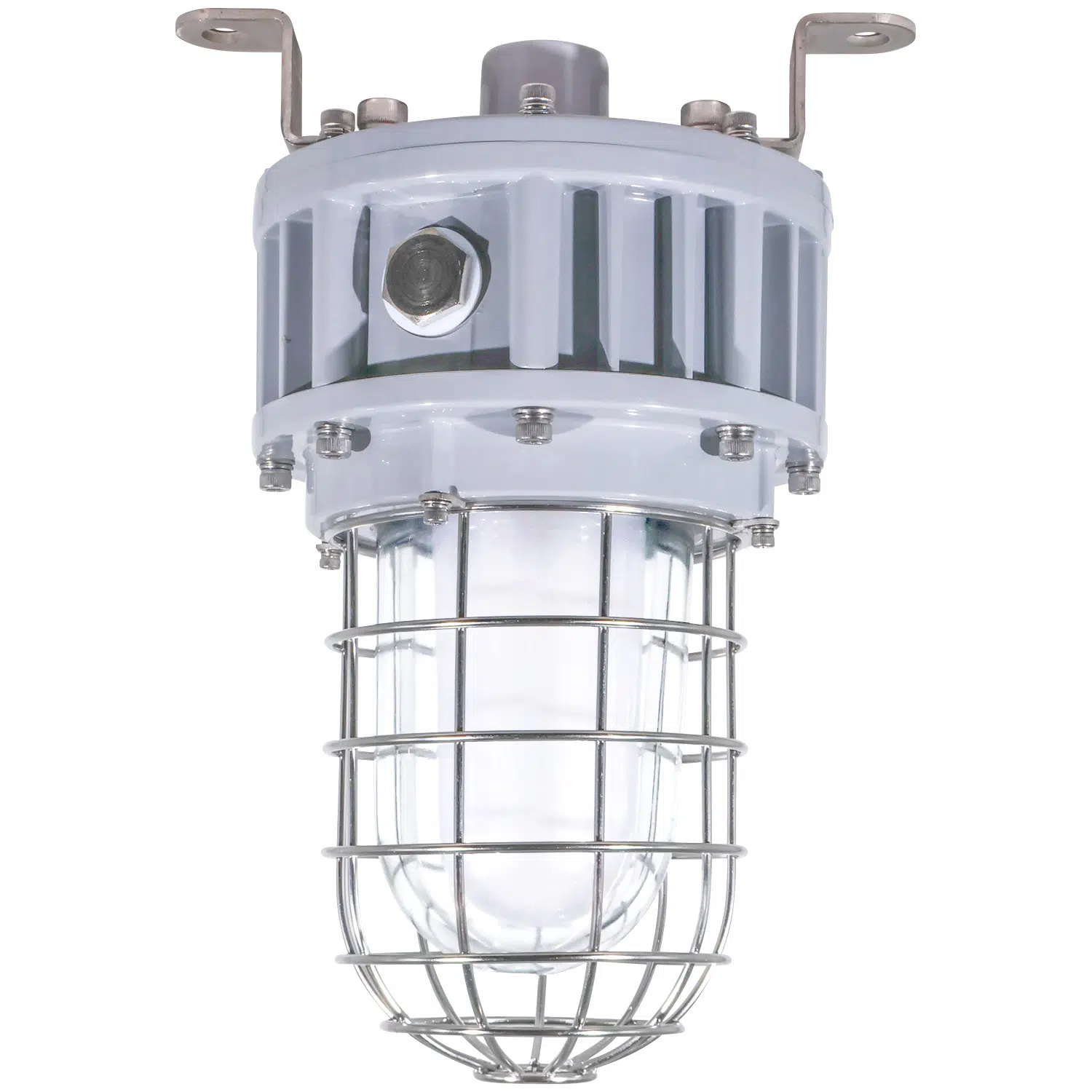

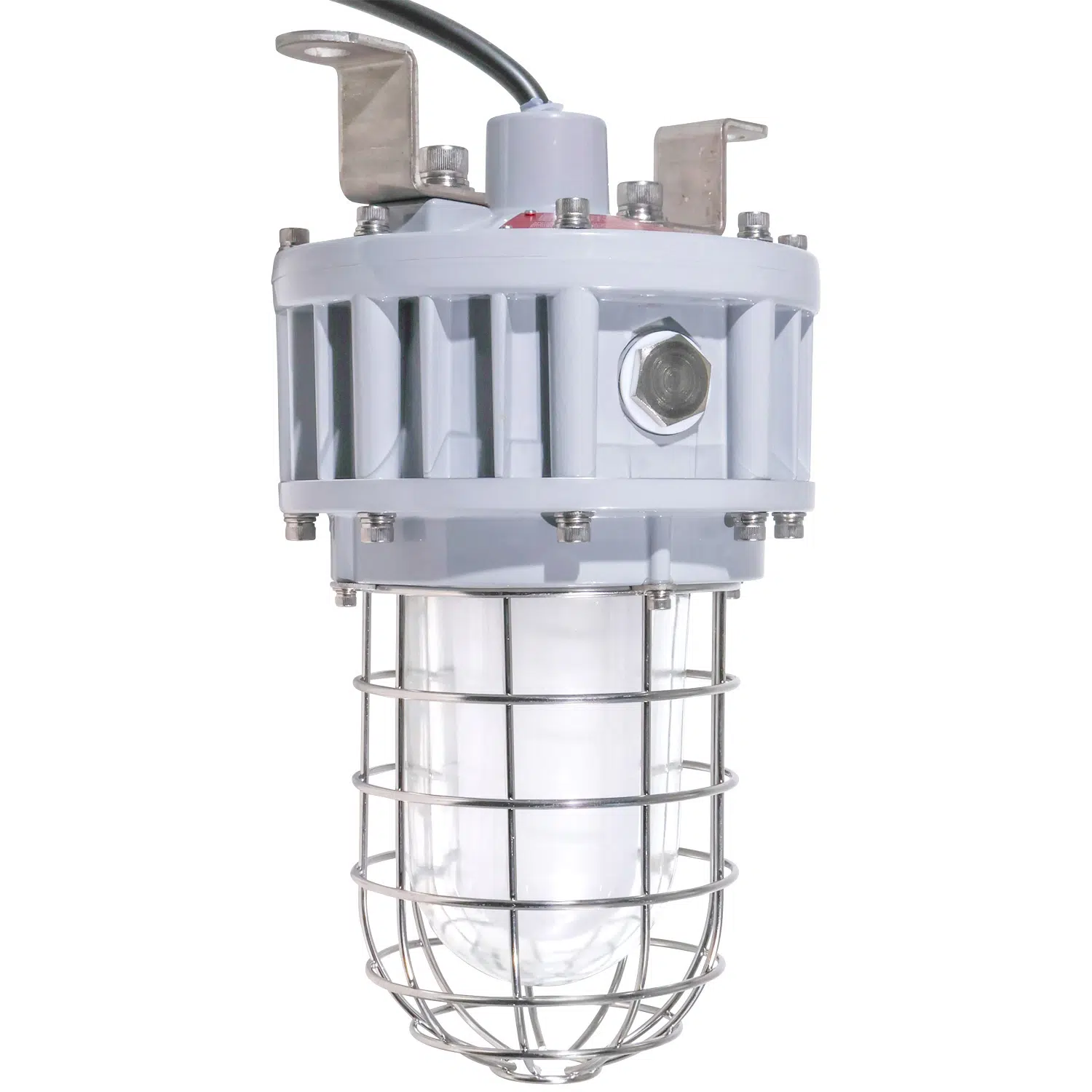

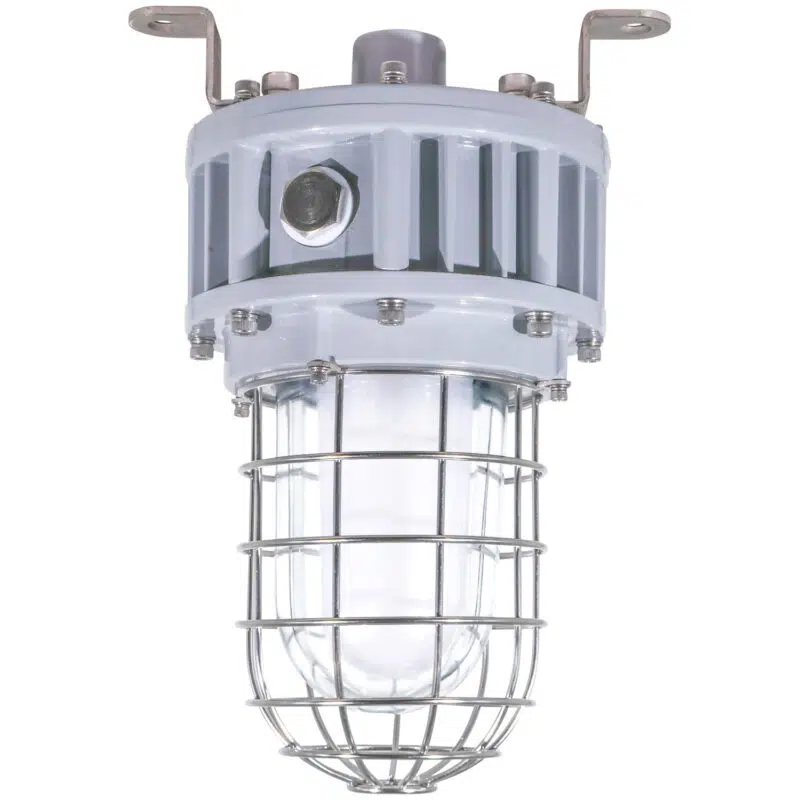

40 Watt Explosion Proof Jelly Jar LED Light | 5200 Lumens | Class 1 Div 1 | 5000K | 100-277V
This 40 watt LED fixture is a strong choice for hazardous and corrosive environments where safety, durability, and reliable illumination are critical. Its UL 844, UL 1598, UL 1598A, ABS, and ETL certifications confirm suitability for Class I, II, and III hazardous locations, wet areas, and marine applications. The IP66 and IK10 ratings ensure protection against dust, water jets, and impacts, while the copper free aluminum housing and tempered glass dome resist corrosion and physical wear. With 5200 lumens, 360 degree distribution, and 1-10V dimming, it is ideal for industrial process areas, chemical plants, refineries, and marine terminals.
Dwayne Kula | President, CTO and Founder
50 in stock
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 1, Groups C,D
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
Key Features
| Brand | LED Lighting Supply |
| Watts | 40 |
| Lumens | 5200 |
| Lumens Per Watt | 130 |
| Replaces | 150 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 360° |
| Optics | Spherical Tempered Glass Dome |
| Lifespan | 50,000 (L70) hours |
| Mounting | 3/4 in NPT Pendant |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Copper Free Aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 6.8 W X 16.1 H |
| Weight (lbs) | 14 |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 40-watt explosion proof jelly jar LED light provides 5,200 lumens at 5000K for hazardous location lighting. Its compact vertical form factor uses a spherical tempered glass dome and a 3/4 in NPT pendant mount.
The fixture operates on 100-277V and replaces a 150-watt metal halide fixture. It is built for wet, hazardous, marine, and industrial operating conditions covered by its listed ratings.
Core Performance and Output
The fixture delivers 5,200 lumens at 130 lumens per watt with a 360 degree distribution. The spherical glass dome provides broad illumination around the pendant-mounted fixture.
Electrical performance includes 100-277V operation, 50-60Hz frequency, power factor above 0.95, and THD below 10 percent. The 5,200-lumen output can be excessive where fixtures are mounted close to work areas or where low light levels are required.
Adjustability and Control Options
This fixture supports 1-10V dimming. Dimming allows output adjustment where the lighting layout and control system are designed for 1-10V operation.
The fixture has a fixed 5000K color temperature, 70+ CRI, and 360 degree distribution. The spherical tempered glass dome is the standard optical configuration.
Longevity and Reliability
Rated life is 50,000 hours at L70. This rating supports long operating intervals where access for maintenance is limited.
The listed operating temperature range is -22 degrees F to 122 degrees F. The fixture includes a 5-year warranty.
Build Quality and Physical Characteristics
The housing is copper-free aluminum with a gray finish. The fixture measures 6.8 inches wide by 16.1 inches high and weighs 14 pounds.
The spherical tempered glass dome is paired with an IP66 rating and IK10 impact rating. The fixture uses a 3/4 in NPT pendant mounting connection.
Where This Product Fits Best
This fixture fits hazardous and industrial locations requiring Class I, Class II, or Class III listed lighting. Its wet-location, marine outside type, and ABS listings also support selected marine and process-related applications.
- hazardous location lighting
- paint booth lighting
- chemical processing facility lighting
- explosion proof lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
The IP66 enclosure, copper-free aluminum housing, tempered glass dome, and -22 degrees F to 122 degrees F operating range support demanding exposure conditions within the listed classifications.
Installation and Long-Term Use
The fixture mounts from a 3/4 in NPT pendant connection. Verify the mounting structure, pendant assembly, and electrical installation method for the applicable hazardous-location classification before installation.
At 14 pounds, the fixture requires a mounting point that supports the fixture and associated conduit components. Long-term access should account for the vertical 16.1-inch fixture height and glass dome clearance.
How This Fixture Is Commonly Used
In hazardous location lighting, paint booth lighting, chemical processing facility lighting, and refinery lighting, the fixture is positioned from pendant-mounted points to distribute light in all directions. Layouts typically follow equipment, process areas, access routes, and available NPT mounting locations.
Mounting height and fixture spacing depend on target light levels, obstructions, and the 360 degree distribution. Wider spacing reduces fixture count but can reduce uniformity between pendant locations.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. Class I, Division 1, Groups C and D. Class I, Division 2, Groups A, B, C, and D. Class II, Division 1, Groups E, F, and G. Class II, Division 2, Groups F and G. Class III.
UL 1598 Suitable for Wet Locations. UL 1598A Marine Outside Type. ABS. ETL. Rebate Eligible. IP66. IK10. Warranty: 5 years.
Frequently Asked Questions
Q: What is the light output of this explosion proof jelly jar fixture?
A: The fixture delivers 5,200 lumens while operating at 40 watts.
Q: What voltage does this fixture use?
A: The fixture operates on 100-277V at 50-60Hz.
Q: Can this fixture be dimmed?
A: Yes. It supports 1-10V dimming.
Q: What should be considered when planning fixture placement?
A: Mounting height, target light levels, obstructions, and layout requirements affect fixture placement. The fixture provides a 360 degree distribution.
Application Questions and Clarification
Q: Is this fixture listed for hazardous location lighting?
A: Yes. It is listed under UL 844 Hazardous Locations for the stated Class I, Class II, and Class III classifications.
Q: Is this fixture suitable for paint booth lighting?
A: Paint booth lighting is a listed application for this explosion proof fixture. Final installation requirements must match the applicable hazardous-location classification.
Q: What mounting connection does this fixture use?
A: The fixture uses a 3/4 in NPT pendant mount.
