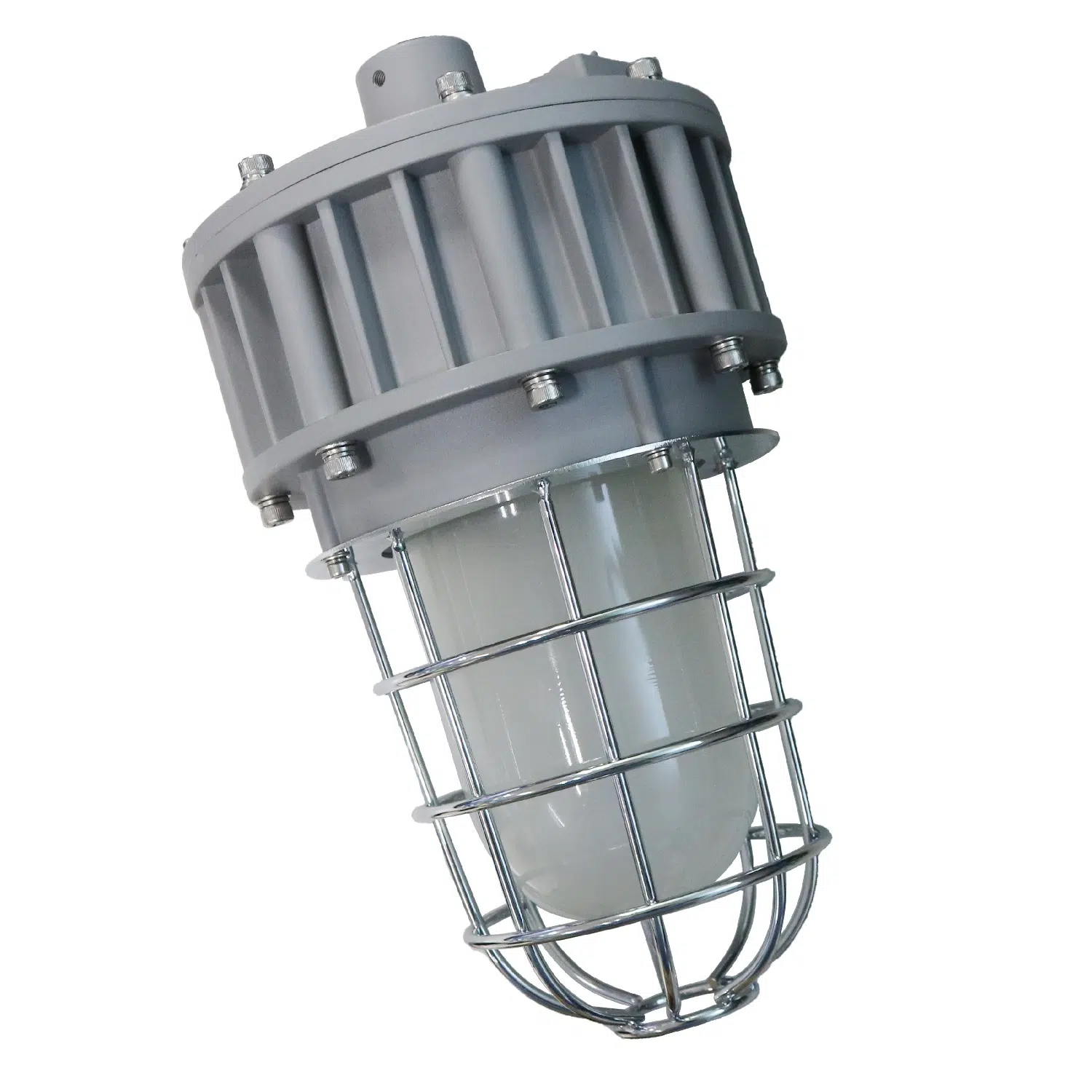

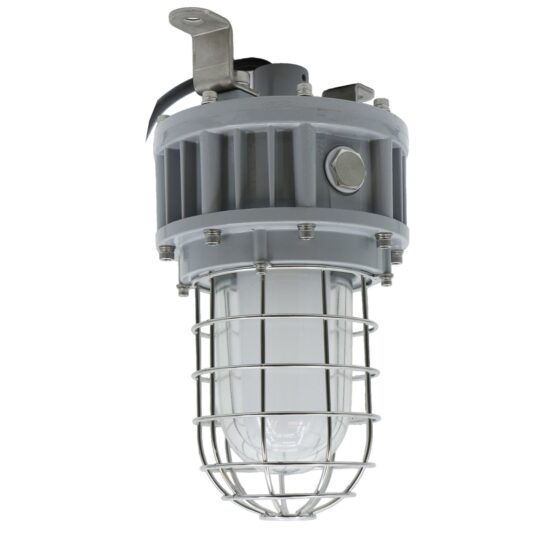

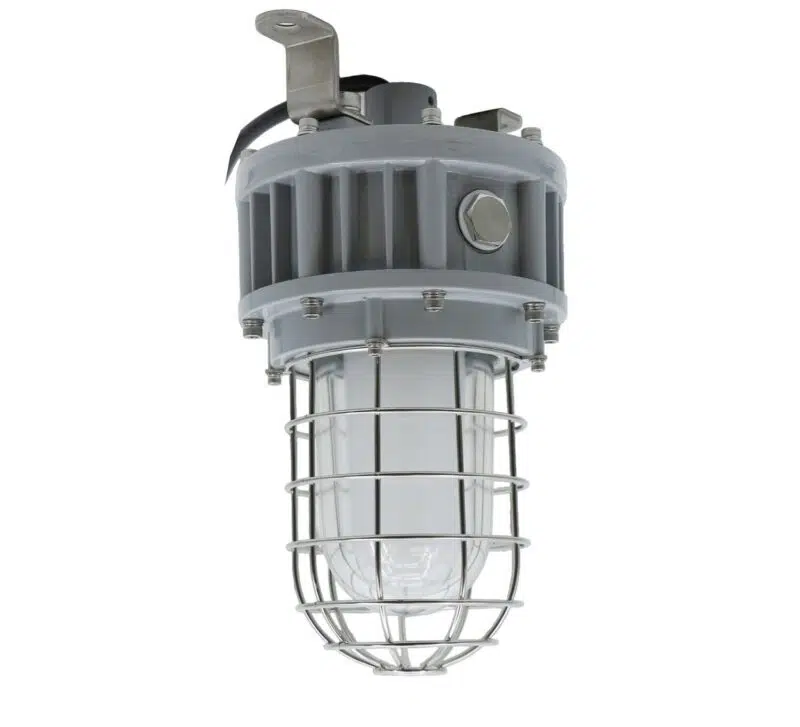

30 Watt Explosion Proof Jelly Jar LED Light | 3900 Lumens | Class 1 Div 1 | 5000K | 100-277V
Dwayne Kula | President, CTO and Founder
217 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 30 |
| Lumens | 3900 |
| Lumens Per Watt | 130 |
| Replaces | 100 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 360° |
| Optics | Spherical Tempered Glass Dome |
| Lifespan | 50,000 (L70) hours |
| Mounting | 3/4 in NPT Pendant |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Copper Free Aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 12.5 X 8.8 |
| Weight (lbs) | 14 |
IES Files
Product Description
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 1, Groups C,D
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
Key Features
- Brand: LED Lighting Supply
- Watts: 30
- Lumens: 3900
- Lumens Per Watt: 130
- Replaces: 100 Watt Metal Halide
- Voltage: 100V-277V
- Color Temperature: 5000K
- CRI: 70+
- Dimming: 1-10V
- Beam Angles (Std): 360°
- Optics: Spherical Tempered Glass Dome
- Lifespan: 50,000 (L70) hours
- Mounting: 3/4 in NPT Pendant
- Frequency (Hz): 50-60Hz
- Power Factor: >.95
- THD: < 10%
Durable Construction
- Housing: Copper Free Aluminum
- IP Rating: IP66
- IK Rating: IK10
- Operating Temperature: -22°F to 122°F
- Certifications: ETL | Rebate Eligible
- Warranty: 5 years
Measurements
- Dimensions (in): 12.5 X 8.8
- Weight (lbs): 14
You may also like...
-
20 Watt Explosion Proof Jelly Jar LED Light | 2800 Lumens | Class 1 Div 1 | 5000K | 100-277V
Availability: 231 In Stock Ships 3-5 DaysRetail Price: $500.00 -
40 Watt Explosion Proof Jelly Jar LED Light | 5200 Lumens | Class 1 Div 1 | 5000K | 100-277V
Availability: 120 In Stock Ships 2-3 DaysRetail Price: $560.00
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This is a simplified room utilization factor. It accounts for room reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual floor-level light distribution. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces. Actual light levels may vary based on fixture optics, mounting conditions, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 30 Watt Explosion Proof Jelly Jar LED Light is engineered for hazardous location lighting, delivering 3900 lumens at a color temperature of 5000K. Designed for environments where safety is paramount, it operates efficiently within a voltage range of 100-277V. The fixture is suitable for replacing traditional 100 Watt metal halide lamps, offering a modern solution for oil and gas facilities and other hazardous locations.
With a robust construction, this fixture is built to withstand challenging conditions, including marine environments. It features a 3/4 inch NPT pendant mounting system, making it adaptable for various installation scenarios. The fixture's compact dimensions of 12.5 x 8.8 inches and weight of 14 pounds ensure ease of handling during installation.
Core Performance and Output
The fixture provides a luminous efficacy of 130 lumens per watt, ensuring high efficiency in energy consumption. Its spherical tempered glass dome offers a 360° beam angle, providing uniform light distribution across the intended area. The fixture's electrical performance is optimized with a power factor greater than 0.95 and a total harmonic distortion of less than 10%.
While the fixture is suitable for a range of mounting heights, excessive output may occur at very low heights, potentially leading to glare. It is important to consider the mounting height to ensure optimal light distribution and uniformity.
Adjustability and Control Options
This explosion-proof LED light includes 1-10V dimming capabilities, allowing for adjustable light levels to suit specific application needs. The dimming feature provides flexibility in controlling the ambiance and energy usage, particularly useful in environments where varying light levels are required.
The fixture's design does not include advanced control options such as motion sensors or wireless connectivity, focusing instead on reliability and simplicity in hazardous environments.
Longevity and Reliability
With a lifespan of 50,000 hours (L70), this fixture offers long-term reliability, reducing the need for frequent replacements and maintenance. The robust construction ensures consistent performance even in harsh conditions, contributing to its longevity.
The fixture's reliability is further supported by its certifications, including UL 844 for hazardous locations and UL 1598 for wet locations, ensuring it meets stringent safety and performance standards.
Build Quality and Physical Characteristics
Constructed from copper-free aluminum, the fixture is designed to resist corrosion, making it suitable for marine and other corrosive environments. Its IP66 and IK10 ratings confirm its resistance to dust, water, and impact, ensuring durability in demanding settings.
The fixture operates effectively within a temperature range of -22°F to 122°F, accommodating a wide range of environmental conditions without compromising performance.
Where This Product Fits Best
This explosion-proof LED light is ideal for environments where safety and durability are critical. It is particularly suited for hazardous locations and facilities involved in chemical processing and oil and gas operations.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
The fixture's robust construction and certifications make it suitable for environments with potential exposure to explosive gases, dust, and marine conditions.
Installation and Long-Term Use
The fixture's 3/4 inch NPT pendant mounting system allows for straightforward installation in a variety of settings. Its compact size and weight facilitate handling and positioning during installation.
For long-term use, regular inspections are recommended to ensure the fixture remains free of debris and maintains its performance. The fixture's design minimizes maintenance needs, contributing to lower operational costs over time.
How This Fixture Is Commonly Used
This fixture is typically mounted at heights that balance light distribution and intensity, often between 10 to 20 feet, depending on the specific application and environment. Spacing between fixtures should be considered to ensure uniform coverage and avoid excessive overlap.
In environments requiring high safety standards, such as chemical processing facilities, the fixture's explosion-proof design provides peace of mind. While higher output can reduce the number of fixtures needed, it may increase glare if not properly managed.
Safety, Certifications, and Warranty
The fixture is certified under UL 844 for hazardous locations, UL 1598 for wet locations, and UL 1598A for marine outside type environments. It also holds an ABS certification, confirming its suitability for marine applications.
With a 5-year warranty, the fixture offers assurance of quality and reliability, backed by comprehensive safety certifications. Its design and construction meet the rigorous demands of hazardous and marine environments.
Frequently Asked Questions
Q: What is the beam angle of this fixture?
A: The fixture features a 360° beam angle, providing comprehensive light coverage.
Q: Can this fixture be used in marine environments?
A: Yes, it is UL 1598A certified for marine outside type environments, making it suitable for such applications.
Q: What is the recommended mounting height for this fixture?
A: The fixture is typically mounted between 10 to 20 feet, depending on the specific application and desired light distribution.
Q: Does this fixture support dimming?
A: Yes, it supports 1-10V dimming, allowing for adjustable light levels.
Q: What is the expected lifespan of this fixture?
A: The fixture has an expected lifespan of 50,000 hours (L70).
Application Questions and Clarification
Q: Is this fixture suitable for use in oil and gas facilities?
A: Yes, it is designed for hazardous locations, including oil and gas facilities, with appropriate certifications for such environments.
Q: Can this fixture be used in paint booths?
A: Yes, it is suitable for paint booth lighting, providing safe and reliable illumination in such settings.
Q: What are the environmental ratings of this fixture?
A: The fixture is rated IP66 for dust and water resistance and IK10 for impact resistance.
Q: How does the fixture handle temperature variations?
A: It operates effectively within a temperature range of -22°F to 122°F, accommodating various environmental conditions.
