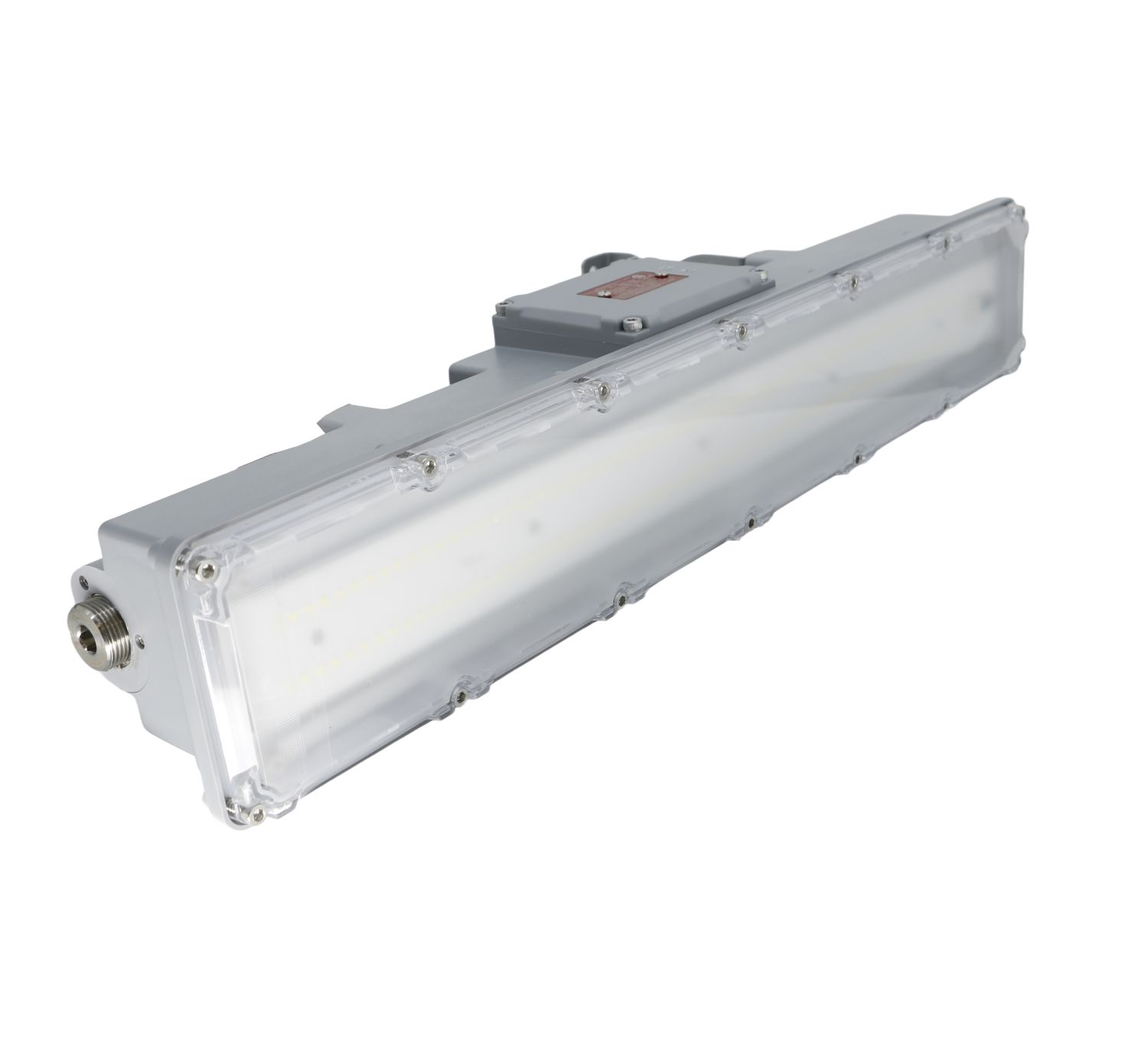

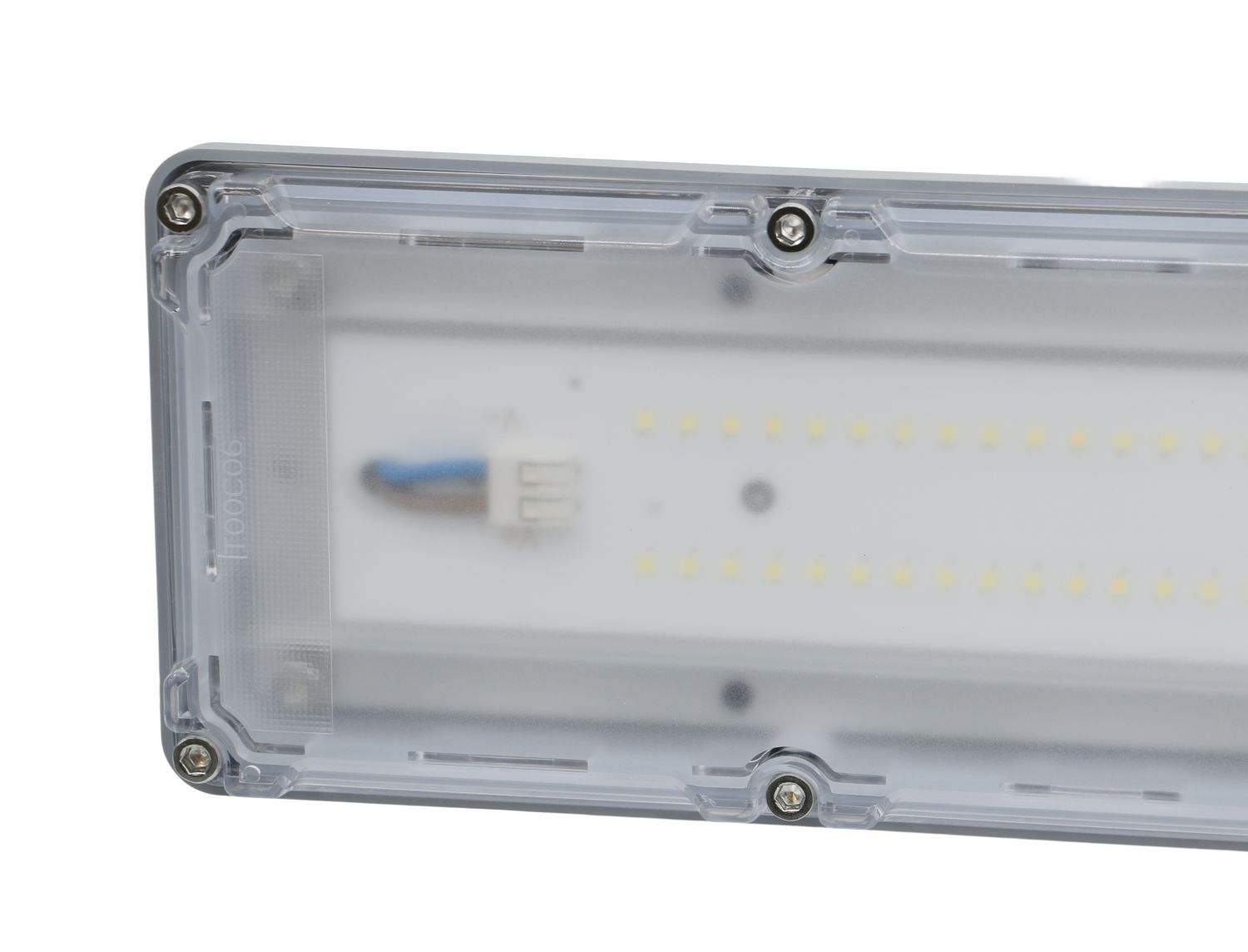

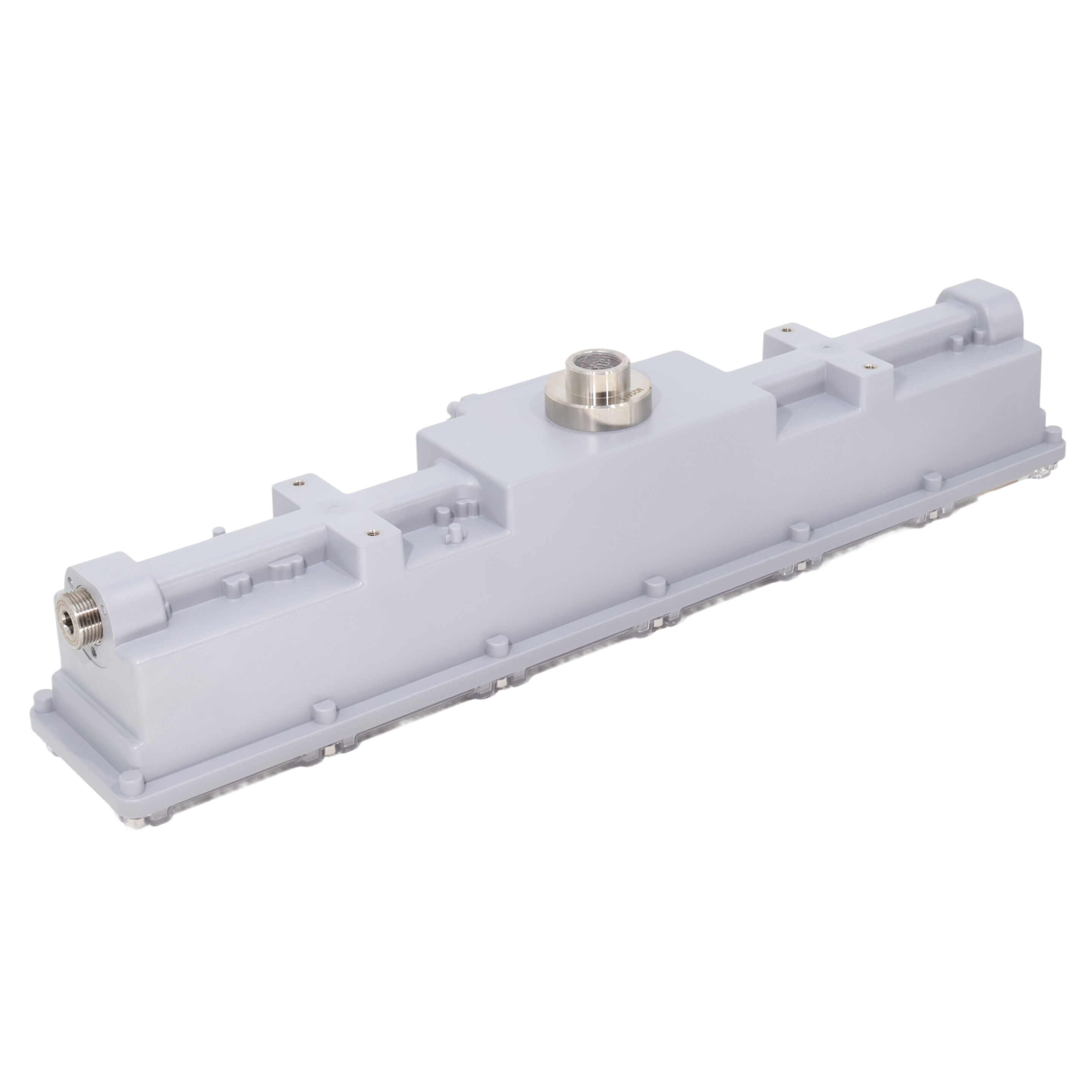

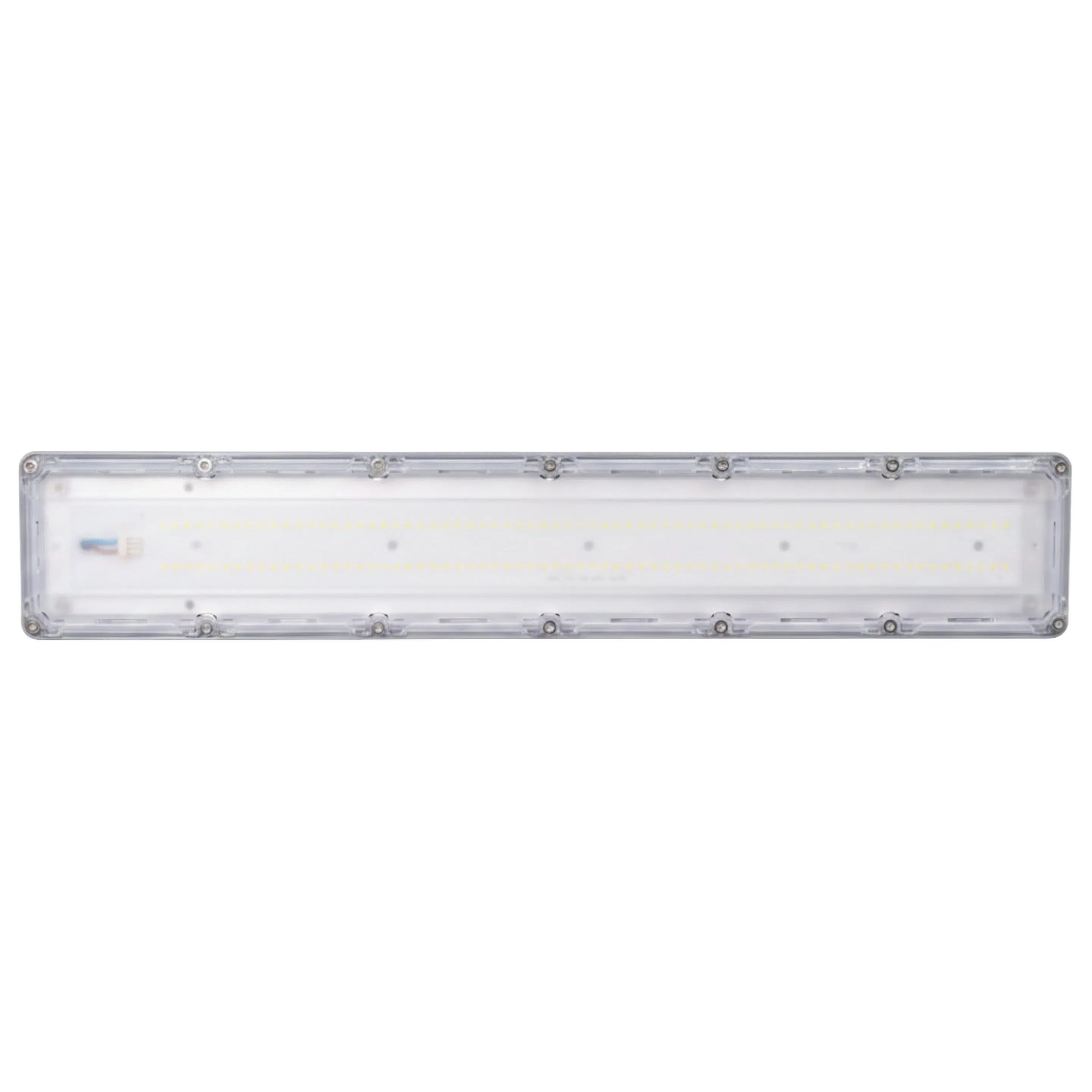

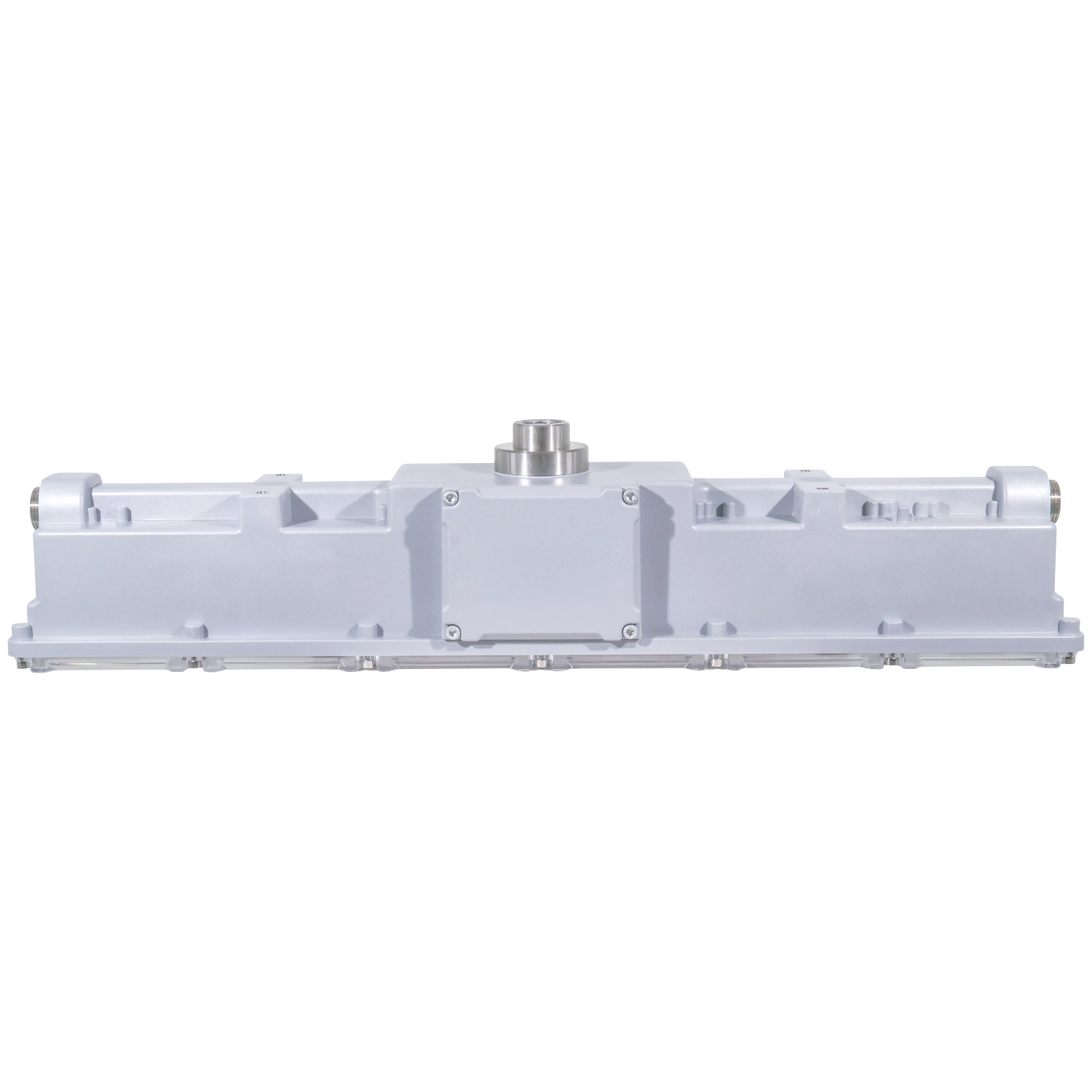

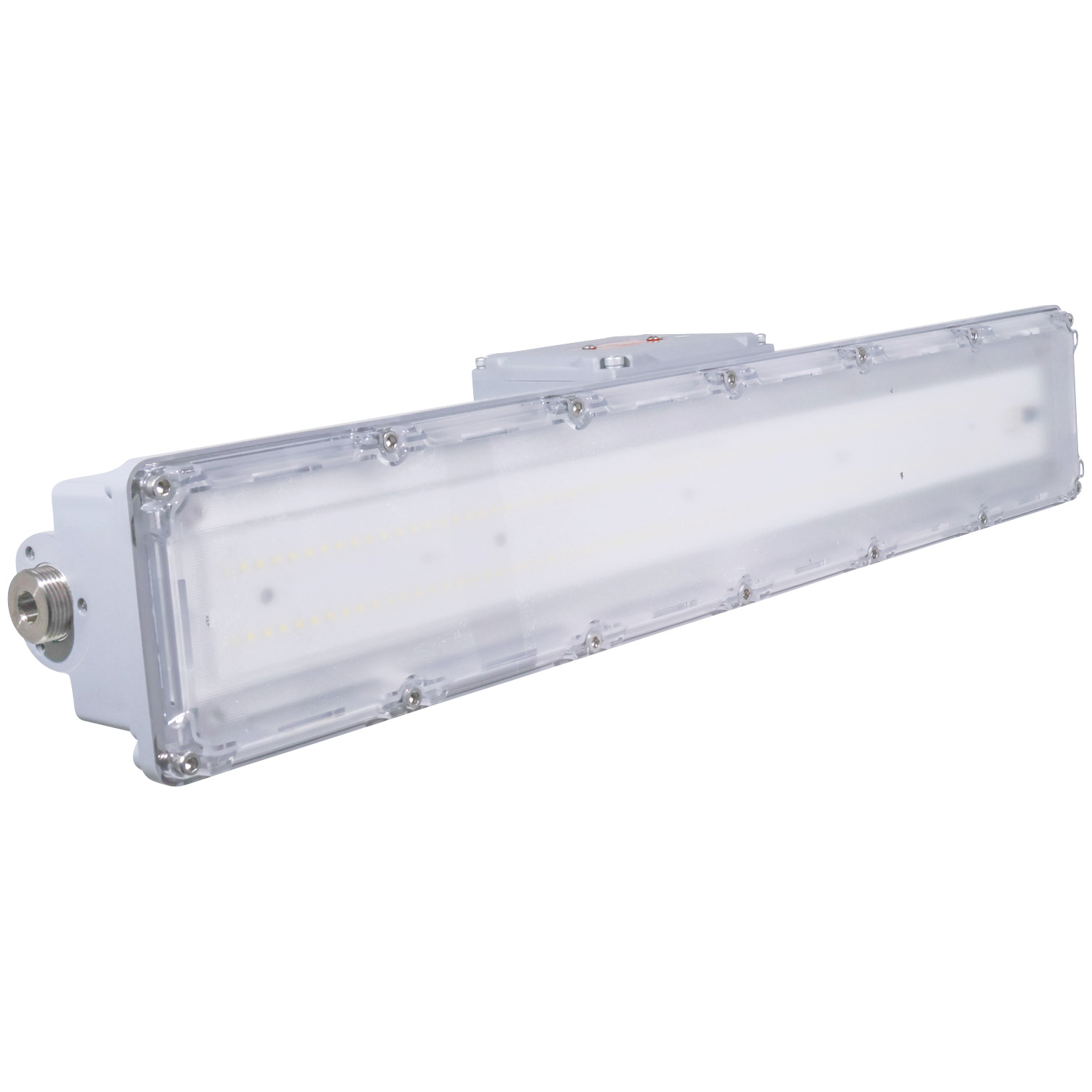

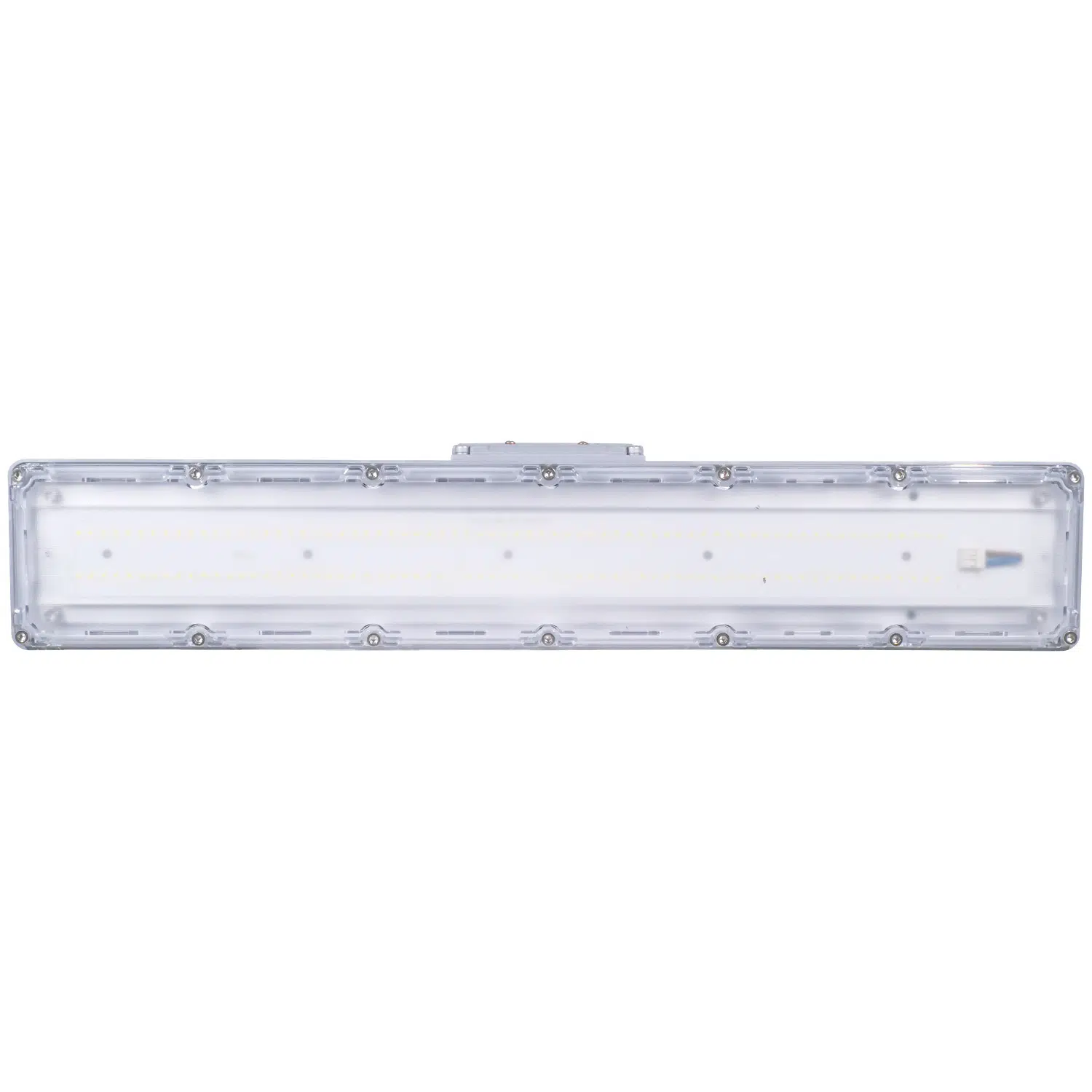

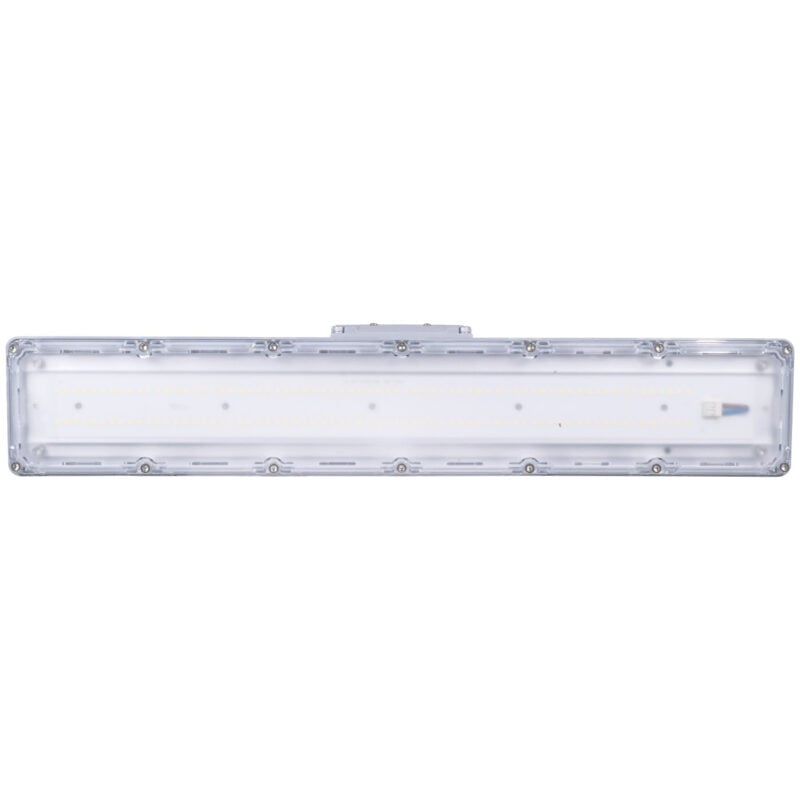

30 Watt 2 Foot Explosion Proof Linear LED Light | 4800 Lumens | Class 1 Div 2 | 5000K | 100-277V
Dwayne Kula | President, CTO and Founder
94 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 30 |
| Lumens | 4800 |
| Lumens Per Watt | 160 |
| Replaces | 175 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Frosted Polycarbonate Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting | Surface or Trunnion or 3/4 in NPT Pendant |
| Fixture Color | Gray |
| Frequency (Hz) | 50/60 |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| Housing | Fiberglass reinforced polycarbonate |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 6kV |
| Operating Temperature | -31°F to 131°F |
| Certifications | UL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 24.3 x 4.7 x 4.8 |
| Weight (lbs) | 7.7 |
| Cord Length | No Cord |
IES Files
Product Description
UL Specs
- UL 844 Hazardous Locations
- Class 1 Division 2, Group B,C,D
- Class 2, Division 2, Groups F,G
- Class 3
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- CSA / ATEX / IECEX
Key Features
- Brand: LED Lighting Supply
- Watts: 30
- Lumens: 4800
- Lumens Per Watt: 160
- Replaces: 175 Watt Metal Halide
- Voltage: 100V-277V
- Color Temperature: 5000K
- CRI: 70+
- Dimming: 1-10V
- Beam Angles (Std): 120°
- Optics: Frosted Polycarbonate Lens
- Lifespan: 150,000 (L70) hours
- Mounting: Surface or Trunnion or 3/4 in NPT Pendant
- Fixture Color: Gray
- Frequency (Hz): 50/60
- Power Factor: >.90
- THD: < 10%
Durable Construction
- Housing: Fiberglass reinforced polycarbonate
- IP Rating: IP66
- IK Rating: IK08
- Surge Protection: 6kV
- Operating Temperature: -31°F to 131°F
- Certifications: UL
- Warranty: 5 years
Measurements
- Dimensions (in): 24.3 x 4.7 x 4.8
- Weight (lbs): 7.7
- Cord Length: No Cord
You may also like...
-
50 Watt 2 Foot Explosion Proof Linear LED Light | 8000 Lumens | Class 1 Div 2 | 5000K | 100-277V
Availability: 116 In Stock Ships 3-5 DaysRetail Price: $572.22 -
100 Watt 4 Foot Explosion Proof Linear LED Light | 16000 Lumens | Class 1 Div 2 | 5000K | 100-277V
Availability: 181 In Stock Ships 3-5 DaysRetail Price: $711.33
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This is a simplified room utilization factor. It accounts for room reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual floor-level light distribution. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces. Actual light levels may vary based on fixture optics, mounting conditions, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 30 Watt 2 Foot Explosion Proof Linear LED Light is designed for hazardous location lighting, providing a reliable solution for environments where safety is paramount. With a lumen output of 4800 and a color temperature of 5000K, it offers bright and clear illumination suitable for various industrial settings. The fixture operates on a voltage range of 100-277V, making it versatile for different electrical systems.
Its construction is tailored for environments such as oil and gas facilities, where explosion-proof lighting is critical. The fixture's design allows for surface, trunnion, or 3/4 inch NPT pendant mounting, offering flexibility in installation to suit specific site requirements.
Core Performance and Output
The fixture delivers an output of 4800 lumens at an efficiency of 160 lumens per watt, ensuring effective illumination while maintaining energy efficiency. The 120° beam angle provides wide coverage, suitable for large areas requiring uniform light distribution. Electrical performance is stable across a frequency range of 50/60 Hz, with a power factor greater than 0.90 and total harmonic distortion below 10%.
While the fixture is designed for hazardous locations, it is important to consider that excessive output may occur at low mounting heights, potentially leading to glare. Additionally, reduced uniformity might be experienced at higher mounting heights, necessitating careful planning of installation height and spacing.
Adjustability and Control Options
This explosion-proof LED light includes 1-10V dimming capabilities, allowing for adjustable light levels to meet specific task requirements or energy-saving goals. The dimming feature provides flexibility in controlling the light output, which can be particularly useful in environments where varying light levels are needed.
Mounting options include surface, trunnion, or 3/4 inch NPT pendant, enabling adaptability to different installation scenarios. This flexibility ensures that the fixture can be securely installed in a manner that best suits the operational environment.
Longevity and Reliability
With a lifespan of 150,000 hours (L70), this fixture is built for long-term use, reducing the need for frequent replacements and maintenance. The robust design ensures reliable performance even in challenging conditions, contributing to lower operational costs over time.
The fixture's surge protection of 6kV further enhances its reliability, safeguarding it against electrical surges that could otherwise compromise its functionality.
Build Quality and Physical Characteristics
The fixture is constructed with a fiberglass reinforced polycarbonate housing, providing durability and resistance to impact. Its IP66 and IK08 ratings confirm its suitability for wet and harsh environments, ensuring protection against dust and water ingress as well as mechanical impact.
Operating within a temperature range of -31°F to 131°F, this fixture is capable of withstanding extreme environmental conditions, making it a reliable choice for various industrial applications.
Where This Product Fits Best
This explosion-proof LED light is ideal for environments where safety and reliability are critical. It is particularly suited for hazardous locations and facilities that handle flammable materials.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
The fixture's robust construction and certifications make it suitable for environments with potential exposure to explosive gases, dust, or fibers. Its adaptability in mounting options further enhances its suitability for diverse industrial settings.
Installation and Long-Term Use
Installation of this fixture can be accomplished using surface, trunnion, or 3/4 inch NPT pendant mounting, providing flexibility to meet specific site requirements. The fixture's lightweight design, at 7.7 lbs, facilitates easier handling during installation.
For long-term use, regular inspection and maintenance are recommended to ensure optimal performance, especially in environments with high exposure to dust or moisture. The fixture's durable construction minimizes maintenance needs, contributing to its cost-effectiveness over time.
How This Fixture Is Commonly Used
This fixture is typically mounted at heights that optimize its light distribution while minimizing glare. Common mounting heights range from 10 to 20 feet, depending on the specific application and required light levels.
Spacing and layout patterns should be planned based on the fixture's output and the area's lighting needs. Higher output can reduce the number of fixtures required but may necessitate careful consideration of potential glare, especially in confined spaces.
Safety, Certifications, and Warranty
This explosion-proof LED light is certified under UL 844 for hazardous locations, with classifications including Class 1 Division 2, Class 2 Division 2, and Class 3. It also holds CSA, ATEX, and IECEx certifications, ensuring compliance with international safety standards.
The fixture is backed by a 5-year warranty, providing assurance of its quality and reliability. Its certifications and robust construction make it a dependable choice for hazardous environments.
Frequently Asked Questions
Q: What is the beam angle of this fixture?
A: The fixture has a standard beam angle of 120°, providing wide coverage suitable for large areas.
Q: Can this fixture be dimmed?
A: Yes, it features 1-10V dimming capabilities, allowing for adjustable light levels.
Q: What are the mounting options available?
A: The fixture can be mounted using surface, trunnion, or 3/4 inch NPT pendant options.
Q: What is the expected lifespan of this fixture?
A: The fixture has an expected lifespan of 150,000 hours (L70), ensuring long-term reliability.
Q: What certifications does this fixture have?
A: It is certified under UL 844, Class 1 Division 2, Class 2 Division 2, Class 3, CSA, ATEX, and IECEx.
Application Questions and Clarification
Q: Is this fixture suitable for marine environments?
A: Yes, it is suitable for marine environments, as indicated by its UL 1598A Marine Outside Type certification.
Q: Can this fixture be used in paint booths?
A: Yes, it is suitable for paint booth lighting, providing safe illumination in environments with flammable vapors.
Q: What is the maximum operating temperature for this fixture?
A: The fixture can operate in temperatures up to 131°F, making it suitable for various industrial applications.
Q: How does the fixture handle electrical surges?
A: It includes 6kV surge protection, safeguarding against electrical surges that could affect performance.
