3 Watt Explosion Proof Exit Emergency LED Light | Class 1 Div 2 | 100V-277V
This 3-watt hazardous location LED fixture is a strong choice for environments requiring UL 844 compliance, such as chemical storage, industrial processing, or marine platforms, where exposure to dust, water, and impacts is common. Its IP66 and IK10 ratings ensure reliable operation in wet, dusty, or high-impact areas, while the -40°F to 140°F temperature range supports use in both cold storage and high-heat settings. The fixture's 5000K output is ideal for emergency, indicator, or marker lighting rather than general illumination.
Dwayne Kula | President, CTO and Founder
20 in stock
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 924 Emergency Lighting
- UL 1598A Marine Outside Type
- UL 1598 Wet Locations
Key Features
| Brand | LED Lighting Supply |
| Watts | 3 |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| Dimming | No |
| Lifespan | 50,000 (L70) hours |
| Mounting | Surface or Wall or 3/4 in NPT |
| Frequency (Hz) | 50/60 |
| Power Factor | >.95 |
Durable Construction
| IP Rating | IP66 |
| IK Rating | IK10 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 140°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 16 W X 11.7 H |
| Weight (lbs) | 7.3 |
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

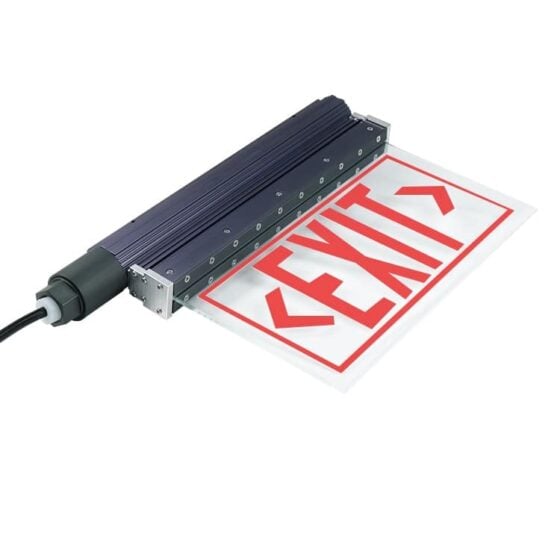

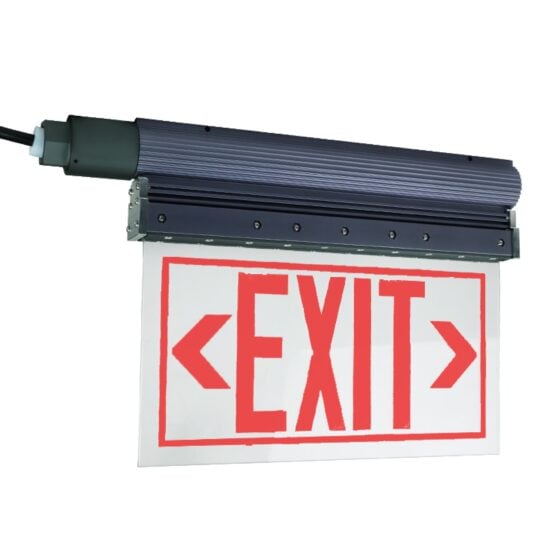

This 3-watt explosion proof LED exit emergency light is designed for hazardous location lighting and emergency exit marking. It operates on 100V-277V power and provides 5000K illumination.
The fixture is rated for Class I, Division 2; Class II, Division 1 and 2; and Class III locations. Its IP66 enclosure, IK10 impact rating, and marine outside type listing support use in exposed industrial and marine environment lighting conditions.
Core Performance and Output
The fixture uses 3 watts and operates at 100V-277V, 50/60 Hz. Power factor is greater than 0.95, and the unit includes 10kV surge protection.
Beam distribution information is not provided. Output is intended for exit emergency lighting rather than general hazardous location lighting coverage.
The supplied product data does not establish fixture spacing, coverage area, or mounting-height limits. Placement must account for the required exit marking location and site layout.
Adjustability and Control Options
This fixture is non-dimming. It is intended for fixed emergency exit operation.
It supports surface mounting, wall mounting, or 3/4-inch NPT mounting. The selected mounting method should match the available structure and conduit arrangement.
Longevity and Reliability
Rated life is 50,000 L70 hours. The fixture is covered by a 5-year warranty.
The operating temperature range is -40 degrees F to 140 degrees F. A 10kV surge protection rating is included for electrical transient protection.
Build Quality and Physical Characteristics
The enclosure is rated IP66 and IK10. It is built for wet location and hazardous location conditions covered by its listed classifications.
Fixture dimensions are 16 inches wide by 11.7 inches high. Weight is 7.3 pounds.
Where This Product Fits Best
This fixture fits classified industrial and marine locations requiring explosion proof lighting and emergency exit marking. Its hazardous location classifications support use where the site classification matches the listed Class, Division, and Group ratings.
- hazardous location lighting
- explosion proof lighting
- marine environment lighting
- oil and gas facility lighting
- refinery lighting
- offshore rig lighting
IP66, wet location listing, marine outside type listing, and operation from -40 degrees F to 140 degrees F support exposed and demanding environmental conditions.
Installation and Long-Term Use
Install using the surface, wall, or 3/4-inch NPT mounting option appropriate for the site. The mounting surface and conduit arrangement must support the 7.3-pound fixture.
Verify the hazardous location classification before installation. The installed location must fall within the fixture’s listed Class, Division, and Group ratings.
How This Fixture Is Commonly Used
In hazardous location lighting and explosion proof lighting installations, the fixture is positioned at required exit locations using wall, surface, or 3/4-inch NPT mounting. Mounting height follows the exit location, structure, and project layout.
Marine environment lighting, oil and gas facility lighting, refinery lighting, and offshore rig lighting installations require mounting methods that match the available structure and conduit routing. Fixture placement varies with the exit layout because supplied product data does not establish spacing or coverage values.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. UL 924 Emergency Lighting. UL 1598A Marine Outside Type. UL 1598 Wet Locations.
Class I, Division 2, Groups A, B, C, D. Class II, Division 1, Groups E, F, G. Class II, Division 2, Groups F, G. Class III.
IP66. IK10. Rebate eligible. Warranty is 5 years.
Frequently Asked Questions
Q: What voltage does this explosion proof exit emergency light require?
A: The fixture operates on 100V-277V, 50/60 Hz power.
Q: Is this fixture dimmable?
A: No. This fixture is non-dimming.
Q: What mounting options are available?
A: The fixture supports surface mounting, wall mounting, or 3/4-inch NPT mounting.
Q: What should be considered when planning fixture placement?
A: Exit location, mounting method, available structure, and hazardous location classification affect placement. The supplied product data does not establish fixture spacing or coverage area.
Application Questions and Clarification
Q: Can this fixture be used for hazardous location lighting?
A: Yes, when the installation matches its listed Class I, Division 2; Class II, Division 1 or 2; or Class III classifications and applicable group ratings.
Q: Is this fixture listed for marine environment lighting?
A: Yes. The fixture is UL 1598A Marine Outside Type listed and UL 1598 Wet Locations listed.
Q: What environmental conditions are supported by the fixture?
A: The fixture is rated IP66 and IK10 and operates from -40 degrees F to 140 degrees F.
