3 Watt Explosion Proof Exit Emergency LED Light | Class 1 Div 1
Dwayne Kula | President, CTO and Founder
20 in stock
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 1, Groups C, D
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 924 Emergency Lighting
- UL 1598A Marine Outside Type
- UL 1598 Wet Locations
- UL 8750 LED Safety
Key Features
| Brand | LED Lighting Supply |
| Watts | 3 |
| Voltage | 100V-277V |
| Dimming | No |
| Optics | Tempered Glass Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Chain-Cable or 3/4 in NPT Pendant |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Aluminum Alloy |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Operating Temperature | -40°F to 140°F |
| Certifications | ETL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 16 X 11.7 |
| Weight (lbs) | 14 |
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

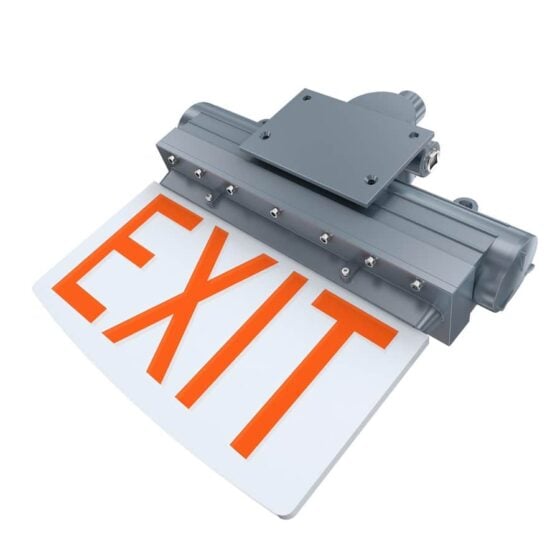

This 3 watt explosion proof exit emergency LED light provides emergency illumination in classified and marine environments. It operates on 100-277V and uses a 5000K LED source.

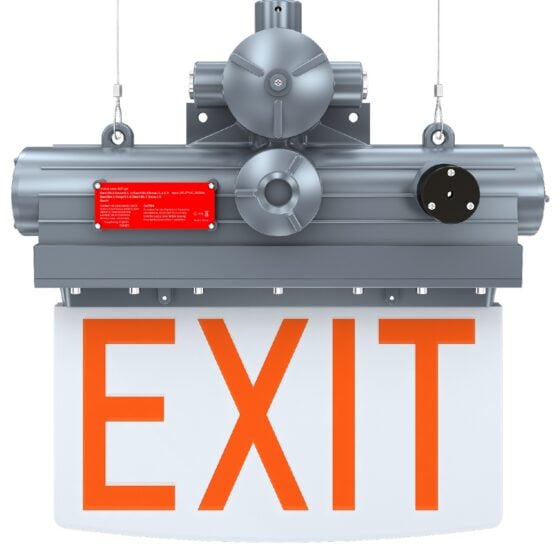

The fixture is built for hazardous location lighting where emergency equipment must match the area classification and environmental exposure. Chain-cable and 3/4 in NPT pendant mounting support suspended installation layouts.
Core Performance and Output
The LED source draws 3 watts and operates at 5000K. Input voltage is 100-277V, 50-60Hz, with a power factor greater than 0.95 and THD below 10%.
This is an emergency illumination fixture, not a general area lighting fixture. Output and placement must be coordinated with the required emergency lighting layout for the space.
Adjustability and Control Options
This fixture is non-dimming. It is intended for emergency lighting operation rather than adjustable output control.
The available mounting methods are chain-cable suspension and 3/4 in NPT pendant mounting. The selected mounting method must match the existing support structure and conduit arrangement.
Longevity and Reliability
The LED system is rated for 50,000 L70 hours. The fixture operates from -40F to 140F.
Its sealed IP66 construction and IK10 impact rating support use where moisture, dust, and physical exposure are present. Periodic inspection should include the lens, housing, mounting connection, and wiring entry points.
Build Quality and Physical Characteristics
The housing is aluminum alloy with a tempered glass lens. The fixture measures 16 x 11.7 inches and weighs 14 pounds.
The aluminum alloy enclosure, tempered lens, and pendant or chain-cable mounting arrangement require a support point capable of carrying the fixture weight. Confirm clearance around the fixture before installation.
Where This Product Fits Best
This fixture fits classified locations and marine-exposed installations requiring explosion proof emergency lighting. Its hazardous location classifications, wet location listing, and marine outside type listing support these environments.
- hazardous location lighting
- explosion proof lighting
- chemical processing facility lighting
- paint booth lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
The fixture is rated IP66 and IK10 and operates from -40F to 140F. It carries Class I, Class II, and Class III hazardous location classifications as listed.
Installation and Long-Term Use
Install the fixture using the chain-cable or 3/4 in NPT pendant mounting option. Verify the mounting support, electrical supply voltage, classified-area requirements, and wiring method before installation.
The 100-277V input range allows connection to supported building voltage systems. Long-term maintenance should include inspection of the housing, glass lens, mounting hardware, and electrical connections.
How This Fixture Is Commonly Used
In hazardous location lighting, explosion proof lighting, and chemical processing facility lighting, the fixture is suspended from a chain-cable or 3/4 in NPT pendant connection where emergency illumination is required. Mounting height is determined by the facility emergency lighting layout and available structural support.
In refinery lighting, oil and gas facility lighting, and marine environment lighting, fixture placement follows the required emergency lighting path and classified-area conditions. Spacing varies with the project layout because the supplied data does not establish a fixture spacing value.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. Class I, Division 1, Groups C and D. Class I, Division 2, Groups A, B, C, and D. Class II, Division 1, Groups E, F, and G. Class II, Division 2, Groups F and G. Class III.
UL 924 Emergency Lighting. UL 1598A Marine Outside Type. UL 1598 Wet Locations. UL 8750 LED Safety. ETL. Rebate Eligible. IP66. IK10. Warranty: 5 years.
Frequently Asked Questions
Q: What voltage does this explosion proof emergency light accept?
A: The fixture operates on 100-277V, 50-60Hz.
Q: Is this fixture dimmable?
A: No. This fixture is non-dimming.
Q: What mounting options are available?
A: The fixture supports chain-cable mounting or 3/4 in NPT pendant mounting.
Q: What hazardous location classifications are listed?
A: The fixture is listed for Class I, Division 1, Groups C and D; Class I, Division 2, Groups A, B, C, and D; Class II, Division 1, Groups E, F, and G; Class II, Division 2, Groups F and G; and Class III.
Application Questions and Clarification
Q: Is this fixture applicable for marine environment lighting?
A: Yes. The fixture is listed UL 1598A Marine Outside Type and UL 1598 Wet Locations.
Q: What should be reviewed before placing this fixture in hazardous location lighting?
A: Review the area classification, available voltage, mounting support, wiring method, and required emergency lighting layout. The fixture classifications must match the classified area requirements.
Q: Does the supplied data establish fixture spacing or mounting height?
A: No. The supplied data identifies chain-cable and 3/4 in NPT pendant mounting but does not establish a mounting height or spacing value.
