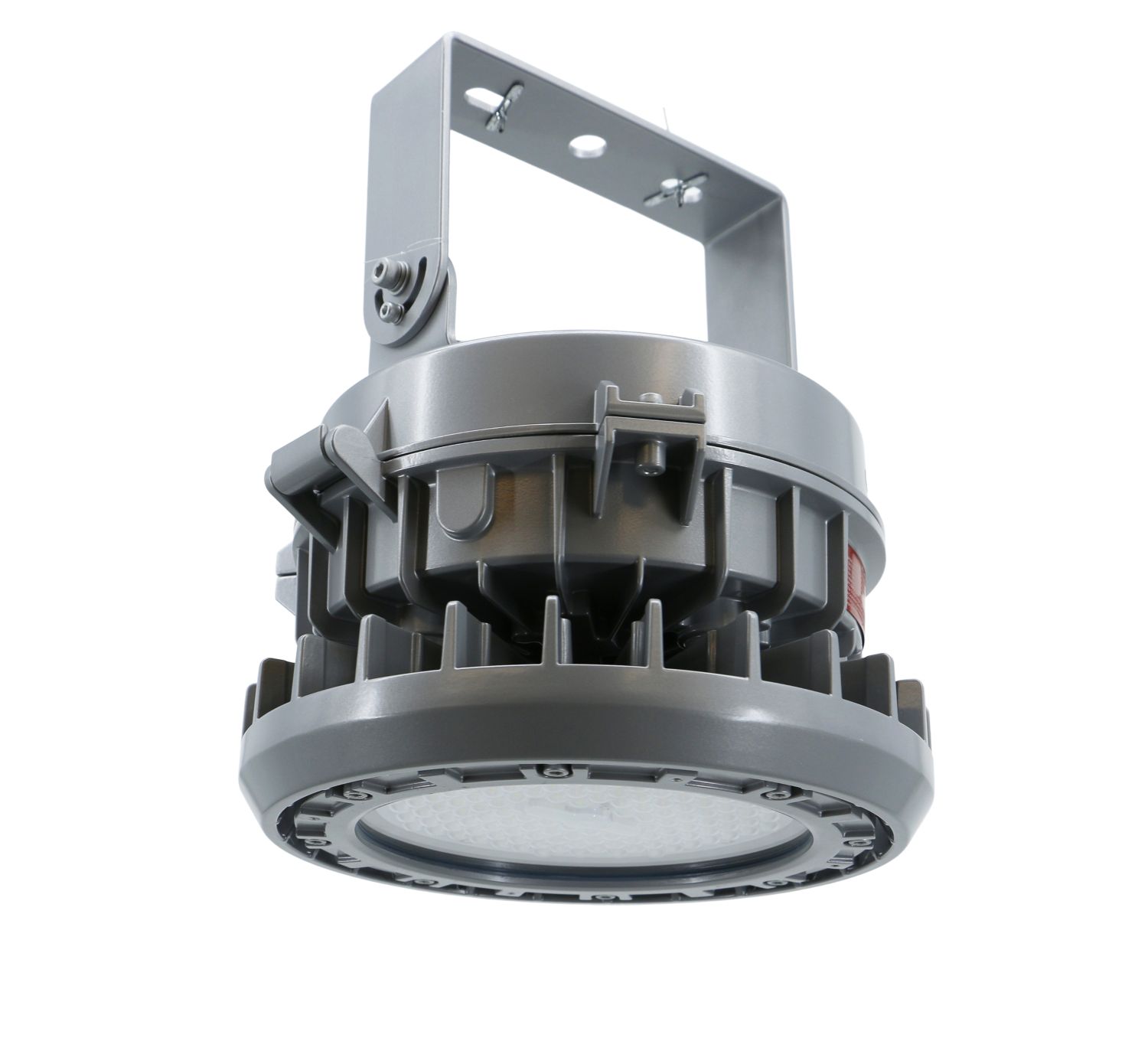

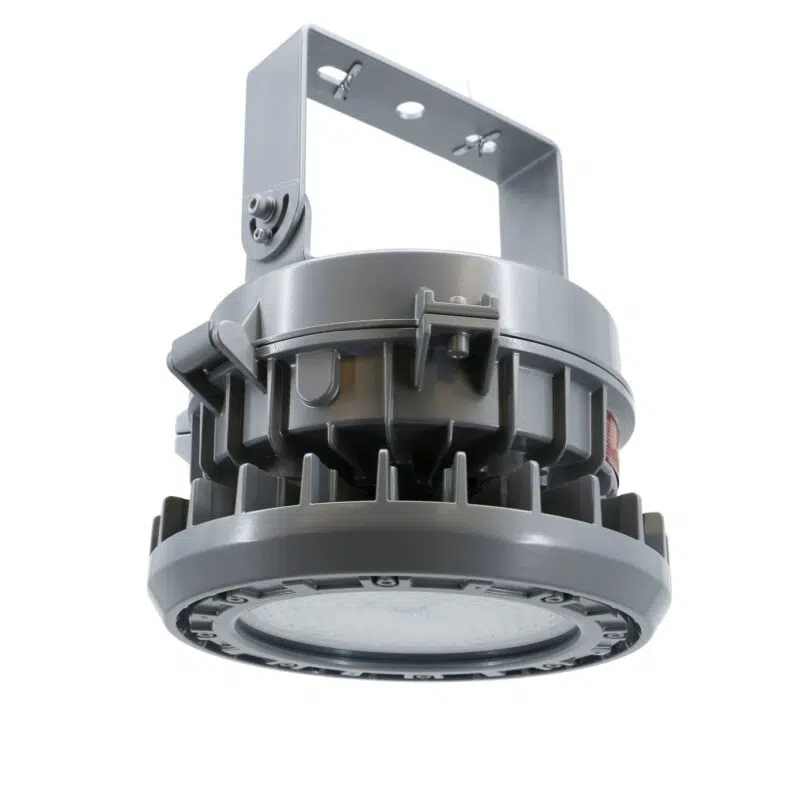

240 Watt Round Explosion Proof LED Light | 33600 Lumens | Class 1 Div 2 | 5000K | 100-277V | Optional 10 Year Warranty
The 240 Watt Round Explosion Proof LED Light is an excellent choice for hazardous locations, offering 33,600 lumens at 5000K with a robust IP66 and IK08 rating. Its UL844, ATEX, and IECEx certifications ensure safety in volatile environments like paint booths and chemical plants. With a lifespan of 150,000 hours and optional 10-year warranty, it provides long-term reliability. The versatile yoke or pendant mounting options make it ideal for industrial settings requiring durable, efficient lighting solutions.
Neil Peterson | CEO and Chief Lighting Specialist
350 in stock (can be backordered)
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 240 |
| Lumens | 33600 |
| Lumens Per Watt | 140 |
| Replaces | 1000 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting | Yoke or 3/4 in NPT Pendant |
| Mounting (Opt) | Pendant or Surface |
| Fixture Color | Gray |
| Frequency (Hz) | 50/60 |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| Housing | Powder Coated Aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 149°F |
| Certifications | UL |
| Warranty | 5 | 10 years |
Measurements
| Dimensions (in) | 14.96 W X 14.37 H |
| Weight (lbs) | 20 |
| Cord Length | No Cord |
IES Files
Product Description
UL Specs
- Class 1 Division 2, Group A,B,C,D
- Class 2, Division 1, Groups E,F,G
- Class 2, Division 2, Groups F,G
- Class 3
- Class l, Zone 2, Group IlC
- Zone 20 and Zone 21
- Zone 22
- UL844, Wet Locations (UL 1598 / UL1598A)
- CSA, ATEX, IECEX
Key Features
- Brand: LED Lighting Supply
- Watts: 240
- Lumens: 33600
- Lumens Per Watt: 140
- Replaces: 1000 Watt Metal Halide
- Voltage: 100V-277V
- Color Temperature: 5000K
- CRI: 70+
- Dimming: 1-10V
- Beam Angles (Std): 120°
- Optics: Tempered Glass Lens
- Lifespan: 150,000 (L70) hours
- Mounting: Yoke or 3/4 in NPT Pendant
- Mounting (Opt): Pendant or Surface
- Fixture Color: Gray
- Frequency (Hz): 50/60
- Power Factor: >.90
- THD: < 10%
Durable Construction
- Housing: Powder Coated Aluminum
- IP Rating: IP66
- IK Rating: IK08
- Surge Protection: 10kV
- Operating Temperature: -40°F to 149°F
- Certifications: UL
- Warranty: 5 | 10 years
Measurements
- Dimensions (in): 14.96 W X 14.37 H
- Weight (lbs): 20
- Cord Length: No Cord
You may also like...
-
100 Watt Round Explosion Proof LED Light | 14000 Lumens | Class 1 Div 2 | 5000K | 100-277V | Optional 10 Year Warranty
Availability: 105 In Stock Ships 2-3 DaysRetail Price: $638.89 -
150 Watt Round Explosion Proof LED Light | 21000 Lumens | Class 1 Div 2 | 5000K | 100-277V
Availability: 121 In Stock Ships 2-3 DaysRetail Price: $738.89
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This is a simplified room utilization factor. It accounts for room reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual floor-level light distribution. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces. Actual light levels may vary based on fixture optics, mounting conditions, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 240 Watt Round Explosion Proof LED Light is engineered for environments where safety and durability are paramount. Designed to deliver 33,600 lumens at a color temperature of 5000K, it operates efficiently within a voltage range of 100-277V. This fixture is particularly suited for hazardous locations, offering reliable performance in areas such as paint booths and chemical processing facilities. Its robust construction and explosion-proof design make it an ideal replacement for traditional 1000 Watt metal halide fixtures.
With certifications including UL844, Class I/II/III, ATEX, and IECEx, this light is built to withstand challenging conditions. It features a versatile mounting system, allowing for either yoke or 3/4 inch NPT pendant installation, providing flexibility in various industrial settings.
Core Performance and Output
This explosion-proof LED light delivers a high output of 33,600 lumens with an efficiency of 140 lumens per watt. The fixture's 120° beam angle ensures broad and even light distribution, suitable for large areas requiring consistent illumination. It operates with a power factor greater than 0.90 and a total harmonic distortion of less than 10%, ensuring stable electrical performance.
While the fixture is designed for high-output applications, it may produce excessive brightness if installed at low mounting heights. For optimal performance, consider the mounting height and space requirements to ensure uniform light distribution without glare.
Adjustability and Control Options
The fixture supports 1-10V dimming, allowing for adjustable light levels to suit specific tasks or energy-saving requirements. This feature provides flexibility in controlling the lighting environment, enhancing both functionality and efficiency.
Its robust design includes tempered glass optics, ensuring durability while maintaining high optical performance. The fixture's adjustability makes it suitable for various industrial applications where precise lighting control is necessary.
Longevity and Reliability
With a lifespan of 150,000 hours (L70), this LED light offers long-term reliability, reducing maintenance frequency and associated costs. The fixture's durable construction and high-quality components ensure consistent performance over time, even in demanding environments.
The optional 10-year warranty provides additional assurance of the product's longevity and reliability, making it a dependable choice for critical applications.
Build Quality and Physical Characteristics
The fixture is constructed from powder-coated aluminum, providing excellent resistance to corrosion and physical impact. Its IP66 and IK08 ratings confirm its suitability for wet and harsh environments, ensuring protection against dust and water ingress.
Weighing 20 lbs and measuring 14.96 inches in width and 14.37 inches in height, the fixture is compact yet robust, designed to withstand challenging industrial conditions. The 10kV surge protection further enhances its resilience against electrical disturbances.
Where This Product Fits Best
This explosion-proof LED light is ideal for environments where safety and durability are critical. It is particularly suited for hazardous locations and areas with potential exposure to explosive gases or dust.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
- offshore rig lighting
The fixture's robust construction and certifications make it suitable for environments with high humidity, dust, and potential exposure to corrosive substances. Its design ensures reliable performance in both indoor and outdoor settings.
Installation and Long-Term Use
Installation options include yoke or 3/4 inch NPT pendant mounting, providing flexibility to accommodate various structural configurations. The fixture's compact design allows for easy integration into existing systems, minimizing installation complexity.
For long-term use, regular inspection and maintenance are recommended to ensure optimal performance. The fixture's durable construction minimizes the need for frequent maintenance, reducing operational downtime and costs.
How This Fixture Is Commonly Used
This fixture is typically mounted at heights suitable for its high lumen output, ensuring effective illumination without causing glare. Common mounting heights range from 15 to 30 feet, depending on the specific application and lighting requirements.
Spacing and layout patterns vary based on the area size and desired light levels. Higher output can reduce the number of fixtures needed but may require careful consideration of glare and uniformity.
Safety, Certifications, and Warranty
This LED light is certified for use in hazardous locations, meeting UL844, Class I/II/III, ATEX, and IECEx standards. Its IP66 and IK08 ratings confirm its suitability for wet and harsh environments, ensuring safety and reliability.
The fixture comes with a standard 5-year warranty, with an optional extension to 10 years, providing peace of mind and assurance of long-term performance.
Frequently Asked Questions
Q: What is the beam angle of this fixture?
A: The fixture has a standard beam angle of 120°, providing broad and even light distribution.
Q: Can this fixture be dimmed?
A: Yes, it supports 1-10V dimming for adjustable light levels.
Q: What are the mounting options available?
A: The fixture can be mounted using a yoke or 3/4 inch NPT pendant.
Q: What is the expected lifespan of this LED light?
A: The fixture has an expected lifespan of 150,000 hours (L70).
Q: Is this fixture suitable for outdoor use?
A: Yes, it is rated IP66, making it suitable for outdoor and wet locations.
Application Questions and Clarification
Q: What environments are best suited for this explosion-proof light?
A: This light is ideal for hazardous locations, paint booths, chemical processing facilities, and other environments requiring explosion-proof lighting.
Q: Can this fixture be used in marine environments?
A: Yes, it is suitable for marine environments, including offshore rigs and marine facilities.
Q: How does the fixture perform in high-temperature areas?
A: The fixture operates effectively in temperatures ranging from -40°F to 149°F.
Q: What is the warranty period for this fixture?
A: The fixture comes with a standard 5-year warranty, with an optional 10-year warranty available.
