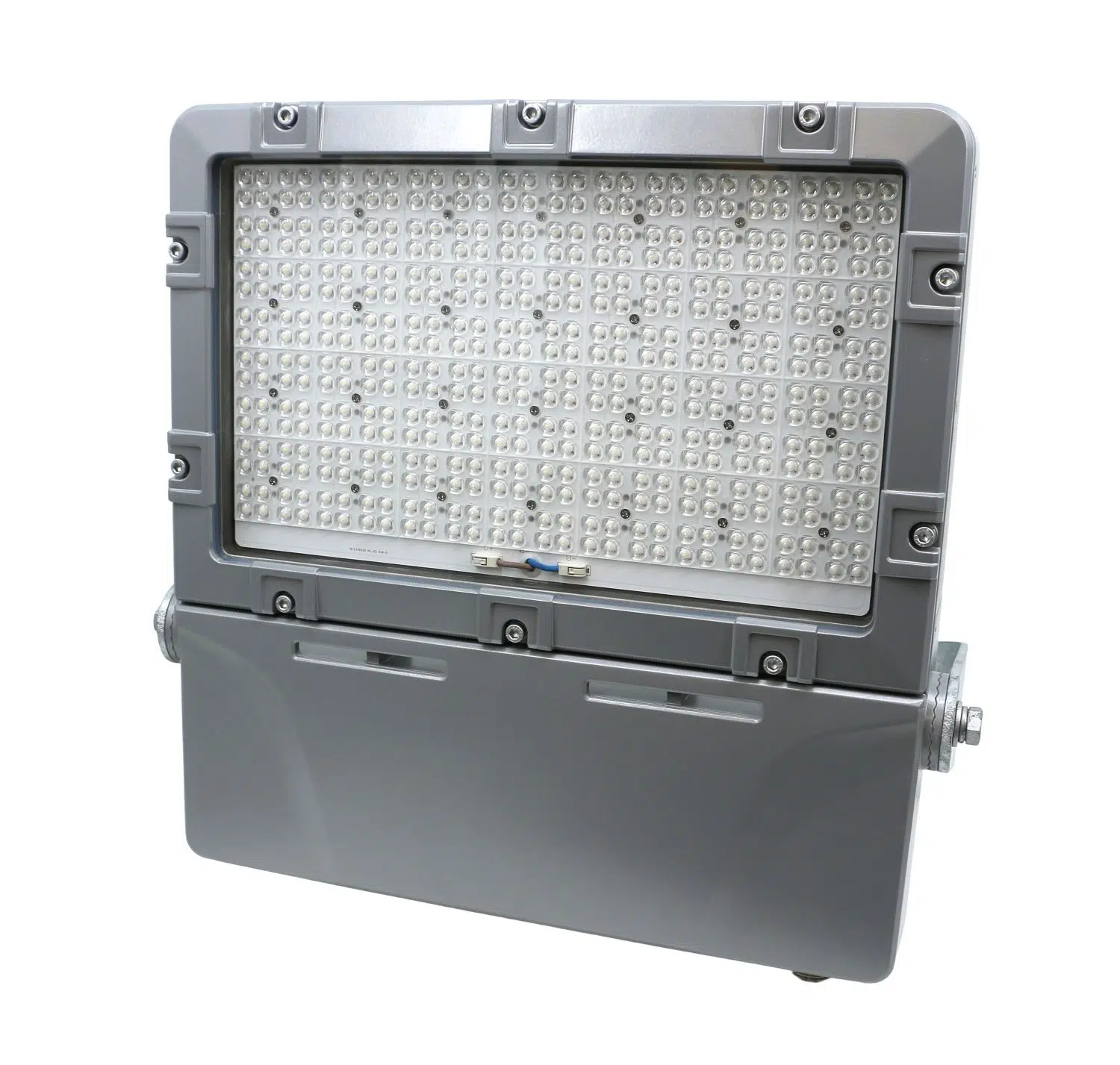

240 Watt LED Explosion Proof Flood Light | 36,000 Lumens | Class 1 Div 2 | 5000K | 100-277V
The 240 Watt LED Explosion Proof Flood Light is an excellent choice for hazardous locations, such as oil and gas facilities, due to its robust UL 844 and ATEX certifications. Delivering 36,000 lumens at 5000K, it efficiently replaces 1000W metal halides, offering significant energy savings. Its IP66 and IK08 ratings ensure durability in harsh environments, while the 150,000-hour lifespan minimizes maintenance. The versatile yoke or slip fitter mounting options enhance installation flexibility in challenging settings.
Neil Peterson | CEO and Chief Lighting Specialist
20 in stock
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- UL844
- CSA / ATEX / IECEX
Key Features
| Brand | LED Lighting Supply |
| Watts | 240 |
| Lumens | 36000 |
| Lumens Per Watt | 150 |
| Replaces | 1000 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting | Yoke |
| Mounting (Opt) | Slip Fitter |
| Fixture Color | Gray |
| Frequency (Hz) | 50/60 |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| Housing | Aluminum Alloy |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 10kV |
| Certifications | UL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 22.3 L X 18.6 W X 3.1 H |
| Weight (lbs) | 28.6 |
| Cord Length | No Cord |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 240 watt LED explosion proof flood light delivers 36,000 lumens at 5000K for hazardous location lighting where a broad 120 degree distribution is required. It is built for Class I, II, and III hazardous locations and provides a 1000 watt metal halide replacement option.

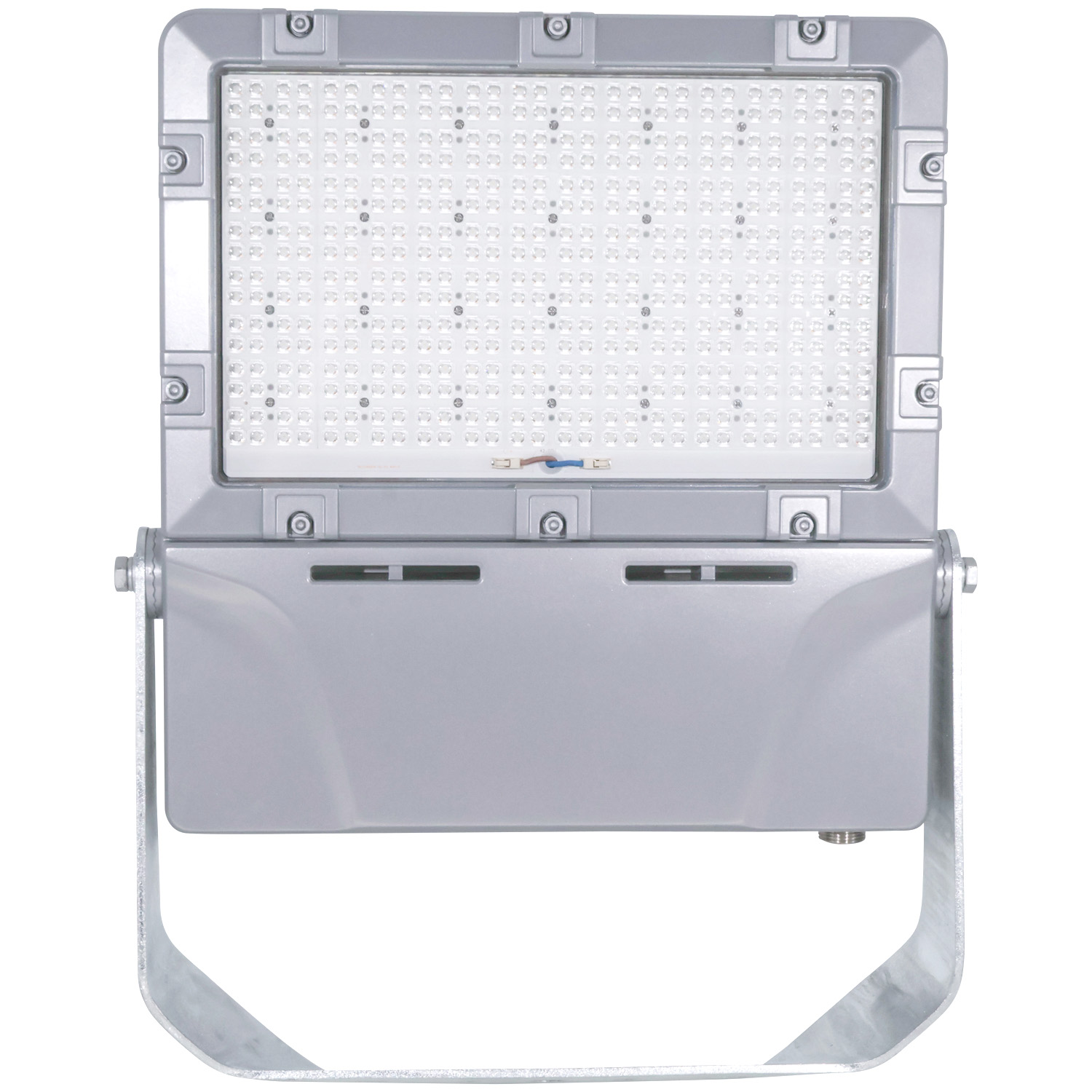

The fixture uses an aluminum alloy housing, tempered glass lens, and gray finish. Yoke mounting is standard, with slip fitter mounting available.
Core Performance and Output
The fixture produces 36,000 lumens from 240 watts, providing 150 lumens per watt. The standard 120 degree beam angle distributes light across broad work and process areas.
It operates on 100-277V or 277-480V power at 50/60 Hz. Power factor is greater than 0.90 and total harmonic distortion is less than 10%.
This output level can be excessive where mounting heights are low or where personnel work directly below the fixture. Higher mounting positions and wider layouts require confirmation of light levels and uniformity.
Adjustability and Control Options
This fixture is non-dimming. It is intended for constant-output operation.

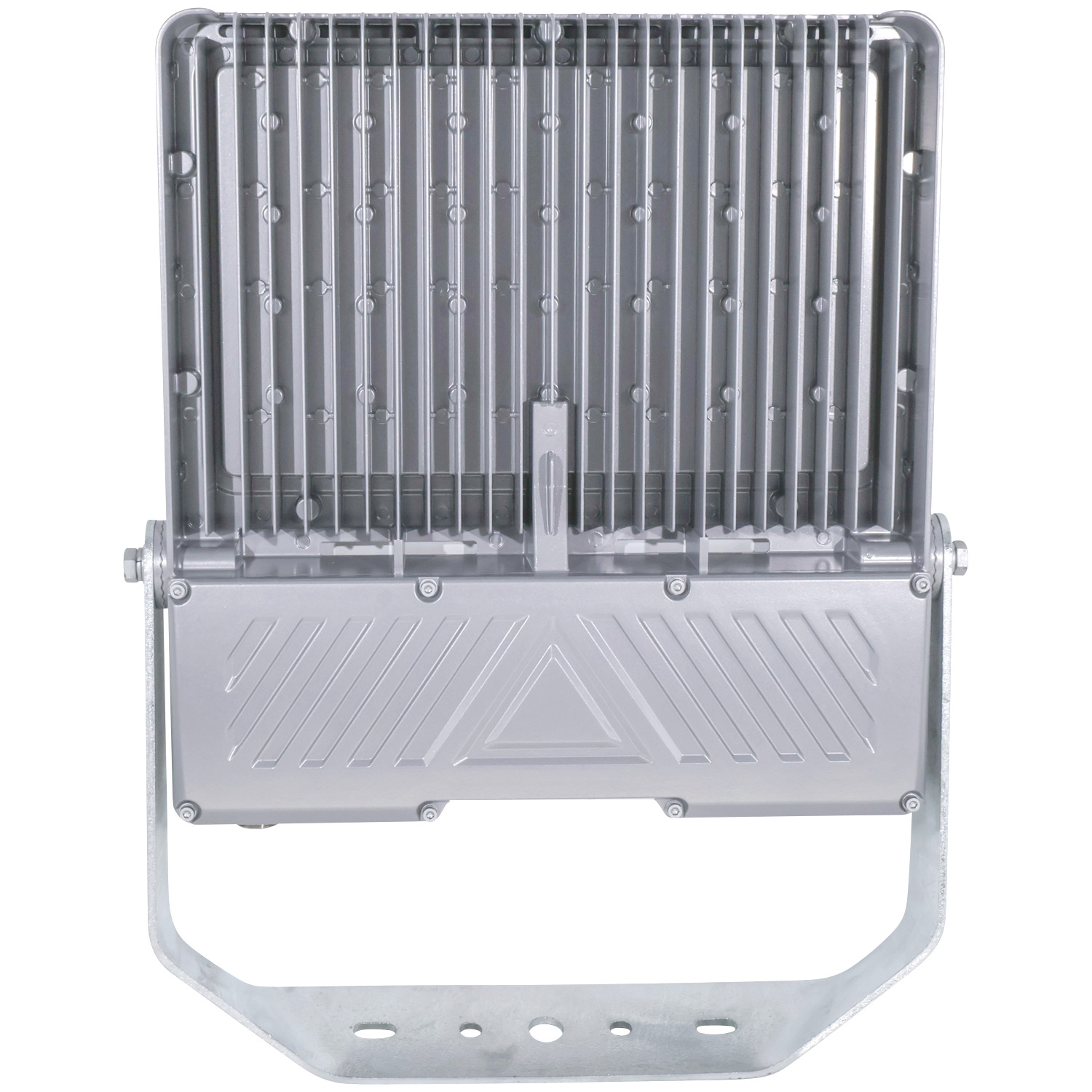

The standard yoke allows directional aiming after installation. The optional slip fitter supports pole or tenon-style mounting where fixture angle must be set toward the intended area.
Longevity and Reliability
Rated life is 150,000 hours at L70. The fixture includes 10kV surge protection for electrical transient protection.
The IP66 enclosure rating protects the fixture from dust and water ingress. IK08 impact resistance supports use where physical contact with the fixture is a concern.
Build Quality and Physical Characteristics
The aluminum alloy housing measures 22.3 inches long by 18.6 inches wide by 3.1 inches high. Fixture weight is 28.6 pounds.
A tempered glass lens protects the optical assembly. The fixture is supplied without a cord, so field connection must be planned for the selected voltage and mounting arrangement.
Where This Product Fits Best
This explosion proof flood light fits hazardous and classified areas requiring high-output general illumination with a wide beam pattern. Its Class I, II, and III ratings support installations with the listed hazardous location classifications.
- hazardous location lighting
- explosion proof lighting
- oil and gas facility lighting
- refinery lighting
- chemical processing facility lighting
- paint booth lighting
- marine environment lighting
- offshore rig lighting
IP66, UL 1598 wet location suitability, and UL 1598A Marine Outside Type suitability support wet and marine exposure conditions. Final placement must match the applicable area classification and mounting conditions.
Installation and Long-Term Use
Yoke mounting is standard for wall, structure, or equipment-mounted floodlight positioning. The optional slip fitter is used where the fixture mounts to a compatible pole or tenon connection.
Confirm fixture support for the 28.6 pound weight, aiming position, supply voltage, and hazardous-area classification before installation. The fixture has no cord and requires a field electrical connection.
How This Fixture Is Commonly Used
In hazardous location lighting, explosion proof lighting, refinery lighting, and chemical processing facility lighting, the fixture is aimed to place the 120 degree beam over the required process or work area. Mounting height is determined by the available structure, required light distribution, and classification requirements.
Oil and gas facility lighting, paint booth lighting, marine environment lighting, and offshore rig lighting often require fixture orientation that limits shadowing from equipment or structural elements. Wider spacing can reduce fixture count, but uniformity and glare must be checked against the final layout.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. UL 1598 Suitable for Wet Locations. UL 1598A Marine Outside Type. CSA, ATEX, and IECEx.
Class I, Division 2, Groups A, B, C, D. Class II, Division 1, Groups E, F, G. Class II, Division 2, Groups F, G. Class III.
The fixture includes a 5 year warranty.
Frequently Asked Questions
Q: What light output does this explosion proof flood light provide?
A: The fixture produces 36,000 lumens at 240 watts and 5000K.
Q: Is this fixture dimmable?
A: No. This fixture is non-dimming.
Q: What mounting options are available?
A: Yoke mounting is standard. A slip fitter mounting option is available.
Q: What should be considered when planning fixture layout?
A: Mounting height, required light distribution, fixture aiming, and layout requirements affect placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Can this fixture be used for oil and gas facility lighting?
A: The fixture is listed for oil and gas facility lighting and carries the stated Class I, II, and III hazardous location classifications.
Q: Is this fixture suitable for marine environment lighting?
A: The fixture is listed for marine environment lighting and is UL 1598A Marine Outside Type suitable.
Q: Which voltage options are available?
A: The available voltage options are 100-277V and 277-480V.
