200 Watt Explosion Proof LED Flood Light | 28000 Lumens | Class 1 Div 2 | 5000K | 100-277V
200 Watt LED Explosion Proof Flood Light – Class 1 Division 2 produces 28000 lumens. The fixture can be used indoors or outdoors. This light is ideal for outdoor hazardous location lighting applications.
Cory Peterson | VP of Marketing and Sales Operations
167 in stock
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
Key Features
| Brand | LED Lighting Supply |
| Watts | 200 |
| Lumens | 28000 |
| Lumens Per Watt | 140 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Beam Angles (Opt) | 40° or 60° or 90° |
| Optics | Tempered Glass Lens |
| Lifespan | 244,000 (L70) hours |
| Mounting | Yoke |
| Mounting (Opt) | Slip Fitter |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| Housing | Copper Free Aluminum |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Operating Temperature | -40°F to 140°F |
| Certifications | ETL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 19 X 15.9 X 3.1 |
| Weight (lbs) | 16.5 |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

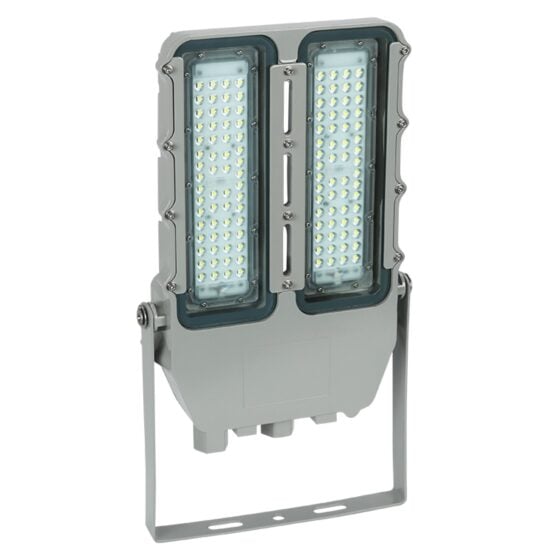

This 200W explosion proof LED flood light delivers 28,000 lumens at 5000K for hazardous location lighting where a broad flood distribution or controlled optical option is required. It operates on 100-277V and provides a 400W metal halide replacement option.
The fixture is built for explosion proof lighting, paint booth lighting, chemical processing facility lighting, and other classified locations covered by its UL hazardous-location ratings. Yoke mounting is standard, with a slip fitter option available.
Core Performance and Output
The fixture produces 28,000 lumens at 140 lumens per watt. The standard 120 degree beam angle supports broad-area illumination, while 40, 60, and 90 degree optics are available where the layout requires a more controlled distribution.
Electrical performance includes 100-277V operation, 50-60Hz frequency, power factor above 0.90, and THD below 10%. The 200W output can be excessive where mounting height is limited or where low light levels are required.
Optical selection affects fixture placement and uniformity. Narrower beam angles concentrate output, while the standard 120 degree optic distributes light across a wider area.
Adjustability and Control Options
This fixture supports 1-10V dimming. The dimming system must be compatible with the installed control method and wiring arrangement.
The standard yoke mount allows directional aiming. A slip fitter mounting option is available for installations that require fixture positioning from a compatible pole or mounting arm.
Longevity and Reliability
The rated L70 life is 244,000 hours. This rating indicates the point at which light output is expected to reach 70 percent of initial output.
The fixture is rated for operation from -40 degrees F to 140 degrees F. Its five-year warranty applies to the product warranty terms.
Build Quality and Physical Characteristics

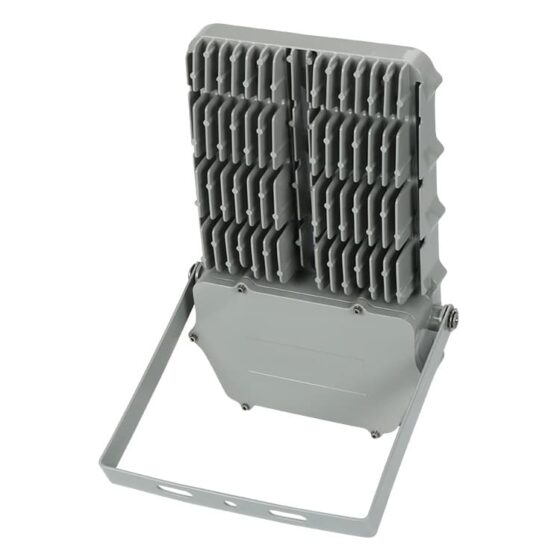

The housing is copper-free aluminum with a tempered glass lens. The fixture measures 19 by 15.9 by 3.1 inches and weighs 16.5 pounds.
IP66 and IK09 ratings support use where the fixture is exposed to dust, water, and physical impact. The mounting structure must support the fixture weight and maintain the required aiming position.
Where This Product Fits Best
This flood light fits classified and hazardous environments requiring high-output illumination with hazardous-location approvals. Its wet-location, marine outside type, and ABS ratings also support selected exposed environments within its listed application range.
- hazardous location lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
- offshore rig lighting
Environmental fit depends on the applicable hazardous classification, group, division, mounting arrangement, and optical requirement. The fixture is rated IP66, IK09, and for -40 degrees F to 140 degrees F operation.
Installation and Long-Term Use
Install the fixture using the standard yoke mount or optional slip fitter mount. Maintain access for aiming, electrical connection, inspection, and future service.
Verify the hazardous location classification against the fixture’s UL 844 listing before installation. Confirm that the mounting surface or support can carry the 16.5-pound fixture and hold its aimed position.
How This Fixture Is Commonly Used
In hazardous location lighting and explosion proof lighting layouts, the fixture is aimed from its yoke or slip fitter mount to direct the selected beam distribution toward the required work area. Mounting height is determined by the facility layout, required light levels, and selected optic.
Paint booth lighting and chemical processing facility lighting layouts commonly use the flood form factor where directional coverage is needed. Spacing varies with the selected beam angle, mounting height, target light level, and layout requirements.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. Class I, Division 2, Groups A, B, C, D. Class II, Division 1, Groups E, F, G. Class II, Division 2, Groups F, G. Class III.
UL 1598 Suitable for Wet Locations. UL 1598A Marine Outside Type. ABS. ETL. Rebate Eligible.
The fixture carries a five-year warranty.
Frequently Asked Questions
Q: What is the light output of this explosion proof flood light?
A: The fixture delivers 28,000 lumens at 200W, with an efficacy of 140 lumens per watt.
Q: What voltage does this fixture use?
A: The fixture operates on 100-277V at 50-60Hz.
Q: Is dimming available?
A: Yes. The fixture supports 1-10V dimming.
Q: What beam angles are available for layout planning?
A: The standard beam angle is 120 degrees. Optional 40, 60, and 90 degree beam angles are available.
Q: What mounting options are available?
A: Yoke mounting is standard. A slip fitter mount is available as an option.
Application Questions and Clarification
Q: Can this fixture be used for hazardous location lighting?
A: Yes. The fixture is listed under UL 844 Hazardous Locations for Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; and Class III.
Q: What should be confirmed for paint booth lighting or chemical processing facility lighting?
A: Confirm the required hazardous classification, mounting arrangement, voltage, beam angle, and layout requirements against the fixture specifications.
Q: What should be considered when selecting an optic for oil and gas facility lighting or refinery lighting?
A: Select the standard 120 degree beam angle or optional 40, 60, or 90 degree optic based on the required layout and light distribution.
