200 Watt Round Explosion Proof LED Light | 28000 Lumens | Class 1 Div 2 | 5000K | 100V-277V | NSF Rated
Dwayne Kula | President, CTO and Founder
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
- NSF
Key Features
| Brand | LED Lighting Supply |
| Watts | 200 |
| Lumens | 28000 |
| Lumens Per Watt | 140 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | 3/4 in NPT Pendant |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
Durable Construction
| Housing | Copper Free Aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 140°F |
| Certifications | ETL | Rebate Eligible | NSF Rated |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 12.6 D X 9.2 H |
| Weight (lbs) | 22.60 |
Features/Accessories
- NSF Rated Food Grade
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

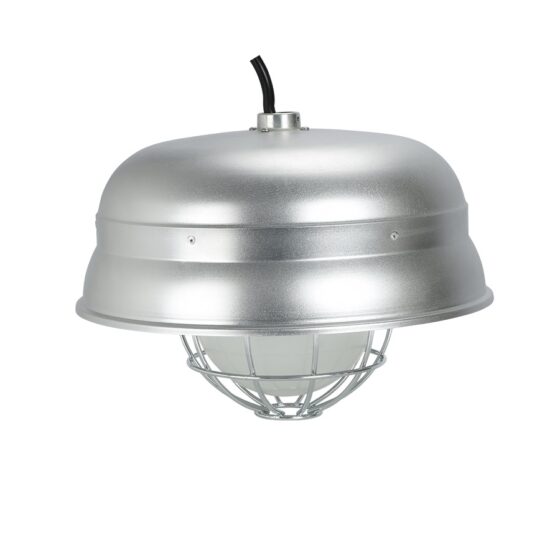

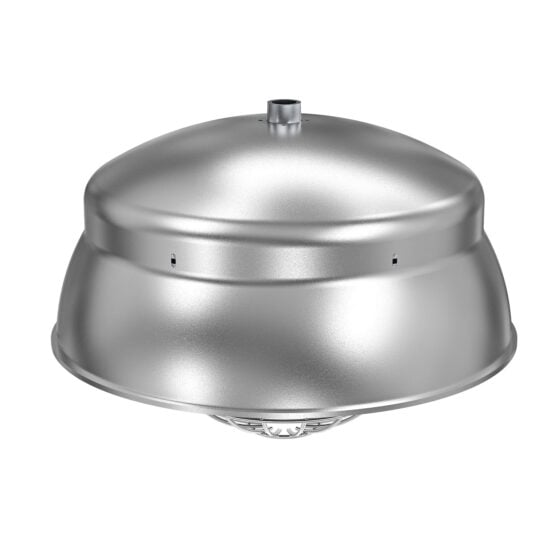

This 200 watt round explosion proof LED light delivers 28,000 lumens at 5000K for hazardous location lighting. It uses a sealed round housing, polycarbonate lens, and 3/4 inch NPT pendant mount.
The fixture operates on 100V-277V power and replaces a 400 watt metal halide fixture. Its Class I, II, and III ratings support locations where hazardous area classification is part of the lighting requirement.
Core Performance and Output
The fixture produces 28,000 lumens at 140 lumens per watt. The standard 120 degree beam distributes light across broad work areas from a pendant-mounted position.
It operates at 100V-277V, 50-60Hz, with a power factor above 0.95. The 200 watt output can be excessive where mounting heights are low or where the work area requires controlled light levels.
The 120 degree distribution supports broad coverage, but uniformity at higher mounting heights depends on the final layout and target light levels. The polycarbonate lens protects the optical assembly.
Adjustability and Control Options
This fixture supports 1-10V dimming. The dimming control connection must be included in the installation plan where adjustable output is required.
The fixture has a fixed 5000K color temperature and fixed 120 degree beam angle. There are no listed field-selectable wattage, color temperature, or optical settings.
Longevity and Reliability
The rated life is 50,000 L70 hours. L70 indicates the point at which light output is rated at 70 percent of initial output.
The operating temperature range is -40F to 140F. A 10kV surge protection rating is included.
Build Quality and Physical Characteristics

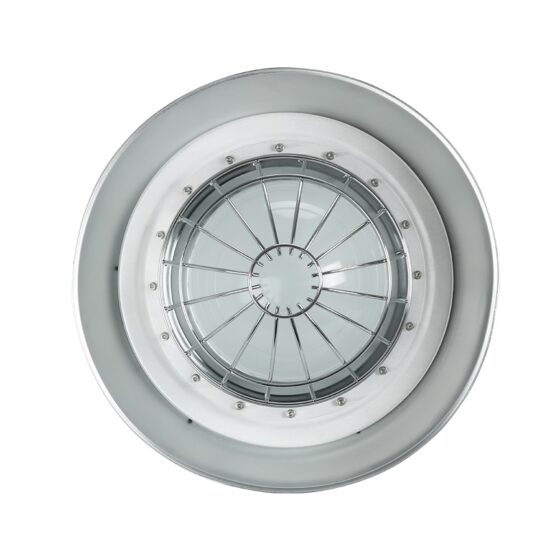

The housing is copper free aluminum with an IP66 rating and IK10 impact rating. The fixture uses a polycarbonate lens.
Overall dimensions are 12.6 inches in diameter by 9.2 inches high. Fixture weight is 22.60 pounds.

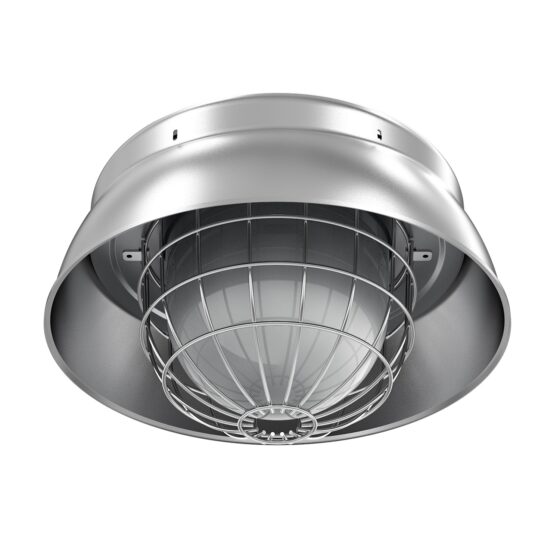

The mounting connection is a 3/4 inch NPT pendant mount. The supporting structure and pendant assembly must accommodate the fixture weight.
Where This Product Fits Best
This fixture fits classified and severe-service locations that require explosion proof lighting with a pendant-mounted round fixture. Its Class I, II, and III ratings, wet-location suitability, marine outside type listing, and NSF rating define its intended operating environments.
- hazardous location lighting
- chemical processing facility lighting
- paint booth lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
- wastewater treatment lighting
The IP66 enclosure, IK10 impact rating, copper free aluminum housing, and -40F to 140F operating range support demanding environmental conditions. Final use must match the applicable area classification.
Installation and Long-Term Use
Installation uses the 3/4 inch NPT pendant mount. The mounting location must provide adequate support for the 22.60 pound fixture and allow proper wiring access.
The 100V-277V input range and 1-10V dimming connections should be confirmed before installation. The fixture is rated for wet locations.
Long-term maintenance should include inspection of the lens, housing, pendant connection, and wiring entries. Any service work must maintain the fixture’s listed configuration and area classification requirements.
How This Fixture Is Commonly Used
In hazardous location lighting, chemical processing facility lighting, and paint booth lighting, these fixtures are typically pendant-mounted above the active area to direct the 120 degree distribution downward. Mounting height is established by the area layout, target light levels, and clearance requirements.
For oil and gas facility lighting, refinery lighting, marine environment lighting, and wastewater treatment lighting, fixture positions are arranged around the working area and available mounting structure. Spacing varies with mounting height, required light levels, and the 120 degree beam distribution.
Higher output can reduce fixture count in a layout, but the final placement must control light levels and uniformity across the area.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. Class I, Division 2, Groups A, B, C, D. Class II, Division 1, Groups E, F, G. Class II, Division 2, Groups F, G. Class III.
UL 1598 Suitable for Wet Locations. UL 1598A Marine Outside Type. ABS. NSF. ETL. Rebate Eligible. NSF Rated Food Grade.
The warranty is 5 years.
Frequently Asked Questions
Q: What is the light output of this explosion proof fixture?
A: The fixture delivers 28,000 lumens at 200 watts, with an efficacy of 140 lumens per watt.
Q: What voltage does this fixture use?
A: The input voltage range is 100V-277V at 50-60Hz.
Q: Does this fixture support dimming?
A: Yes. It supports 1-10V dimming.
Q: What mounting connection does this fixture use?
A: The fixture uses a 3/4 inch NPT pendant mount.
Q: What should be considered when planning fixture layout?
A: Mounting height, target light levels, area layout, and the 120 degree beam distribution affect fixture placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Can this fixture be used for hazardous location lighting?
A: Yes. The fixture is rated UL 844 Hazardous Locations and is listed for Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; and Class III.
Q: What should be confirmed for chemical processing facility lighting or refinery lighting?
A: Confirm the applicable area classification, mounting structure, input voltage, and required light levels before final fixture placement.
Q: Is the fixture listed for marine environment lighting?
A: The fixture is UL 1598A Marine Outside Type and ABS rated.
Q: What environmental ratings apply to wastewater treatment lighting?
A: The fixture is IP66 rated, IK10 rated, UL 1598 Suitable for Wet Locations, and rated for operation from -40F to 140F.
