20 / 35 / 50 Watt Adjustable Jelly Jar Explosion Proof LED Light | 2200 to 5500 Lumens | Class 1 Div 2 | 5000K | 100-277V or 277-480V

Product Overview

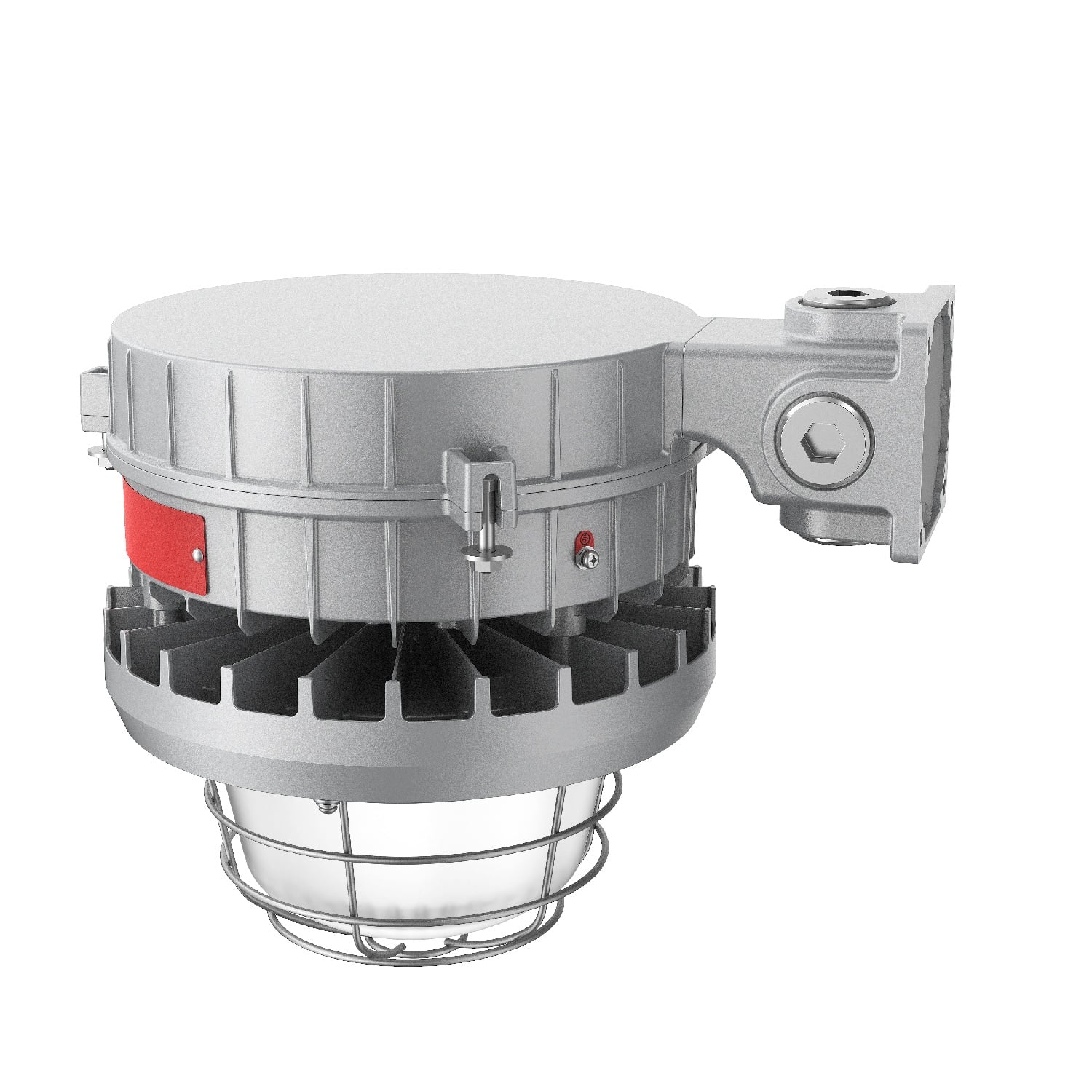

This adjustable jelly jar explosion proof LED light is a wall-mounted hazardous location fixture with 25W, 35W, and 50W output settings. It produces 2200, 3850, or 5500 lumens at 5000K.

The fixture uses a curved tempered glass globe with wire guard, copper-free aluminum housing, and a 120 degree beam distribution. It is configured as a replacement for 100W metal halide fixtures where wall-mounted hazardous location lighting is required.

Core Performance and Output

The selectable wattage settings provide 110 lumens per watt across the available output levels. The 120 degree distribution supports broad wall-mounted coverage, while the tempered glass lens protects the LED assembly.

This fixture operates on either 100-277V or 277-480V input voltage at 50/60Hz. Power factor is greater than 0.95 and THD is less than 20%.

The 5500-lumen setting can be excessive for close-range wall locations. Higher mounting positions require review of the required light level and layout because the fixed 120 degree distribution does not provide narrow beam control.

Adjustability and Control Options

Wattage is adjustable between 25W, 35W, and 50W. Output selection allows the fixture to be matched to the required illumination level without changing the fixture body.

This fixture is not dimmable. The available voltage configurations are 100-277V and 277-480V.

Longevity and Reliability

The LED system is rated for 164,000 L70 hours. This rating supports long operating intervals in locations where fixture access can be restricted by hazardous-area procedures or marine conditions.

Operating temperature range is -40F to 140F. Integrated 10kV surge protection provides electrical protection for the fixture.

Build Quality and Physical Characteristics

The housing is copper-free aluminum with a gray finish. The fixture measures 13.58 x 9.68 x 10.55 inches and weighs 13 pounds.

A curved tempered glass globe and wire guard are standard. The fixture is rated IP66, IK08, and NEMA 4X.

Where This Product Fits Best

This fixture fits wall-mounted hazardous location and marine lighting work where low to medium output, wet-location construction, and classified-location ratings are required. Its enclosed jelly jar form factor suits areas needing protected perimeter or access-point illumination.

• hazardous location lighting
• explosion proof lighting
• paint booth lighting
• chemical processing facility lighting
• marine environment lighting
• oil and gas facility lighting
• refinery lighting
• solvent storage area lighting

UL 844 hazardous location ratings include Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; and Class III. UL 1598 wet-location suitability and UL 1598A Marine Outside Type are listed certifications.

Installation and Long-Term Use

The fixture mounts on a wall and requires support for its 13-pound weight. Confirm the selected voltage configuration before installation.

Install the fixture with the globe and wire guard positioned to protect the lens assembly. Long-term maintenance should include inspection of the globe, guard, mounting condition, and exterior housing.

How This Fixture Is Commonly Used

In hazardous location lighting and explosion proof lighting layouts, this fixture is wall-mounted where broad 120 degree distribution is needed from a protected enclosure. Mounting height is determined by the project layout, target light levels, and wall location.

Paint booth lighting, chemical processing facility lighting, and solvent storage area lighting installations typically use wall locations to direct light across the work area. Spacing varies with the selected wattage setting, mounting height, and required light level.

For marine environment lighting, oil and gas facility lighting, and refinery lighting, the fixture is positioned where its IP66, NEMA 4X, and marine outside type ratings match the project requirements. The fixed beam angle should be considered when setting fixture locations along walls.

Safety, Certifications, and Warranty

UL 844 hazardous location certification is listed. Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; and Class III ratings are listed.

UL 1598 suitable for wet locations, UL 1598A Marine Outside Type, NEMA 4X, IP66, and IK08 ratings are listed. The fixture includes a 5-year warranty.

Frequently Asked Questions

Q: What wattage and lumen settings are available?

A: The fixture is adjustable between 25W, 35W, and 50W. Output is 2200, 3850, or 5500 lumens.

Q: Is this fixture dimmable?

A: No. This fixture is not dimmable.

Q: What mounting method does this fixture use?

A: This fixture is wall-mounted.

Q: What should be considered when planning fixture placement?

A: Mounting height, selected wattage, target light levels, and layout requirements affect fixture placement. A specific spacing value is not established by the supplied product data.

Q: Is this fixture listed for marine environment lighting?

A: Marine environment lighting is a valid application. UL 1598A Marine Outside Type is listed.

Application Questions and Clarification

Q: Can this fixture be used for hazardous location lighting?

A: Hazardous location lighting is a primary application. The fixture is listed for UL 844 hazardous locations, including Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; and Class III.

Q: What output setting should be selected for paint booth lighting?

A: Paint booth lighting is a primary application. Select 25W, 35W, or 50W based on the required light level and project layout.

Q: What voltage information is needed for installation?

A: Confirm whether the installation requires the 100-277V or 277-480V configuration before installation.
